Hacking Need some help to fix a problem during a failed Hwfly lite installation

[kimitoboku101]

Hello i have try to self install HWFLY chip but after all my lcd not turn on, not any sign of life for my switch even i desolder all, some one can guide me to solve this trouble ???

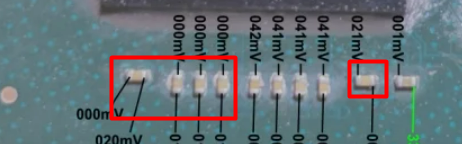

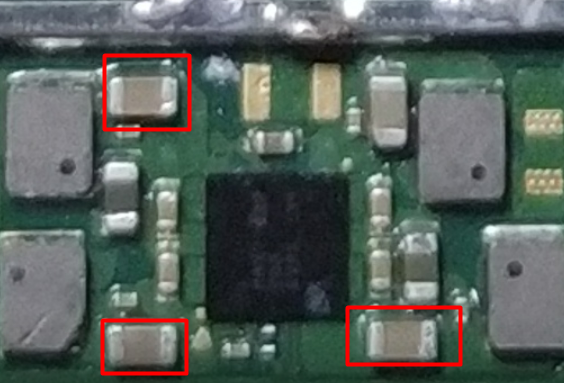

i try test and the component is short



[cowboy619]

Those are low impedance. They are not short. You probably installed it incorrectly and fried the lcd. Common failure with the lite


Sent from my iPhone using Tapatalk



[kimitoboku101]

Those are low impedance. They are not short. You probably installed it incorrectly and fried the lcd. Common failure with the lite


Sent from my iPhone using Tapatalk

So how to fix it ??



[jkyoho]

Did you fix your ripped pads on the rst test joint? Without that the switch wont boot.(I assume you just wire up all cable with the alternative location I pointed out but didn't really solve the original test joints that you broke by accident)



[kimitoboku101]

Did you fix your ripped pads on the rst test joint? Without that the switch wont boot.(I assume you just wire up all cable with the alternative location I pointed out but didn't really solve the original test joints that you broke by accident)

YEAH you right , but how can i solve it =((( i only broke the CLK point



[jkyoho]

You have to dig or grind down the original 2 test points and expose the undef layer trace and solder then together. IMO this will be out of most people capability



[kimitoboku101]

You have to dig or grind down the original 2 test points and expose the undef layer trace and solder then together. IMO this will be out of most people capability

so this is connect of 2 point in another side of board, ---> if can we can using clk point in another side instead of dig solution Right



[jkyoho]

Here is the test point joint together under the top layer of PCB. When you ripped the pads, they turn to separate, so EMMC on the left trace end lost communication to CPU

Post automatically merged: Mar 22, 2023

so this is connect of 2 point in another side of board, ---> if can we can using clk point in another side instead of dig solution Right

It does not go to another side of the motherboard but under the EMMC. The test point you broke is like a constant open pipe line valve communicate between EMMC and CPU. When you ripped off the pads, CPU dont see your EMMC

Post automatically merged: Mar 22, 2023

Post pic on your damaged CLK point to see what you can do
