need help with resistor and capacitor values

Thread starter Eierfeile
Start date Jan 15, 2022
Views 1,323
Replies 0

E

Eierfeile

Member

Newcomer

Jan 15, 2022

#1

Hello everyone,

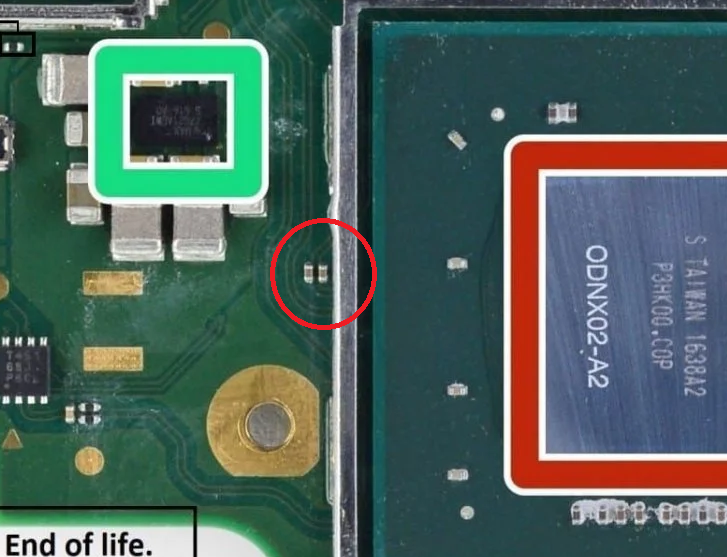

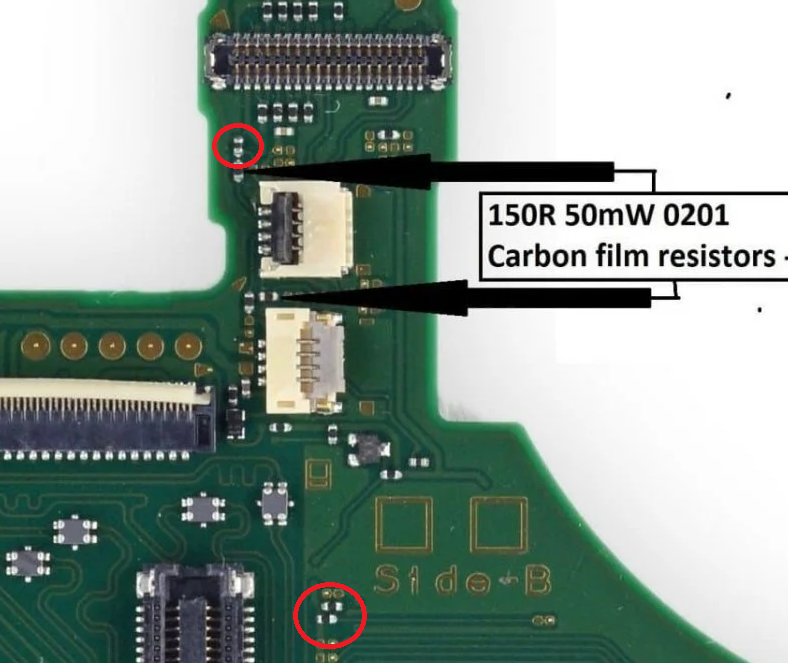

i need help identifying values of 3 resistors and the 2 caps left from the APU because i have a board where the resistors are knocked off and one of the caps is in bad shape (ripped corner)
and there is a short around the MAX77621 left from the APU, desoldering the MAX doesnt solve this.
maybe someone has a clue where to investigate the shorts
