[Motherboard] I lost a small part :(

Discussion in '3DS - Flashcards & Custom Firmwares' started by WoOzGaME, Jul 5, 2017.

  1. WoOzGaME
    OP

    WoOzGaME Member

    Newcomer
    43
    5
    Feb 24, 2017
    France
    Hello,
    By mistake, I lost the trick that holds the tablecloth, and I do not know how to do so my home button no longer works.
    Thanks, if you can help me ^^
    [​IMG]

    Last edited by WoOzGaME, Jul 5, 2017
  2. Baoulettes

    Baoulettes The lonely man

    Member
    553
    167
    May 25, 2011
    France
    C:\Users\Baoulettes\Desktop\GBATemp
    FR:
    (image peter ^^)
    Et peut-etre tu aurais besoin d'un poste en anglish :)


    ENG:
    (broken picture's link)
    And maybe you will need to do a post in english ^^

    Edit:
    Post corrected so don't mind my original post :)
    About missing part you could try to glue it if you do not happen to open it again OR
    you can use "patafixe" I am unsure about english name, usually yellow and that easy to remove :
    [​IMG]
    But use a really small portion!
    Else you can try to find broken motherboard and take it from there but that will cost way more

    Last edited by Baoulettes, Jul 5, 2017
  3. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,426
    5,848
    Jun 29, 2007
    Germany
    Niedersachsen
    Hmm... muy mala suerte.
    Quizás puedas solucionarlo haciendo presión sobre el contacto, pero me parece que vas a tener que cambiar el conector por uno nuevo.
    Tienes experiencia soldando? /s

    PS: Speak English, please!

  4. WoOzGaME
    OP

    WoOzGaME Member

    Newcomer
    43
    5
    Feb 24, 2017
    France
    C'est mon traducteur qui a fait foiré x)

  5. Mikemk

    Mikemk GBAtemp Advanced Maniac

    Member
    1,594
    583
    Mar 26, 2015
    United States
    Can someone who saw his original post give a better translation?

    Zidapi likes this.
  6. WoOzGaME
    OP

    WoOzGaME Member

    Newcomer
    43
    5
    Feb 24, 2017
    France
    Yes, I could solder

  7. Mikemk

    Mikemk GBAtemp Advanced Maniac

    Member
    1,594
    583
    Mar 26, 2015
    United States
    Is he saying he broke the ribbon connector?

  8. Baoulettes

    Baoulettes The lonely man

    Member
    553
    167
    May 25, 2011
    France
    C:\Users\Baoulettes\Desktop\GBATemp
    Here it is :

    Hi
    By mistake, I have lost the tiny white or black* plastic part that hold wires, and I do no know how to fix it and so my Home button does not respond anymore.
    Thank you if you can help me^^



    * on mine it's white that why I first said white :)

  9. sarkwalvein

    sarkwalvein More coffee, please!

    Member
    GBAtemp Patron
    sarkwalvein is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    5,426
    5,848
    Jun 29, 2007
    Germany
    Niedersachsen
    I think the picture "speaks for a thounsand words".
    He has this connector that has a hat that presses down the flex cable.
    The hat fell down, got broken, etc.
    It is not uncommon for this to happen if you aren't careful.

  10. WoOzGaME
    OP

    WoOzGaME Member

    Newcomer
    43
    5
    Feb 24, 2017
    France
    Yes, I'm saying exactly, and I'm looking for a solution

  11. LameNobody

    LameNobody Weighted Companion Cube Enthusiast

    Member
    461
    234
    Jan 23, 2015
    Canada
    127.0.0.1
    I've had luck with hot glue, Put a small drop on the ribbon cable, wait two seconds, then press on the glue.
    Pressing on the glue pushes the ribbon against the pins and spreads the glue at the same time, it hardens pretty quickly and can easily be removed with rubbing alcohol

  12. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    12,531
    5,475
    Mar 17, 2010
    Norway
    Alola
    Either try this, or try building up some layers of tape on top of a layer of paper in order to put pressure on the connector, someone else fixed a broken connector by doing that.

  13. leerz

    leerz GBAtemp Advanced Fan

    Member
    538
    135
    Jan 11, 2015
    Makati
    i believe that ribbon is one sided only, so you cant put pressure on the top.
    the pressure trick only works if the top is not broken.
    these n3ds sockets were a surprise

    2 ways you can

    solder the cable to the board.

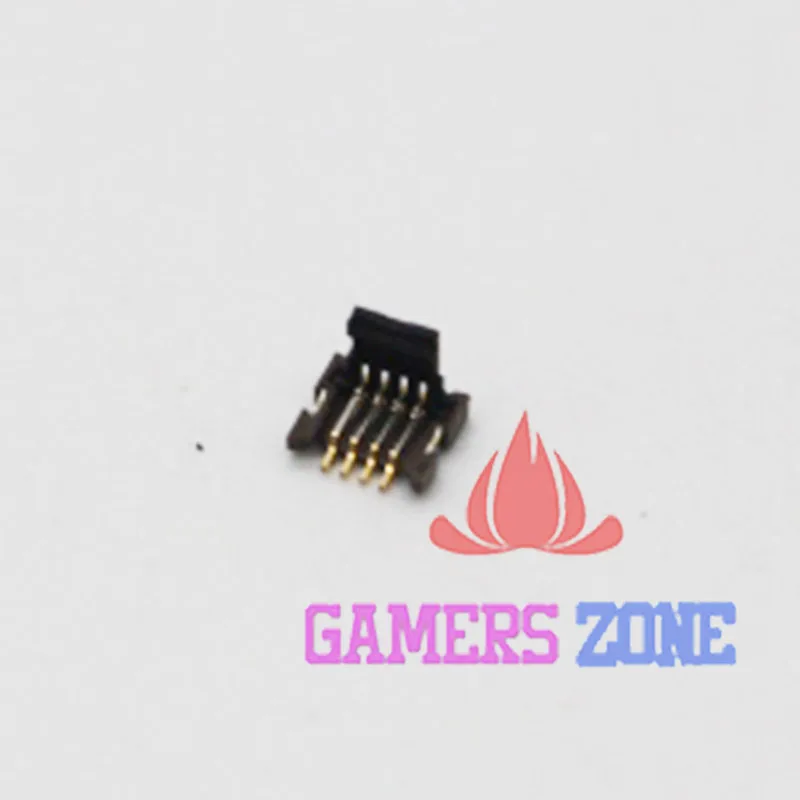

    or replace the socket [​IMG]

    Last edited by leerz, Jul 6, 2017
  14. WoOzGaME
    OP

    WoOzGaME Member

    Newcomer
    43
    5
    Feb 24, 2017
    France
    Do you have a link for the cable on the picture? (With possibility of delivery in France)

    Last edited by WoOzGaME, Jul 6, 2017
  15. CMDreamer

    CMDreamer GBAtemp Regular

    Member
    299
    116
    Oct 29, 2014
    Mexico
    That pic is from a chinese store, on Aliexpress site (hope it's OK to mention the site, even though I'm not providing a link to it). They sell a great amount of replacement parts, but some of them are quite expensive.

    And yes please, provide a link to that specific item if you can, thanks.

  16. SirECK

    SirECK GBAtemp Fan

    Member
    440
    111
    Jul 1, 2009
    Canada
    Ontario, Canada
    The part you need is a zif connector
    https://www.digikey.ca/product-detail/en/jae-electronics/FA1004SA1-R8000/670-2694-1-ND/4172807
    FYI they are a friction lock and can't be "opened" you just pull or push the cable in and out.
    Found out the hard way.:wacko:
    This thing is small, really small and hard to solder, but if you have the correct micro tip you can try.
    There is more info on a thread here, but i'm not sure where it is anymore.


    Also they have a french site too.
    https://www.digikey.fr/
    https://www.digikey.fr/products/fr?keywords=670-2694-1-ND


    Found the topic:
    https://gbatemp.net/threads/repair-new-3ds-home-button.390507/#post-5534175

    You can thank @Wuigi as he/she found the correct part #.

    Last edited by SirECK, Jul 6, 2017
    sarkwalvein likes this.
  17. WaterDemonBaku

    WaterDemonBaku Member

    Newcomer
    24
    2
    Aug 28, 2016
    United States
    Here in US, that's called TAC, it's adhesive putty and you can find it at some stores in the stationary department. Haven't tried it at all but I might look into it for some units with this problem in the future.

    Baoulettes likes this.
