Modding my N3DS XL

Discussion in '3DS - Console, Accessories and Hardware' started by TariqSoftDev, Apr 17, 2016.

?

Worthwhile mods

  1. Built in SD Card reader

    18 vote(s)
    32.7%
  2. NAND R/W

    35 vote(s)
    63.6%
  3. C-Stick

    24 vote(s)
    43.6%
  4. PC controller port

    14 vote(s)
    25.5%
  5. Charge port

    17 vote(s)
    30.9%
  6. Speaker mod

    20 vote(s)
    36.4%
  7. Larger internal battery

    23 vote(s)
    41.8%
  8. Move micro SD slot

    20 vote(s)
    36.4%
Multiple votes are allowed.
  1. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    Okay so I'm pretty new to N3DS hardware modding , although I've modded a lot of other things like desktop, laptop motherboards and psps , the only mod I've done so far is a Wifi antenna mod where i replaced it with the NookHD+ ACON wifi Antenna , the cable seemed shity so I used one from a CISCO business repeater.

    Mods done so far:
    *C Stick.
    *Wifi antenna.
    *NAND mod.

    Mods that will be done VERY soon:
    *Large internal battery.
    *Moved SD slot(GPD XD position).
    *Internal SD card reader.

    Here is a little list of the mods I'm going to attempt to do:
    *Speaker mod(I'm currently looking for a VERY tiny Bluetooth audio transmitter)
    *PC controller mod(I'll try and do this but it wont be any time soon)

    Here is some mods I MAY do:
    *PC controller port.
    *Micro USB charge port(If they don't bring any add-on's that plug in.)
    *Speaker mod.




    Picture of the wifi antenna
    [​IMG]
    Now sits on the bottom part of N3DS XL.
    [​IMG]
    The Splendor ACON H/F antenna, original cable was very weak replaced with a CISCO repeater cable.

    Results of the wifi mod is good, really long range, I can pick up my wifi from the end of the road :D and the speed doesn't decrease.

    Thank you for your time please tell me if you think any of these mods are not worthwhile.

    UPDATE**

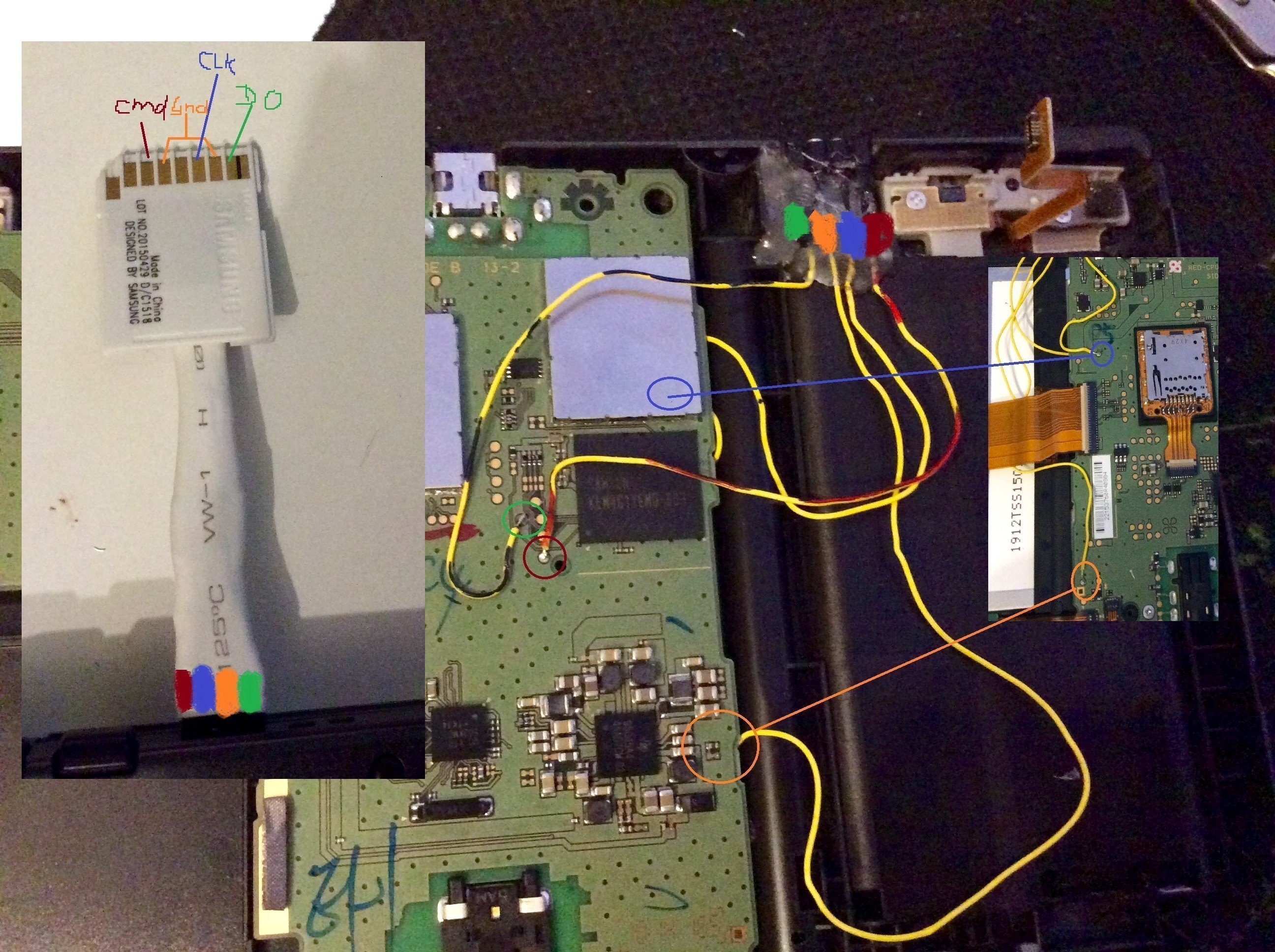

    I have mapped out how the SD card reader will work with the slot moved.

    [​IMG]

    I have now figured out on adding the internal battery, I will be using a 2100mAh 3.7 battery and use the charger protection circuit from the N3DS XL battery to make this work between here I will ad my XOR gate.


    Attached Files:

    Last edited by TariqSoftDev, May 15, 2016
  2. Jack54782

    Jack54782 GBAtemp Fan

    Member
    390
    236
    Jan 4, 2016
    United Kingdom
    A9LH CRUSADE
    definitely do a hardmod, even if you have a9lh and change the c-stick,

  3. SANNIC789

    SANNIC789 GBAtemp Advanced Fan

    Member
    704
    91
    Oct 3, 2015
    United States
    a9lh kinda sucks tho

  4. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    Yeah I know so irritating my 64GB UHS class 10 SD card broke and i cant even use my SysNand , atleast its not like MenuHax and its slow ass boots,waiting for my dad to come back so I can start all the modding.

  5. Potato hoarder

    Potato hoarder Hoarder of Potatoes

    Member
    388
    109
    Feb 2, 2016
    Canada
    Toronto, Ontario, Canada
    Did you not back up your sd card with your nand?

  6. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    Yeah but the backups a couple of days old... lost a lot of game play T_T.

  7. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    i have a psp-1000 nub as c stick and i love it, but don't just plug it on the c stick holder, glue it in, makes it feel so much better.
    i also have hard mod. it's a n3ds xl, i love both of these mods, but i've never heared of the wifi mod nor do i know what you'd want to do to the speakers :P?
    really like this stuff though

  8. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    Well replacing the Wifi antenna is easy, as for the speakers ill see what I can do.

  9. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    what was the benefit? i'd be awesome to have a 5ghz in a 3ds =), dont think that's possible though

  10. TheDuckMan64

    TheDuckMan64 Chicken nugget.

    Member
    355
    48
    Oct 9, 2015
    Do you mean an upgraded processor? It would be tricky, but I think it is possible :P

  11. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    noo. i'm talking about wifi. instead of 2.4ghz wifi to have 5ghz on the 3ds, i'd be so much faster and stable =)

  12. driverdis

    driverdis I am Justice

    Member
    2,452
    940
    Sep 21, 2011
    United States
    1.048596β
    It is too bad the New 3DS did not have 5GHz or at least Wireless N support.

  13. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands
    that's why i say, i'd be awesome to mod that in to it, if even possible,probally not

  14. TheDuckMan64

    TheDuckMan64 Chicken nugget.

    Member
    355
    48
    Oct 9, 2015
    Oh :P that would be so much better!

  15. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    To enable a 5ghz band will mean changing the whole network adapter, also means adding drivers into a custom 3DS firm which will have to be recompiled for every new system firm, the cost will not be worth the result, this mod just increases range and strength.
    Also the driver will have to be ported to work on the 3DS the time isn't really worthwhile.

    Although now you mention it I may try it :D

    Last edited by TariqSoftDev, Apr 21, 2016
  16. TheDuckMan64

    TheDuckMan64 Chicken nugget.

    Member
    355
    48
    Oct 9, 2015
    Any progress for us? :P

  17. TariqSoftDev
    OP

    TariqSoftDev ~Zexceil

    Member
    492
    122
    Sep 18, 2013
    London
    A bit of progress C-Stick coming tomorrow, will start NAND mod soon, designing some blueprints for internal battery and internal SD card reader, although as of now I'm quite busy with school, I'm checking the Wifi IC chip , seeing if I can use the one from the CISCO repeater, max i would take is 5 weeks.

    That's all for now, sorry just a really busy guy.

    — Posts automatically merged - Please don't double post! —

    Okay NAND mod will be ready in about roughly a week.

  18. TheDuckMan64

    TheDuckMan64 Chicken nugget.

    Member
    355
    48
    Oct 9, 2015
    Lel stupid question

  19. Dennis G

    Dennis G GBAtemp Advanced Fan

    Member
    671
    205
    Jan 4, 2016
    Netherlands

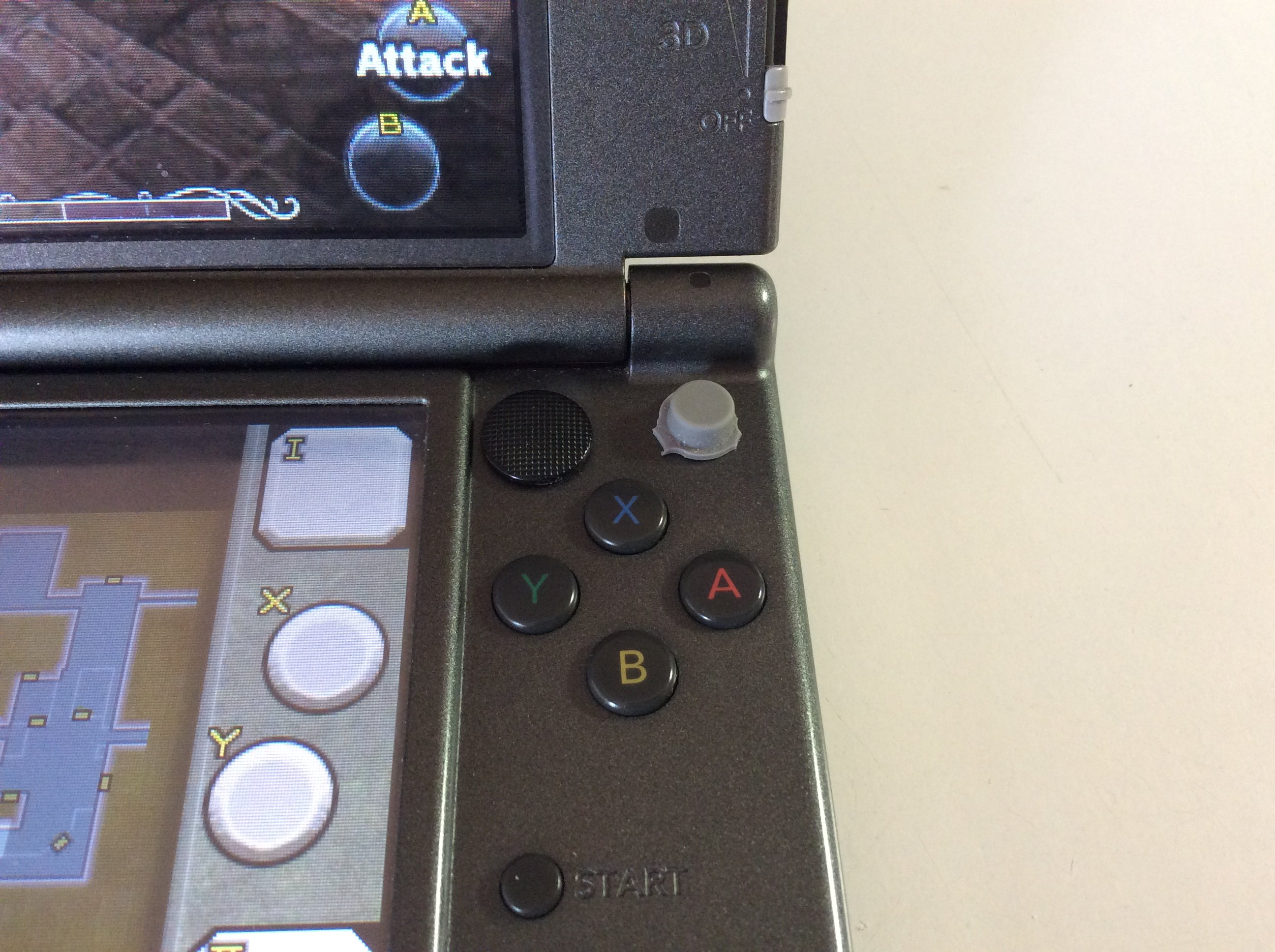

    Here is my c stick/psp mod =)

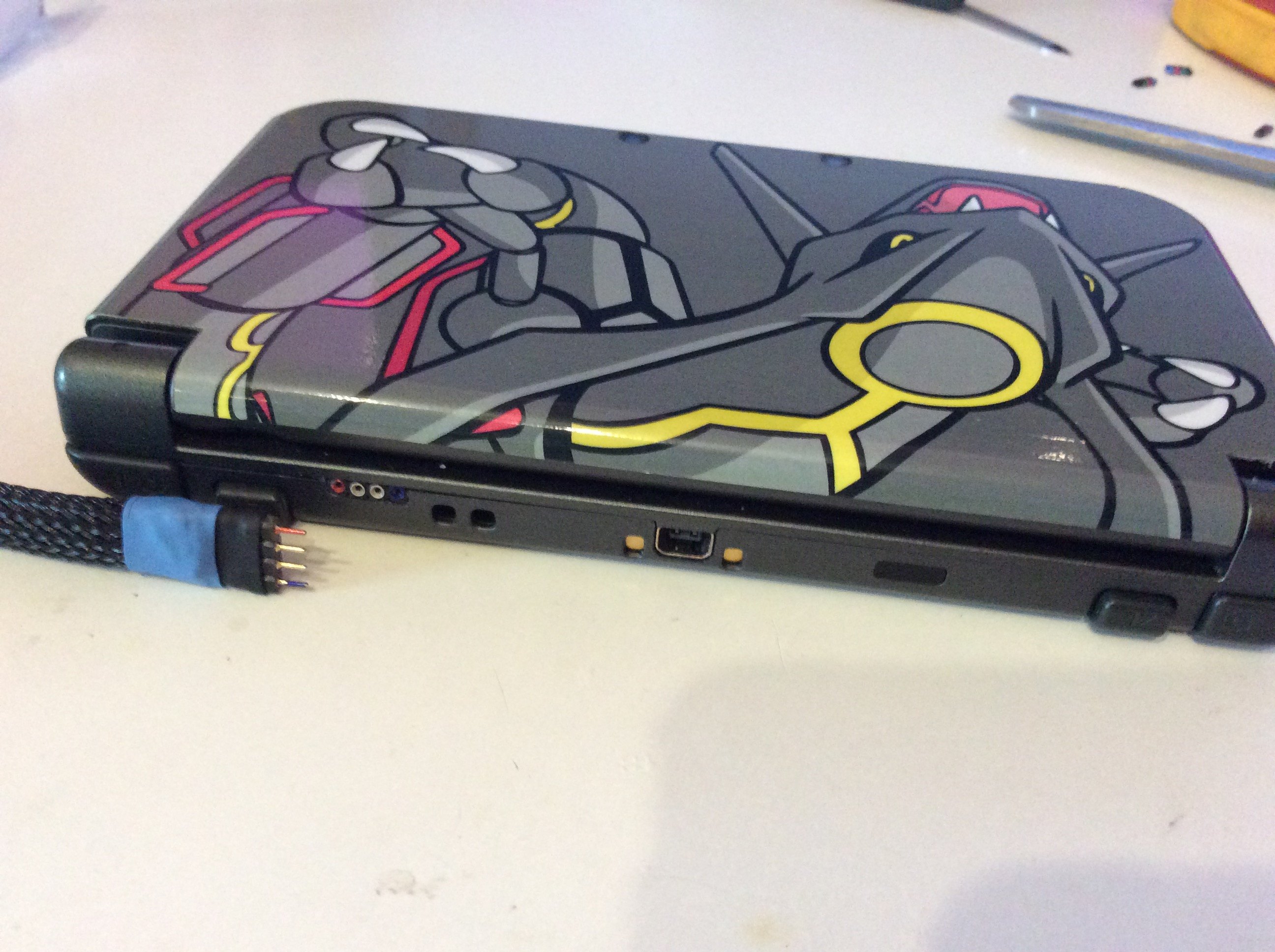

    and my current hardmod, i already have a micro usb b franken sd but i'm waiting for my adafruit micro usb port so i can replace my current setup to a micro usb port ^^
    IMG_0130.JPG layout.jpg , you could use my pictures for reference purposes =)

    TheDuckMan64 likes this.
  20. alex61194

    alex61194 GBAtemp Advanced Fan

    Member
    514
    90
    Feb 13, 2016
    is worth it to put psp stick? i have n3ds (not the xl)
