Micro-DS ... a Tandy MC-10 Micro Color Computer Emulator

  • Thread starter Thread starter wavemotion
  • Start date Start date
  • Views Views 1,776
  • Replies Replies 16
  • Likes Likes 13

wavemotion

Benign Geek
Member
Joined
Nov 23, 2020
Messages
1,227
Reaction score
7,689
Trophies
2
XP
10,332
Country
United States
It's almost ready... maybe another week or so.

When the beta is ready, it will appear here: https://github.com/wavemotion-dave/MicroDS

You will need the 8K MICROCOLOR BASIC ROM (MC10.BIN or MC10.ROM)





This one is getting really close! One final issue to work out and I think it's ready for beta.

You should seek out some of the cool stuff that was done for this little baby computer: PAC-MAN homebrew takes the MC-10 to the limits, S.U.K.S is a fun little semi-graphics shooter, Dragon's Castle 2020, MC Bouncy Ball, Berzerk and Meteor are some of my favs.

I'll have code up in a day or two.. but if you have the ability to star my lonely repository, that would be splendid:

https://github.com/wavemotion-dave/MicroDS

Ha! Very cool! MC-10 PAC Man is one of the more demanding games for this micro system. I hope it plays smoothly on nearly ancient DS hardware :)
Compared to XROAR ONLINE, it seems to be fullspeed on the relic :D

60 fps in your emu.

May I ask you to increase the max sound volume ? It is quite low.

Last edited by CrashMidnick,
https://github.com/wavemotion-dave/MicroDS

v0.8: 17-Aug-2024 by wavemotion-dave
  • Fix for SG6 graphics when character index is > 128
  • A subset of 'common' 6803 undocumented instructions added.
  • START issues CLOAD/CLOADM and SELECT issues the RUN command.
  • Cleanup of configuration and key map handling.
  • Removed partial MCX support until a better plan can be had.

Hey guys, sorry I haven't been very active on the forum lately. My real life has been very hectic lately, but I've been following the news, and wow! What news!

A huge thank you to you, Dave. Once again, you've prepared a little gem for us. It's so cool! :bow:

For those wondering what games I'll be able to play on this emulator, here's the answer in a video. One year ago, a french YouTuber made a video about the Tandy MC-10 and the Matra Alice 4K (its French clone):



Personally, I have a soft spot for Inufuto games, which can be found here:

https://colorcomputerarchive.com/repo/MC-10/Software/Games/Inufuto's%20Games/

Thanks Indy! I appreciate you man.

Getting close on this... Just released another version. Only cleanup remains - all features are in.

V0.9: 21-Aug-2024 by wavemotion-dave
  • Implemented all undocumented 6803 CPU opcodes.

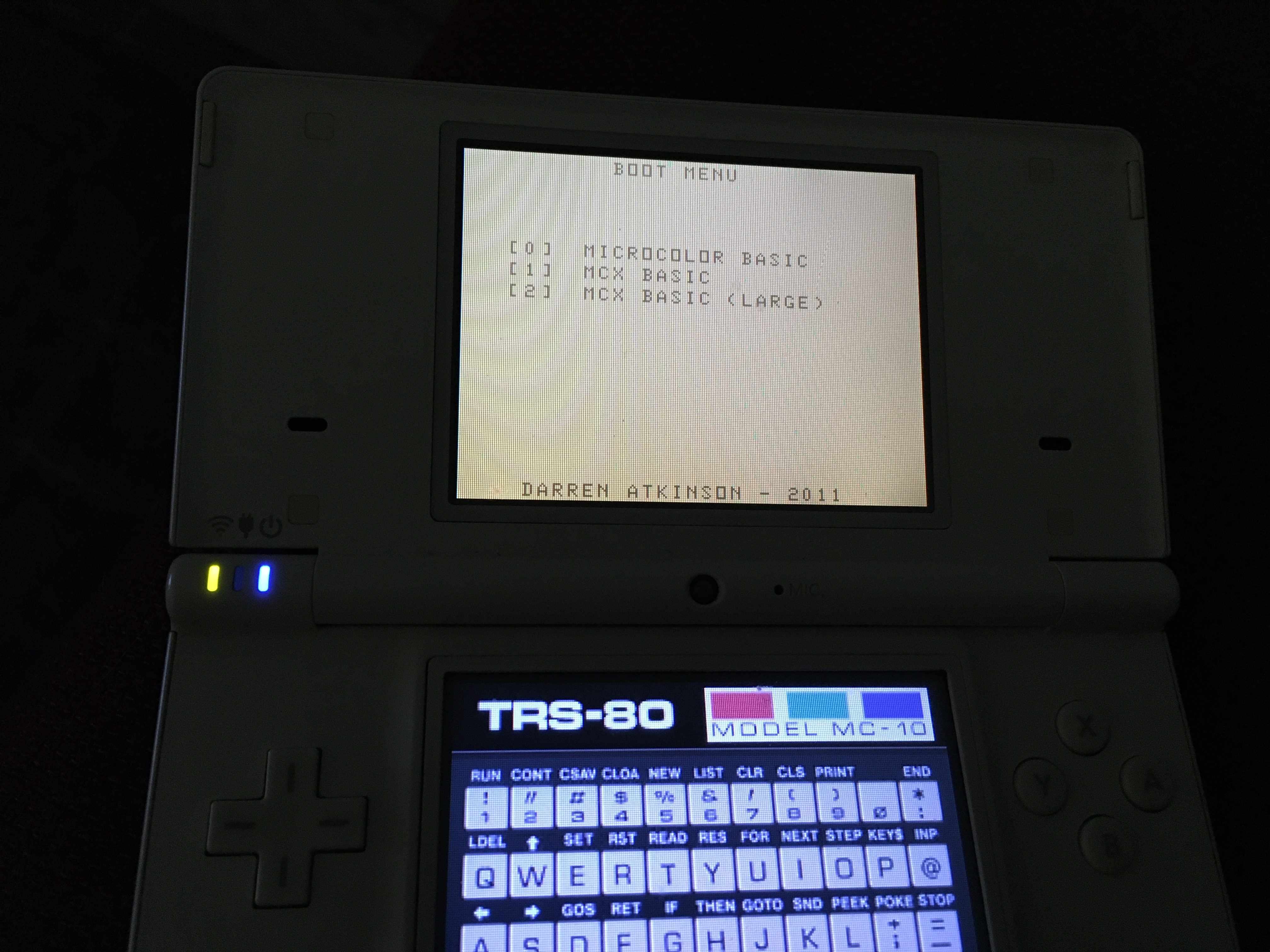

  • Added partial MCX support for MCXBASIC 2.1
  • Improved timer handling and implemented proper timer counter latching.
  • Cleanup and commenting across the board as time permitted.

MCXbasic 2.1 ??
It's the version of MCXBASIC from the MCX-128 project. MAME supports it as well. It requires MCX.ROM with the exact checksum as mentioned in my readme file. There is precious little that needs MCXBASIC - so it might not be worth tracking down.

  • Like
Reactions: nitrozz
Well... it's been a minute as the kids say!

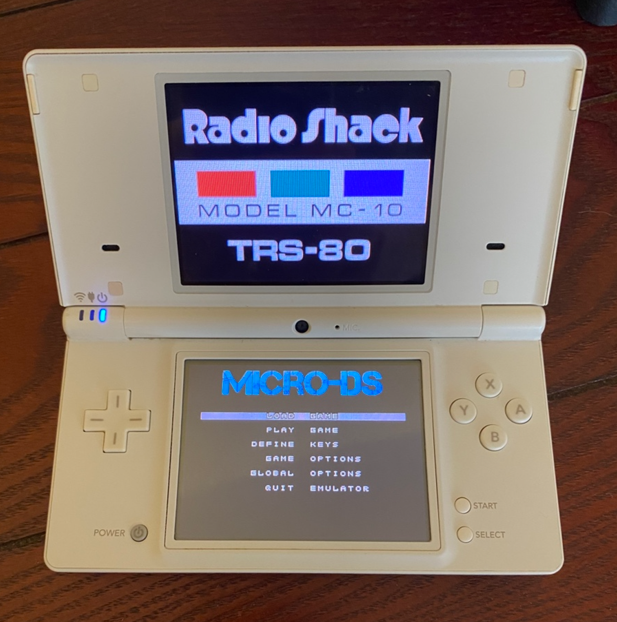

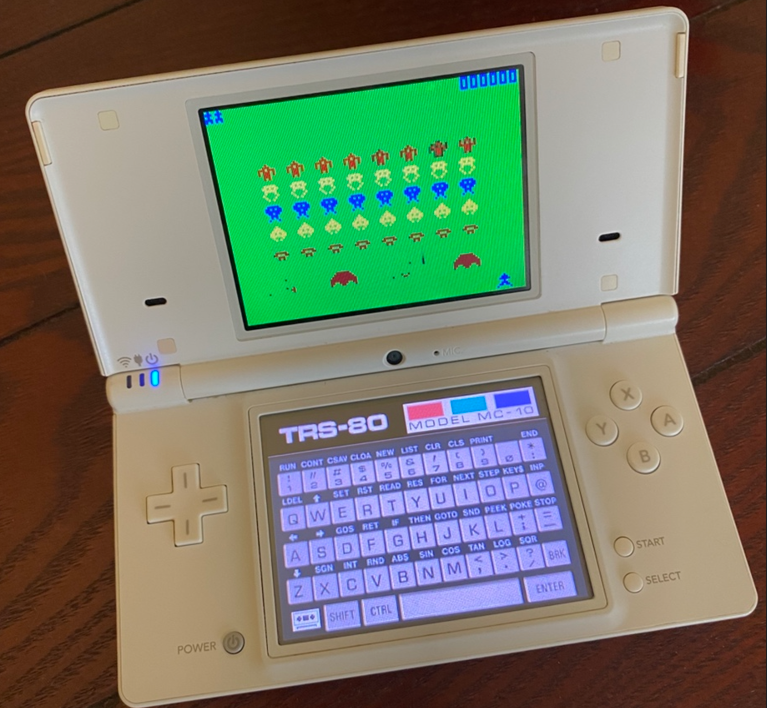

Almost a year since my initial release of MicroDS - a handheld MC-10 (and Alice) emulator running on a DS/DSi/XL/LL.

https://github.com/wavemotion-dave/MicroDS

Not a lot changed with version 1.1... I've added 60Hz 'true-sync' that synchronizes the LCD drawing of the MC-10 emulation with the DS to provide for a nearly tear-free experience. I also used a graphical touch-up editor to sharpen the text and edges on the MC-10 virtual keyboard to improve it slightly. Otherwise, most everything is running quite well here.

Of the 11 DS emulators I've developed, this one is the least popular with barely 50 downloads in 1 year. But it's a labor of love...
🙂



Post automatically merged:

Well... it's been a minute as the kids say!

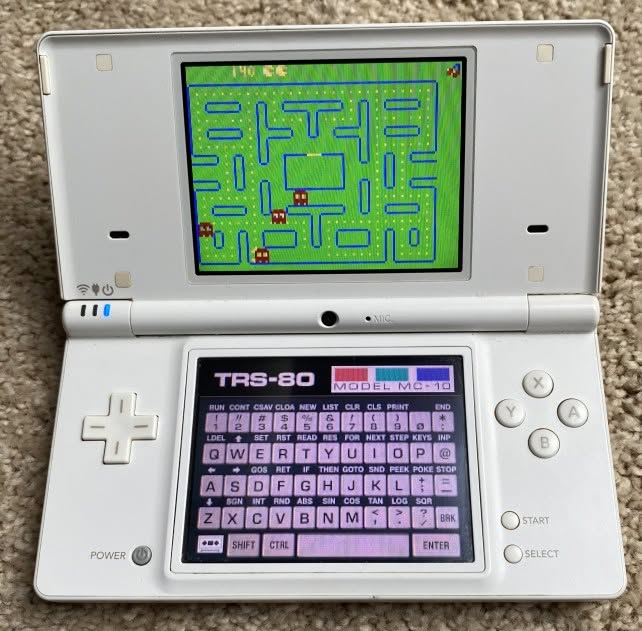

Almost a year since my initial release of MicroDS - a handheld MC-10 (and Alice) emulator running on a DS/DSi/XL/LL.

https://github.com/wavemotion-dave/MicroDS

Not a lot changed with version 1.1... I've added 60Hz 'true-sync' that synchronizes the LCD drawing of the MC-10 emulation with the DS to provide for a nearly tear-free experience. I also used a graphical touch-up editor to sharpen the text and edges on the MC-10 virtual keyboard to improve it slightly. Otherwise, most everything is running quite well here.

Of the 11 DS emulators I've developed, this one is the least popular with barely 50 downloads in 1 year. But it's a labor of love...
🙂
