    Yes, I soldered one to the plate next to the screw, and the other to the horn on the buckle, I'll show pics after I wake up, its 3 am here right now, I should be able to post the pics at about 12:30 my time.

  2. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    Ok, metal one looks cool. Seriously thinking of getting it just for the aesthetic hahaha.

  3. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States
    They lock better also, so if you ever had problems with a loose joycon, they will also fix it.

  4. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    Just ordered! Can't wait for it to arrive.

    wicksand420 likes this.
  5. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States
    Yeah, they are cheep as fuck too, I got 2 sets with the screwdrivers for $2.84 USD

  6. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    Yeah! I got a pair for 0.9 usd. No screwdriver since I already have one. How come u didn't write a tutorial for this mod? Its simple n cheap.

  7. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States
    I actually never made any posts on here before, I should have, but I have a really slow internet connection and it makes it very hard to post videos and stuff.

  8. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    I see, its ok I will just use your pics later and credit u for it. When I get mine I will take a new pic.

    dal665 and wicksand420 like this.
  9. Lush

    Lush GBAtemp Regular
    Member

    Joined:
    Jul 16, 2007
    Messages:
    259
    Country:
    Canada
    This is a great and simple mod. I think I'll be doing the same. Thanks!

  10. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States
    The best part about this mod is, if you do it right, you press firmly to get into rcm, and softly to unlock the joycon, so it doesn't short the wires when you eject the controller.

    Lush likes this.
  11. EclipseSin

    EclipseSin Ignorant Wizard
    Member

    Joined:
    Apr 1, 2015
    Messages:
    2,063
    Country:
    United Kingdom
    lol you took my mod you butthole. Also, use another image site. imgur is blocking hotlinks. I changed the image in the quote to use imgbb instead (had to reupload). They'll show error boxes instead of images when your cache updates.

    Last edited: Jun 25, 2018
  12. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    I see, I will use anorhea image site then. How come u said I took your mod? I just thought of it yesterday.

  13. EclipseSin

    EclipseSin Ignorant Wizard
    Member

    Joined:
    Apr 1, 2015
    Messages:
    2,063
    Country:
    United Kingdom
    I did almost the same exact thing back in April and the metal buckle thingies were brought up then too.

    It's a pretty good mod, both ideas together.

    slslasher likes this.
  14. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    18,621
    Country:
    Norway
    Not a bad idea. But then how will you eject remove the JoyCon? There's a piece that needs to be physically pressed up to allow removal. Unless you removed that piece?

  15. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    Nope, I did not remove any piece. The wire I used is so thin that it is as though nothing is there.

  16. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08
    Member

    Joined:
    Mar 17, 2010
    Messages:
    18,621
    Country:
    Norway
    You weren't very specific about what you did so I wasn't sure exactly how you bridged the pins. I thought maybe you had put an actual button there.
    But you're just relying on the pressure of pressing the button to bridge the two wires?
    How do you make sure the wires aren't accidentally bridged from moving or tilting the JoyCon though? That seems like it would be a problem.

  17. slslasher

    OP slslasher GBAtemp Regular
    Member

    Joined:
    Mar 17, 2015
    Messages:
    149
    Country:
    Singapore
    I used UV glue which is super tight to glue 1 of the wires to the button, the other is just screwed on to the metal plate. So when I press the joycon eject button the wire will touch the metal plate.

    Anyway since I am going to purchase alloy buckle locks recommended by @wicksand420 this shouldn't be a problem as I will just solder the wire directly to the alloy buckle lock.

    The Real Jdbye likes this.
  18. denisscole

    denisscole Newbie
    Newcomer

    Joined:
    Aug 10, 2004
    Messages:
    6
    Country:
    United States
    I've been waiting for the perfect joycon mod and this looks like it may be it. Regarding the metal buckle locks, it looks as though the metal is in constant contact w/ the metal plate that bridges the wires. Is it not what it seems?

  19. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States

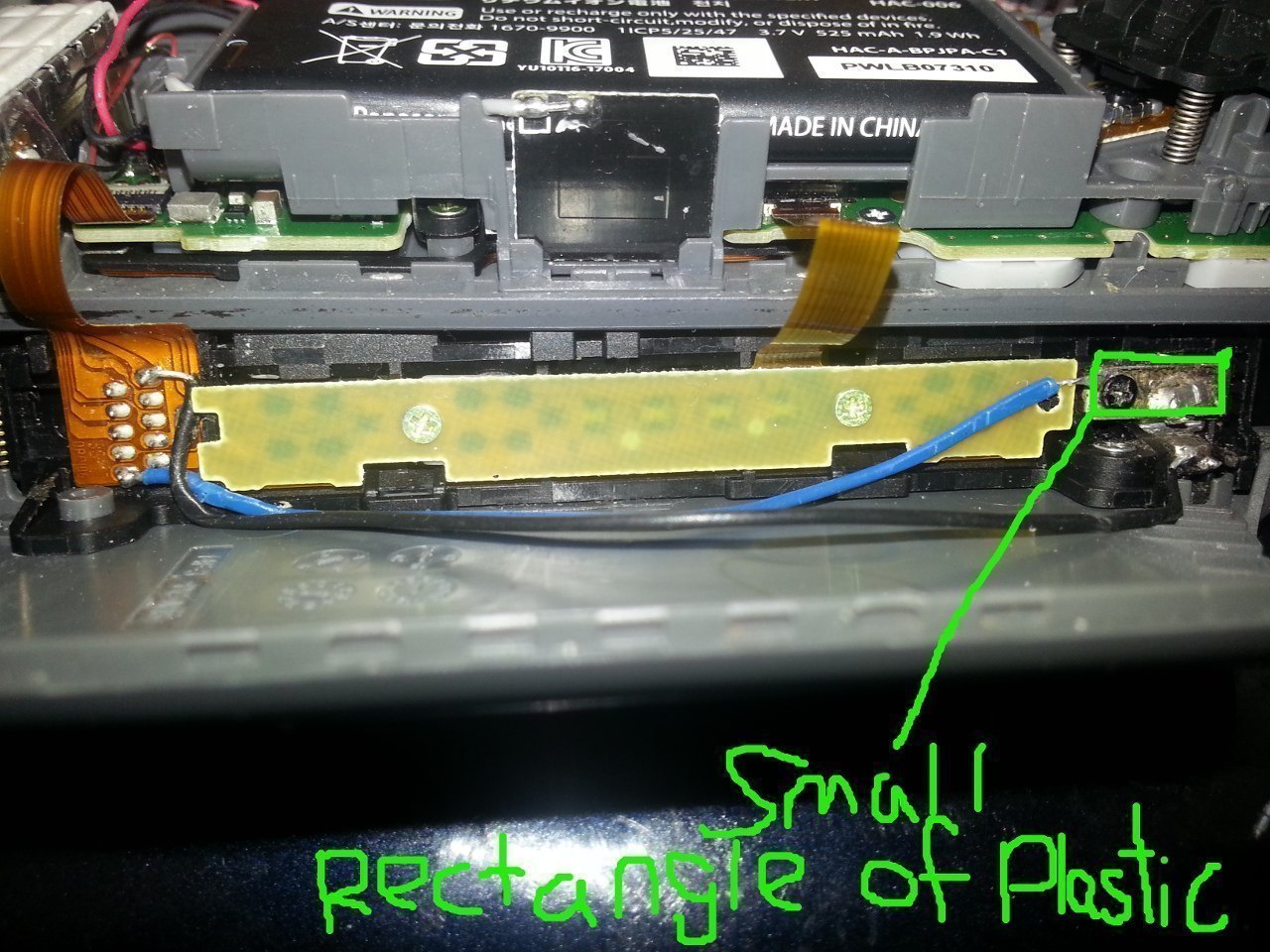

    I cut out a small, thin, rectangle of plastic, and lined it up with the bottom of the metal bracket that holds the buckle down, and punched a hole through the small piece of rectangular plastic for the screw to go through.


    Attached Files:

    • this.jpg
      File size:
      248.9 KB
      Views:
      441
    EclipseSin likes this.
  20. wicksand420

    wicksand420 GBAtemp Addict
    Member

    Joined:
    Nov 13, 2016
    Messages:
    2,710
    Country:
    United States
    This is how I soldered the wires to the pins


    Attached Files:

    EclipseSin likes this.
  21. Codiox
    This message by Codiox has been removed from public view by Quantumcat, Aug 18, 2018, Reason: Dupe.
    Jun 26, 2018 Show
  22. Codiox

    Codiox GBAtemp Regular
    Member

    Joined:
    Jan 19, 2016
    Messages:
    184
    Country:
    South Africa
    Hey, can you make a bigger picture of how you glued the cable on the button? Also what thickness is your cable you are using?
