I cut the line between clk and cpu on switch oled

  • Thread starter Thread starter janjanp
  • Start date Start date
  • Views Views 536
  • Replies Replies 1

janjanp

Member
Newcomer
Joined
Oct 4, 2024
Messages
12
Reaction score
2
Trophies
0
Age
36
XP
128
Country
France
Hello everyone

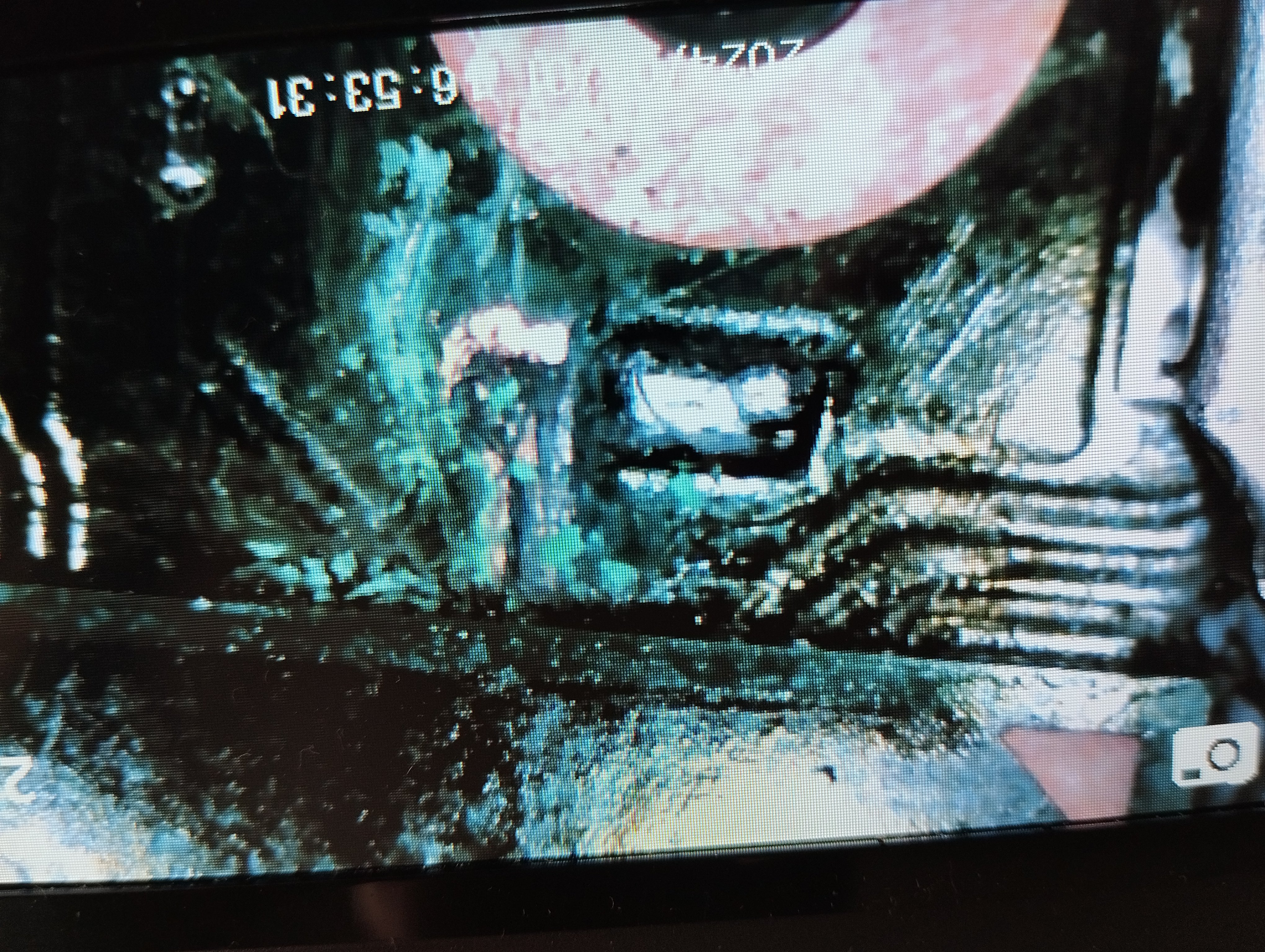

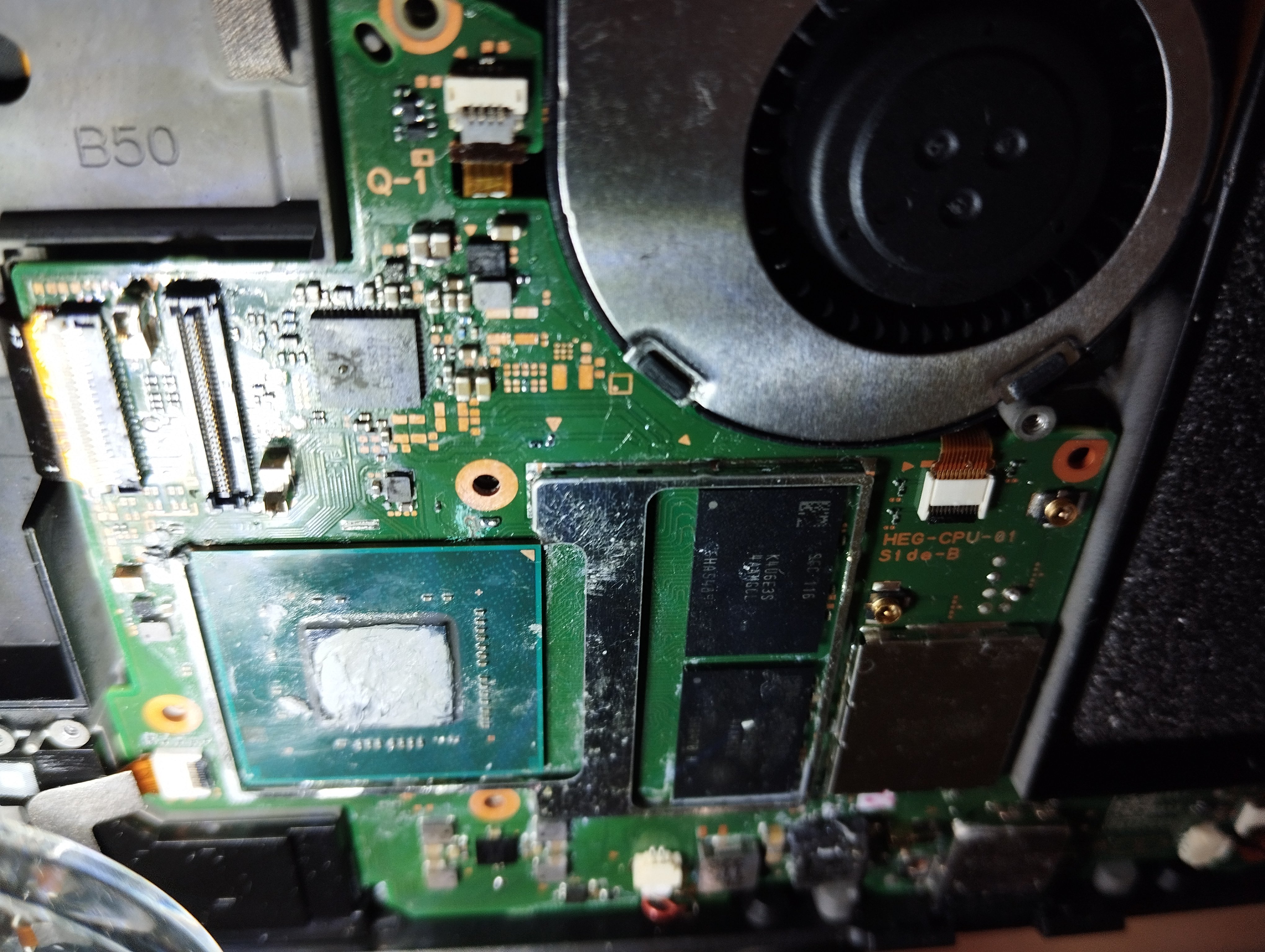

I wanted to install a picofly on my switch oled but I cut the link between clk and cpu
Is there any way to save it ?
Maybe remove the cpu and put a wire from cpu to clk point ? any other way ?
ps : My pics arent good sorry I have a cheap microscope
Thank you


Attachments

  • oled1.jpg
    3.6 MB · Views: 44
  • oled2.jpg
    3.6 MB · Views: 41
  • oled3.jpg
    2.1 MB · Views: 41
  • schema.png
    289.9 KB · Views: 60
When the kamikaze method wasn't used, I saw some pics of people removing the emmc and putting a thin copper strip from the emmc pad to the outside. If you have the skills to reball a CPU, then that might be the easiest option.

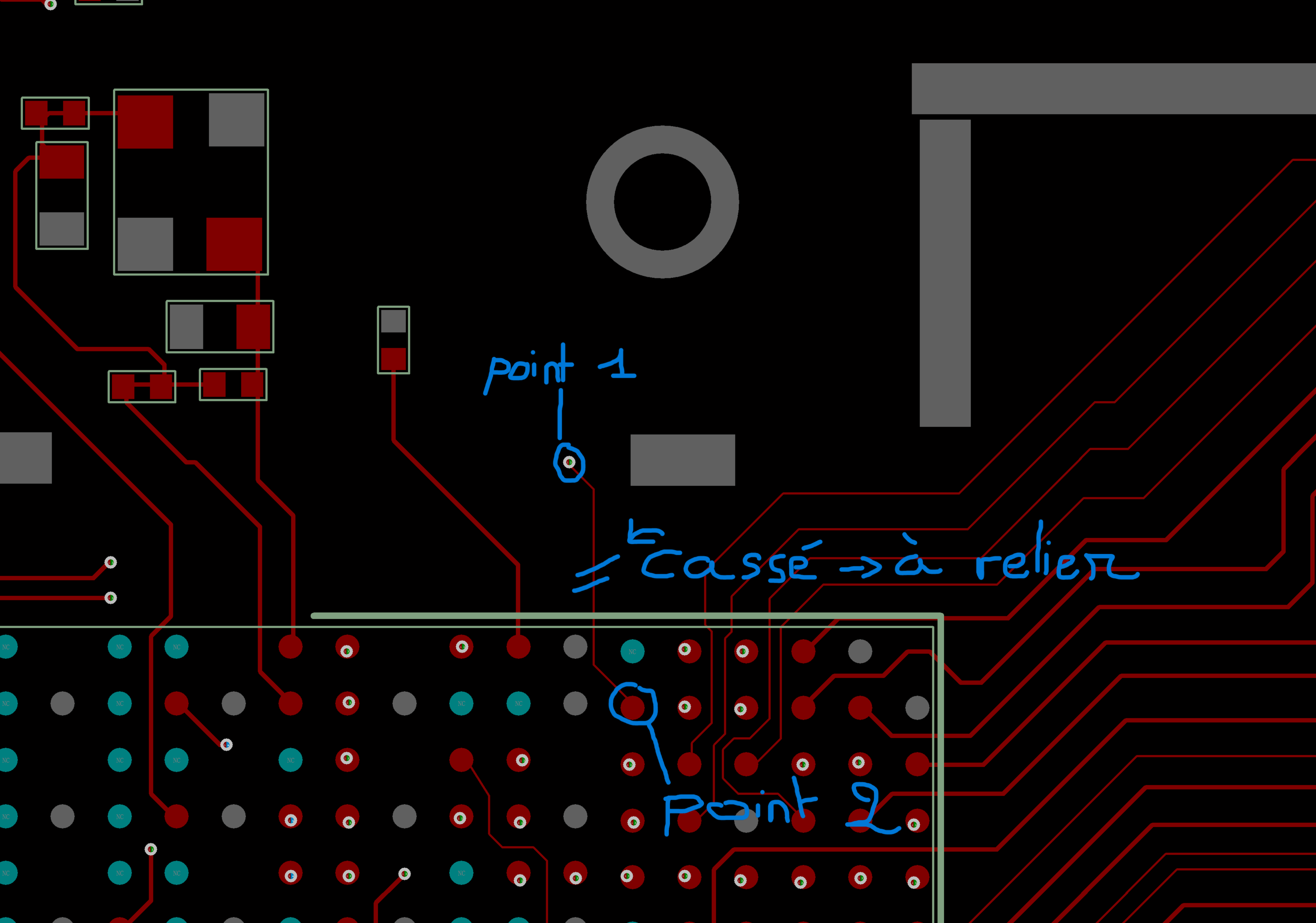

As you already noticed, the clk pad is not on the edge so that will make it even more tricky, besides reballing the CPU.
That will need to be a very fine coil wire though.
