Hacking [Help] System Update Failed: How to revive modded XBox?

[Andrew222]

I can’t get the thing to dump. It says nothing is detected. I’ll send a pic of what I think might be the problem.
There’s no continuity across a certain via of the board. And this via is one of the solder points for the RGH3



[Andrew222]

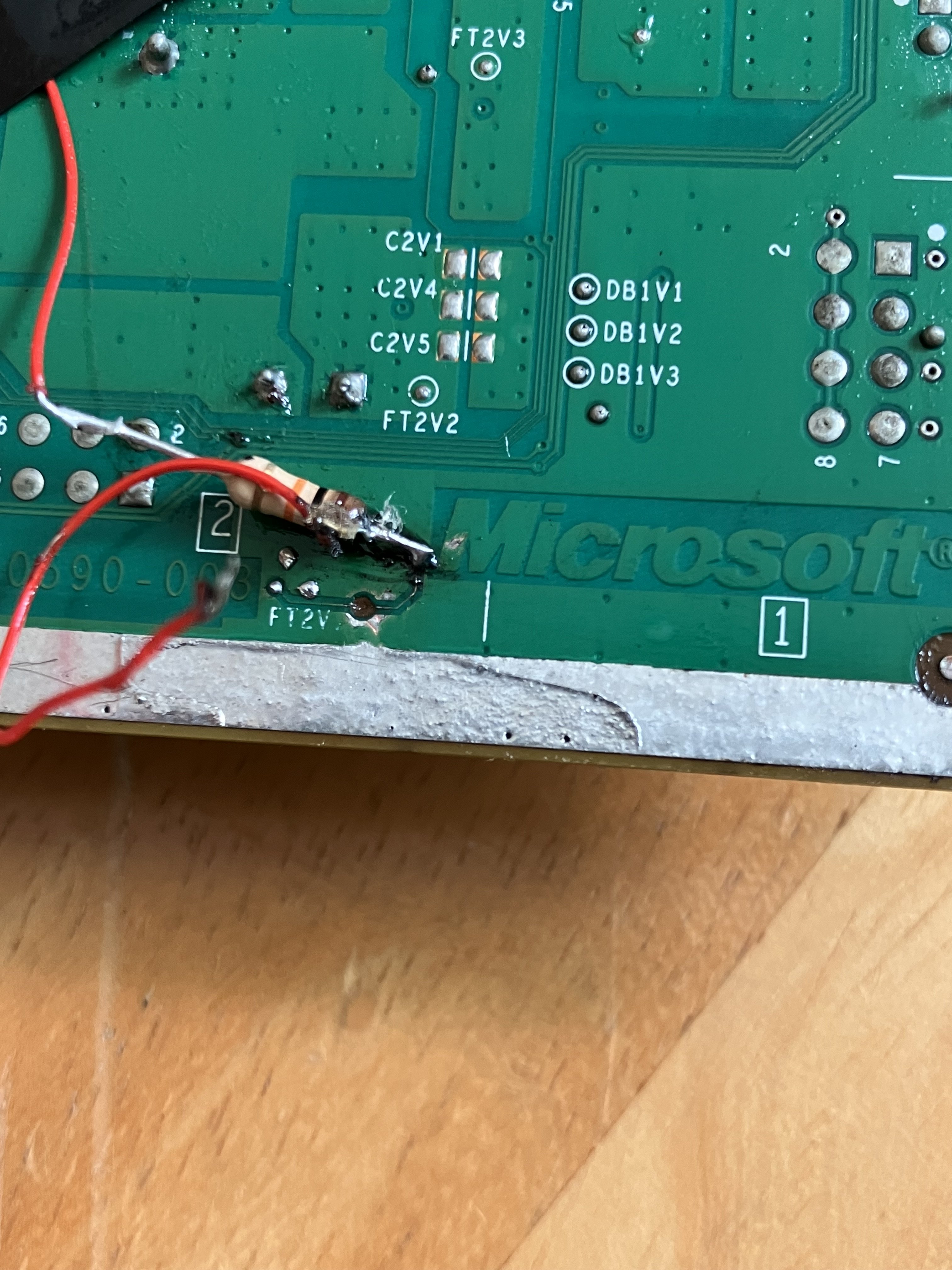

Here’s the via that seems to be ripped. Anyone got any ideas of where I should scrape to get an alternate solder point? I tried bridging it with a wire but it got ripped off in transit (solder station is in university)

Is the via just above the F in FT2V a good spot to solder? (I think that may have been my previous solder point. Idk anymore)

Post automatically merged: May 25, 2025

Does FT2V2 link to FT2V (I don’t have a multimeter on me right now but I can check in school I guess)



[Andrew222]

Anyway, checked the continuity. That's not a good alternative.
Fortunately, I was able to solder back to the spot; the pad wasn't ripped.
