[Hacking] Use v2 Switch screen on v1 Switch?

[NotGeoffIsGeoff]

Is it possible to use a v2 switch screen on a v1 switch? I have a bricked v2 switch and a working v1 switch and I want to swap out the screen if it's possible. Thanks in advance!



[binkinator]

Is it possible to use a v2 switch screen on a v1 switch? I have a bricked v2 switch and a working v1 switch and I want to swap out the screen if it's possible. Thanks in advance!

The connectors are completely different. Check here:

https://www.aliexpress.us/item/3256802841267734.html



The Game Card has to match as well.

Not even a close fit…



[DankBreak270]

The connectors are completely different. Check here:

https://www.aliexpress.us/item/3256802841267734.html

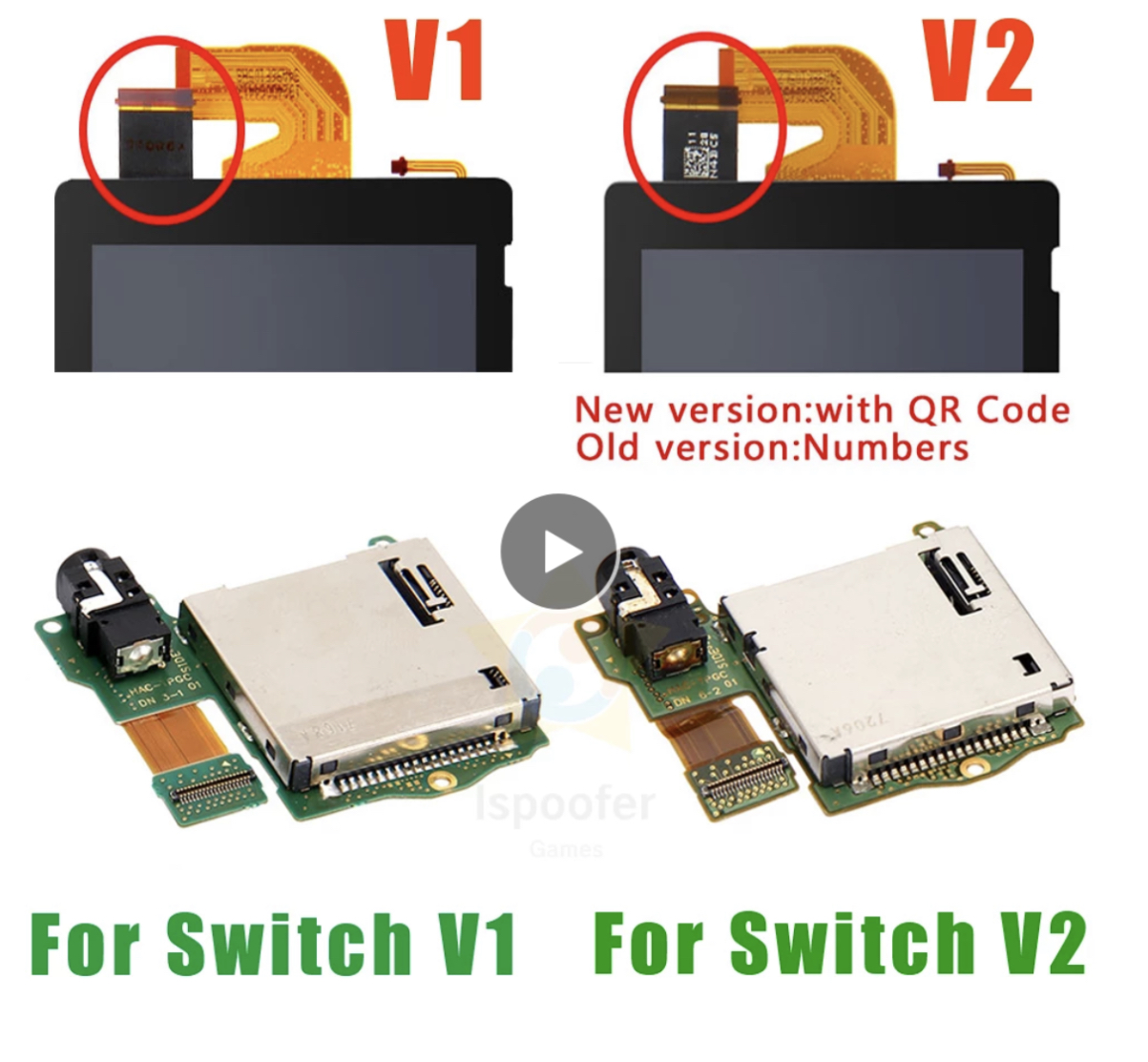

View attachment 343133

The Game Card has to match as well.

Not even a close fit…

This is old but it’s not true you can use v1 screens on a v2 if you need proof I can send a pic if it dosent work at first try to reset the touch screen on hekate works like a charm



[jkyoho]

It's only the digitizer/touch screen differences. They have mix uses in v2 or v1 with those 2 types touch screen. Quite misleading from Vender side from beginning and misinfo flooded everywhere saying v2 or v1 touch screen incompatible but turned out even Big N mixed them up sometime and reprogrammed the FT9J chip to match the assembled result.



[Hayato213]

This is old but it’s not true you can use v1 screens on a v2 if you need proof I can send a pic if it dosent work at first try to reset the touch screen on hekate works like a charm

@binkinator is correct, there are multiple version lcd and gamecart, you have to get matching version to work.



[linuxares]

This thread is old now? Why bump it?



[DankBreak270]

@binkinator is correct, there are multiple version lcd and gamecart, you have to get matching version to work.

I’ve tried 4 different games card readers and they all worked for both v1 and v2 digitizers

Post automatically merged: Apr 21, 2023

I’ve tried 4 different games card readers and they all worked for both v1 and v2 digitizers

Got them from v1 and v2 switchs



[Hayato213]

I’ve tried 4 different games card readers and they all worked for both v1 and v2 digitizers

Post automatically merged: Apr 21, 2023

Got them from v1 and v2 switchs

It is because you used hekate, it doesn't count if you use Hekate to recalibrate.


Thread 'Digitizer replacement issues' https://gbatemp.net/threads/digitizer-replacement-issues.556468/

Thread 'Touch screen stopped working after replacing the digitizer' https://gbatemp.net/threads/touch-screen-stopped-working-after-replacing-the-digitizer.616793/



[DankBreak270]

It is because you used hekate, it doesn't count if you use Hekate to recalibrate.


Thread 'Digitizer replacement issues' https://gbatemp.net/threads/digitizer-replacement-issues.556468/

Thread 'Touch screen stopped working after replacing the digitizer' https://gbatemp.net/threads/touch-screen-stopped-working-after-replacing-the-digitizer.616793/

Sorry forgot to say that I only had to use hekate on one of the card readers also after fixing through hekate it still worked on ofw
