Hardware Evaluating my flash carts

[speedlolita]

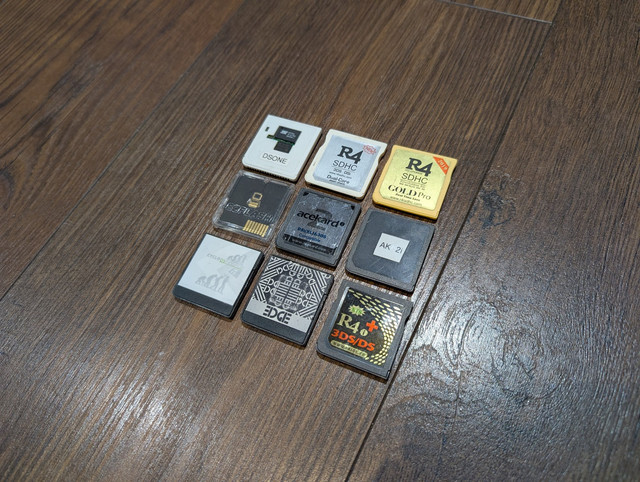

All cartridges pictured here:



I am aware that the EZ Flash Parallel failed to meet expectations but I was wondering how the other cartridges stack up in terms of ROM compatibility.

Any input appreciated.

Thanks!



[k66]

I think DSONE/DSONEi has the best ROM compatibility.
DSONE has the common issue with PSRAM. DSONEi doesn't have this problem, it's also my favorite flashcard.



[Apache Thunder]

Oh I see you have an EZP. I found out how to fix one of it's issues:

Hacking Misc  Thread 'Fixing EZFlash Parallel's sleep issues once and for all!'

Jan 14, 2026

I found the ultimate solution to EZP's issues supporting sleep mode. It turns out they left the IRQ pin unconnected on the cart's PCB. This requires a board revision to fix properly. So don't expect any updates from EZFlash on this. It's why they have not attempted to fix this problem. (it would require adding patches to all games to fix the sleep problem in software or manufacturing a revised PCB)

But I did find that it's possible to add a bodge wire to fix this problem myself. Photos show the bodge. All you have to do is ground the IRQ pin. I compared this pin with other flashcarts. The...

• Apache Thunder
• Replies: 19
• Forum: Nintendo DS

•
•

The sleep issue is a hardware design flaw. Their board PCB does not have the IRQ pin connected to ground. Retail game's card ejection routine relies on detecting when IRQ pin goes open. When booted with the pin already open it seems to break sleep mode for most games.

Soldering a wire to connect it to ground as it should will resolve the issue. This type of fix should fix a few other flashcarts with similar problems too like the R4DS Pro.



[Kwyjor]

I was wondering how the other cartridges stack up in terms of ROM compatibility.

They're all pretty much the same for just about everything, aren't they?

The major differences would be things like SDHC capability and whether they can circumvent the DSi/3DS blacklist on stock units. And maybe some of them can be flashed with ntrboot. Some of them might also have RTS capability, but I understand that generally doesn't work very well anyway.



[SylverReZ]

They're all pretty much the same for just about everything, aren't they?

The kernel that you're using, as well, can have mixed results with certain games. I know Acekard 2(i) was likely the first to incorporate AP patching; early flashcarts required manual DLDI patching to boot homebrew, for example, with the Original R4 and slot-2 based flashcarts via DS-mode. But otherwise, flashcarts perform about the same as others, but has its own unique set of features dependable on the stock kernel that it uses, what system it is compatible with, and the specifications (which don't matter much.)



[Technicmaster0]

DSONE and r4ids.cn are probably the best ones when it comes to game compatibility. Personally, I really like the CycloDS Evolution interface but sadly it doesn't support some of the latest DS games like pokemon black 2.



[Fabax01]

DSONE and r4ids.cn are probably the best ones when it comes to game compatibility. Personally, I really like the CycloDS Evolution interface but sadly it doesn't support some of the latest DS games like pokemon black 2.

Black 2 doesn't run? Which region? Since I dumped my white 2 (ITA) with godmode9 and cyclo runs it no problem.
Just patch the ROM with the xdelta from this onedrive in order to not trigger AP.
But yes, sadly you're right. Some games do not boot at all - ex. "Fossil Fighters: Champions".
---
Also, DSONE has the weird compatability issue that plagues all SC EOS kernels (DSone, iSmart MM and DStwo) - that the european version of "Freshly-Picked Tingle's Rosy Rupeeland " will not boot.
You gotta rebuild the rom with crystaltile2 or the libnds equivalent...
Hmm, other things to look for... well, "Last Window: The Secret of Cape West" triggers AP (don't remember if it doesn't boot at all unless you apply it?) so you gotta use the only patch available, the one with the intro. The intro is quite easy to disable though if you don't care about respecting the scene. Doesn't happen on iSmart MM & DStwo.
And the "bypass antipiracy" option, the one that is enabled with Y? It's mostly useless - breaks some games too (see MMBN5 EUR which, with it on, will crash during the intro with various graphical and sound glitches.)
Maybe if a person really doesn't want to patch roms on the computer r4ids.cn fares better? IIRC never heard of anyone having to patch stuff with official wood. That, or run YSMenu on DSONE - but you lose RTS.



[Technicmaster0]

Just patch the ROM with the xdelta from this onedrive in order to not trigger AP.

But that's exactly the point



[Fabax01]

But that's exactly the point

Ah, sorry, I took "doesn't support" as in "not booting" not even with manual patches.
Then r4ids.cn really is the only option, even DSONE EOS needs patches for a few games (another example is EUR Pokemon Conquest... but that doesn't work unless patched even in the iSmart MM or DStwo I think...) as I wrote above.
