    Hi guys,

    I am new to this here and bought some faulty Switches on ebay. I received one, where the Battery was completely dead. After charging this one externally and putting it in, I've seen the Nintendo Logo - Switch Logo and run after that in

    Error 2134-0501

    Which tells me to power the console off and on againg. obv. this won't help. The console isn't charging, and the fan isn't running at all? Maybe because it isn't booted up?

    I could payload the Swtich with hekate and have complete access via RCM. Unfortunately I'am not able to boot of neither CFW nor OFW. The currently installed firmware says in the error screen 6.0.0.
    The fuse is at 7 - which seems fine?

    I checked the capacitory and fuses with my meter around the charging chips but I've not found any grounded caps or something - so I would assume the Chips are ok, but SYSNAND or smth. is broken? Is there a way to rewrite boot section without a Backup?

    Thanks for any help!

    Last edited by w0nk1, Feb 20, 2020
  2. ds34

    ds34 GBAtemp Fan
    Member

    Joined:
    Jan 14, 2020
    Messages:
    309
    Country:
    Germany
    You can try reinstalling the firmware.
    Does it charge in hekate?

  3. w0nk1

    OP w0nk1 Member
    Newcomer

    Joined:
    Feb 20, 2020
    Messages:
    21
    Country:
    Germany
    I have not tried to reinstall the firmware and no, it is not charging in hekate. If the battery is plugged in I got some shorted capactiors around one of the charging chips, I guess I should try to replace this one?

  4. ds34

    ds34 GBAtemp Fan
    Member

    Joined:
    Jan 14, 2020
    Messages:
    309
    Country:
    Germany
    Can you tell me which ones are shorted? I will check if the same ones are shorted on mine

  5. w0nk1

    OP w0nk1 Member
    Newcomer

    Joined:
    Feb 20, 2020
    Messages:
    21
    Country:
    Germany

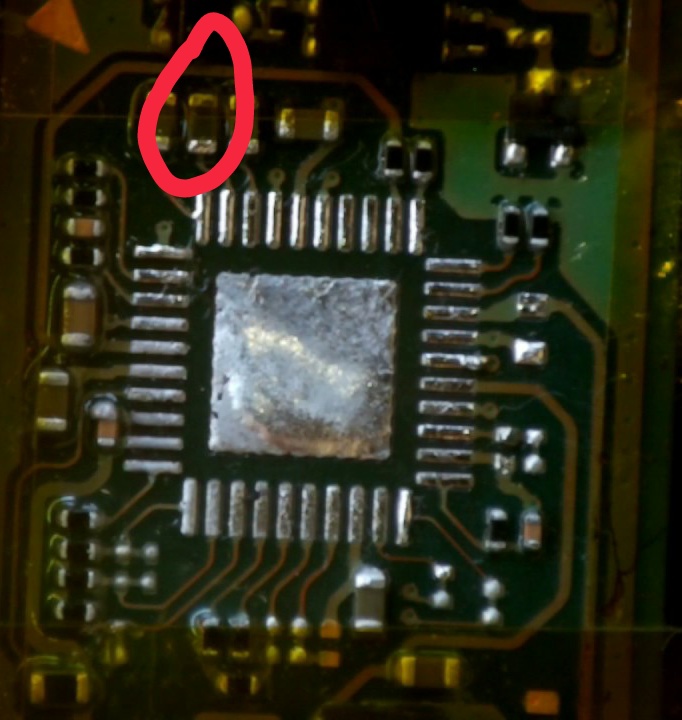

    These ones over here, but only with battery plugged in.


    Attached Files:

  6. Agilato

    Agilato GBAtemp Fan
    Member

    Joined:
    Jun 21, 2019
    Messages:
    331
    Country:
    United States
    It's normal!
    Always unplug battery when you run tests for shorts!
    You can short elements or pads and fry something!

    Check LCD connector.
    Unplug cartridge slot and check how console behaves without it.
    With magnification check USB-C port of the console, sometimes even with magnification hard to see damage.
    If non of this helps, suspect M92T36

    Last edited by Agilato, Feb 21, 2020
    FXDX likes this.
  7. w0nk1

    OP w0nk1 Member
    Newcomer

    Joined:
    Feb 20, 2020
    Messages:
    21
    Country:
    Germany

    Thank you very much I will try to check on that.

  8. Testo

    Testo Member
    Newcomer

    Joined:
    Jun 13, 2019
    Messages:
    44
    Country:
    Germany
    Hi,
    have you got the switch working again? I received a broken Mainboard today with the exact same error code. One capacitor near the M92T36 is shorted and I ordered a new one. But I'm still curios if this error really come from this chip

  9. Patapon3321

    Patapon3321 Member
    Newcomer

    Joined:
    Feb 8, 2019
    Messages:
    31
    Country:
    Germany
    If the capacitor on image is shorted, doesnt it mean that the M92T36 is broken.
    It can be the IC P13USB behind the mainboard
    Image: https://media.discordapp.net/attach...6511/20200124_091017.jpg?width=885&height=664

  10. Agilato

    Agilato GBAtemp Fan
    Member

    Joined:
    Jun 21, 2019
    Messages:
    331
    Country:
    United States
  11. Testo

    Testo Member
    Newcomer

    Joined:
    Jun 13, 2019
    Messages:
    44
    Country:
    Germany
    Nope this is the shorted one


    Attached Files:

  12. ds34

    ds34 GBAtemp Fan
    Member

    Joined:
    Jan 14, 2020
    Messages:
    309
    Country:
    Germany
    Ladies and gentlemen, we got him.
    You can replace it with either 1uF or 2.2uF 6.3v 0402 capacitor.

  13. w0nk1

    OP w0nk1 Member
    Newcomer

    Joined:
    Feb 20, 2020
    Messages:
    21
    Country:
    Germany
    Unfortunately I tried to replace the BQ24193 without a microscope for further inspections and realised later on, that I have blown away some of the little tiny resistors of the chip. So I messed it up and if I remember correctly I blew 3-4 resistors and I am unable to find them. :-(

  14. ds34

    ds34 GBAtemp Fan
    Member

    Joined:
    Jan 14, 2020
    Messages:
    309
    Country:
    Germany
    Just replace them

  15. ds34

    ds34 GBAtemp Fan
    Member

    Joined:
    Jan 14, 2020
    Messages:
    309
    Country:
    Germany

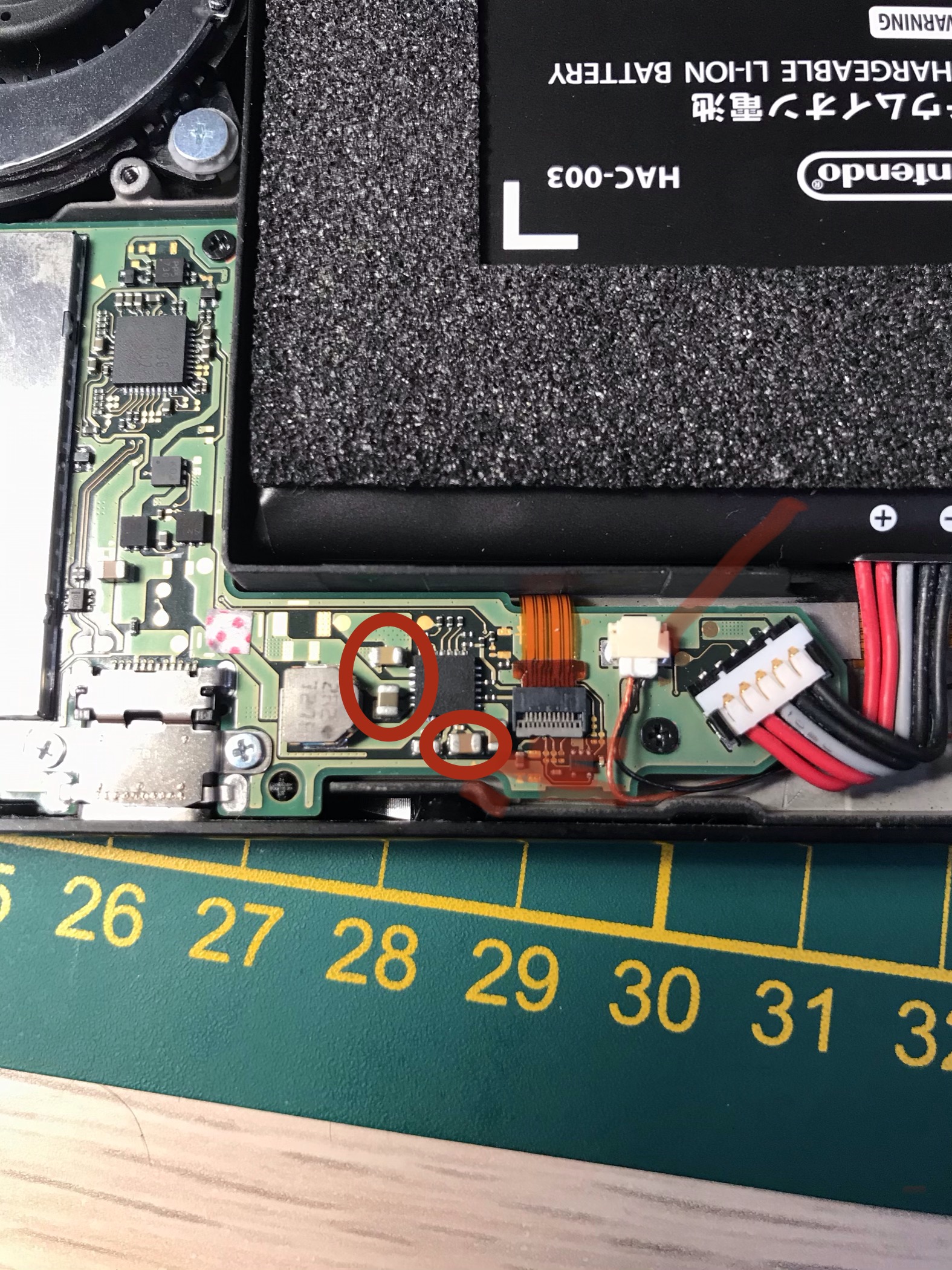

    Replace the components with the ones shown in the picture. If you need any more help you can DM me[​IMG]

    w0nk1 likes this.
  16. CarlosOlvera10

    Newcomer

    Joined:
    May 24, 2020
    Messages:
    1
    Country:
    United States
    Do you have a picture of the SMD components around the charging IC. Just like the picture above ?
