I already found the component of a donor plate, I don't have a short in that area but I still have the same error
12/12/2025 14:50:24 80050000 Severe Main SoC CPU Power Fail - SoC VRM Power Fail (CPU) (2 Phases)- VRM Power Fail (CPU): Couldn't get the error factor. APU VRM (2 Phases) Power Fail, Check Infineon XDPE14286A 16 Phase PWM Controller, Check mosfets APU side for short (Caps Usually Short) - Single Beep, 1 Second Blue Light, 8.6mA draw power on.
|-(OK 00000000 80050000 FFFFFFFF FFFF0023 10000100 2136 0036 FFFF 1500:C9)
Click for TSB Information
I've checked all the phases, I have the 12V, but when I turn it on, I don't have the 0.90V that powers the processor. It doesn't even try to start when I press the power button. I replaced the XPDE chip just in case, but I'm still having the same problem. I lifted all the coils, but there's no short. With the thermal camera, I see that all the RAM modules power up, but not the APU. It seems like the APU is dead. Any ideas on what I can measure? I've been measuring and watching videos for over a week, but I can't find the short.

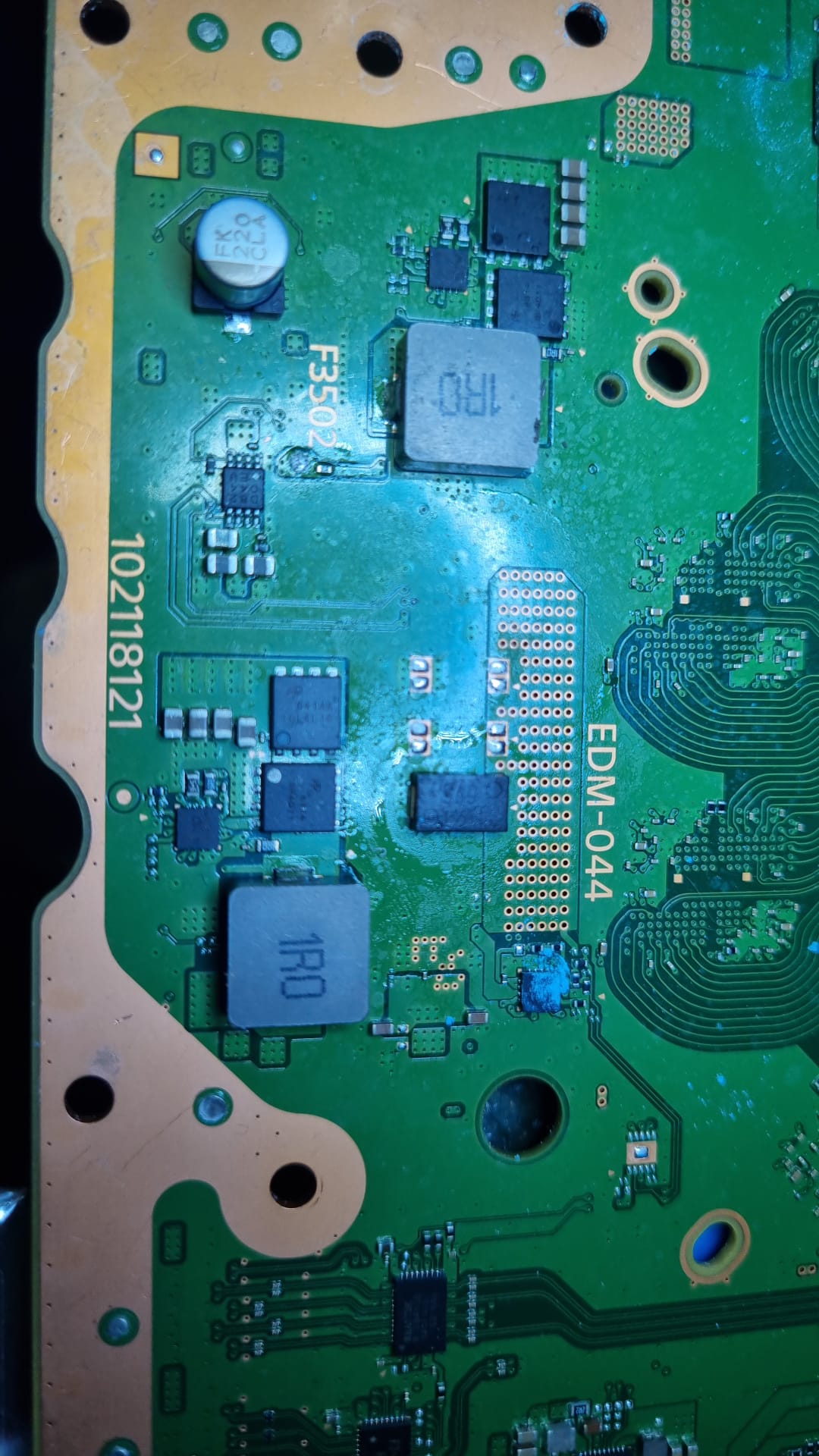

I've only noticed that in the area of the F3502, I only have 12V, and the 5V drops when I turn on the power
View attachment 544902
