Component Identification needed, chokes by P13USB

Discussion in 'Switch - Console, Accessories & Hardware' started by fnwhatnow, Nov 8, 2019.

  1. fnwhatnow
    OP

    fnwhatnow Member

    Newcomer
    1
    Sep 24, 2019
    United States

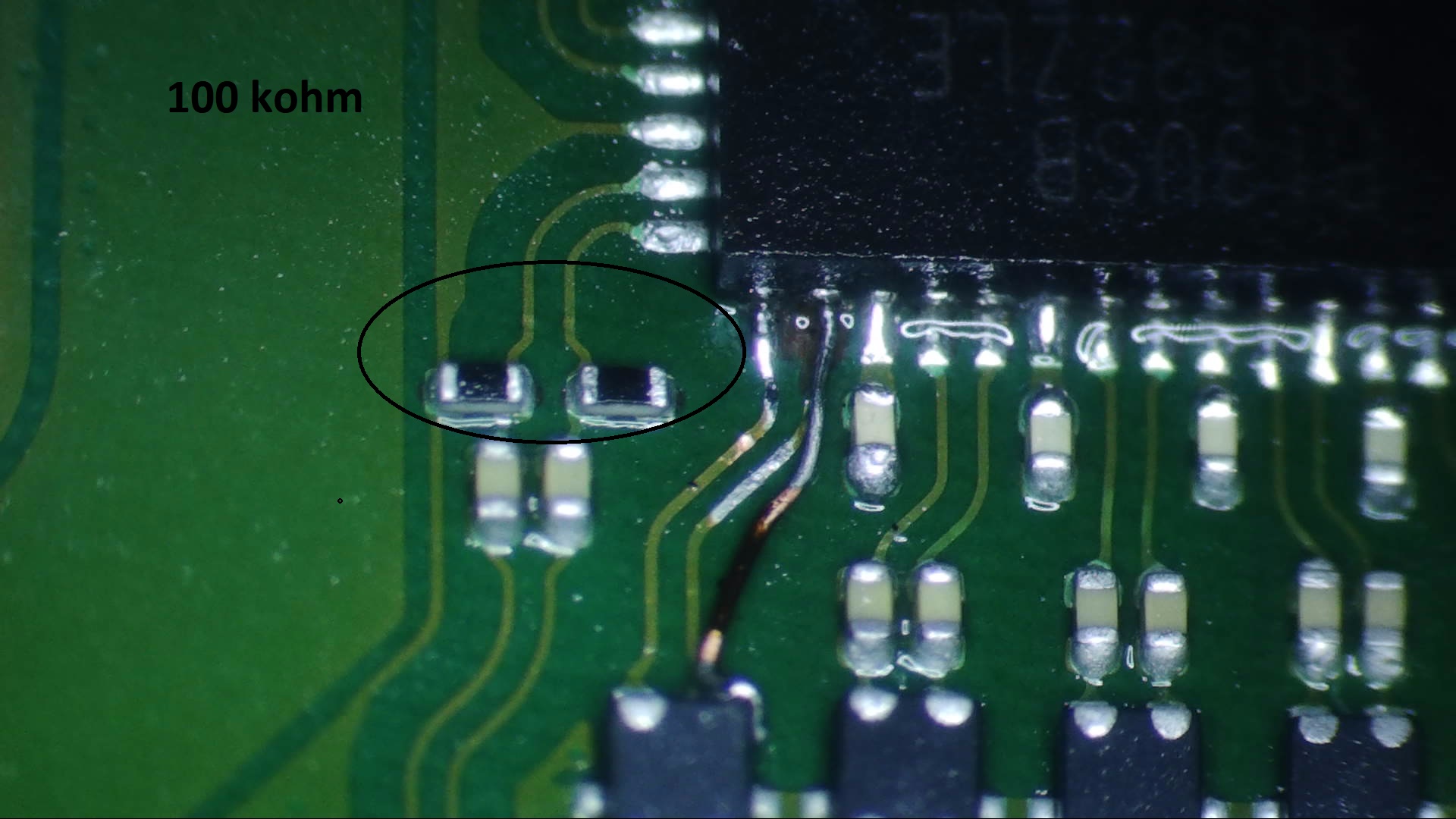

    Could somebody tell me what this is called so I can order some?





    upload_2019-11-7_16-10-0.



    They are right above:

    upload_2019-11-7_16-11-3.


    Thanks!

  2. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    fnwhatnow and FXDX like this.
  3. FXDX

    FXDX Advanced Member

    Newcomer
    1
    Sep 15, 2019
    Costa Rica
  4. Chai_tea

    Chai_tea Newbie

    Newcomer
    1
    Wednesday
    United Kingdom
    By any chance, you would know the brownish components right beside it? I happened to knock mine off while attempting to replace the P13USB :(

    My assumption is that it is one of those ceramic capacitors, but I don't know the spec of it.

  5. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    Which caps have you knocked of post an image, as there different values

    Chai_tea likes this.
  6. Chai_tea

    Chai_tea Newbie

    Newcomer
    1
    Wednesday
    United Kingdom
    upload_2019-11-14_16-39-17.


    These four. To be spacific, the thrid one from the top. I assume all four are the same?


    Attached Files:

  7. Pintglass

    Pintglass GBAtemp Regular

    Member
    3
    Jan 28, 2019
    United Kingdom
    There 0.1uf

    Chai_tea likes this.
  8. Chai_tea

    Chai_tea Newbie

    Newcomer
    1
    Wednesday
    United Kingdom
    while searching, I've found something like "Chip Cap 0.1uF/10Vdc, ±10%" by AVA "parts number 060603ZC104KAT2A". Where 10Vdc is said to be the related voltage and there are many options like 2,4,6,10,50 and up to 100.

    I doubt that the original one is 4 or 6. Or this does not matter at all as I assumed that the line is going to ground.

    Last edited by Chai_tea, Nov 15, 2019 at 3:55 AM
  9. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    19
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Mar 17, 2010
    Norway
    Alola
    I think 10V should be fine as they go to a chip and that most likely runs off of 3.3 or 5V but don't take my word for it. As long as the voltage limit of the cap is higher than the actual voltage you'll be fine.

    Chai_tea likes this.
