Hardware Broken 3ds Dev Unit, Any recommendations to fix it?

HudU_

Well-Known Member
OP
Newcomer
Joined
Jul 24, 2019
Messages
49
Trophies
0
Age
20
Location
Somewhere
XP
575
Country
United States

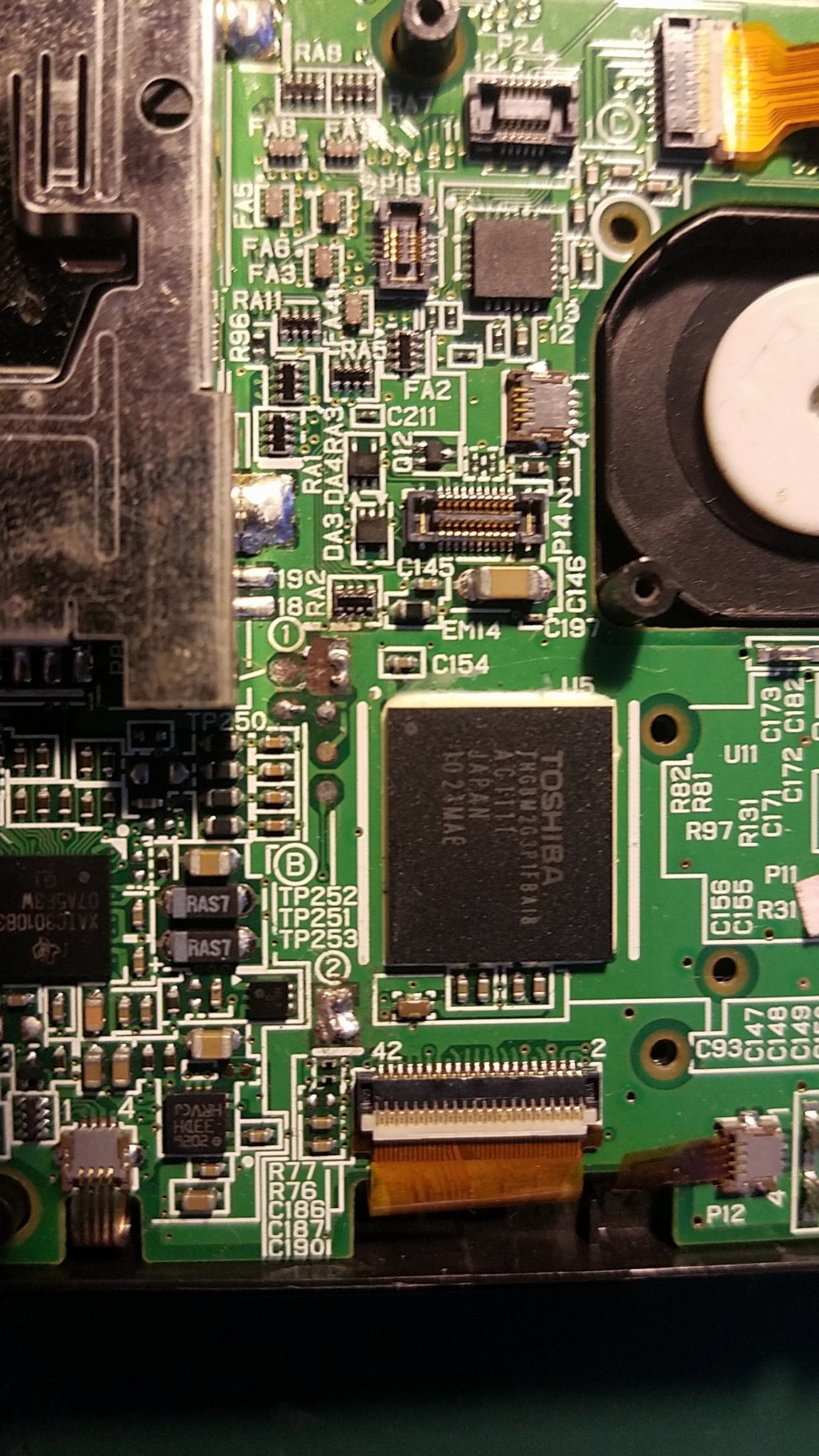

Hi! Recently Ive been working with a friend to repair a dev unit with an unreleased tech demo. I was wondering, would anyone know how to repair this part of the board or possibly let me know how I could use a replacement board?

^^^In further context, what chip on the 3ds board would allow him to rewrite the nand backup to another board if he replaced it with the original's chip (would it be the nand? or what chip if de- soldered would allow him to rewrite the nand to another not broken board?)


Attachments

  • DevBoard.jpg
    508.4 KB · Views: 169
  • jzuihZp.jpg
    758.9 KB · Views: 91

HudU_

Well-Known Member
OP
Newcomer
Joined
Jul 24, 2019
Messages
49
Trophies
0
Age
20
Location
Somewhere
XP
575
Country
United States

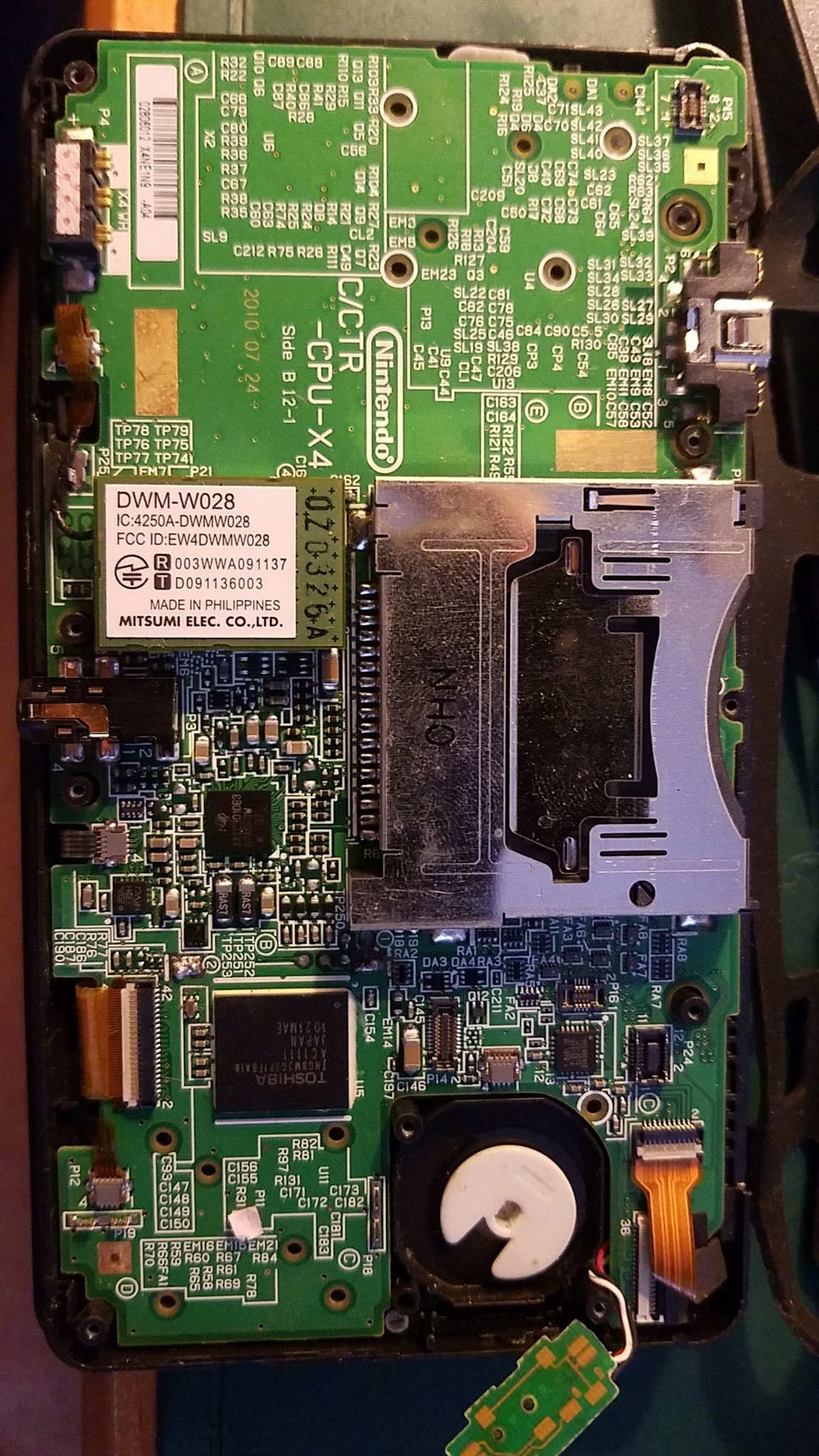

Note: if you look at the full board photo, the broken pin is next to the lower right corner of the cartridge slot. Just for reference
