Adafruit Trinket M0 problem

Discussion in 'Switch - Backup Loaders & Modchips' started by johnybjb, Aug 27, 2018.

  1. johnybjb
    OP

    johnybjb Member

    Newcomer
    4
    May 19, 2010
    One of these just arrived, however upon plugging it into the PC it keeps connecting / disconnecting (can tell by the sound the PC makes), double clicking on the button makes it momentarily show up in file manager but disappears as quickly. Anything I can do or is this unit faulty?

    The following link was suggested by since the dongle wont show in file manager for more than a seconds its not helped. Thanks

    https://github.com/euclala/fix_dongle


    https://www.aliexpress.com/item/Por...ctor-JIG-Kits-Brand-New-with/32900754791.html

  2. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    have you tried a different port, usb 2 and 3? You can try the solder fix in your link, but you might just have to send it back for a refund, sounds like it might be faulty :(

    Last edited by Ragenrok, Aug 27, 2018
  3. johnybjb
    OP

    johnybjb Member

    Newcomer
    4
    May 19, 2010
    Yeah tried other USB ports, same thing problem. Bit loathed to use the solder method as if it doesnt work they may refuse a refund

  4. Ragenrok

    Ragenrok Member

    Newcomer
    1
    Jul 22, 2018
    Canada
    I'd just return it, if you got soldering skills I'd suggest just buying a trinket m0 and making your own.

    https://www.hackmyswitch.com/trinket-m0-build

    https://www.mouser.com/ProductDetai...iMZZMve4/bfQkoj%2bAN9RFcFhWn%2bJkwXvaj1m%2bQ=
    https://www.mouser.com/ProductDetail/Adafruit/1871?qs=/ha2pyFaduiqXZ8/f19kYtvAd3zwmIOGLuy93hQo094=

    johnybjb likes this.
  5. Pacman`

    Pacman` GBAtemp Fan

    Member
    5
    Dec 19, 2006
    Go to adafruit website, I had the same problem
    If you have Win7, install their driver
    If you have AIDA64 running, exit from it and try again...

  6. karl0ss

    karl0ss Member

    Newcomer
    2
    May 16, 2018
    Ukraine
    Mines turned up and I have exactly the same issue, still not managed to sort it :(

  7. susgod15

    susgod15 Newbie

    Newcomer
    1
    Aug 31, 2018
    United States
    Anyone have an answer?

  8. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    sounds to me like the LDO regulator is drawing too much power.

    Power the unit from a battery, or a powered hub and try again. As soon as you power up, double-press reset

  9. susgod15

    susgod15 Newbie

    Newcomer
    1
    Aug 31, 2018
    United States
    Still nothing

  10. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Unlikely the SAMD is at fault if it showing up.

    Its got to be the regulator or one of the filter caps.

    Can you connect a 3v battery to the 3v point on trinket? So + goes to 3v and - goes to GND?

  11. susgod15

    susgod15 Newbie

    Newcomer
    1
    Aug 31, 2018
    United States
    I have no idea what I’m doing as far as motherboard or soldering. This has happened after applying the "fix" on the sellers Github. I was able to inject the SX OS payload once.

  12. DayVeeBoi

    DayVeeBoi GBAtemp Advanced Fan

    Member
    6
    GBAtemp Patron
    DayVeeBoi is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Aug 17, 2015
    Canada
    Canada
    I bought one too, it just showed up today. Same issue lmao

  13. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    I've just had a shipment today. Going to go through them all one by one. Will update.

  14. DayVeeBoi

    DayVeeBoi GBAtemp Advanced Fan

    Member
    6
    GBAtemp Patron
    DayVeeBoi is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Aug 17, 2015
    Canada
    Canada

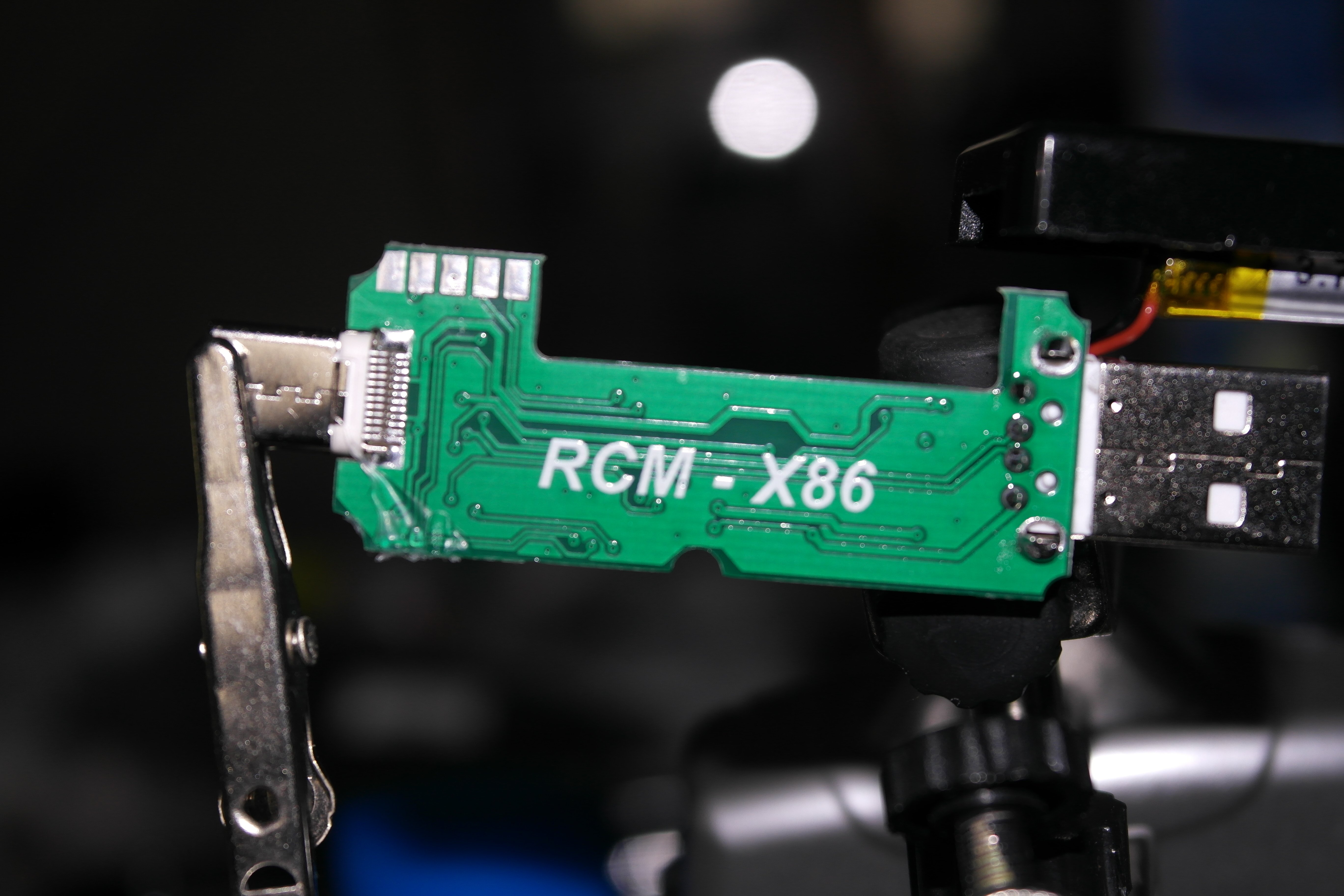

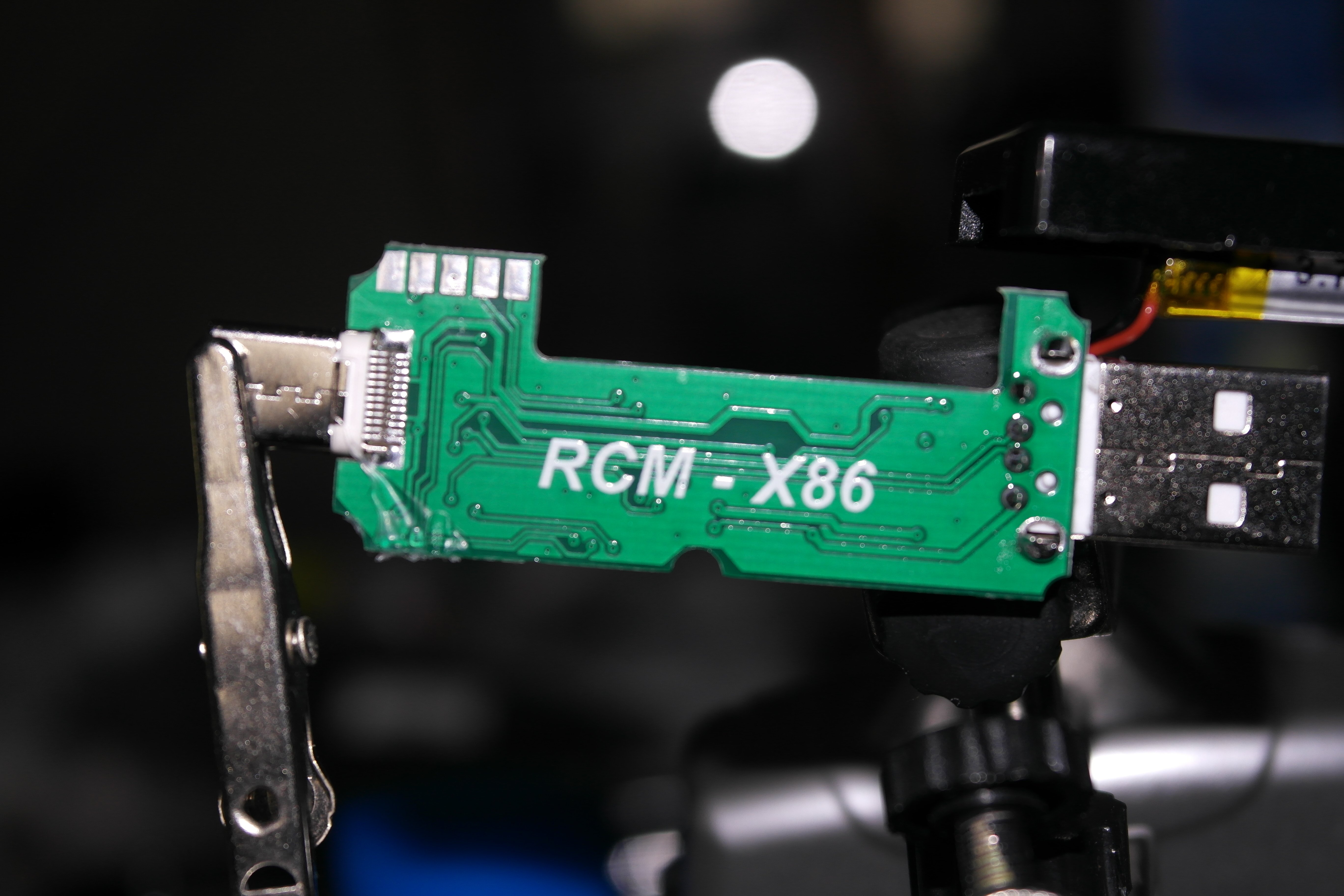

    I think they have pads for debugging on the back under the gob of hotglue. rcm-x86.JPG
    I'm toying with mine right now. I feel bad for these other people but I don't mind so much, it'll give me a few hours of entertainment for $15.

  15. wiiando

    wiiando GBAtemp Regular

    Member
    6
    Dec 28, 2008
    United States
    That's not a trinket though

  16. DayVeeBoi

    DayVeeBoi GBAtemp Advanced Fan

    Member
    6
    GBAtemp Patron
    DayVeeBoi is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Aug 17, 2015
    Canada
    Canada
    well its not an adafruit trinket anyways. Its a clone, its the same one being discussed in this thread.

    — Posts automatically merged - Please don't double post! —

    If it were an adafruit one it wouldn't be as much of a problem since all the pins are exposed

  17. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    Oh... I thought it was a genuine Trinket. All mine have tested ok. Didn`t know you was on about those ching chong things.

    wicksand420 likes this.
  18. DayVeeBoi

    DayVeeBoi GBAtemp Advanced Fan

    Member
    6
    GBAtemp Patron
    DayVeeBoi is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Aug 17, 2015
    Canada
    Canada
    Yeah that's what OP is talking about. No-name rcm dongles based on SAMD21 chip. They're basically a trinket broken out to a usb c port on one side, and a usb-a male on the other to charge it and update fw/payloads. For some reason they seem to be stuck in a bootloop, mine never worked at all, other people used the update instructions that came with it and found theirs in a similar state. I'm hoping to find a way to get it rolling again without having to solder for the peeps in this thread that aren't able or don't want to mess with the tiny smd resistor that the seller has pointed as the solution.

    johnybjb likes this.
  19. Huntereb

    Huntereb GBAtemp Psycho!

    Member
    9
    Sep 1, 2013
    United States
    This is the same device I was able to install internally after removing the USBA and USBC from each side.

    I was in a similar situation, but after flashing it eventually popped up as a storage device on my PC (The original expected behavior), and I was able to copy a uf2 to it without issue.

    This device is a little too big for internal installation... And the firmware is not made to allow for updating of payloads over the Switch's USB C, just that USBA. @mattytrog are the pins leading to the USBs from the controller the same for every Trinket clone? Would flashing a payload such as the one created by you for the original Trinket M0s conflict in any way? I assume its flashed with a bootloader that tells the device which pins go to what, uncertain how these things work.

  20. DayVeeBoi

    DayVeeBoi GBAtemp Advanced Fan

    Member
    6
    GBAtemp Patron
    DayVeeBoi is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Aug 17, 2015
    Canada
    Canada
    The soldering on the fine pitch USB-C end of mine is pretty janky, I was considering that may be the issue before I logged on here and saw other ppl saying theirs was okay before they tried to update the payload.
