256gb EMMC Experiment

Discussion in 'Switch - Console, Accessories & Hardware' started by ~~Tito~~, Jul 24, 2019.

  1. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    Since I’ve been banned. I feel as though I can now stretch my legs and mod the switch further.

    My plan is to replace the EMMC chip and increase the disk space on the switch. Prior to doing that I’m going to clean the stock 32gb nand. Then install the 256gb module and partition the disk correctly and hack away.

    This thread will be a guide for that process and for troubleshooting.

    Spadezilla and MAXLEMPIRA like this.
  2. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    Place holder

    MAXLEMPIRA likes this.
  3. Mat37

    Mat37 GBAtemp Advanced Fan

    Member
    6
    Dec 3, 2016
    France
    Does it matter ?
    May i tell you that you wrote "265gb" in the title ^^

    MAXLEMPIRA and ~~Tito~~ like this.
  4. ScarletDreamz

    ScarletDreamz [Debug Mode]

    Member
    12
    Feb 16, 2015
    United States
    Localhost
    DayVeeBoi and ~~Tito~~ like this.
  5. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    I purchased a module with the EMMC already attached to a new board. So this should be plug and play with some config.

    MAXLEMPIRA likes this.
  6. popy

    popy GBAtemp Regular

    Member
    4
    Jul 31, 2018
    Austria
    Can you please link the 256GB EMMC module you bougth?

    thx
    pOpY

    MAXLEMPIRA likes this.
  7. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    MAXLEMPIRA likes this.
  8. Hamdan

    Hamdan GBAtemp Regular

    Member
    3
    Dec 14, 2018
    Pakistan
    $400 for a switch + $170 for emmc module
    Woah... Dedication man...
    ;)

    ~~Tito~~ likes this.
  9. 71r3n

    71r3n GBAtemp Regular

    Member
    4
    Sep 24, 2011
    Germany
    ~~Tito~~ likes this.
  10. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    I think I’m being ripped for the work involved to solder on the new 256gb chip.

    This is my expensive hobby lol.

    wicksand420 and MAXLEMPIRA like this.
  11. popy

    popy GBAtemp Regular

    Member
    4
    Jul 31, 2018
    Austria
    ~~Tito~~ likes this.
  12. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    I didn’t want to wait 6 weeks so I paid for it. I’m sure there are cheaper options so feel free to order them. Not hawking that link at all.

    popy likes this.
  13. Hayato213

    Hayato213 GBAtemp Guru

    Member
    12
    Dec 26, 2015
    United States
    You are , the chip cost around 70 bucks usd, and with shipping, it is like 100 less than what Sthetix is charging for. Well you are paying for a premium for someone to solder the nand chip for you.

    Last edited by Hayato213, Jul 25, 2019
    ~~Tito~~ likes this.
  14. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    Yeah I know. Its definitely something that I’m aware about. I just don’t want to wait.

    MAXLEMPIRA likes this.
  15. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    It has shipped! I’ll follow up with a full overview once I’ve had a chance to play with it.

  16. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    Still hasn't arrived... Anyone know of another source to use? The item got lost in transit apparently and I've yet to receive a new tracking number. Unsure if the seller is trying to source/make another, but this sucks. Should have just ordered from Alibaba from the get go.

  17. Smoker1

    Smoker1 GBAtemp Addict

    Member
    8
    Feb 17, 2015
    United States
    Carmichael, California
    Would be nice if they started using SSD instead of eMMC which can fail for any reason. Also, why only 32GB???? With how large some Games are *cough* MK11*, that would get filled up VERY fast

  18. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    It is here. I’ll post a write up later on.

    Edit:

    I have awesome news. Using a non formatted emmc chip with EMUMMC works fine. So Emummc does have perks. Your switch will still be usable if you do a swap and try and boot prior to formatting the new chip. Going to figure out how to edit the boot.scr for android to point to the android partition map that will be written on the EMMC chip. It definitely cannot have the same partition flag that is currently expected. Horizon OS will break.

    Will come up with something over the labor day weekend.


    Attached Files:

    Last edited by ~~Tito~~, Aug 31, 2019
    ganons, Rahkeesh and hippy dave like this.
  19. ~~Tito~~
    OP

    ~~Tito~~ GBAtemp Regular

    Member
    4
    Apr 7, 2009
    United States
    To give everyone an update:
    Right now I'm still working on getting my nand backup restored to the new chip itself. Having tons of trouble at the moment. I've found that you'll have to use gdisk to back up the switch's partition lay out and restore it on the new emmc before the hekate can restore things to it... and I can't restore my boot0/1 backups for some reason. I'll play around with somethings prior to getting the initial setup done. I'll see if the switch and hekate can see a Fat32 partition that's made on the EMMC itself. If it works you would still need to boot into RCM, but you'd have everything running from the EMMC itself.

    Lots of trial and error, but its doable. I wish I had an emmc writer. My switch is currently taken apart. I've been switching emmc modules back and forth lol.

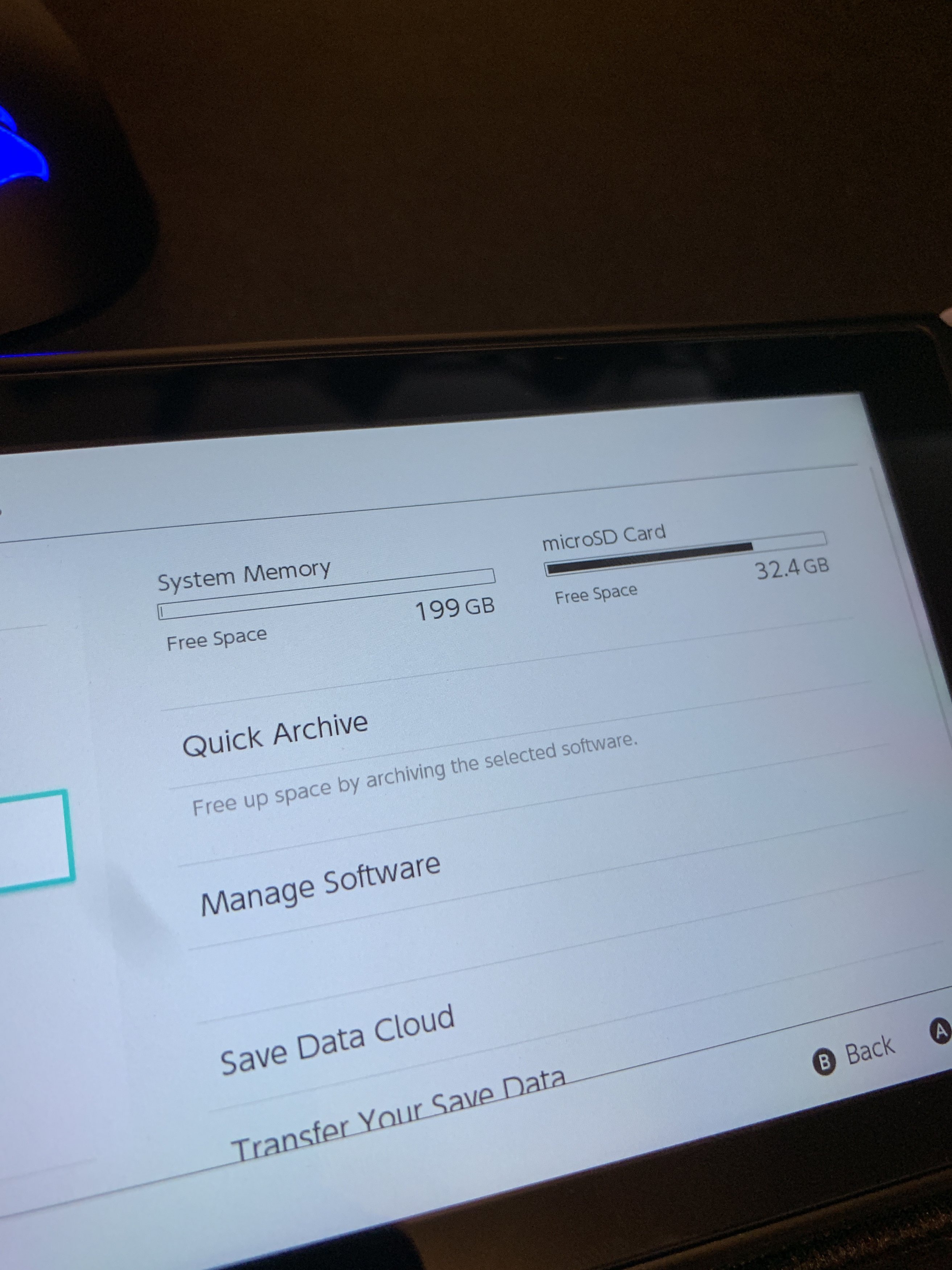

    Edit:
    So far so good! Going to use the 30gb that is remaining for either android or linux.


    Attached Files:

    Last edited by ~~Tito~~, Sep 1, 2019
    RichKK, ELY_M, ganons and 2 others like this.
  20. Switch_Maniac

    Switch_Maniac Advanced Member

    Newcomer
    3
    Dec 16, 2018
    United States
    ~~Tito~~ likes this.
