What gpu can this handle?

Discussion in 'Computer Hardware, Devices and Accessories' started by jDSX, Aug 8, 2016.

  1. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    Got a bunch of free pc stuff, nothing really good except for the intel xeon I found apparently it's the 5120 xeon, I have three gpus that I got with it too the geforce 8400 gs, a geforce 660gtx (I don't think this one works anymore looks beat up) and the radeon hd 3350 xfx (I didn't like the 3000 series ati cards) and yes I am looking to make some old pc with these parts got so much box of stuff with ram and components.



  2. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    11,802
    4,983
    Mar 17, 2010
    Norway
    Alola
    Depends on the PSU, and whether the motherboard has PCIe slots on it or not.

  3. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    It's some 650w psu OEM one from HP, the mobo is Intel 5000V Chipset.

  4. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    11,802
    4,983
    Mar 17, 2010
    Norway
    Alola
    650W should be enough for any modern single GPU, the question is how much do you want to spend on a GPU when the rest of the hardware is outdated?
    Just make sure it has a PCIe x16 slot as that's what most GPUs use. AGP is the older standard and modern cards don't support it but I think that hardware is new enough to have PCIe.

    TotalInsanity4 likes this.
  5. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    Last edited by jDSX, Aug 8, 2016
  6. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    You're going to want to use the PCI-e x8 slot. If you're asking which GPU it will work best with, try switching them out and seeing which one works best for what you need. If you need advice on what GPUs you're looking at buying, give us some examples of cards that you're looking for

    jDSX likes this.
  7. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    Okay now where the heck are the sata cables to hook up my ssd to?


    Please help here.

  8. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar

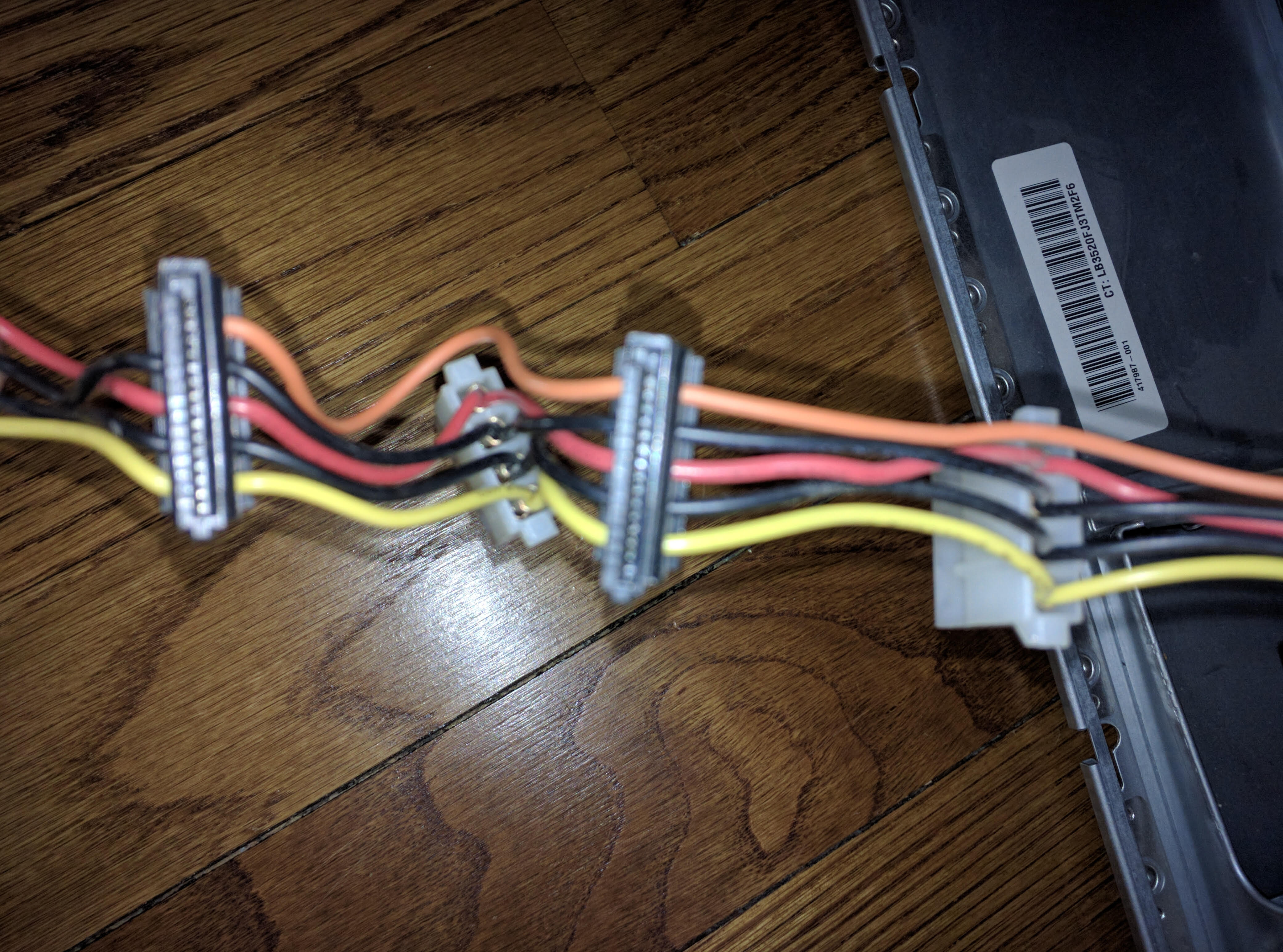

    Are these sata connectors? unnamed.jpg

  9. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    Those are SATA power connectors, yes. You will also need a SATA data cable to go to your motherboard

    jDSX likes this.
  10. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    What would happen if I just used those connectors on my ssd? Would it work?

  11. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    It would power up, yes, but it wouldn't send or receive any data until you plugged it in to the motherboard

  12. jDSX
    OP

    jDSX *pokes*

    Member
    945
    1,471
    Jun 15, 2015
    United States
    Happy furry land with Lucar
    Okay so it also has dvd drive connected with IDE, could I take out the dvd drive and connect a IDE hdd to it?

    Last edited by jDSX, Aug 9, 2016
  13. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    If it has one IDE port you should just be able to plug in multiple things with one cable. Most cables have two ports, like this one:
    Warning: Spoilers inside!
    (Edit: As a side note, I'm glad that I wasn't a computer assembler in the early 90s. Cable management must've been a biiiiiiiitch)

    Alternatively, you could also get something like this if you want to use the newer SSD in your system. Keep in mind that it will run nowhere near SATA III speeds, and probably not even anywhere close to SATA II if we're being honest. I'd really only get this if you already have the SSD, since at IDE speeds there's really not much of a benefit of having an SSD over a quality HDD

    Last edited by TotalInsanity4, Aug 9, 2016
    ILuvGames likes this.
  14. ILuvGames

    ILuvGames GBAtemp Regular

    Member
    204
    22
    Nov 13, 2011
    London
    Last edited by ILuvGames, Aug 9, 2016
    TotalInsanity4 likes this.
  15. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    Ah, good point! I hadn't even thought of add-in cards lol

    However, I think that this one would be better, just so that no extra PCI-E bandwidth is being used and he can use up one of the less precious PCI slots on his board: https://www.amazon.com/IOCrest-SATA...d=1470773212&sr=8-5&keywords=pci+sata+ii+card

    ILuvGames likes this.
  16. ILuvGames

    ILuvGames GBAtemp Regular

    Member
    204
    22
    Nov 13, 2011
    London
    Unfortunately there seems to be an issue with both our suggestions in that you cannot use anything connected to those devices as a boot drive.

    TotalInsanity4 likes this.
  17. ILuvGames

    ILuvGames GBAtemp Regular

    Member
    204
    22
    Nov 13, 2011
    London
    You can still buy new LGA 771 motherboards (with Sata II/DDR3 Ram support) of course, but it may not be of consideration to you. I just mentioned it in case it might be.

    Last edited by ILuvGames, Aug 10, 2016
    NutymcNuty and TotalInsanity4 like this.
  18. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord

    Member
    7,086
    7,077
    Dec 1, 2014
    United States
    Under a rock
    Might want to get a different board than that one, though, because electrically the PCI-E slot is only 1x (aka shit for gaming)

    ILuvGames likes this.
  19. ILuvGames

    ILuvGames GBAtemp Regular

    Member
    204
    22
    Nov 13, 2011
    London
    Didn't see that. My bad. Will have to edit my post.

    TotalInsanity4 likes this.
  20. ILuvGames

    ILuvGames GBAtemp Regular

    Member
    204
    22
    Nov 13, 2011
    London
    How come it is only a x1 slot? I thought that was only an indicator to the fact it has only 1 PCI-E slot. It states in the full details below the listing it is a x16 slot.
