DeadOneWalking said:
I can confirm that creating and using a "titles.txt" file does not work.
Click to expand...
You can also change game name under usbloadergx:

In usbloadergx settings>loader settings> Turn OFF quick boot option.

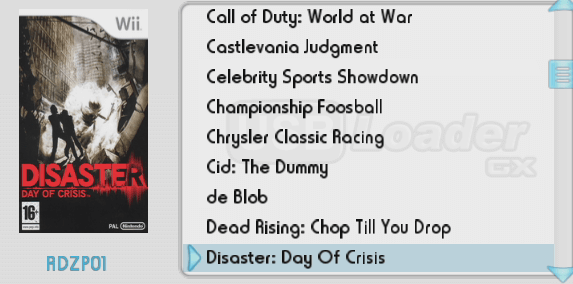

change game view to list mode, like this (it can be any other than channel sysmenu like):


Click the game once.
There's suposed to appear a disc spinning with the game name above it.
Click the name of the game, then edit.

Last edited by almmiron,
almmiron said:
You can also change game name under usbloadergx:

In usbloadergx settings>loader settings> Turn OFF quick boot option.
change game view to list mode, like this (it can be any other than channel sysmenu like):
View attachment 226051

Click the game once.
There's suposed to appear a disc spinning with the game name above it.
Click the name of the game, then edit.
Click to expand...
Using that method is what I have been doing, only to have the titles revert back after a day or so.

I've edited the file, configured the path of it in the usbloadergx Settings, games from gametbb on,



Use notepad++ to open xml file, ctrl+f> search for:

<title>Conduit 2</title>



Replace for what you want. And dont update wiitbd.xml with usblaoder gx network features or other apps.

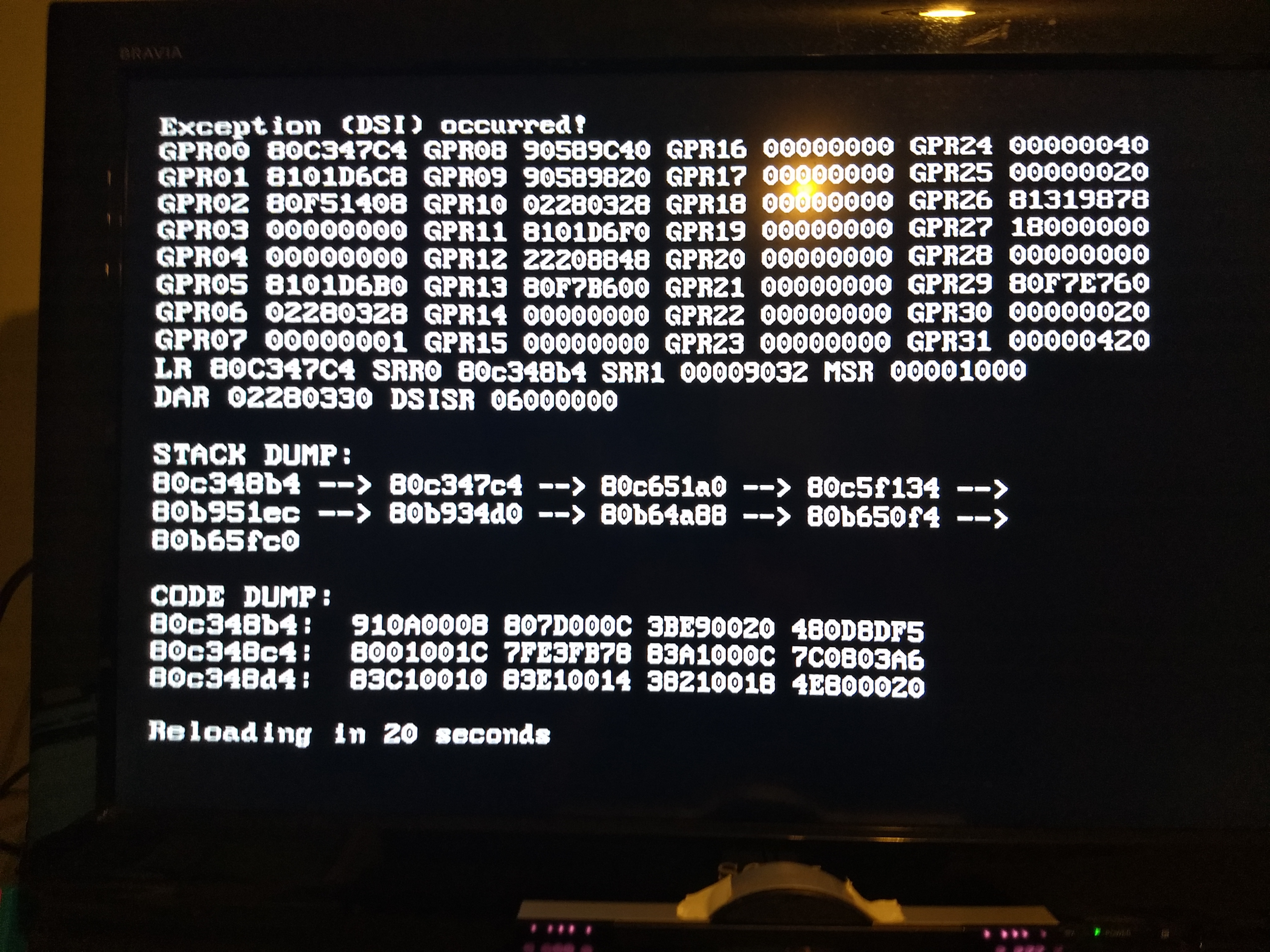

I got a crash report when USBLoaderGX tries to mount my WD Passport drive, could anyone figure out what its saying, and if there's a way I can still use my drive? I updated all my homebrew software/apps on 10/4/2020, and tried using a USB power split cable so it's not drawing all the power from one USB slot.



The drive I am using is: [https://shop.westerndigital.com/pro...wd-my-passport-usb-3-0-hdd#WDBPKJ0050BBK-WESN]. It's NOT listed on the USB Devices Compatibility List [https://wiki.gbatemp.net/wiki/USB_Devices_Compatibility_List]

5 TB WD My Passport HDD
Product # WDBPKJ0050BBK-WESN
Vendor ID 1058
Product ID 2627

Thanks! Let me know if I posted this question in the wrong forum.

  • Like
Reactions: jeannotte
Cragdore said:
I got a crash report when USBLoaderGX tries to mount my WD Passport drive, could anyone figure out what its saying, and if there's a way I can still use my drive? I updated all my homebrew software/apps on 10/4/2020, and tried using a USB power split cable so it's not drawing all the power from one USB slot.

View attachment 227207

The drive I am using is: [https://shop.westerndigital.com/pro...wd-my-passport-usb-3-0-hdd#WDBPKJ0050BBK-WESN]. It's NOT listed on the USB Devices Compatibility List [https://wiki.gbatemp.net/wiki/USB_Devices_Compatibility_List]

5 TB WD My Passport HDD
Product # WDBPKJ0050BBK-WESN
Vendor ID 1058
Product ID 2627

Thanks! Let me know if I posted this question in the wrong forum.
Click to expand...
Hello,

The wii tolerates up to 2 TB for the partition of your external hard drive.
If you have a 5TB external hard drive, try partitioning it like this:
1st partition 2TB (wii games, Gamecube) << === FAT 32
2nd partition 3 TB (other files) <<< === the format that suits you.

Can you post a syscheck report by following this guide, please ==>https://gbatemp.net/threads/posting-a-system-check.300279/

  • Like
Reactions: Alexander1970, Cragdore and ca032769
Cragdore said:
I got a crash report when USBLoaderGX tries to mount my WD Passport drive, could anyone figure out what its saying, and if there's a way I can still use my drive? I updated all my homebrew software/apps on 10/4/2020, and tried using a USB power split cable so it's not drawing all the power from one USB slot.

View attachment 227207

The drive I am using is: [https://shop.westerndigital.com/pro...wd-my-passport-usb-3-0-hdd#WDBPKJ0050BBK-WESN]. It's NOT listed on the USB Devices Compatibility List [https://wiki.gbatemp.net/wiki/USB_Devices_Compatibility_List]

5 TB WD My Passport HDD
Product # WDBPKJ0050BBK-WESN
Vendor ID 1058
Product ID 2627

Thanks! Let me know if I posted this question in the wrong forum.
Click to expand...

You could also follow the instructions below in my signature to make the drive one 5TB MBR FAT32 partition.

Not sure if you can get the whole 5TB drive as 32k clusters or if you'll need to go up to 64k clusters. With my larger 8TB & 10TB drives 64k & 256 cluster sizes has not been an issue, the key is to take it from GPT to MBR and then Format to FAT32. I have also bought a similar 5TB WD Passport, but have been too busy to play with it to give you the direct answers on cluster size. I also always use a Y-cable just in case to make sure there is no power issue from failing usb ports.

99% of all Wii and GameCube's fit on a 4TB drive, so I had gotten the 5TB to get 100% of the games onto my Wii in the small package of the Passport (rather than the larger WD MyBooks). Maybe I can get to it this weekend and see how it goes. I don't see there being any problem though and am anticipating the 5TB WD Passport becoming my drive of choice.

Edit: If you go this route, try 32k clusters first. If the entire 5TB is not showing as usable just reformat it again choosing 64k cluster size and should work just fine. I'll confirm this myself and get back to you as well.

Last edited by ca032769,
  • Like
Reactions: andreiarturo, Alexander1970, Cragdore and 1 other person
Hello Jeannotte and ca032769, I do have it partitioned into a 2TB Fat32 (using wii backup manager tool) at 32k clusters, the rest being NTFS. Also what is a GPT and MBR? Thanks!

Here is my syscheck:
SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: NTSC-U
System Menu 4.3U (v513)
Priiloader installed
Drive date: 02.13.2007
Homebrew Channel 1.1.2 running on IOS58

Hollywood v0x11
Console ID: 48296138
Console Type: Wii
Shop Channel Country: United States (49)
Boot2 v4
Found 147 titles.
Found 47 IOS on this console. 15 of them are stubs.

IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 2816): Stub
IOS31 (rev 3608): Trucha Bug, ES Identify, NAND Access
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120): Stub
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 6400): Stub
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 6912): Stub
IOS80 (rev 6944): No Patches
IOS222 (rev 65280): Stub
IOS223 (rev 65280): Stub
IOS249[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS250[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS251[58] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS254 (rev 65280): Stub
BC v6
MIOS v10
Report generated on 10/05/2020.

  • Like
Reactions: jeannotte
Cragdore said:
Hello Jeannotte and ca032769, I do have it partitioned into a 2TB Fat32 (using wii backup manager tool) at 32k clusters, the rest being NTFS. Also what is a GPT and MBR? Thanks!

Here is my syscheck:
SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: NTSC-U
System Menu 4.3U (v513)
Priiloader installed
Drive date: 02.13.2007
Homebrew Channel 1.1.2 running on IOS58

Hollywood v0x11
Console ID: 48296138
Console Type: Wii
Shop Channel Country: United States (49)
Boot2 v4
Found 147 titles.
Found 47 IOS on this console. 15 of them are stubs.

IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 2816): Stub
IOS31 (rev 3608): Trucha Bug, ES Identify, NAND Access
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120): Stub
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 6400): Stub
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 6912): Stub
IOS80 (rev 6944): No Patches
IOS222 (rev 65280): Stub
IOS223 (rev 65280): Stub
IOS249[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS250[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS251[58] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS254 (rev 65280): Stub
BC v6
MIOS v10
Report generated on 10/05/2020.
Click to expand...

GPT & MBR are partition table types and how data is read from the drive:
https://www.howtogeek.com/193669/whats-the-difference-between-gpt-and-mbr-when-partitioning-a-drive/#:~:text=On an MBR disk, the,if the data is corrupted.

MBR is the old style & GPT is the new style, so most new drives are GPT. The drive needs to be MBR in order to work with all the associated Wii software like the loaders & Nintendont.

If you read through my link about using larger drives you'll see that you also need to make sure no other unallocated space or something listed with an ASTRIX on the drive, especially if it is in the first position. Use a partition manager program to merge anything unused and the ASTERIX into the FAT32 partition. The issue of unallocated space in the first position showing up as an ASTRIX goes easily overlooked, even in a single partitioned drive, and can cause the loader to not recognize the drive.

I don't use more than one partition on my drives, but I also think that if you do the FAT32 partition needs to be the 1st partition on the drive with the NTFS after it. Something about the loaders reading the first partition first. Some will read all of them, but I use all 3 loaders still CGF, GX & Wii Flow. Not all of them will read drives with multiple partitions.

Last edited by ca032769,
  • Like
Reactions: Cragdore, Alexander1970 and jeannotte
Cragdore said:
Hello Jeannotte and ca032769, I do have it partitioned into a 2TB Fat32 (using wii backup manager tool) at 32k clusters, the rest being NTFS. Also what is a GPT and MBR? Thanks!

Here is my syscheck:
SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: NTSC-U
System Menu 4.3U (v513)
Priiloader installed
Drive date: 02.13.2007
Homebrew Channel 1.1.2 running on IOS58

Hollywood v0x11
Console ID: 48296138
Console Type: Wii
Shop Channel Country: United States (49)
Boot2 v4
Found 147 titles.
Found 47 IOS on this console. 15 of them are stubs.

IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 2816): Stub
IOS31 (rev 3608): Trucha Bug, ES Identify, NAND Access
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120): Stub
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 6400): Stub
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70 (rev 6912): Stub
IOS80 (rev 6944): No Patches
IOS222 (rev 65280): Stub
IOS223 (rev 65280): Stub
IOS249[56] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS250[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS251[58] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS254 (rev 65280): Stub
BC v6
MIOS v10
Report generated on 10/05/2020.
Click to expand...
Your syscheck report is correct.:yaywii:

I too always use the following three loaders: Configurable loader, usb loader gx and wiiflow, when some games don't want to start with one, I use another loader.

  • Like
Reactions: ca032769, Cragdore and Alexander1970
Man, when I first hacked my wii I was using CFG loader, which was great. Then a couple of years ago I hacked my WiiU and used Wiiflow. Was fine, looked cool. But most recently l hacked another Wii for myself. Why haven't I been using USB Loader GX all these years? It's fantastic! I can't praise it enough!

  • Like
Reactions: ca032769, andreiarturo, Draxikor and 2 others
ca032769 said:
GPT & MBR are partition table types and how data is read from the drive:
https://www.howtogeek.com/193669/whats-the-difference-between-gpt-and-mbr-when-partitioning-a-drive/#:~:text=On an MBR disk, the,if the data is corrupted.

MBR is the old style & GPT is the new style, so most new drives are GPT. The drive needs to be MBR in order to work with all the associated Wii software like the loaders & Nintendont.

If you read through my link about using larger drives you'll see that you also need to make sure no other unallocated space or something listed with an ASTRIX on the drive, especially if it is in the first position. Use a partition manager program to merge anything unused and the ASTERIX into the FAT32 partition. The issue of unallocated space in the first position showing up as an ASTRIX goes easily overlooked, even in a single partitioned drive, and can cause the loader to not recognize the drive.

I don't use more than one partition on my drives, but I also think that if you do the FAT32 partition needs to be the 1st partition on the drive with the NTFS after it. Something about the loaders reading the first partition first. Some will read all of them, but I use all 3 loaders still CGF, GX & Wii Flow. Not all of them will read drives with multiple partitions.
Click to expand...

I followed instructions in your signature for the most part. I got the 5TB drive in 32k clusters, MBR. it shows 4.54TB usable (don't think I will need to jump to 64k clusters, do I?).
Used EaseUS to check drive properties between steps, and to set it as the primary and active drive.
WD Quick format gave me the option for "Most Compatible (Vista or later required)" or "XP Compatible" (which I used) despite using Windows 10. Also, I had used WD Drive Utilities to turn the sleep timer off before, and it retained that setting after formatting.
I deviated from your instructions by using Wii Backup Manager to format to FAT with 32k clusters instead of FAT32GUI formatter. I will try to test it with games soon.

Edit: Windows properties & Wii Backup Manger only recognize 560 GB, but EaseUS sees 4.54 TB... How did you make a single FAT32 partition larger than 2TB?

Edit: Both Wii and GC games work, load quick, and seem stable. Now I just need to make the full 5TB usable.

Last edited by Cragdore,
  • Like
Reactions: ca032769 and jeannotte
Cragdore said:
I followed instructions in your signature for the most part. I got the 5TB drive in 32k clusters, MBR. it shows 4.54TB usable (don't think I will need to jump to 64k clusters, do I?).
Used EaseUS to check drive properties between steps, and to set it as the primary and active drive.
WD Quick format gave me the option for "Most Compatible (Vista or later required)" or "XP Compatible" (which I used) despite using Windows 10. Also, I had used WD Drive Utilities to turn the sleep timer off before, and it retained that setting after formatting.
I deviated from your instructions by using Wii Backup Manager to format to FAT with 32k clusters instead of FAT32GUI formatter. I will try to test it with games soon.

Edit: Windows properties & Wii Backup Manger only recognize 560 GB, but EaseUS sees 4.54 TB... How did you make a single FAT32 partition larger than 2TB?

Edit: Both Wii and GC games work, load quick, and seem stable. Now I just need to make the full 5TB usable.
Click to expand...

That 4.54TB is actually correct, stay with the 32k clusters, it is the usable portion of what a 5TB drive will give you. There is overhead for the partition table and other stuff, so 1,000 bytes on the drive = 1,024 bytes in space needed once formatted. So all drives will show a little under the stated size versus actual capacity. Just like a 1TB HDD will give you only 931GB of actual usable space. Disappointing I know.

Most programs will not format FAT32 above 2TB correctly as needed here. I suggest reformatting using FAT32GUI formatter (at 32k cluster size) instead and report back.

Last edited by ca032769,
  • Like
Reactions: Alexander1970 and jeannotte
ca032769 said:
That 4.54TB is actually correct, stay with the 32k clusters, it is the usable portion of what a 5TB drive will give you. There is overhead for the partition table and other stuff, so 1,000 bytes on the drive = 1,024 bytes in space needed once formatted. So all drives will show a little under the stated size versus actual capacity. Just like a 1TB HDD will give you only 931GB of actual usable space. Disappointing I know.

Most programs will not format FAT32 above 2TB correctly as needed here. I suggest reformatting using FAT32GUI formatter (at 32k cluster size) instead and report back.
Click to expand...
It STILL only shows 560GB usable, with hardware properties still listing 4.54 TB capacity. Not sure whats going on, should I just make multiple FAT32 partitions then?

Edit: To clarify, EaseUS and Windows Disc Management see the 5.54 TB but Windows File Explorer, Window's Drive Properties, and Wii Backup Manager only see 560 GB

Last edited by Cragdore,
  • Like
Reactions: jeannotte
Cragdore said:
It STILL only shows 560GB usable, with hardware properties still listing 4.54 TB capacity. Not sure whats going on, should I just make multiple FAT32 partitions then?
Click to expand...

The only time I had an issue where the size wasn't showing correct was when I formatted my 10TB to FAT32 @ 64k clusters. To have the computer show the correct size I had to go to FAT32 @ 256k clusters.

I would try formatting it to FAT32 @ 64k clusters to see if that resolves the issue. I won't be able to try my 5TB until this weekend.

EDIT: Also, if there were more then one partition on the drive, you did merge all partitions into one before re-formatting right?

Last edited by ca032769,
  • Like
Reactions: Alexander1970 and jeannotte
ca032769 said:
The only time I had an issue where the size wasn't showing correct was when I formatted my 10TB to FAT32 @ 64k clusters. To have the computer show the correct size I had to go to FAT32 @ 256k clusters.

I would try formatting it to FAT32 @ 64k clusters to see if that resolves the issue. I won't be able to try my 5TB until this weekend.

EDIT: Also, if there were more then one partition on the drive, you did merge all partitions into one before re-formatting right?
Click to expand...
It works! Thanks! I will test it with some games in a bit.

  • Like
Reactions: Alexander1970, ca032769 and jeannotte
When testing Brawl, at one point in the intro cinematic it freezes (when samus and pikachu are running in the red lit hallway), but otherwise runs fine for everything else. Perhaps it is an issue with how much of the pre-rendered video can be loaded at once? Any idea, has it happened before to others?

Last edited by Cragdore,
  • Like
Reactions: jeannotte
Cragdore said:
When testing Brawl, at one point in the intro cinematic it freezes (when samus and pikachu are running in the red lit hallway), but otherwise runs fine for everything else. Perhaps it is an issue with how much of the pre-rendered video can be loaded at once? Any idea, has it happened before to others?
Click to expand...

You might check to see if that needs a different cIOS to run than your default which is probably in slot #249.

Otherwise I don't play the game so I can't speak to it, but I'll add that to my list this weekend to test out. Maybe others can comment if they know of any issues or special cIOS to run it.

Here are some links to research though:

https://github.com/davebaol/d2x-cios/wiki/Problematic-disc-based-games

https://wiki.gbatemp.net/wiki/USB_Game_Compatibility_Table

  • Like
Reactions: jeannotte

Site & Scene News

Go to forum More news

Popular threads in this forum

Hacking  Wii Preloader stuck

Hacking Emulation  What is the best way to recover my Wii Shop purchases?

Wii doesn't show image on TV after replacing DVD drive

Wii Brickers

Gaming Hardware  What can I do to increase the lifespan of my wii?

Issues with an Updated Jailbreak

Rare games N64 port

Hacking Homebrew  wiicalib: calibrate your Classic Controller (Pro)
