Hacking Hardware Switch v2 capacitor replacement

[Memolee69]

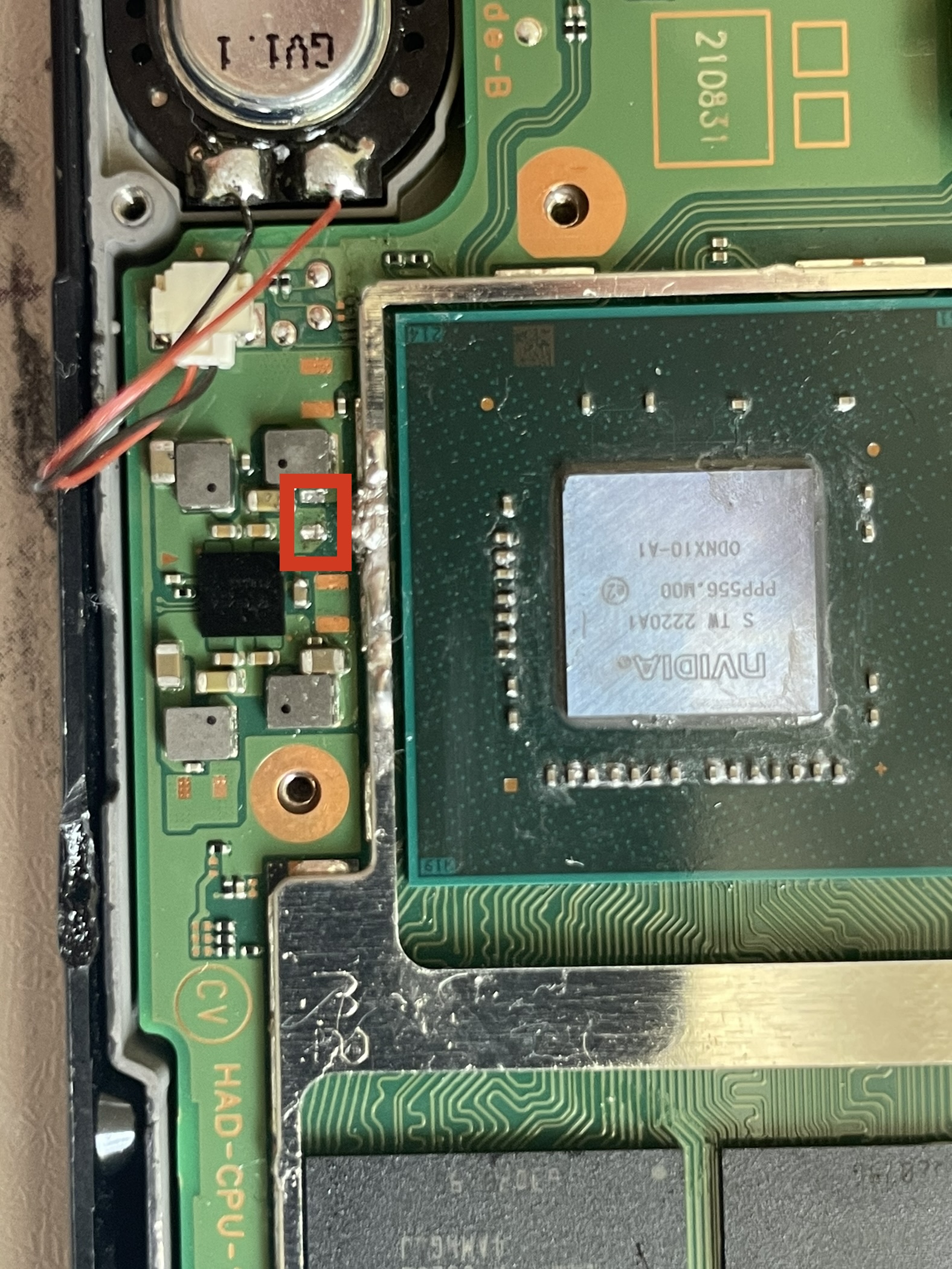

I accidentally disconnected a capacitor. the switch no longer lights up. what is the value of this capacitor and how can i fix it?



[jkyoho]

22uF 0603 2.5v cap, you can pick voltage rate from 2.5v~6v, its on GPU 0.6~0.8v line, so smaller range is better(2.5v)



[Memolee69]

22uF 0603 2.5v cap, you can pick voltage rate from 2.5v~6v, its on GPU 0.6~0.8v line, so smaller range is better(2.5v)

thank you, to install it I do it with a hot air gun? what should I pay attention to?



[jkyoho]

thank you, to install it I do it with a hot air gun? what should I pay attention to?

Yes, hot air station is ideal for this work. Protect the cpu from heat and pretin the pads before putting on new cap



[Memolee69]

Yes, hot air station is ideal for this work. Protect the cpu from heat and pretin the pads before putting on new cap

than you my friend



[Memolee69]

Hi, So I replaced the capacitor but the switch still does not turn on, do you have any idea what I should check to find the problem?



[dehydrated_lemur]

Does any know the values and package size of these two capacitors? It is a V2. The cap on the bottom is 3.3v source.

edit. I got the specs.
