1. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
  2. DeadlyFoez

    DeadlyFoez XFlak Fanboy
    Banned

    Joined:
    Apr 12, 2009
    Messages:
    5,920
    Country:
    United States

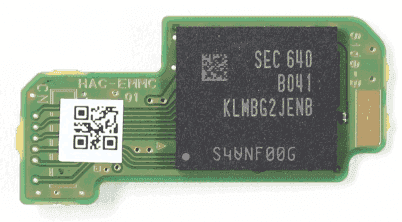

    hac-emmc.png Nintendo says so itself on it's hardware. HAC-EMMC.

    I shall get started.

    Seriously though. This will make it extremely easy to backup and restore the flash memory.

    gnmmarechal likes this.
  3. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    It's great because it allows adapters that won't require soldering.

  4. TR_mahmutpek

    TR_mahmutpek medic
    Member

    Joined:
    Jul 28, 2015
    Messages:
    1,406
    Country:
    Turkey
    Please, nvidia Pascal
    architectural :/

  5. Coto

    Coto -
    Member

    Joined:
    Jun 4, 2010
    Messages:
    2,761
    Country:
    Chile
  6. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    Really though what system DOESN'T have a detachable battery

  7. zoogie

    zoogie playing around in the dsiware
    Developer

    Joined:
    Nov 30, 2014
    Messages:
    8,261
    Country:
    Micronesia, Federated States of
    The ones that have batteries that are glued/soldered onto the motherboard.

  8. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    I mean gaming systems.
    Or even phones or tablets.

  9. Coto

    Coto -
    Member

    Joined:
    Jun 4, 2010
    Messages:
    2,761
    Country:
    Chile
    chinese tablet batteries.

    google "chinese tablet embedded battery"

    Also iirc there was a rumour about switch having a non removable battery.

    edit:



    it´s almost like dismantling a bomb

    Last edited by Coto, Mar 3, 2017
  10. fatsquirrel

    fatsquirrel GBAtemp Addict
    Member

    Joined:
    Nov 11, 2013
    Messages:
    2,601
    Country:
    What a shame they didnt disassemble the display too. Id love to see how the integrated digitizer works :(

    edit: are these air vents on the bottom? Oo

    [​IMG]

    Last edited by fatsquirrel, Mar 3, 2017
  11. TotalInsanity4

    TotalInsanity4 GBAtemp Supreme Overlord
    Member

    Joined:
    Dec 1, 2014
    Messages:
    10,811
    Country:
    United States
    Speakers, I think

    fatsquirrel likes this.
  12. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    There are 3 cables sticking out of the panel, which is strange since there should only be the screen and digitizer left. Maybe the 4-pin is for backlight?

  13. L-Sosav

    L-Sosav Newbie
    Newcomer

    Joined:
    Mar 3, 2017
    Messages:
    4
    Country:
    France
    Hi,

    I'm the tech guy who took apart this console (the pictures above are from the company where I work)

    Yes, the battery is very easy to remove, I only used a small plastic spudger and it comes off immediately.

    The "air vents" at the bottom are used to dissipate the heat and for speakers

    There's three flex cables :

    - One is for the digitizer (the big one located at the top left of the motherboard)
    - The second located in the center is used for the LCD
    - The third below is the backlight flex

    You can take apart and remove digitizer (we did not do it because of a lack of time).

    The digitizer is not "fused" with the LCD screen like iPhones/Samsung etc devices :)

    Feel free for questions,

    Louis

  14. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    It isn't fused huh. Explains why it looks far apart from the glass.
    That kinda sucks but I guess the screen is expected to be average.

  15. fatsquirrel

    fatsquirrel GBAtemp Addict
    Member

    Joined:
    Nov 11, 2013
    Messages:
    2,601
    Country:
    Wait wait wait, wait a minute
    Display manufacturer is confirmed to be Jdisplay only, who clearly said that display and digitizer is one, combined using some new technology. There shouldnt be a removable digitizer. Can you maybe take a picture of the digitizer and serial codes underneath it? Im really interested if they went back and used the same supplier as they did for decades now (with ds, 3ds, wiiu ) :o

    Also AFAIK and researched, iPhone digitizer is not fused with the display they just use adhesive and stick it to the displays frame. So two seperate manufacturers: one for display (in case of 6s for example, mainly Jdisplay) and one for digitizer (a taiwanese firm i forgot the name of.)

    Also thank you for a wonderful job and great high quality pictures! (unlike those trash pics of chinese teardown)

    @Duo8
    Screen looks absolutely fantastic, what are you talking about :huh:

    Last edited by fatsquirrel, Mar 3, 2017
  16. thorasgar

    thorasgar Checkout my evil Soon-in-ator™
    Member

    Joined:
    Jul 3, 2010
    Messages:
    3,783
    Country:
    United States
    @L-Sosav

    Can you confirm if the screen is glass or plastic?

  17. Duo8

    OP Duo8 GBAtemp Psycho!
    Member

    Joined:
    Jul 16, 2013
    Messages:
    3,591
    Country:
    Vietnam
    That's generally what fused refers to.

  18. Kyubnyan

    Kyubnyan GBAtemp Fan
    Member

    Joined:
    Dec 1, 2016
    Messages:
    360
    Country:
    United States
    Just need someone to take off the nand chip so that we can find soldier points for hardmod. Too bad we need a switch to sacrifice.

    Edit: love the removable nand tho

    Last edited by Kyubnyan, Mar 3, 2017
  19. videogame57

    videogame57 Touch Fluffy Tail
    Member

    Joined:
    Apr 27, 2014
    Messages:
    413
    Country:
    Canada
    That's not a bad thing, it's actually a very good thing because it means if you break the glass you only need to replace the digitizer and not the entire LCD, which is much cheaper.

  20. DeadlyFoez

    DeadlyFoez XFlak Fanboy
    Banned

    Joined:
    Apr 12, 2009
    Messages:
    5,920
    Country:
    United States
    It will be extremely easy to figure out the pinouts. If I physically had a switch then I could figure it out in minutes.

    I hate to sound like a dink, but the flash memory is not a NAND memory, instead it is an eMMC, and there is a big difference on the technical level. In short, NANDs require a lot more pins for data and addressing and they are required, eMMC does not have nearly as many pins and some can be excluded from use if needed but will result in slower transfer speed.

    Now that you know a slight bit about the difference, please try to use the correct terminology when discussing the flash memory.

    The only reason why it bugs me is when the Wii U first came out, the manager at a gamestop kept telling customers that the Wii U's "hard drive" was 32gb. I had to correct the idiot because the customers were asking if they can upgrade the hard drive like the PS3/4 and XBox's. Correct terminology can make a difference for people to understand things correctly.

    gnmmarechal and CaptainSodaPop like this.
