switch oled picofly installation issue after a month

MKVINS

Member
OP
Newcomer
Joined
Aug 18, 2024
Messages
11
Trophies
0
Age
38
XP
55
Country
Italy
hi guys. it is my first post here. i Hope i can post there. i have a problem guys.. After modding something likes 50 V2 switch, i try to mod an oled switch with sk hynix Memory. i do all and It work like a sharm for 1 month. now sometime when i go to sleep and i shut off the console, the morning after, when i power it on, he start directly in ofw and the led show 1 long and 1 short Yellow light = dat0 missing point. it happened the last 3 days of 5. before, It glitch fast and fine everytime. for now i try to flash the 2.74 firmware and the 2.73 and i force the chip relearning but nothing seems to change. if i retry, after some reboot It start and all work fine and i can reboot many time with no error but the morning later i can get the same error. Is a firmware issue or i need to resoldering the dat0? when i solder It, i'm sure i push It good in place and i test It with a multimeter and all works fine so i dont think is a soldering problem. i not have photo here but i follow this video guide and i use the same rp2040 clone chip from AliExpress.
i Hope Someone can help. tnx in advance and sorry for my bad english

Last edited by MKVINS,

Ginjuccy

Member
Newcomer
Joined
Jun 25, 2024
Messages
13
Trophies
0
Age
34
XP
21
Country
United States
check all the omhs and continuity on the soldered points. Don't skip the capton tape. if all fails try another mod chip.


thesjaakspoiler

Well-Known Member
Member
Joined
Nov 20, 2018
Messages
1,258
Trophies
0
Age
124
XP
1,888
Country
Afghanistan
I recall that sk hynix emmcs were giving a lot of heat-related problems.
In other devices like the Galaxy tab, they would get so hot that they would damage the connection with the PCB and you neede the reball them.

Besides that, some emmcs need different resistors for more stability.
Just go (backwards) through the picofly sticky thread or use the search function.


lightautodark

Well-Known Member
Newcomer
Joined
Jul 12, 2024
Messages
92
Trophies
0
Age
33
XP
155
Country
United Kingdom
No matter how well you place the adaptor, it is not a permanent contact. If this is your own unit, you can reseat the adaptor. If you're selling the service, then you shouldn't use the adaptor because it's unreliable.


GoodFellas

Member
Newcomer
Joined
Mar 6, 2024
Messages
17
Trophies
0
XP
64
Country
China

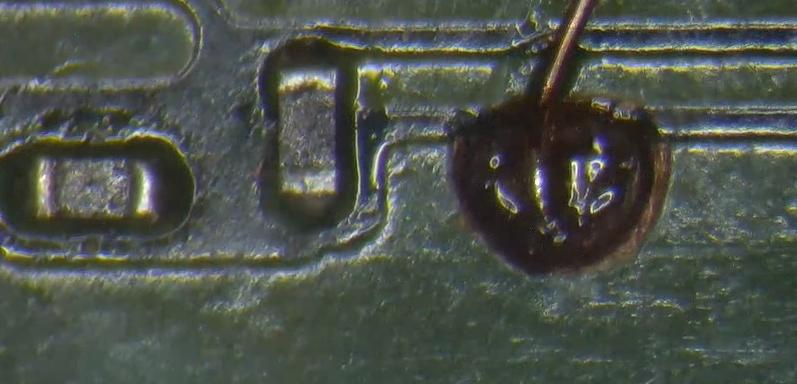

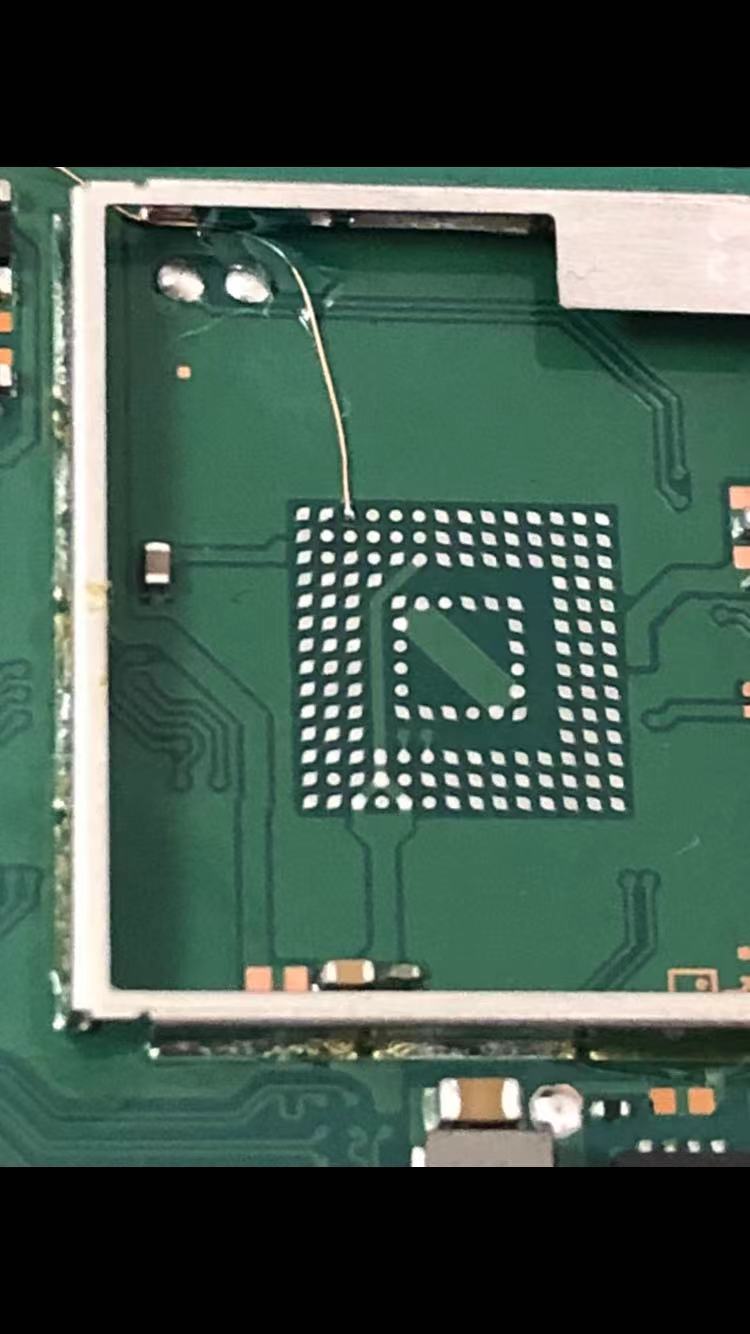

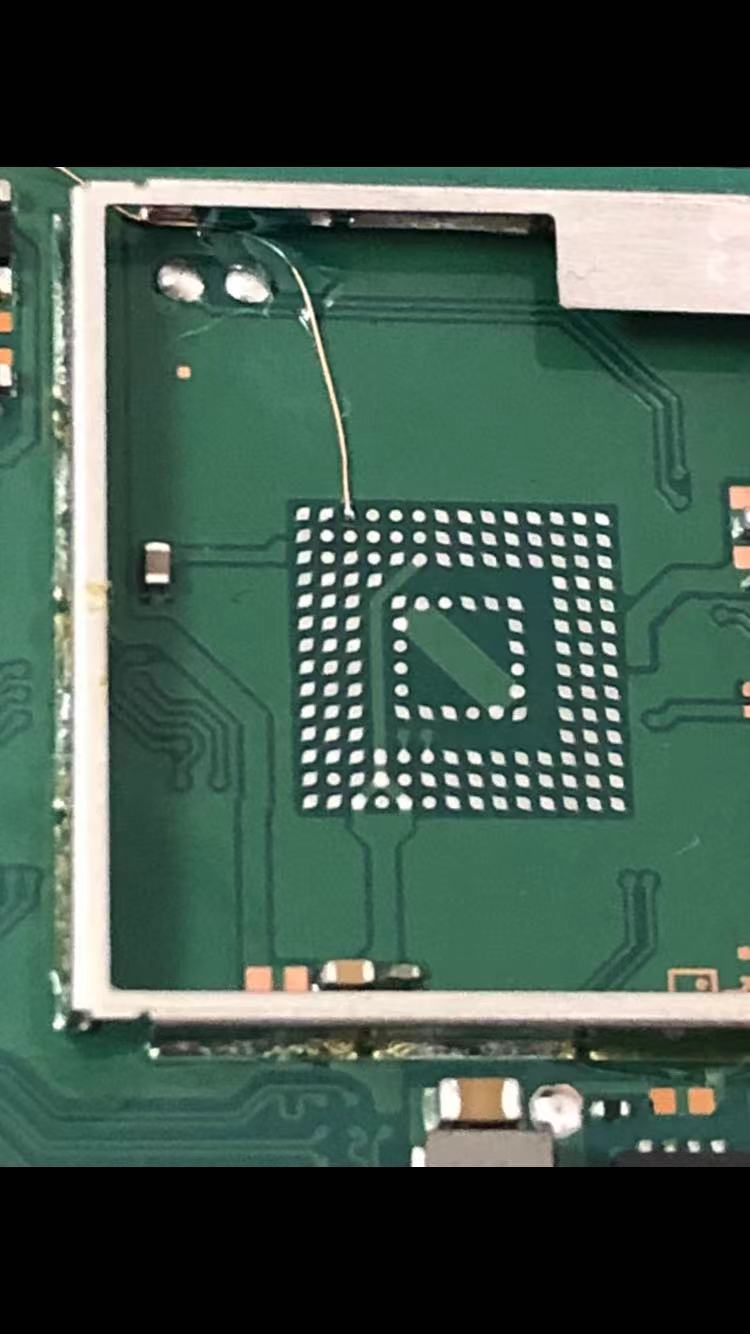

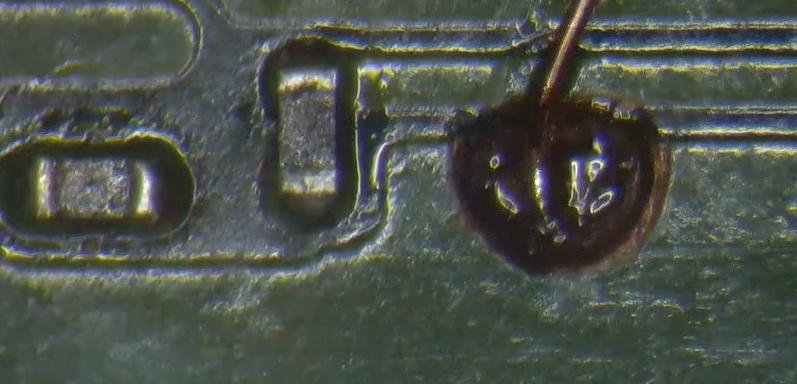

You need to use the following 2 solutions


jkyoho

Well-Known Member
Member
Joined
Sep 2, 2020
Messages
1,532
Trophies
3
Age
40
Website
form.jotform.com
XP
2,571
Country
Canada
reballing the emmc brought numerous problems after months due to the breaking of the spheres. the only way that makes the modification reliable as other models is the kamikaze.
Not true, non-controlled temperature rising curve reflowing BGA or bad quality solder paste/balls is the actual cause of such un-reliable. My own OLED has infamous skhynix emmc and have reballed with dat0 jumper wire there over a year, working as usual(kamikaze method was not out yet at that time).

BTW, kamikaze gets more popular and reliable is based on its easier steps and less stress on components(emmc especially), but you would need more careful when exposing the dat0 point under 2x ground layers

Last edited by jkyoho,

LuigiGad

Well-Known Member
Member
Joined
May 7, 2023
Messages
233
Trophies
0
Age
56
XP
686
Country
Italy
Not true, non-controlled temperature rising curve reflowing BGA or bad quality solder paste/balls is the actual cause of such un-reliable. My own OLED has infamous skhynix emmc and have reballed with dat0 jumper wire there over a year, working as usual(kamikaze method was not out yet at that time).

BTW, kamikaze gets more popular and reliable is based on its easier steps and less stress on components(emmc especially), but you would need more careful when exposing the dat0 point under 2x ground layers
Undoubtedly a reballing done in a workmanlike manner is reliable, but who has the professional equipment to do this? In the vast majority of cases, these are artisanal jobs that offer no guarantees in the long term. The kamikaze, if he succeeds, is forever


MKVINS

Member
OP
Newcomer
Joined
Aug 18, 2024
Messages
11
Trophies
0
Age
38
XP
55
Country
Italy
thx for the reply guys. on the last month i get only one dat0 error and when i forced boot with volume down pressed, he enter in hekate. so i think if it is a real dat0 poor connection, why with volume down can glitch fine? Is that a software problem or maybe the chip itself? i try to update to the latest 2.8 and for now seems to work fine

p.s. i get another sk hynix modded and got the same error and if i boot with volume down he glitch fine. other 2 non sk hynix i get modded and work without problem

Last edited by MKVINS,

MKVINS

Member
OP
Newcomer
Joined
Aug 18, 2024
Messages
11
Trophies
0
Age
38
XP
55
Country
Italy
update: i got the same error and i disassemble the console, i try the c connection with a multimeter and i have no contact, so i remove the old dat0 adapter and installed a new One with 4 anchor points and now work fine so this Is a hardware problem. i test It on this month but i think is good now with 4 anchor points. tnx to all guys👍


LuigiGad

Well-Known Member
Member
Joined
May 7, 2023
Messages
233
Trophies
0
Age
56
XP
686
Country
Italy
update: i got the same error and i disassemble the console, i try the c connection with a multimeter and i have no contact, so i remove the old dat0 adapter and installed a new One with 4 anchor points and now work fine so this Is a hardware problem. i test It on this month but i think is good now with 4 anchor points. tnx to all guys👍
It can also have 12 anchor points, as soon as the hot and cold blows loosen the contacts you may have the problem again.

  • Like
Reactions: jkyoho

MKVINS

Member
OP
Newcomer
Joined
Aug 18, 2024
Messages
11
Trophies
0
Age
38
XP
55
Country
Italy
really? so kamikaze method Is the only One that It work... in that case what dremel i Need to buy for get the job done? tnx in advance


GoodFellas

Member
Newcomer
Joined
Mar 6, 2024
Messages
17
Trophies
0
XP
64
Country
China

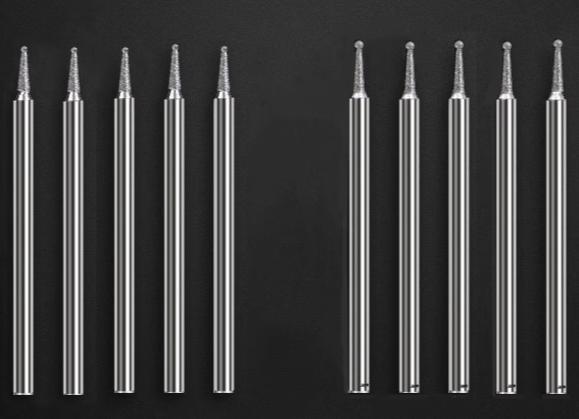

Any dremel will do, but the most important thing is a microscope and a suitable grinding head, 0.5-0.8mm is best. Remember that it is almost impossible to succeed without a microscope

  • Like
Reactions: MKVINS
