Switch OLED modchip blinking red and not launching

[SMRTG]

Context: Switch was sitting nice and vibing on sleep mode, and when I turned it on, it showed a hard crash, of which I forgot to write down, and needed to restart. Obviously since I'm here it didn't, and my modchip flashes purple then flashes red.
I have seen the DAT0 maybe coming loose stuff, and I will give it to the guy that did the installation, but the reason I am making this post is because the red light doesn't stay on. It blinks about 5 times then turns off. Switch DOESN'T turn off automatically after that, I have to hold it for the 12 seconds.

I will be updating the firmware on the modchip this weekend, cause apparently it has a *very* old firmware (I don't get any different results when trying to boot without the SD).

Could something else be the issue or is it just some cable that came loose and needs reseating?
Edit: After reseting the chip, it now flashes green 3 times, then red once and it repeats indefinitely.



[Hayato213]

According to this it point to issue with CLK, DAT0, or CMD connection, or bad eMMC, in your case it is probably DAT0 like you mentioned.



[SMRTG]

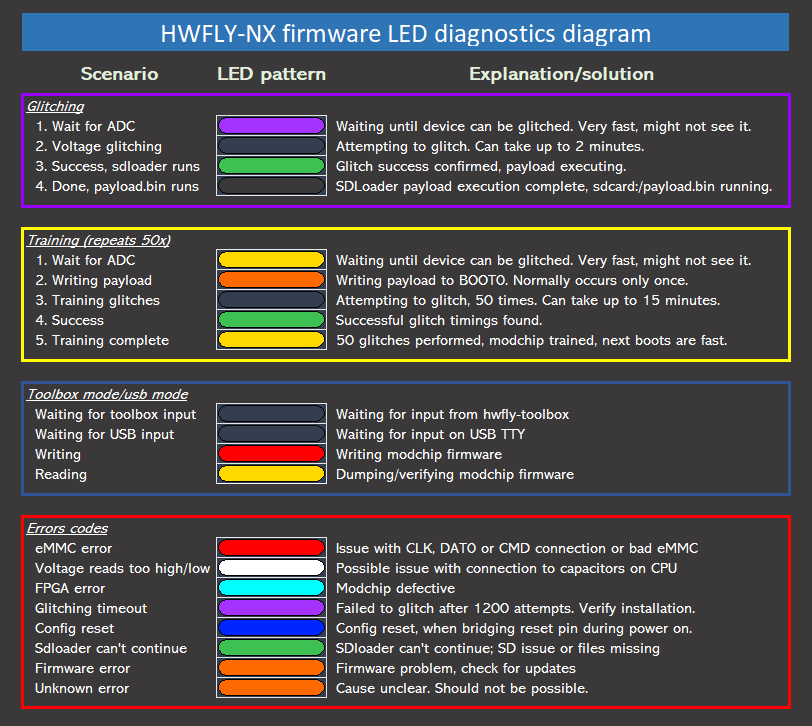

View attachment 359212

According to this it point to issue with CLK, DAT0, or CMD connection, or bad eMMC, in your case it is probably DAT0 like you mentioned.

So I thought this graph meant the red light would stay on if it was the eMMC error, but mine blinks. That's why I was confused



[Hayato213]

So I thought this graph meant the red light would stay on if it was the eMMC error, but mine blinks. That's why I was confused

DAT0 apply to this, since you said it is possibly DAT0, outside of toolbox mode the only way it flash red is those specific problems.



[SMRTG]

DAT0 apply to this, since you said it is possibly DAT0, outside of toolbox mode the only way it flash red is those specific problems.

Ah okay, so it's the colour that matters when not in USB mode nor Glitching, but not if it's blinking or not



[Hayato213]

Ah okay, so it's the colour that matters when not in USB mode nor Glitching, but not if it's blinking or not

Correct.



[Warbeast]

It's also worth doing a reset on the hwfly before checking solder connections the older hwfly fw was known to cause problems after updating system fw



[SMRTG]

It's also worth doing a reset on the hwfly before checking solder connections the older hwfly fw was known to cause problems after updating system fw

How would I go about doing that?

Post automatically merged: Mar 15, 2023

Correct.

Since the glitch is failing, should the switch boot into OFW? Or it just sits there doing nothing?



[cowboy619]

Open it up and short the 2 pins near the usb port it will reset the chip. But my guess is a soldering issue with dat0


Sent from my iPhone using Tapatalk



[Warbeast]

How would I go about doing that?

Post automatically merged: Mar 15, 2023

Since the glitch is failing, should the switch boot into OFW? Or it just sits there doing nothing?

If a reset doesn't solve it check all points with a multimeter



[SMRTG]

If a reset doesn't solve it check all points with a multimeter

I did the reset, got the blue light, and after restarting it's pulsing green and then turning red before pulsing green again and it keeps happening over and over. I don't think this is normal training



[Hayato213]

How would I go about doing that?

Post automatically merged: Mar 15, 2023

Since the glitch is failing, should the switch boot into OFW? Or it just sits there doing nothing?

Your issue is different than it not gltiching then booting into OFW.



[SMRTG]

Your issue is different than it not gltiching then booting into OFW.

After the reset it blinks green 3 times, then red and it repeats. Is this normal training or what is happening?



[Hayato213]

After the reset it blinks green 3 times, then red and it repeats. Is this normal training or what is happening?

You should check your soldering, resetting won't help you in this case.



[SMRTG]

You should check your soldering, resetting won't help you in this case.

Damn, thanks. I thought maybe I could avoid that haha



[TypicalPakeha]

I have a similar issue. Sometimes it will boot to the instinct perfectly. But if I turn off and then back on, it’s random as to whether it goes back to the instinct screen , or if it flashes red and boots to ofw.

Would mine be CLK, Dat0, or CMD too?
