    Hello,
    I broke the ceramic capacitor from a Switch Lite, where the chip get vcc and gnd.
    What's the value of it?

    Thanks


    Attached Files:

  2. Jayro

    Jayro MediCat USB and Malwarebytes Bootable Developer
    Developer

    Joined:
    Jul 23, 2012
    Messages:
    8,654
    Country:
    United States
    Can we get a slightly zoomed out pic of it?

  3. Newtman

    OP Newtman Newbie
    Newcomer

    Joined:
    Sep 22, 2020
    Messages:
    5
    Country:
    Uruguay

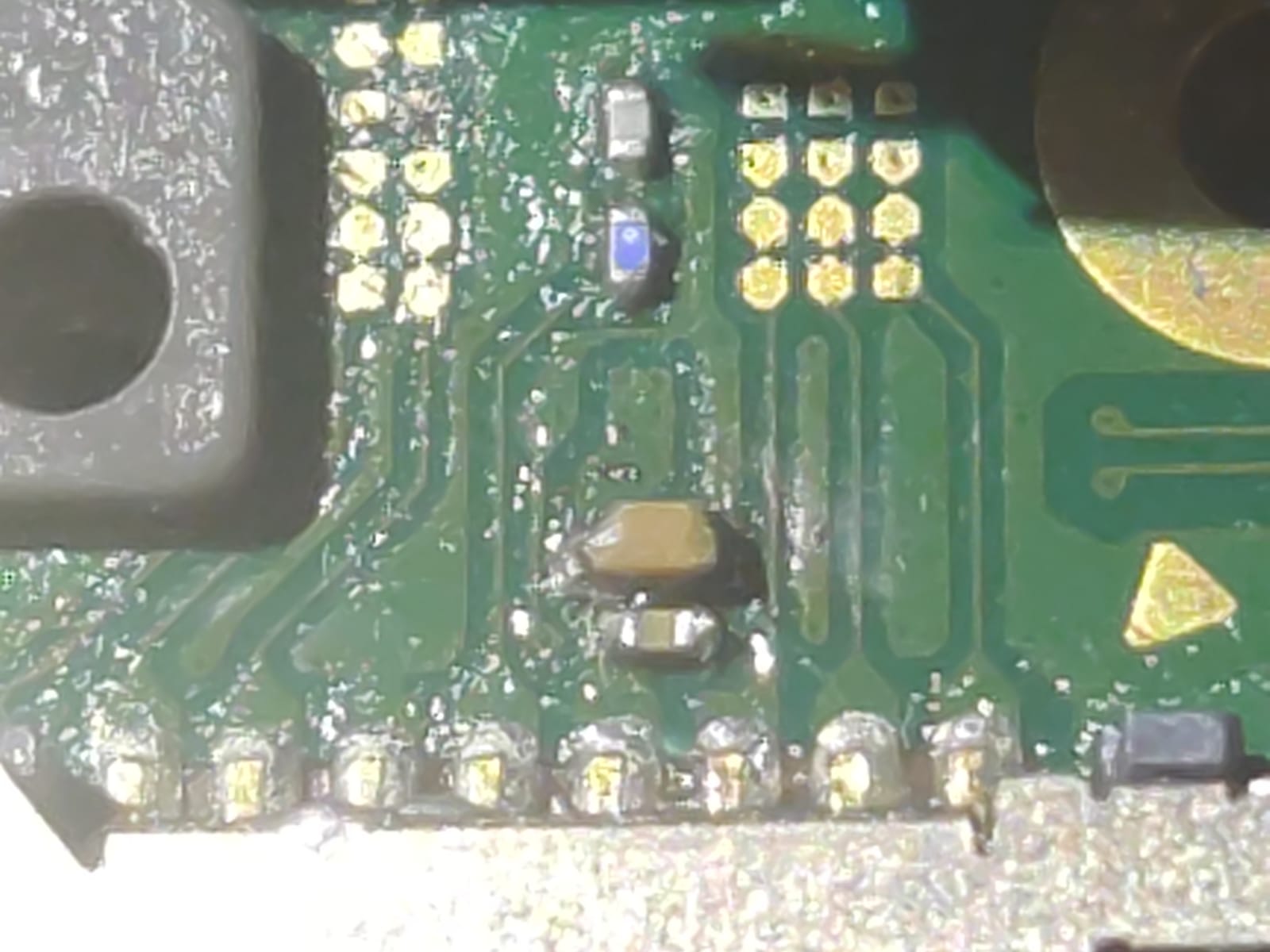

    This is the capacitor where we solder the SX lite, up to the microSD.

  4. Astur_torque

    Astur_torque GBAtemp Regular
    Member

    Joined:
    May 19, 2020
    Messages:
    204
    Country:
    Spain
    I'm interested

  5. Ghost92

    Ghost92 GBAtemp Advanced Fan
    Member

    Joined:
    Jun 29, 2017
    Messages:
    933
    Country:
    Colombia
    If you broke it trying to put in a Mod that supposedly does not require soldering, i can't imagine what you would do trying to change it ...

    Take him to a competent technician and stop playing technician!

    Last edited by Ghost92, Nov 24, 2020
  6. CompSciOrBust

    CompSciOrBust GBAtemp Regular
    Member

    Joined:
    Sep 9, 2019
    Messages:
    264
    Country:
    United Kingdom
    The SX Lite chips do require soldering.

  7. Ghost92

    Ghost92 GBAtemp Advanced Fan
    Member

    Joined:
    Jun 29, 2017
    Messages:
    933
    Country:
    Colombia
    But for God's sake ... tin solder chips and scraped tracks. It is a disaster. If you don't have the right tools to work with, it's best to stop there yourself and get some better hands.

  8. Astur_torque

    Astur_torque GBAtemp Regular
    Member

    Joined:
    May 19, 2020
    Messages:
    204
    Country:
    Spain
    No one knows about that capacitor values?

    I know is not neccesary to make the modchip works (you can solder directly to the pcb pads) but it looks kind of electrical protection SMD

  9. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    Someone knows these values?

  10. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    For what I could gather, these are decoupling capacitors for the SD card reader. Maybe there is some way we could figure these values out.

  11. Newtman

    OP Newtman Newbie
    Newcomer

    Joined:
    Sep 22, 2020
    Messages:
    5
    Country:
    Uruguay
    Are you a troll or a junkie?

    I got this Switch from a customer who bought it "broken" for few dollars...

    Sadly no one know the value of this.

  12. Ghost92
    This message by Ghost92 has been removed from public view by Sicklyboy, Dec 1, 2020, Reason: Not an imageboard.
    Dec 1, 2020
  13. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    @Newtman Can you do me a favor? Are you able to measure the two capacitors on the upper part of the image? The blue and the grey one. Just realize now that those two are missing on my board.

    I manage to measure the bigger one. It's value is 4.7μF. Don't know the specifics (if it needs to be 10V or 25V or even if it is X5R or X7R). Bough some 0805 to compare that is schedule to arrive this week; will update here if it is the same size.

    Wish me luck.

    Last edited by Gled, Dec 3, 2020
  14. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    Just an update. The bigger capacitor is not 0805, it is smaller. Comparing both it looked like it should be a 0504 or 0402. Didn't find anything with the same value of Farad for 0504, so I'm gonna try my luck with the 0402. I will post any update here when I manage to do that.

  15. hiju123

    hiju123 Newbie
    Newcomer

    Joined:
    Nov 17, 2020
    Messages:
    7
    Country:
    India
    I installed the sx lite properly, and got everything working well, but I had to go back in today. Somehow I managed to pop off the same cap that you accidentally removed. The big one above the sd card slot. Iam now unable to even get the switch to power on. Did you get your issues sorted out?





  16. hiju123

    hiju123 Newbie
    Newcomer

    Joined:
    Nov 17, 2020
    Messages:
    7
    Country:
    India
    I replaced the cap with a 0402. Could'nt get it to boot though.



  17. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    Hi @hiju123, welcome to this godforsaken post, haha!

    Long story short: I will not be able to give you an answer yet. Sorry.

    I'm in my own dilemma here because, in my case, I have three capacitors missing. I have realized too, by trial and error, that the correct size for the bigger cap was 0402, but I also have to replace the two caps above which, by size comparison, seems to be 0201. I don't know their values, though, only the big one, so it will take some time until I get this right.

    Did you try to turn the Switch on without the SX Lite? I know is a lot of trouble to work backwards to the problem, but maybe it is worth it since this way you can know, for sure, if the installation was the culprit here.

  18. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    @hiju123

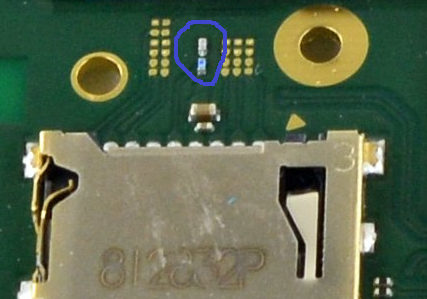

    To be more precise, these are the components missing. I don't even know if they are actually capacitors.


    Could you help me identifying them?

    Last edited by Gled, Dec 27, 2020
  19. hiju123

    hiju123 Newbie
    Newcomer

    Joined:
    Nov 17, 2020
    Messages:
    7
    Country:
    India
    Ok i just examined the pcb once again today and noticed that the cap right below the 0402 is also missing on my board. Iam sure I must have dislodged it in the struggle that ensued while I soldered the 0402 in place. Damn me !! :wacko: No the the thing doesnt boot up irrespective of whether the sx lite is connected or not. I desoldered the sx lite connectors and have stowed it away to use if I ever buy another lite in the future. :cry:



  20. Gled

    Gled Member
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    11
    Country:
    Brazil
    Haha, I know the feeling, man.

    I think that one is a 0201 with the same 4.7uF if you ever decide to try and fix it.

    Last edited by Gled, Dec 28, 2020
  21. hiju123

    hiju123 Newbie
    Newcomer

    Joined:
    Nov 17, 2020
    Messages:
    7
    Country:
    India
    0201 cap rated at 4.7uf. What could be the voltage ? 6.3 v? Also are the caps above the sd card slot necessary for the device to boot?
