Stuck on the "arm11.bin loading" screen

Discussion in '3DS - Flashcards & Custom Firmwares' started by Nicole201, Nov 5, 2016.

  1. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    I've been following plailect's guide to installing arm9loaderhax on my old 3DS. (https://plailect.github.io/Guide/installing-arm9loaderhax) I have successfully downgraded the system to 2.1.0 as instructed by the guide and as I go to type in http://dukesrg.github.io/2xrsa.html?arm11.bin (which is the next step) this is what appears on my screen.I have retried this many of times, clearing the history and all save data but still no luck. The arm11.bin and arm9.bin files are on the root of my SD card and I've recopied these several times also. I'm searching for a solution as I've wasted hours trying to complete this step. What could possibly be the problem?
    [​IMG]

  2. Altairseven

    Altairseven GBAtemp Regular

    Member
    124
    29
    Jan 21, 2016
    Argentina
    well try clearing browser data from the browser settings, also, you did reinsert the sd card after 2.1 booted right.. seems a stupid question but it can happen..

  3. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    Yes I have done both and it still doesn't load.

  4. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Try this:
    disconnect your WIFI (wifi button on 3DS side, don't remember if left or right).

    Open the browser and click settings. Scroll down to "Clear save data" and click it.
    You'll return to Home menu.

    Open the browser again and you'll configure it.
    Close it and open again. Click the URL and write the link without errors (check if it's well written with everything: http:// etc,etc)
    Launch and it will error because of no Internet (WIFI was disconnected, remember???)
    Exit the browser.

    On Home Menu, activate your WIFI.
    Open the browser and don't touch anything. The link will launch.
    When the SafeA9LHInstaller launch, only press SELECT (even if it seems that it's crashed) A9LH will install.

  5. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    @cravas Thank you, I shall try this and get back to you. :)

  6. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Oh and as a reminder: you do have alongside the arm9 and arm11.bin from SafeA9LHInstaller, the a9lh folder from data_input (with the contents of arm9loaderhax.zip on that folder also) on SD, right?

  7. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    Yes I do have all of the above on my SD card.

    I've just tried out your suggestion and it still returns back to the loading screen.

    MiguelMBP likes this.
  8. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Well, only thing I can think is, maybe dukesrg is offline for the time beeing.
    Try some other webpage to see if your NET is working.

    Also, from the Troubleshooting (nothing new to you but...)

  9. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    @cravas I've been at the console nearly all day, will have to try later tonight and if not in the morning. Thanks again for the help! :)

  10. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    No problem.
    Happy 5th of November,:)

    Nicole201 likes this.
  11. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    I've just tried accessing the link again but the same screen still appears.

  12. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Can you take a Picture of your SD card and post here?

    It's strange you're not beeing able to run the exploit.

  13. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London

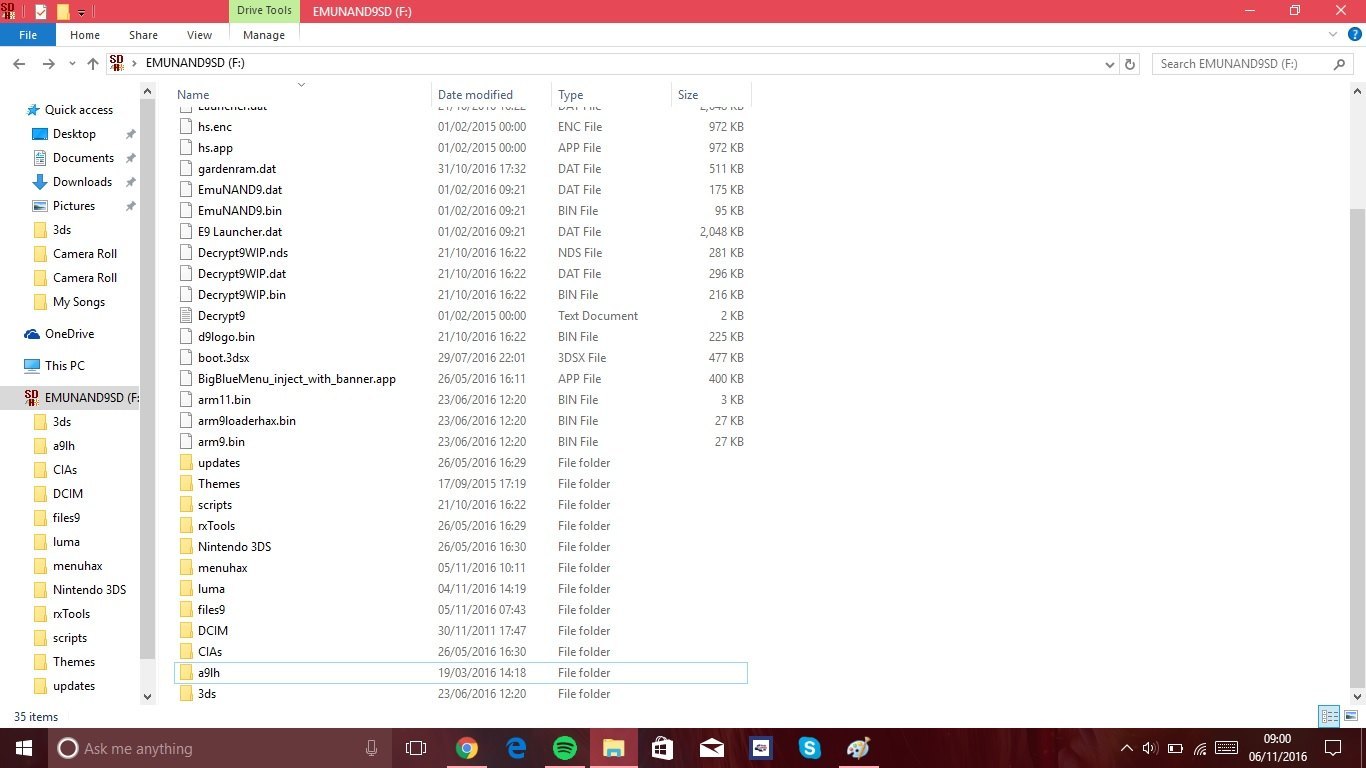

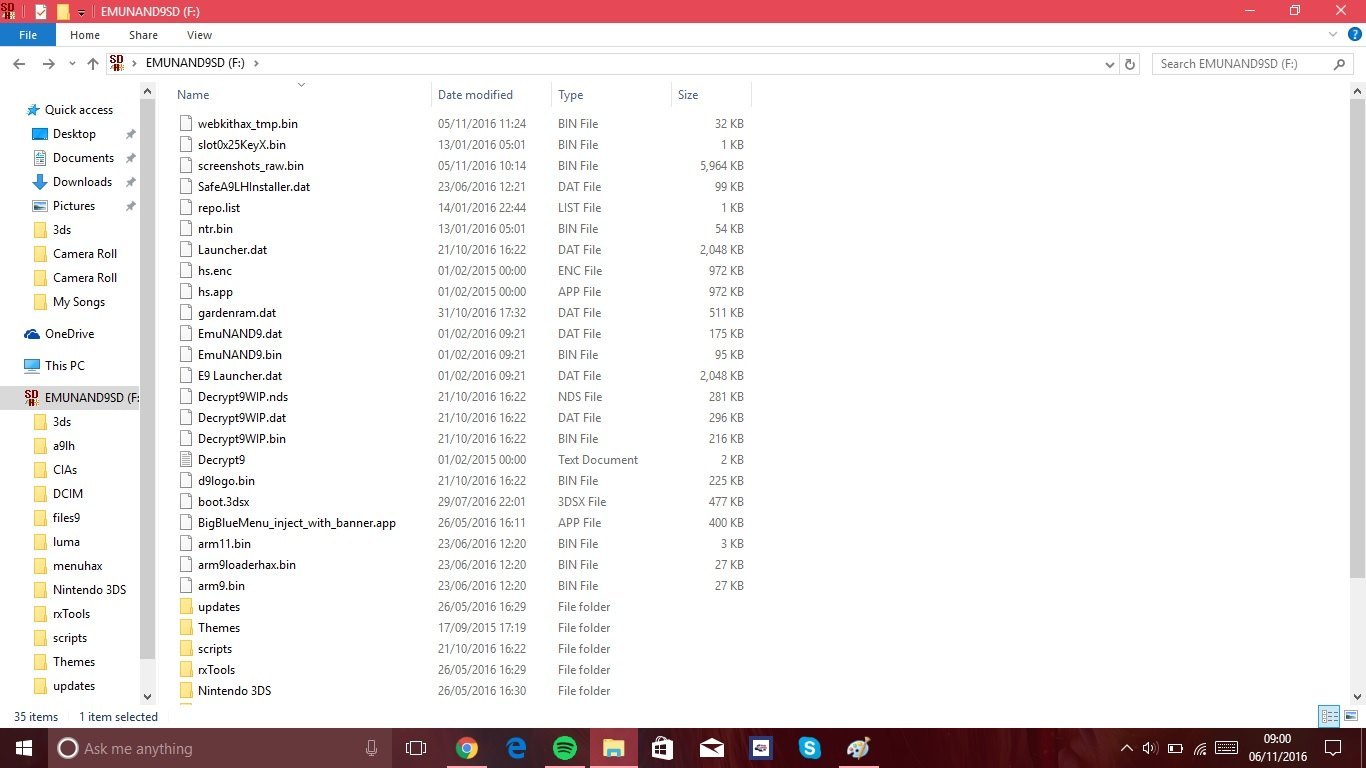

    Here are the screenshots.


    Attached Files:

    • 2.jpg
      File size:
      197 KB
      Views:
      328
    • 3.jpg
      File size:
      194.9 KB
      Views:
      314
  14. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Your SD is full of unneeded files. It's better to clean them and only have the needed ones.

    I'm also guessing you didn't formated the console before starting and that before you started the guide, you were using menuhax+Emunand RxTools?

    I'm going out for a few hours but I can guide you through afterwards, if you want or still need help.

    Did you make this step to delete/clear the Home Menu exdata?(The guide instructs you to do it twice; on the 2.1 Transfer and on the prep work of Installing A9LH although I only think you need to do it once but worth to try)

  15. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    I'd rather wait and you guide me as I don't know what I'm doing at this point. Thank you for being so helpful!

  16. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    Hi again.

    First, post here your Decrypt9.log file (attach it) (it's on the SD root) and also show what is inside files9 folder (Picture of it)

    Next, let's start with some basic checks:
    1. On your system settings,what is the FW you are? Top screen, bottom right it say's ver X.X.X-XE
    2. If you open the browser and type some other page (for exemple: http://gbatemp.net) does it open normally?
    3. Just remembered something: instead of http, try to use https.

    Now, about the SD card:
    1. Make a complete copy of it on a folder on your PC (in case something goes wrong)
    Important Folders are: "files9" (where your NAND backups are); "Nintendo 3DS" (where your games/saves are and work together with the NAND backup);"DCIM" (where your pictures are stored)
    2. Delete everything from SD except those 3 folders
    2a. Inside files9 folder, delete ALL fbi_v2.4.2xxx EXCEPT fbi_v2.4.2_O3DS_EURxx. Leave the rest of the files untouched.
    3. Do all the prep work from the page "Installing A9LH". Take notice that you must use SafeA9LHInstaller v2.0.3 (for Old3DS). NOT the latest version
    4. Boot you console without the SD card and when you see the Home Menu, insert the card back in.
    5. Go to system settings and check if your Internet Connection is set right.
    6. Set your WIFI to OFF (side button)
    7. On the browser click on "Favorites" (Star Symbol) and edit one Favorite with the link for the exploit (choose the Yahoo for eg.)
    8. Try to launch that favorite which will error (no WIFI)
    9. Exit Browser and turn WIFI on
    10. Open the Browser and the link will launch.

    Did it worked?
    Yes. Ok, continue with the guide.

    No. In that case, shutdown the console, remove the SD and boot it. Go to Systems settings, last page (4 I think) and format the console.
    After you configure everything, try again from step 4.

    Good luck and if you have any questions/doubts just ask, ;)

    Last edited by cravas, Nov 6, 2016
    Nicole201 likes this.
  17. Nicole201
    OP

    Nicole201 Member

    Newcomer
    47
    4
    Oct 8, 2016
    London
    I can't find the Decrypt9.log file.

    The system is on version 2.1.0-4E.

    I have access to other websites on the web browser.


    Attached Files:

    Last edited by Nicole201, Nov 6, 2016
    cravas likes this.
  18. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras
    It's a text file on the root. Sorry it only says Decrypt9

  19. Just3DS

    Just3DS GBAtemp Fan

    Member
    440
    109
    Jan 31, 2015
    Tried copying the arm11.bin file again?
    Also try going in Data Management and delete any data related to 3DS Browser, also from within the browser clear data and settings. Check system Date/Time as well.

  20. cravas

    cravas GBAtemp Advanced Fan

    Member
    867
    229
    Jul 30, 2016
    Portugal
    Oeiras

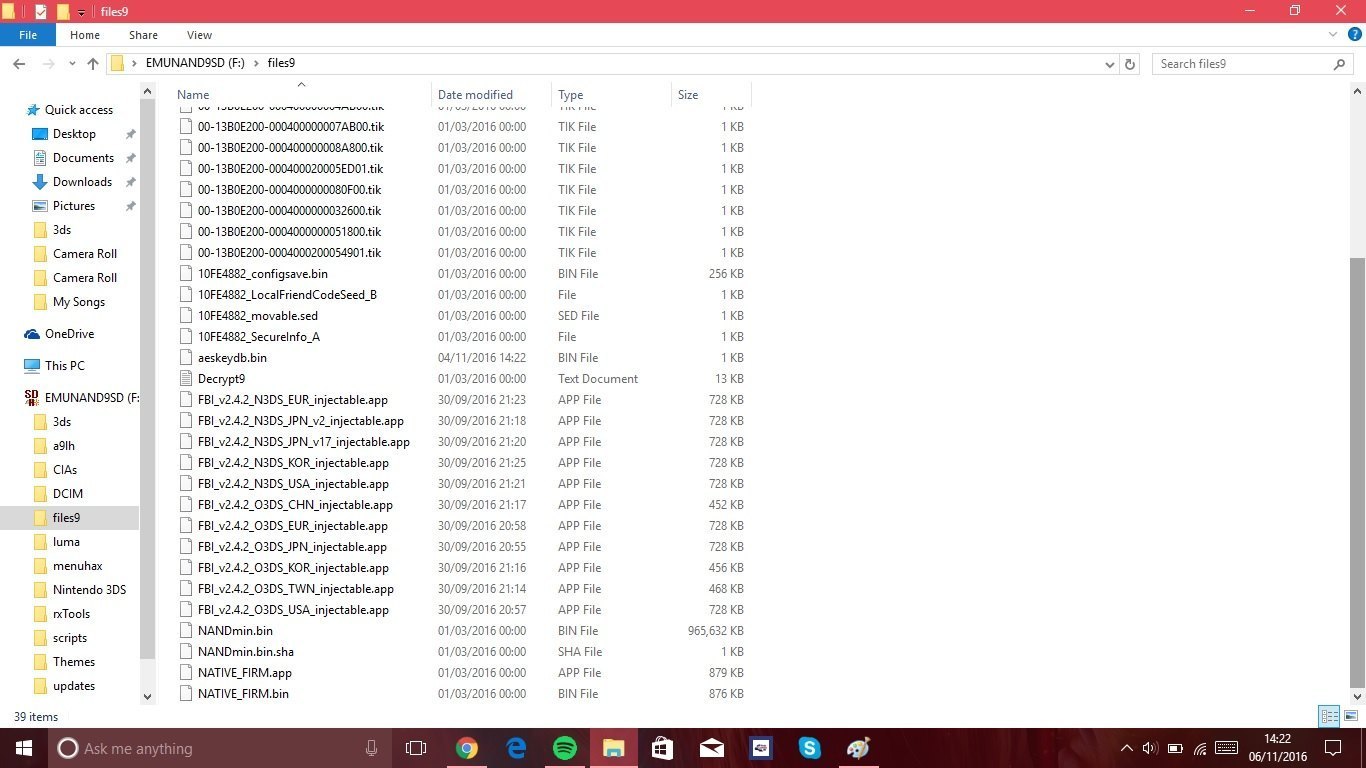

    Just saw your files9 folder. You'll have to remove some files from there since you put every region of fbi.
    Give me a moment to re-write my previous post.
