Hardware stencil reballing nand nintendo switch

[andres1234]

stencil reballing nand nintendo switch


somebody knows which is the right stencil to do raballing to the nand?
i have someones stencil but does not have the same measurements



[FXDX]

From here I ordered

https://www.aliexpress.com/item/32948773725.html?spm=a2g0s.9042311.0.0.27424c4dfvFb3n



[Bohne]

Which one is the right one for the memory?



[evil_santa]

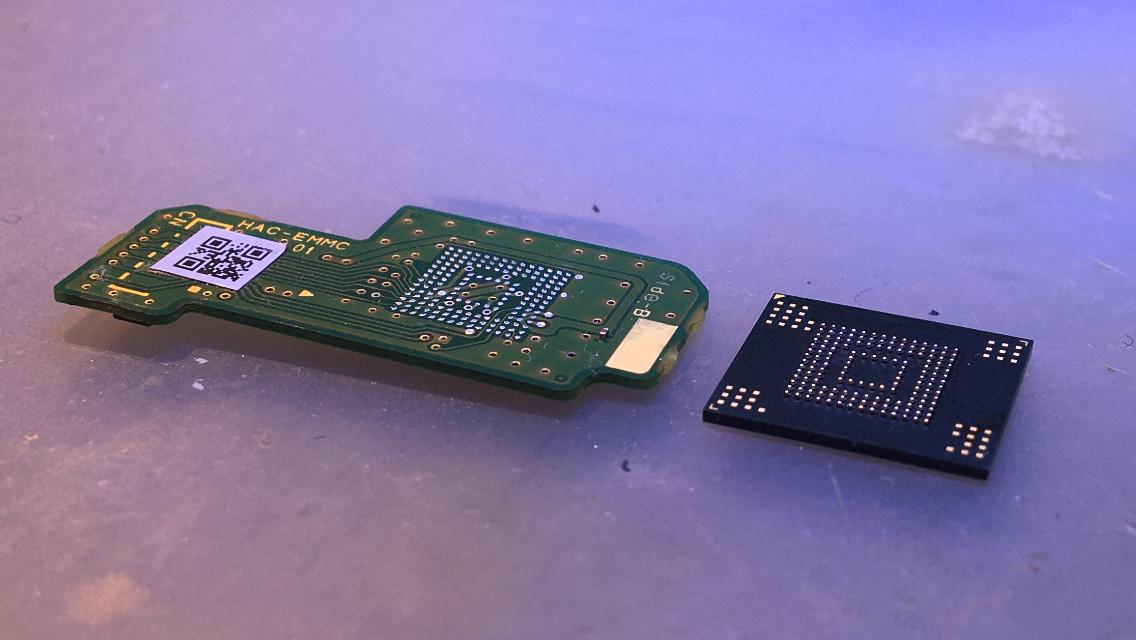

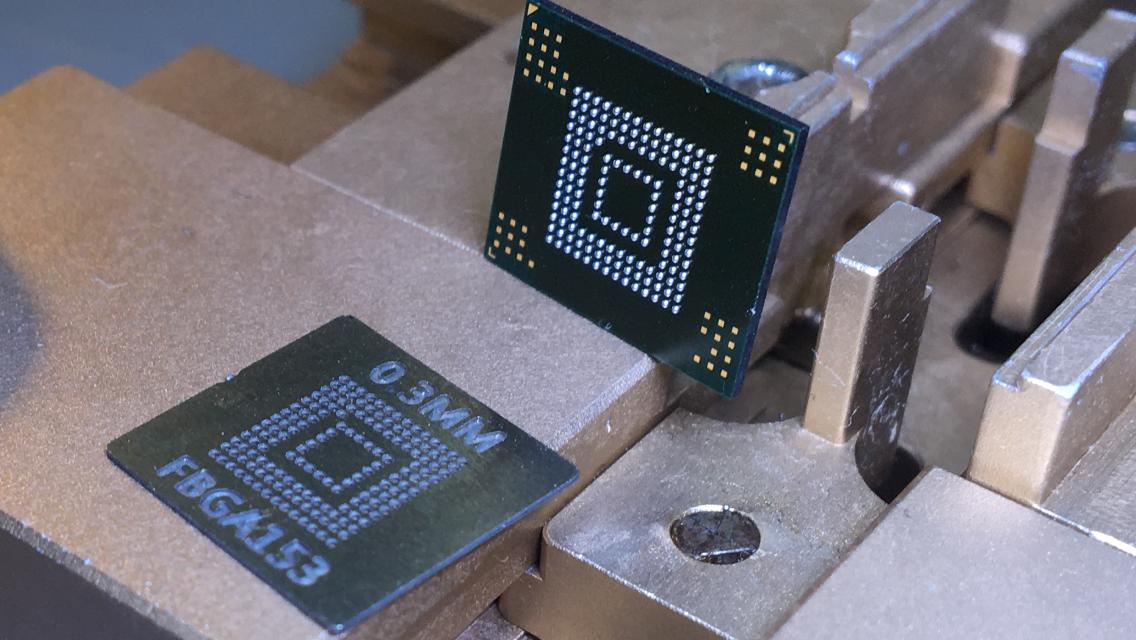

For the Switch emmc you need a bga153 stencil.
I bought mine on Amazon.
https://www.amazon.de/fonefunshop-Reballing-Schablone-BGA221-BGA153/dp/B07G19D4C4

This stencil is for reballing whit solder paste.



[Bohne]

Memory=RAM.
I don't need any stencil for the eMMC.



[evil_santa]

Then you need a bga200 stencil.
Ifixit says it's Samsung K4F6E304HB-MGCH 2 GB.
Samsung website say it's a 200FBGA package.
