Hardware GBA SDRAM Test error | Supercard GBA

[iTsNubel]

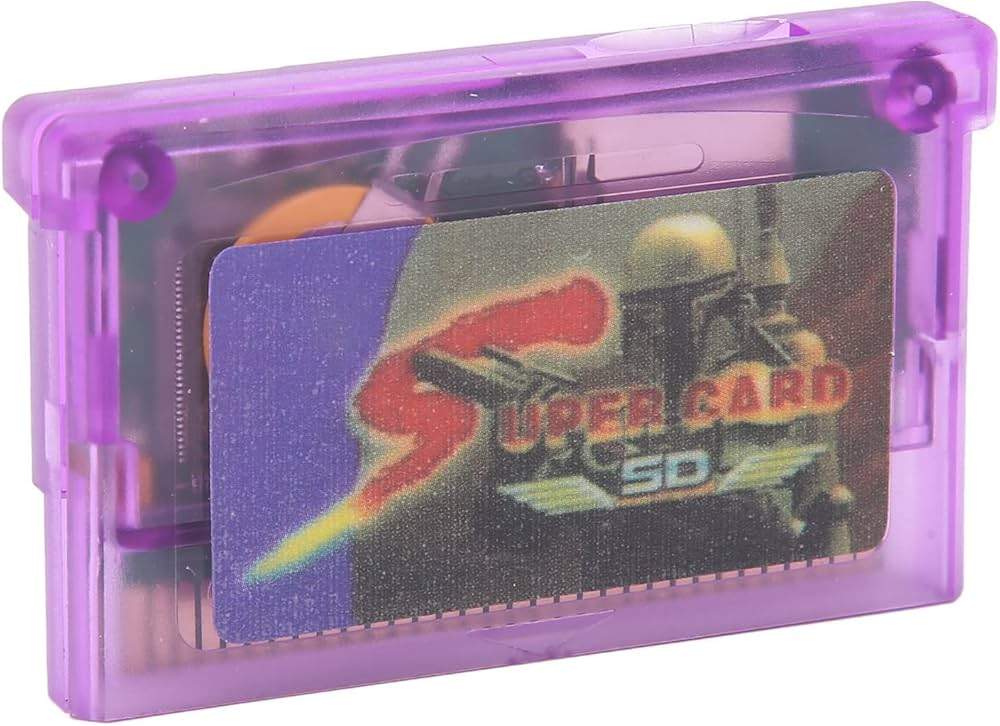

Hi everyone! I have a SUPERCARD like this one:

Pressing L+R on boot and doing the test, I get:

Test SRAM
SRAM ok!

Test sdram
sdram error:
010000020001030002040004050008
0600100700200800400900800a0100
0b02000c04000d08000e10000f2000
104000118000120000130000140000
150000160000170000180000190000
55ff80aaff8178ff829a000

Test flash
flash id ok!
flash ok!

Test SD/MMC
SD/MMC ok!
not find test file

Now SC Version: 1:85

When I try to boot any game (patched with Supercard software in order to get those 3 files for a single rom) I get blank screen after loading the rom.
I tried 3 different sd card, 1gb, 2gb and another 2gb. All of them formatted FAT16 64kb cluster

Any way to fix this?



[iTsNubel]

I SOLVED the problem simply replacing the same SUPER SD CARD with another one on amazon.



[Marc36801]

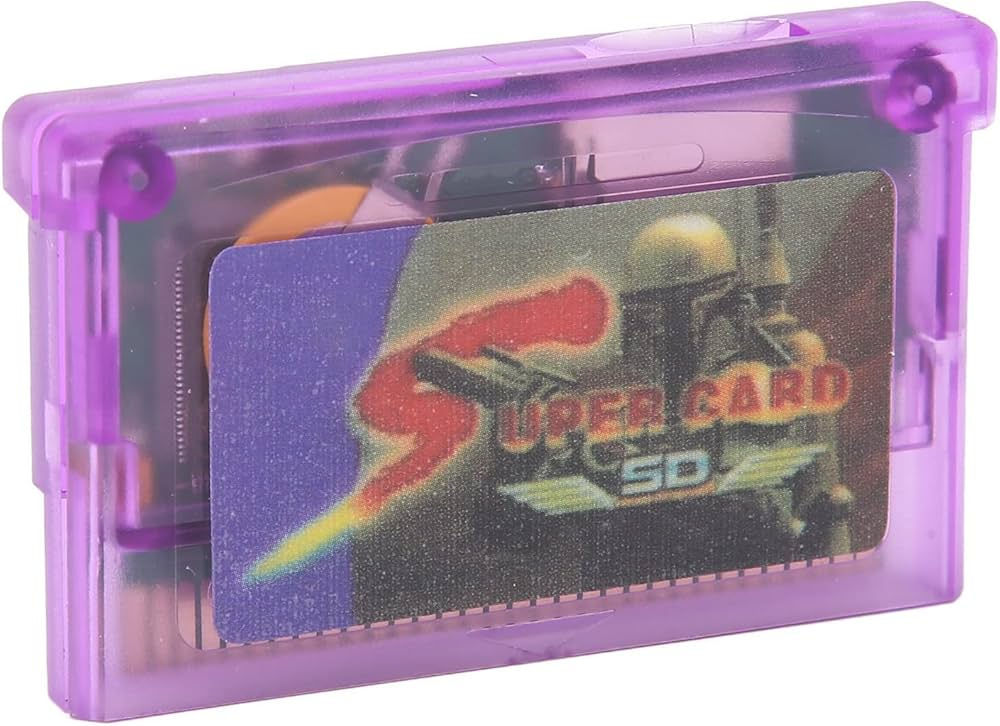

Hi everyone! I have a SUPERCARD like this one:
View attachment 500081

Pressing L+R on boot and doing the test, I get:

Test SRAM
SRAM ok!

Test sdram
sdram error:
010000020001030002040004050008
0600100700200800400900800a0100
0b02000c04000d08000e10000f2000
104000118000120000130000140000
150000160000170000180000190000
55ff80aaff8178ff829a000

Test flash
flash id ok!
flash ok!

Test SD/MMC
SD/MMC ok!
not find test file

Now SC Version: 1:85

When I try to boot any game (patched with Supercard software in order to get those 3 files for a single rom) I get blank screen after loading the rom.
I tried 3 different sd card, 1gb, 2gb and another 2gb. All of them formatted FAT16 64kb cluster

Any way to fix this?

And....


You managed to solve it?



[Gamemaster2022]

And....


You managed to solve it?

SDRAM chip died. It needs to be replaced. Same problem happened with my cart. I replaced the chip yesterday and it works fine now.
