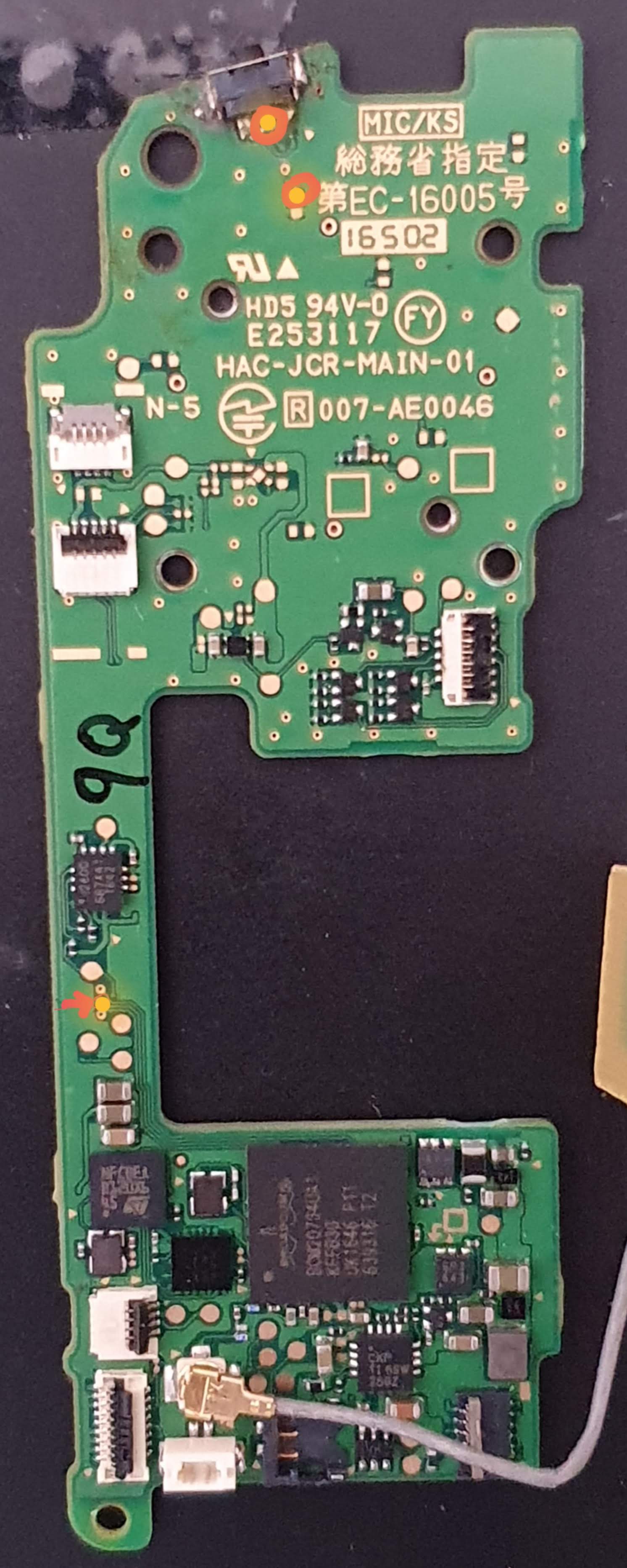

The right R button is a weak design since if you break the button off the Joycon usually needs a new board. If you want to try repairing the button and there isn't any pads left on the board to solder to the you can add jumper wire the the pins in the picture below.

Hopefully someone will find this useful.




You can solder the outer pins to quite a lot of locations on the board but I'm showing the one I use as it's a straight run down from the button.


Shadow#1

Wii, 3DS Softmod & Dumpster Diving Expert
Member
Joined
Nov 21, 2005
Messages
10,507
Trophies
1
XP
6,075
Country
United States
The right R button is a weak design since if you break the button off the Joycon usually needs a new board. If you want to try repairing the button and there isn't any pads left on the board to solder to the you can add jumper wire the the pins in the picture below.

Hopefully someone will find this useful.




You can solder the outer pins to quite a lot of locations on the board but I'm showing the one I use as it's a straight run down from the button.
Send it into Nintendo


delta nite

Well-Known Member
Newcomer
Joined
Sep 18, 2010
Messages
85
Trophies
0
XP
1,151
Country
United States
Could you consider another image hoster? Photobucket has been pretty shit for a couple years. I'm absolutely interested in this topic, since both of my right Joy con have a busted R button.


Mightyjebus

Well-Known Member
OP
Newcomer
Joined
May 20, 2020
Messages
48
Trophies
0
Age
50
XP
177
Country
United Kingdom
broken R.jpg
joycon wiring.jpg

  • Like
Reactions: Akira

resetes12

Well-Known Member
Newcomer
Joined
Apr 11, 2017
Messages
80
Trophies
0
Age
23
XP
253
Country
I found out a rather curious method to solve my issues with the R button. When I was changing the right joycon shell, I accidentally deformed the spring. When I installed the spring I expected the R button not to work. To my surprise, I actually solved all my issues with it. My issues were related to pressure, and now that the spring was "smaller" thanks to the accidental deformation I made, the button has less travel (which obviously affected a bit the feel of the button, but nothing serious) which makes pressure easier, thus solving the issue.


Winnppl

Active Member
Newcomer
Joined
May 4, 2020
Messages
44
Trophies
0
Age
31
XP
139
Country
United States
So how about the first pad?
the left and right pad are both Negative, you can just solder the middle pad to the correct place and the right pad to the correct place in this chart, you don't need to solder anything on the left pad


Akira

I'm not a SHRIMP!!!!
Member
Joined
Apr 28, 2013
Messages
1,250
Trophies
0
XP
1,645
Country
United States
the left and right pad are both Negative, you can just solder the middle pad to the correct place and the right pad to the correct place in this chart, you don't need to solder anything on the left pad
So basically just solder the parts mentioned in the chart and it’s good?


Budderguy21

New Member
Newbie
Joined
Jan 4, 2021
Messages
1
Trophies
0
Age
21
XP
13
Country
United States
I’m fairly inexperienced and I broke the secondary pad off by accident. Is there any other solder pad I could go to, or is it time I get a new motherboard?
