Hacking [RCM Payload] Hekate mod - exFAT support and USER dump

[Eastonator12]

Yes I think so

wonder if we will use something like this to boot the atmosphere cfw



[Crazy-S]

wonder if we will use something like this to boot the atmosphere cfw

As @ktemkin stated we should get a big SD card, so yes this should be a possible solution to start to use emunand



[rajkosto]

Just finished the USER dump and it seems OK.
There is a small issue with the progress bar, I think this relates to a 32 bit over flow in the percentage calculation, so I'll look into a fix for that.
The net effect is that the progress bar wraps to zero and then continues, this does not seem to cause any issue with the dump, though I'll have to verify that @rajkosto tools.
-(e)

You probably want to do this: https://github.com/rajkosto/hekate/commit/708bbd8c52a92956248e4229b27b60d1cbad8933



[Ohex4455]

I've got the same issue as with rajkosto's version: unable to mount sd card (although I've got issues with FAT32 there).

I've got a Samsung Evo+ 128gb and just reset it to default settings, using the official SD Card Formatter from the SD Association, to having one exFAT partition with 16mb offset. I think it might be the card's issue though.



[sweetlilmre]

You probably want to do this: https://github.com/rajkosto/hekate/commit/708bbd8c52a92956248e4229b27b60d1cbad8933

Thanks, I see you ran into the same issue . This seems to suffice to force the first value into 64 bits, then down convert happens at assignment:

u32 pct = (((u64)(lba_curr - part->lba_start)) * 100) / (part->lba_end - part->lba_start);

Would you agree?
-(e)



[OkazakiTheOtaku]

Perhaps I am misunderstanding something, but I am unable to use the resulting files with HacDiskMount. Am I confused or am I just doing something wrong?



[ehnoah]

How big need the SD to be for dump user with everything?

I have a 64 GB one.



[rajkosto]

yes u64 * u32 should result in the 2nd operand upconverting to u64, same for u64 / u32, i just wanted to be thorough just in case
the read retry is mor

Thanks, I see you ran into the same issue . This seems to suffice to force the first value into 64 bits, then down convert happens at assignment:

u32 pct = (((u64)(lba_curr - part->lba_start)) * 100) / (part->lba_end - part->lba_start);

Would you agree?
-(e)

yes u64 * u32 should result in the 2nd operand upconverting to u64, same for u64 / u32, i just wanted to be thorough just in case
the read retry is maybe more important of a feature to add, because some people consistently have spurious read errors on their eMMC (that clear up after the sleep the 2nd time)



[sweetlilmre]

yes u64 * u32 should result in the 2nd operand upconverting to u64, same for u64 / u32, i just wanted to be thorough just in case
the read retry is mor


yes u64 * u32 should result in the 2nd operand upconverting to u64, same for u64 / u32, i just wanted to be thorough just in case
the read retry is maybe more important of a feature to add, because some people consistently have spurious read errors on their eMMC (that clear up after the sleep the 2nd time)

You've done some great work there and with your other tools
-(e)



[Crazy-S]

Perhaps I am misunderstanding something, but I am unable to use the resulting files with HacDiskMount. Am I confused or am I just doing something wrong?

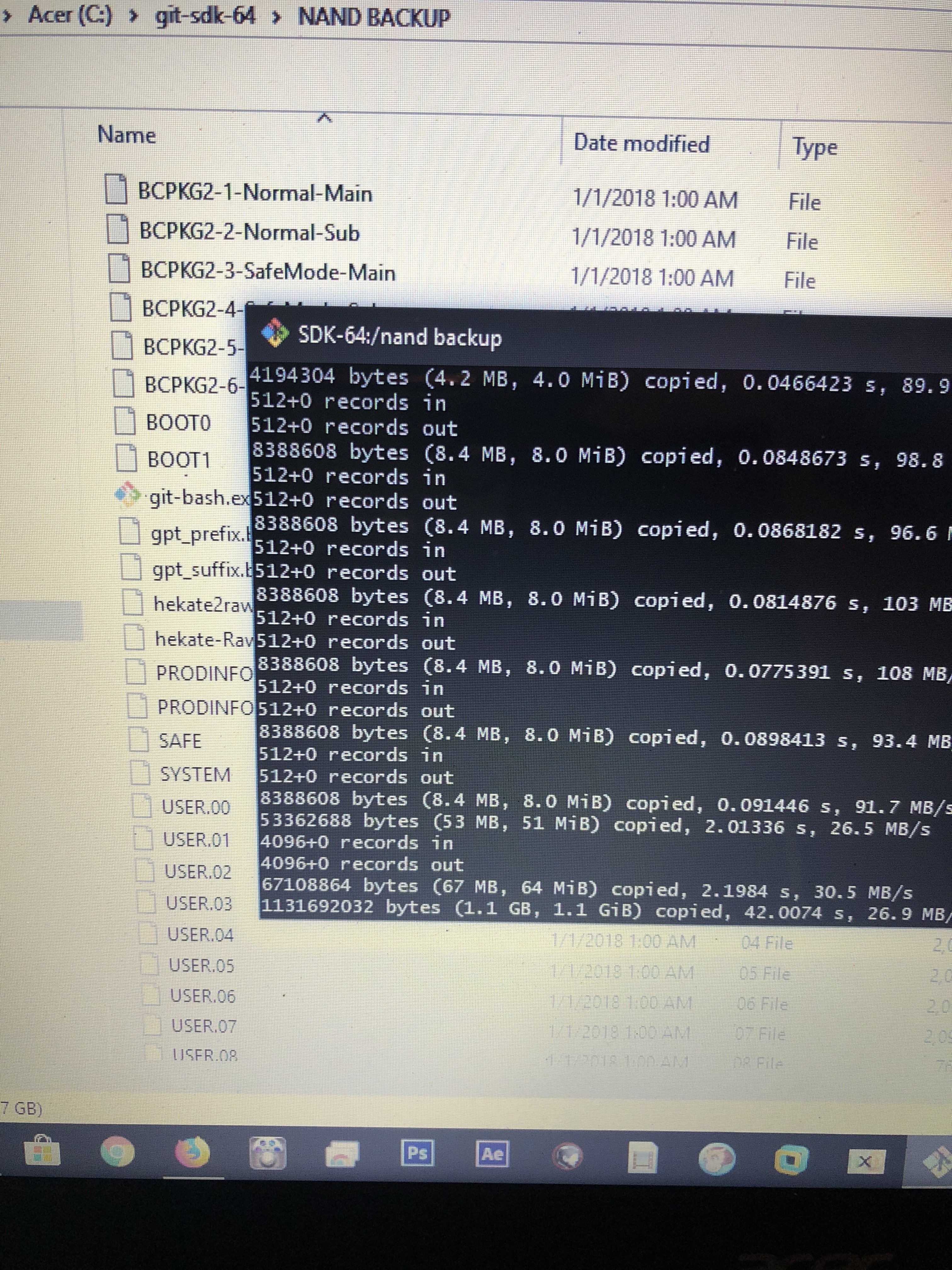

You need to use this https://pastebin.com/vdCqxrci, to merge the dump to a RAWNAND Backup



[OkazakiTheOtaku]

You need to use this https://pastebin.com/vdCqxrci, to merge the dump to a RAWNAND Backup

I missed that, sorry



[OkazakiTheOtaku]

You need to use this https://pastebin.com/vdCqxrci, to merge the dump to a RAWNAND Backup

When I try to run that in Ubuntu it tells me that the command is not found, even though I am 100% sure I am in the right directory and I have the files from the hekate2rawnand.zip file

EDIT: I had to run it through DOS2Unix



[Naked_Snake]

Any chance you could add a save dumper and restorer? In future updates



[Lacius]

This works perfectly. Thank you.



[SanktyRG]

Hey there, just wanted to thank you for this, got it running without any problem and now I have my dumps, once again, thank you.



[Naked_Snake]

Yay making one massive file now



[Nazosan]

Does this not support a 128GB card? I tried one formatted multiple ways and it always just says it can't mount the SD card. The system sees it fine and the second way I formatted it was via the Switch itself, but it always just says it can't mount the card. When I put in a 32 or 64 that I have both worked, but this is a bit problematic since it's the 128 with the free space.



[Shadow LAG]

Does this not support a 128GB card? I tried one formatted multiple ways and it always just says it can't mount the SD card. The system sees it fine and the second way I formatted it was via the Switch itself, but it always just says it can't mount the card. When I put in a 32 or 64 that I have both worked, but this is a bit problematic since it's the 128 with the free space.

I have a 128GB SD card formatted to exFAT; however, I am only using 60GB for exFAT and the rest for EXT4 for Linux and research. No problems here.

https://www.amazon.com/SanDisk-Extr...coding=UTF8&psc=1&refRID=JKGJQWJDXRJJN68DTTQY



[Nazosan]

Maybe it only supports up to ~64GB? Or could it somehow be something about the card? The Switch and my computers are all fine with it though and it has been used thoroughly.

Oh well. I'm moving all the data off of the 64GB card. Just you know what a pain it is with Nintendo's files when you already have around 50GB of games installed. It's not worth fighting with this thing though.



[Shadow LAG]

Wait a minute. Why does this support exFAT, yet it's still dumping in parts. Why not just have it dump the full RAW NAND?
