    Hello everyone,

    firstly, sorry for my english(Google translation)

    I bought a Nintendo switch that won't boot.the battery normally charges(4.20V). after checking for possible shorts, I did not find anything, I have 3.3V on pins 5 and 6 of the M92t36 with the charger connected, I changed the USB-c because it was broken. now, i have the nintendo logo and nothing else after. to make reappear the logo nintendo I must make a hard reset vol + power 12 seconds. if I insist with this manipulation for hours with deplug and replug the Battery, I can start the nintendo swich, i can play with for several hours, I can charging the battery too, but if i shtdown it , it does not restart any more. and with my usb meter, it's take 0.50A.

    do you think that can come from ic M92t36?

    Thx,

  2. FXDX

    FXDX GBAtemp Regular
    Member

    Joined:
    Sep 15, 2019
    Messages:
    132
    Country:
    Dominican Republic
    Try a reflow on the M92t36.

  3. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,308
    Country:
    United States
    @mattytrog This Guy is king on stuff like this..

    mattytrog likes this.
  4. kwnage

    kwnage Member
    Newcomer

    Joined:
    Nov 18, 2019
    Messages:
    38
    Country:
    Germany
    Yeah could be a faulty M92T36 or if it has been replaced before, it might not be soldered correctly and getting intermittent contact. Also if it has been replaced, check for knocked or missing components in that area.

    Or post a picture of the board...

    Canna likes this.
  5. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,618
    Country:
    United Kingdom
    Not M92T36. Or at least unlikely.

    If it boots, M92T36 is OK. Very rare the console will start if M92T36 power delivery controller fails. And you getting 3v on pin 5, so internal voltage is good.
    If it charges, fuel gauge is OK.

    Incorrect fitment of USB port is my diagnosis.
    Or internal pins in new port are tarnished / fluxed...
    Will be confusing the Pi3USB, as well as BQ24193 maybe.

    Spray some IPA in the port and fit / refit something USB-C(a micro-usb - usb-c adapter is perfect, and unimportant) to clean the contacts. Keep rinsing the port out.

    Rinse and repeat before condemning the port.

    Last edited: Dec 2, 2019
    Canna and kwnage like this.
  6. kwnage

    kwnage Member
    Newcomer

    Joined:
    Nov 18, 2019
    Messages:
    38
    Country:
    Germany
    Had one console with a M92T36 that was about to die. Sometimes it booted, sometimes it went straight to an error screen, sometimes it would just hang...reflowing wouldn't help, but replacing it did. But yeah, you're right, it's unlikely.

    mattytrog likes this.
  7. manu2219

    OP manu2219 Newbie
    Newcomer

    Joined:
    Dec 2, 2019
    Messages:
    6
    Country:
    France
    I changed the IC M92t36 today, do not boot, just the Nintendo logo and nothing else, I removed the USB-C, same issue, I reflow all the IC MAXs on both sides and miracle switch starts instantly, several tests to remove the battery and reconnect and it works every time.

    Thank you all for your help.

    FXDX, BrokenRecord and kwnage like this.
  8. manu2219

    OP manu2219 Newbie
    Newcomer

    Joined:
    Dec 2, 2019
    Messages:
    6
    Country:
    France
    Hello again,

    After a few days and several hours of play, tonight the switch remained frozen, and no way to restart it, the original issue appeared, nintendo logo and nothing, the battery is charged and I already applied the thermal paste on cpu gpu, no caps shorted, i stell have 3.3V on pins 5 and 6 of the M92T36.

    Before doing the same operation (reflow IC MAXs). Do you have a suggestion about this malfunction?


    Thx,

  9. kwnage

    kwnage Member
    Newcomer

    Joined:
    Nov 18, 2019
    Messages:
    38
    Country:
    Germany
    Which ICs exactly did you reflow? Did you reflow them with flux or just hot air?

  10. manu2219

    OP manu2219 Newbie
    Newcomer

    Joined:
    Dec 2, 2019
    Messages:
    6
    Country:
    France

    I reflow all IC MAXs and one BGA ic( i dont know what is it) but without flux. and you are right :)
    i will tray reflow with flux tumorow but one by one.

    i will exclude the fuel gauge IC quoted by Mattytrog, because battery charging.

    Thx Kwnage,

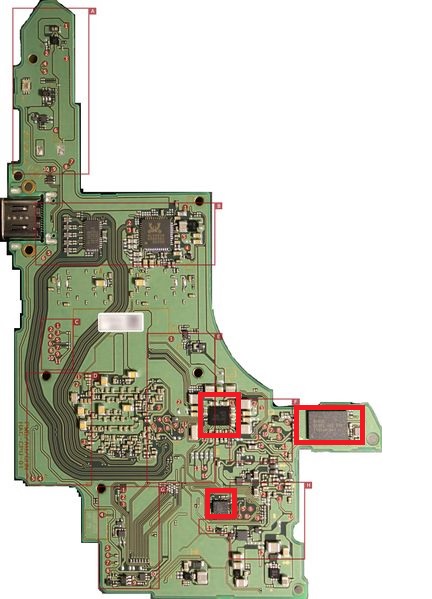

    Attached Files:

    Last edited: Dec 8, 2019
    FXDX likes this.
  11. manu2219

    OP manu2219 Newbie
    Newcomer

    Joined:
    Dec 2, 2019
    Messages:
    6
    Country:
    France
    Hello again,

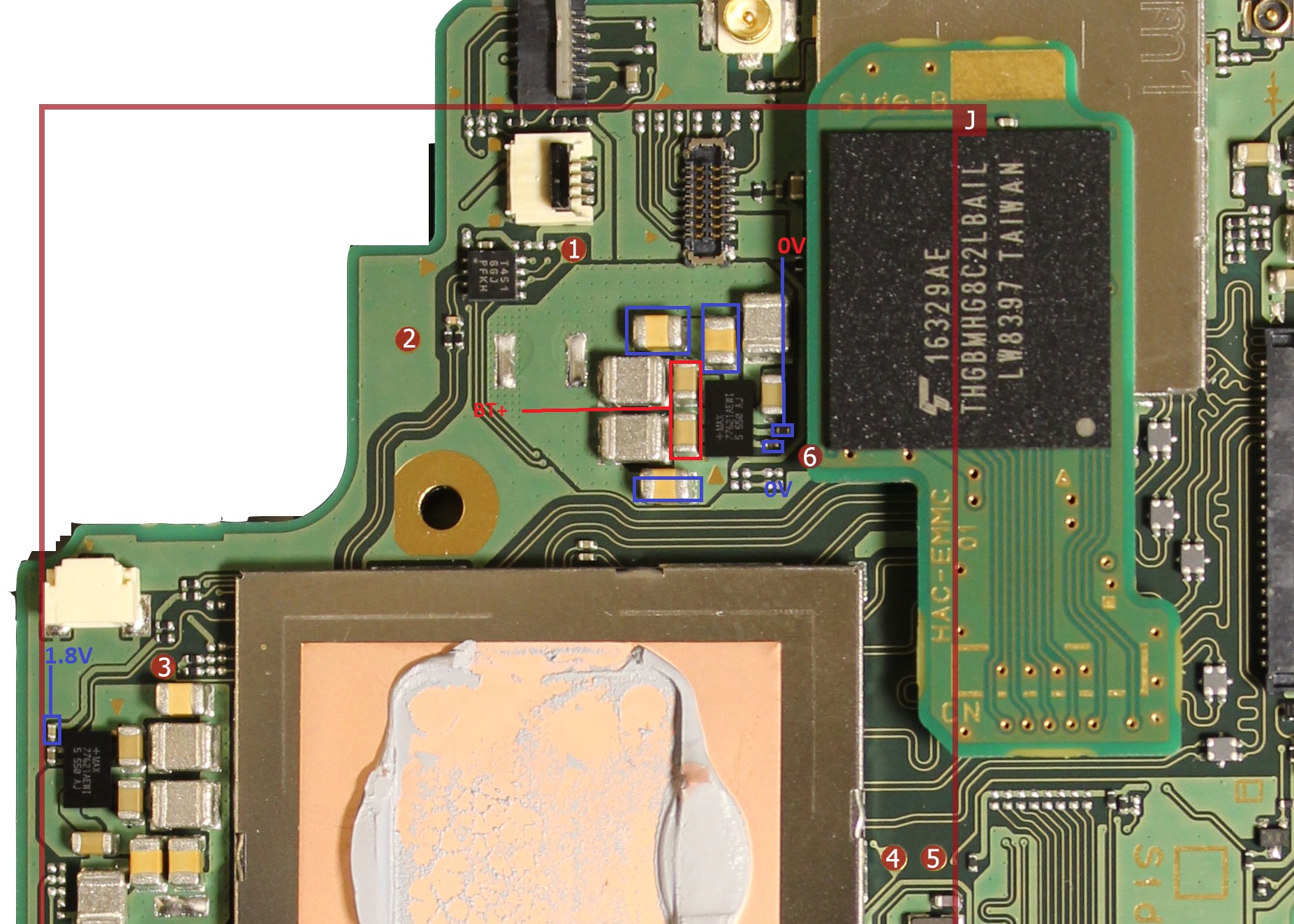

    can anyone tell how many ohms between ground and these caps in bleu? i have around 60 ohms.
    if I understand correctly, we must have 1.8V in output, but I have 0V after push power button(with everything disconnected).
    on the other MAX77621 near speeker connector , I have 1.8V.

    what is the role of this MAX?

    Thx,


    Attached Files:

    Last edited: Dec 10, 2019
  12. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    233
    Country:
    United Kingdom
    The 1.8V is not an output its an input for the serial interface

    The MAX77621's are buck converters for the cpu/gpu

    manu2219 likes this.
  13. manu2219

    OP manu2219 Newbie
    Newcomer

    Joined:
    Dec 2, 2019
    Messages:
    6
    Country:
    France

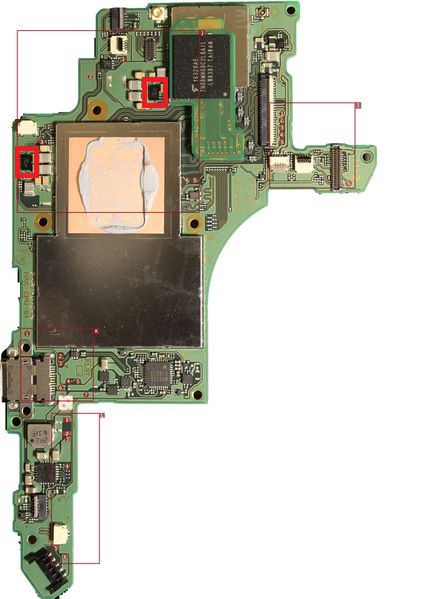

    what are the two caps doing withe battery voltage(3.9V)?
    Buck converter must do drop voltage, i m wrong?


    Thx,


    Attached Files:

  14. Pintglass

    Pintglass GBAtemp Regular
    Member

    Joined:
    Jan 28, 2019
    Messages:
    233
    Country:
    United Kingdom
    The battery voltage is the input to the 77621

    Yes a buck converter is dropping voltage

    FXDX likes this.
