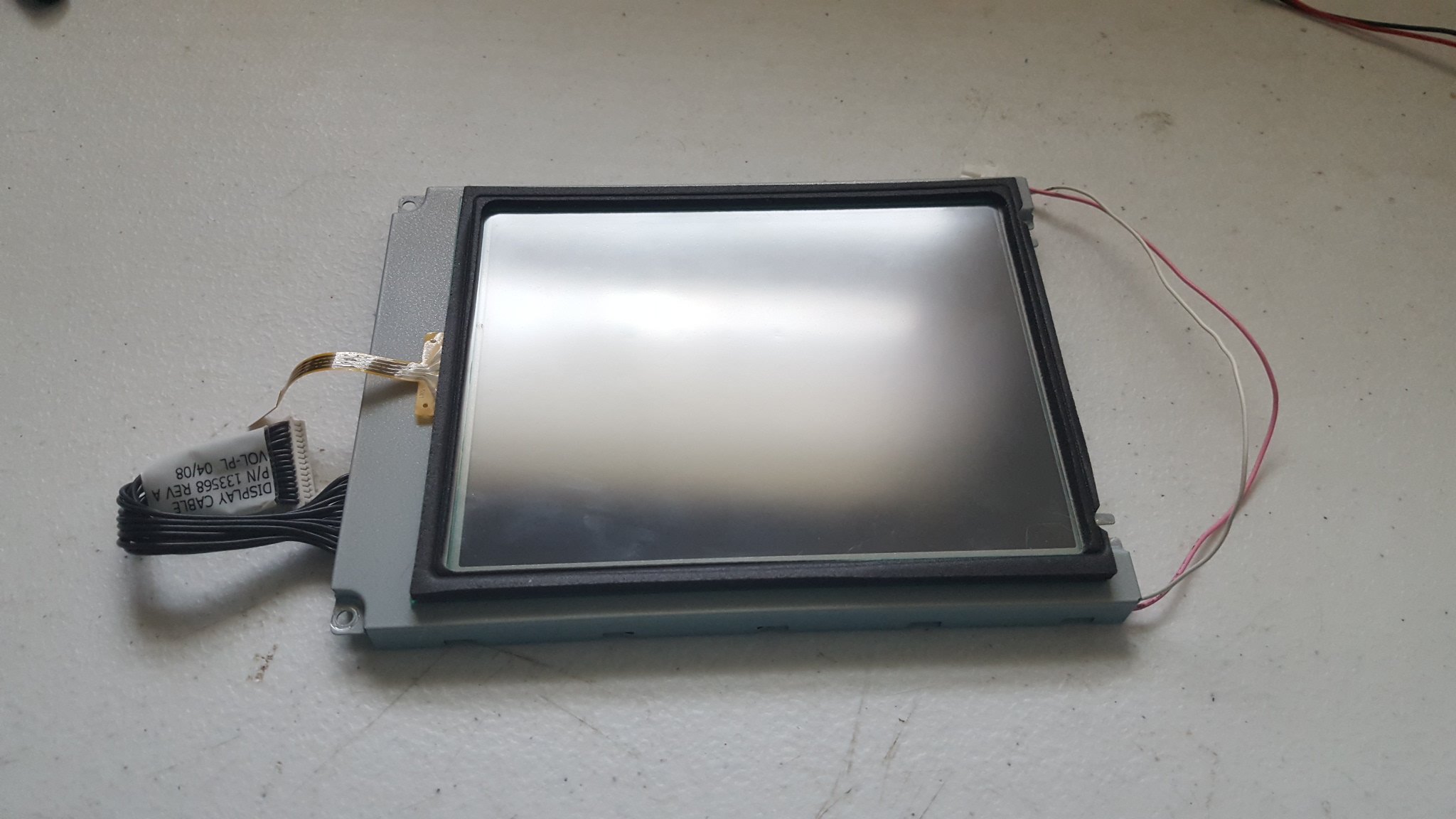

    Took apart some old junk machine found in the trash for scrap, and found a touchscreen LCD. My questions are, if anyone knows, how can I power it and how do I connect it? The display adapter is 15 pin, but it's not VGA. It's just a generic 15 pin connector. There is a 3 pin connector with 2 wires going to it, I'm assuming that's the power cable. The ribbon cable is almost definitely for the touch screen. Any ideas how to use this for something else? If it's possible to rewire the 15 pins to VGA? Or is it a different format? Any information on this could help.

    Last edited by Biovirulent, Jun 29, 2017
  2. Biovirulent
    OP

    Biovirulent GBAtemp Fan

    Member
    360
    36
    Jun 7, 2016
    United States
    Update: The pinout on the motherboard of this machine seems to only use 12 of the 15 pins, but I don't have any idea of which pin does what.
    I've looked this kind of thing up, and the same kind of adapter that only has 12 pins can be converted to VGA, but this has 15 with seemingly 3 of them being inactive.
    The pins, going down from the list on the motherboard read:

    E294
    E295
    E299
    E302
    Nothing
    Nothing
    E304
    E305
    Nothing
    E306
    E307
    E308
    E309
    E310
    E311

  3. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    12,109
    5,178
    Mar 17, 2010
    Norway
    Alola
    The Raspberry Pi uses a DSI connector for connecting displays, which is also 15 pins. Maybe the screen you found is using the DSI standard?

    Biovirulent likes this.
  4. Biovirulent
    OP

    Biovirulent GBAtemp Fan

    Member
    360
    36
    Jun 7, 2016
    United States
    Sounds promising, it's the most progress i've made so far figuring this out. But the pictures i've seen, the DSI display seems to use a flat ribbon cable rather than this connector.
    If that really is it, though, the tough part is still figuring out what each pin is what.

  5. The Real Jdbye

    The Real Jdbye Always Remember 30/07/08

    Member
    GBAtemp Patron
    The Real Jdbye is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    12,109
    5,178
    Mar 17, 2010
    Norway
    Alola
    Well, anyway, I'm interested in hearing your progress.
    I know there are many other standards for LCD screen connectors that I've heard of in the past, but I'm having a hard time finding them on Google.
    It might be an unique connector designed for just that one device, but that's unlikely, since LCD displays are rarely custom designed for just one device, they're mass produced and sold to whoever wants them and it's up to the manufacturers making the systems to implement the connectors the LCD display requires, not the other way around.

    Biovirulent likes this.
  6. Biovirulent
    OP

    Biovirulent GBAtemp Fan

    Member
    360
    36
    Jun 7, 2016
    United States
    Yeah, that was my thought process as well.
    I've been trying to take apart the motherboard piece by piece to get a look at the underside and see if it says anything useful. I've been having trouble though, with strange sized nuts and bolts and stripped screws.

    — Posts automatically merged - Please don't double post! —

    Got a look at the backside, but I won't know anything about it without the schematic. The pins on the back are named:

    C253
    C320
    C109
    C321
    C110
    Space
    FB19
    C322
    C323
    C324
    C235
    C326
    C327
    C328
    C329

  7. DeoNaught

    DeoNaught ¯\_(ツ)_/¯

    Member
    1,512
    1,450
    Aug 22, 2016
    United States
    Over there ;)
    What was the machine?

  8. Biovirulent
    OP

    Biovirulent GBAtemp Fan

    Member
    360
    36
    Jun 7, 2016
    United States
    I clean in a hospital. They threw away a machine that apparently wasn't working anymore.
    It was a DCA Analyzer.

  9. DeoNaught

    DeoNaught ¯\_(ツ)_/¯

    Member
    1,512
    1,450
    Aug 22, 2016
    United States
    Over there ;)
    So it looks like that you can use the Digitizer for other things , Like use a Teensy a redirect to mouse inputs.

    the screen is more or less a lost cause, Screens like those are made for one thing usually, and reverse engineering isn't worth the time or money, because you could probably buy a new one with the money it will cost to reverse engineer it.
    But thats my opinion on the screen, if you get it working let me know

    Biovirulent likes this.
