Posting a System Check

@MARmaMia I see a very obvious problem. You don't have cIOSes installed, you need those for loading Wii games. Install a v8 final/beta52 cIOS with IOS 56 base to cIOS slot 249 using d2x cIOS installer.



Thanks for your answer.

Just tried again, it keeps failing... Btw, I don't have "v8 final/beta52 cIOS" in the d2x cIOS installer, only "v10 beta 52". Could this be the reason? And what about cIOS revision? The tutorial I followed said 65535.
Also, in the previous screen to that one, I select IOS 58 (I don't even have IOS 236 as it's suggested in the program itself, but I've read here that IOS 58 is fine...)



@MARmaMia (faceplam) v10 beta 52 is fine, choose that. Also you should've chose IOS 56 as base, not IOS 58.



@FancyNintendoGamer567 Tried again and it fails.
With IOS 58, I was referring to the screen where d2x suggests to select IOS236, not the cIOS base. I also tried IOS 56 in this one and nothing changed.
But what about cIOS revision? Should I change it?



Leave it at 65535



Done, I tried it again as you say and nothing has changed. It still shows "Failed"... What could be wrong?



thanks for help



Hello everyone ! wonderfull community !

i have a modded wii, recently i have installed the wiiflow "the masterpiece" by following guide of abz.

i have updated too my ios and cios according to the guide 3 year ago. everything working, but recently, a have freezes and random crashing when plays game.

please any one of you guys can check my syscheck and tell me if everything is good or if there is something to do.

thank you in advence.

Spoiler: Here is my syscheck

SysCheck HDE v2.4.0 HacksDen Edition par JoostinOnline, Double_A, R2-D2199, et Nano
...tourne sous l'IOS58 (rev 6176).
Region: PAL
Menu Systeme 4.3E (v514)
Priiloader installe
Date de disque: 02.13.2007
Chaine Homebrew 1.1.0 utilise IOS58
Hollywood v0x11
Identifiant de la console: 81054737
Type de Console: Wii
Pays de la chaine boutique: France (77)
Boot2 v4
120 titres trouves.
56 IOS trouves sur cette console. 13 sont des stubs.
IOS3 (rev 65280): Stub
IOS4 (rev 65280): Stub
IOS9 (rev 1034): Pas de patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): Pas de patches
IOS13 (rev 1032): Pas de patches
IOS14 (rev 1032): Pas de patches
IOS15 (rev 1032): Pas de patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): Pas de patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): Pas de patches
IOS22 (rev 1294): Pas de patches
IOS28 (rev 1807): Pas de patches
IOS30 (rev 2816): Stub
IOS31 (rev 3608): Pas de patches
IOS33 (rev 3608): Pas de patches
IOS34 (rev 3608): Pas de patches
IOS35 (rev 3608): Pas de patches
IOS36 (rev 3608): Trucha Bug, ES Identify, Acces NAND
IOS37 (rev 5663): Pas de patches
IOS38 (rev 4124): Pas de patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): Pas de patches
IOS43 (rev 3607): Pas de patches
IOS45 (rev 3607): Pas de patches
IOS46 (rev 3607): Pas de patches
IOS48 (rev 4124): Pas de patches
IOS50 (rev 5120): Stub
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): Pas de patches
IOS55 (rev 5663): Pas de patches
IOS56 (rev 5662): Pas de patches
IOS57 (rev 5919): Pas de patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 6400): Stub
IOS61 (rev 5662): Pas de patches
IOS62 (rev 6430): Pas de patches
IOS70 (rev 6912): Stub
IOS80 (rev 6944): Pas de patches
IOS202[60] (rev 65535, Info: hermesrodries-v6): Trucha Bug, Acces NAND, USB 2.0
IOS222[38] (rev 65535, Info: hermes-v5.1): Trucha Bug, ES Identify, Acces NAND, USB 2.0
IOS223[57] (rev 65535, Info: hermes-5.1): Trucha Bug, Acces NAND, USB 2.0
IOS224[37] (rev 65535, Info: hermes-v5.1): Trucha Bug, Acces NAND, USB 2.0
IOS236[36] (rev 65535, Info: rev 3351): Trucha Bug, ES Identify, Acces NAND
IOS245[37] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS246[38] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, ES Identify, Acces NAND
IOS247[53] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS248[55] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS249[56] (rev 21010, Info: d2x-v10beta52): Trucha Bug, Acces NAND, USB 2.0
IOS250[57] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS251[58] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS252[56] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, Acces NAND, USB 2.0
IOS254 (rev 65281): BootMii
BC v6
MIOS v10
Rapport genere le 2019/06/26.



Hello.

You can use ModMii for bring your Wii Up to date (please read here and use this great and simple Tool from @XFlak)
https://gbatemp.net/threads/modmii-for-windows-official-support-topic.207126/

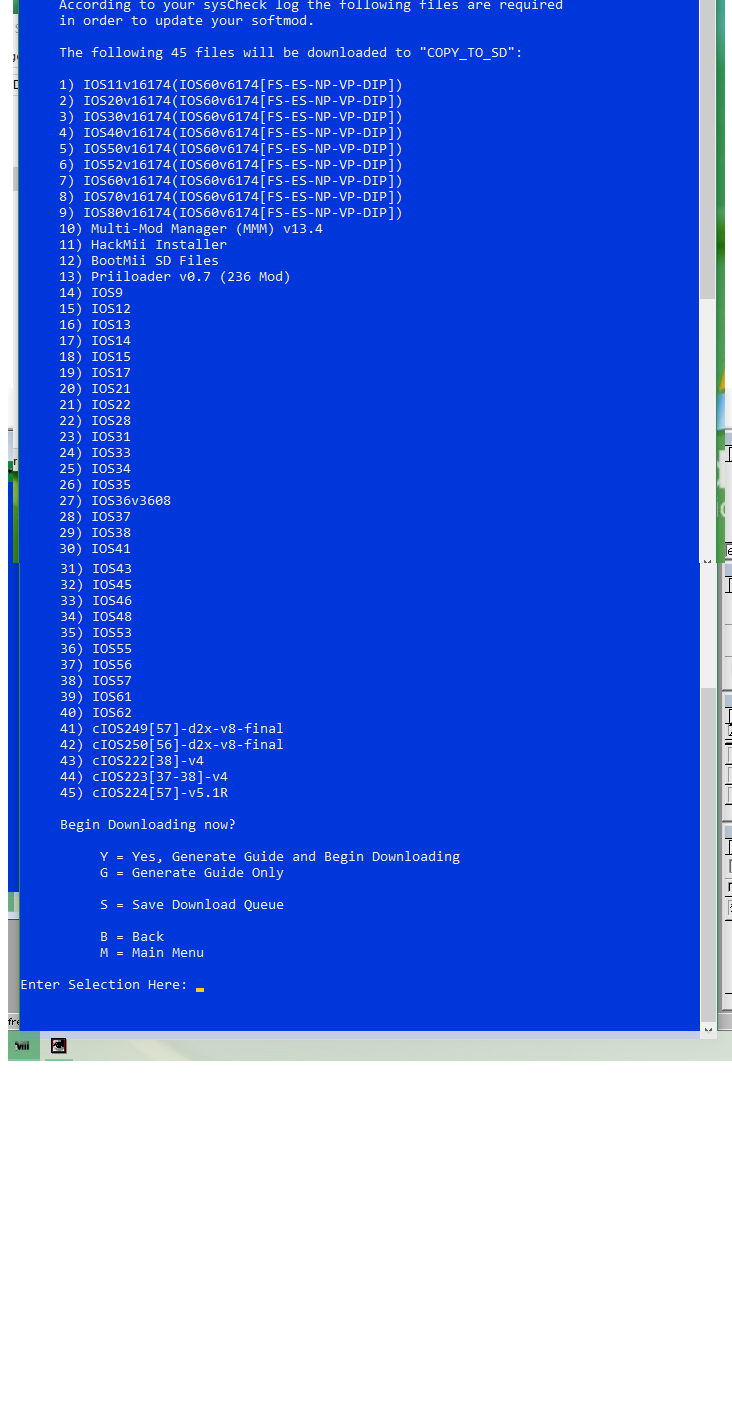

According to your sysCheck ModMii
recommended to update the following IOSes and Applications:



Modmii is expecting an English syscheck, so it's suggesting you update everything because it's not detecting the key words it's looking for.

The only one that this person (probably) needs to install to solve his issue is 249



Thank you guys for helping me, XFlak: what/how i need to update 249 ?



Together with 247/248/250 the main and important Important IOS for playing Games (in Detail:Fake signing to get the Games work) from an USB device on your Wii and most for the USBLoader GX to work correctly (in MOST of the cases,I have heard IOS58 is better/compatible.)

@XFlak
Stony me when I'm completely wrong.



Get d2x v8-final (or v10 beta 52,not 53) installed to slot 249 with base 57.

If u go to modmii classic's download page 3 and type REC it will mark all the recommended cios' for download. Then just install using a wad manager.

If u need more detailed instructions, use the main ModMii wizard, or modmii's syscheck updater (but use it with an English syscheck log)



as per jeannotte's advice i'll be posting my syscheck here.



Hello,

@blueagent1999

Your ICOS are badly installed, you must reinstall them correctly, follow the following procedure:

Get "cios d2x installer" here ==>https://wii.guide/cios

Put "CIOS d2x installer" in your APPS on your SD, then launch the (Wii connected to the net), then put the 3 CIOS (249, 250, 251) as below:

Select cIOS: v10 beta52 d2x-v10-beta52
Select cIOS base: 57
Select cIOS slot: 249
Select cIOS version: 65535

Select cIOS: v10 beta52 d2x-v10-beta52
Select cIOS base: 56
Select cIOS slot: 250
Select cIOS version: 65535

Select cIOS: v10 beta52 d2x-v10-beta52
Select cIOS base: 58
Select cIOS slot: 251
Select cIOS version: 65535

Install Priiloader, for more security (it's a plus).==> https://wiibrew.org/wiki/Priiloader

Then reposter a new syscheck raport, for control



SysCheck HDE v2.4.0 HacksDen Edition by JoostinOnline, Double_A, R2-D2199, and Nano
...runs on IOS58 (rev 6176).

Region: PAL
System Menu 4.3E (v514)

Drive date: 11.21.2009
Homebrew Channel 1.1.2 running on IOS58

Hollywood v0x21
Console ID: 169390350
Console Type: Wii
Shop Channel Country: Turkey (109)
Boot2 v4
Found 77 titles.
Found 46 IOS on this console. 15 of them are stubs.

IOS3 (rev 65280): Stub
IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11 (rev 256): Stub
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20 (rev 256): Stub
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30 (rev 2816): Stub
IOS31 (rev 3608): No Patches
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40 (rev 3072): Stub
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50 (rev 5120): Stub
IOS51 (rev 4864): Stub
IOS52 (rev 5888): Stub
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 6400): Stub
IOS61 (rev 5662): No Patches
IOS70 (rev 6912): Stub
IOS80 (rev 6944): No Patches
IOS222 (rev 65280): Stub
IOS223 (rev 65280): Stub
IOS249[56] (rev 21010, Info: d2x-v10beta53-alt): Trucha Bug, NAND Access, USB 2.0
IOS250[57] (rev 65535, Info: d2x-v10beta52): Trucha Bug, NAND Access, USB 2.0
IOS254 (rev 65281): BootMii
BC v6
MIOS v10
Report generated on 01/14/2020.



Be careful not to post messages everywhere, stay on your own message, HERE ==>https://gbatemp.net/threads/usbloadergx-and-wiiflow-black-screen-problems.556283/#post-8919933
thank you for your understanding



Sorry! I thought I would have to post one here first, won't happen again!



i sincerely apologize to you for the terrible delay in my response.

i have successfully installed the CIOS, along with Prilloader, and attached the syscheck to this post.

but first i feel that i must apologize to you once again for having kept you waiting for so long.

PLEASE let me explain myself to you of what has transpired over the course of these several months and why i was not able to post back until now.

firstly, back in august or so i had discovered that the ethernet port of my wii had infact been broken all along, no doubt another magnificent work done by the previous owner of my wii; adding to the list of things that he has already mis-installed or broke on the wii.

anyhow, without a wired internet connection i tried to install the CIOS via wifi, after purchasing a wifi router and connecting to it using the wii, i load up D2X IOS installer, but everytime i'd always only see the following highlighted message in the (Notes) section of D2X IOS installer "OFFLINE mode: IOS57-xx-vxxxx.WAD file required. downloadable with NUSD".

no matter how many times i connect to the router with my wii, D2X installer would always give the highlighted message ""OFFLINE mode: IOS57-xx-vxxxx.WAD file required". so i went and purchased serveral different brands wifi routers one after another, including a TP-Link, LinkSYS, TOTOLINK, HUWAEI router, but D2X installer still show "OFFLINE mode: IOS57-xx-vxxxx.WAD file required" on the notes section. i tried port forwarding each of the routers painstakingly via various tools in windows as well as installing linux live CDs, looking up pages after pages of documentation as well as posts on tech support forums but to no avail. D2X installer always shows ""OFFLINE mode: IOS57-xx-vxxxx.WAD file required" no matter what i do.

eventually several months later, i gave up on installing the IOSes and moved on to installing prilloader, but i made a huge blunder of using portablizemii to install prilloader, instead of the method which you have provided. portablizemii ended up bricking my console, by overwriting my bootmii protection and installed a custom loader on my system with non-functional channels which continuously looedp my console back to its menu. none of my apps were showing up, and the apps that came with portablizemii don't work work either. my SD card was not being read, my usb drive was not detected neither. And i couldn't even get nintendont to work. everythign was broken. eventually was able to get into the homebrew channel, only to find that it was turned upside down,

i had a NAND dump of my wii so i tried to open bootmii to save my wii. my wii is an early 2008 model so i was able to install bootmii on BOOT2, but portablizemii managed to destroy that partition too; as loading bootmii would just cause the console to freeze, the tv screen to go back, with the blue light on the wii console flashing continuously to no end. since i had previously erased my SD card to install portablizemii, i had no way of saving the console, meaning that the wii was at the time, and for all consideration, completely BRICKED.

today however, by the grace of god i happen to stumble upon an old archived RAR file in my documents folder, which contained a full complete backup of the entire contents of my old wii SD card that i backed up since 2018. i had left it there after working with it and forgot to erased it. thus, using that i was able to hastily restored the contents of my old sd card and plug it into my wii, my old bootmii, which i thought was long gone, miraculously booted up once more. i was almost in tears when i realized that i had managed to un-bricked my wii using bootmii, by initiating a restore sequence to the wii's broken NAND using the good NAND backup that i had made back in 2018. the process was successful and my wii has been UN-BRICKED!

so awhile ago i decided to give D2X installer another try, and this time i STILL SEE the dreaded "OFFLINE mode: IOS57-xx-vxxxx.WAD file required". however, after all the HELL i went through, i figured out that all i had to do was press A to continue, after that the CIOS installed correctly and so did priiloader.

i was very, very upset when i found out about this, but i do not feel that it was entirely my fault because the ""OFFLINE mode" message in D2X installer was simply too misleading, and i do not understand, and cannot fathom the choice to place that message there to begin with. i bought 4 routers and spent ages trying to make it work and then had to refund each of the routers one by one, i lost some money and i felt my sanity slipping away when i spent months reading nearly a books worth of documentation and ambiguous forum posts scattered throughout the web to troubleshoot each of the routers, even learning linux commands for portforwarding. it was an absolute hellish nightmare, but regardless i was successful in getting everything together.

so here is the syscheck:

thanks so much for helping me jeannotte! and my apologies to you for the late reply.



Hello ,

Your syscheck report is correct.

I see you have installed Priiloader for added security.

all you have to do is try to play.

Is your loader up to date (Wiiflow 5.4.0, usb loader gx 1272, configurable loader v70) ??
