Hardware Nintendo Switch USB-C pads alternative points

Gusse

New Member
OP
Newbie
Joined
Aug 22, 2019
Messages
1
Trophies
0
Age
45
XP
53
Country
Antarctica
Hello guys,
I have a simple question, when I have replaced an USB-C port on Switch, I have removed some pads connector from the PCB, and they correspond to the inaccessible pads.

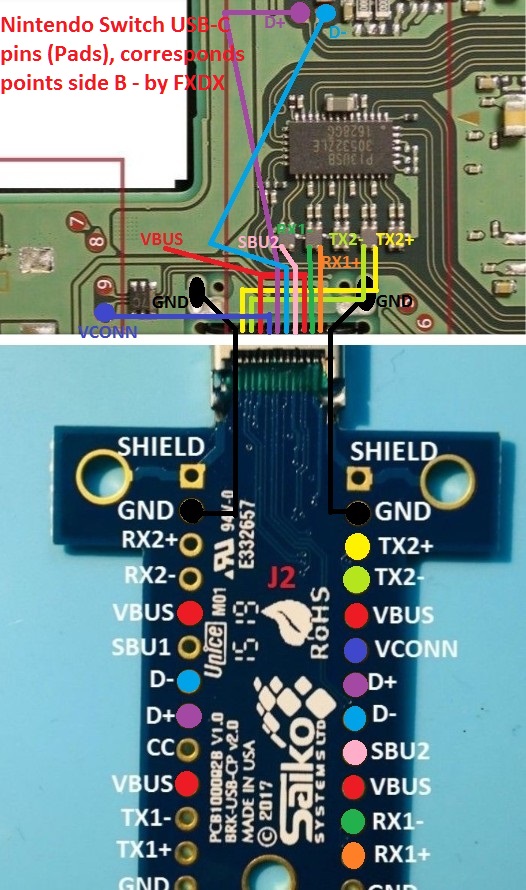

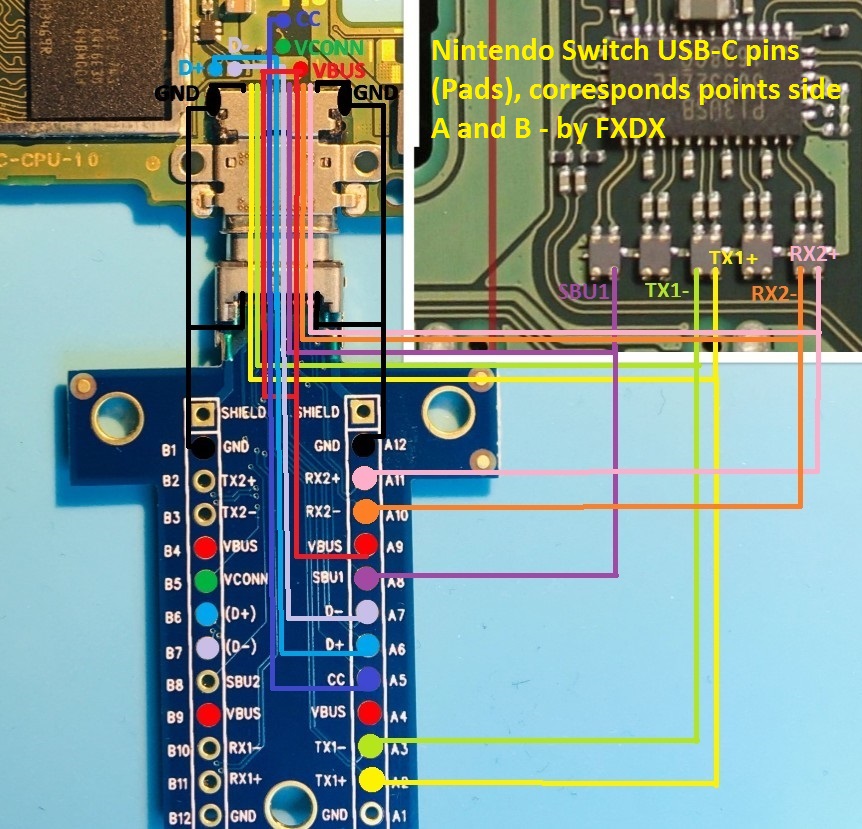

My question is : did you have some schema with alternative pads to try to rebuild the missing pads ?
Thanks in advance,
excuse for my english ;)

  • Like
Reactions: FXDX

FXDX

Well-Known Member
Member
Joined
Sep 15, 2019
Messages
301
Trophies
0
XP
1,709
Country
Dominican Republic
https://gbatemp.net/threads/nintendo-switch-repairing-damaged-or-lifted-pads-on-usb-c-port.559524/

1A.jpg 2B.jpg

Last edited by FXDX,
  • Like
Reactions: Ttm3

izZaq

Member
Newcomer
Joined
May 8, 2020
Messages
7
Trophies
0
Age
91
XP
144
Country
Mexico
WHICH PINS ARE FOR CONNECTION TO THE USB FOR PC?
THIS SWICTH NO HAVE THE FIRS FUSIBLE IT HAS A BRIDGE.
I DIRECTLY CONNECTED IN MOTHERBOARD "GND" + "VBUS" + "D-" + "D+" BUT IT DID NOT WORK, ON USB TYPE A
