Hacking Homebrew Nintendo Switch OLED hwfly mod chip light staying purple

[Sheeba-]

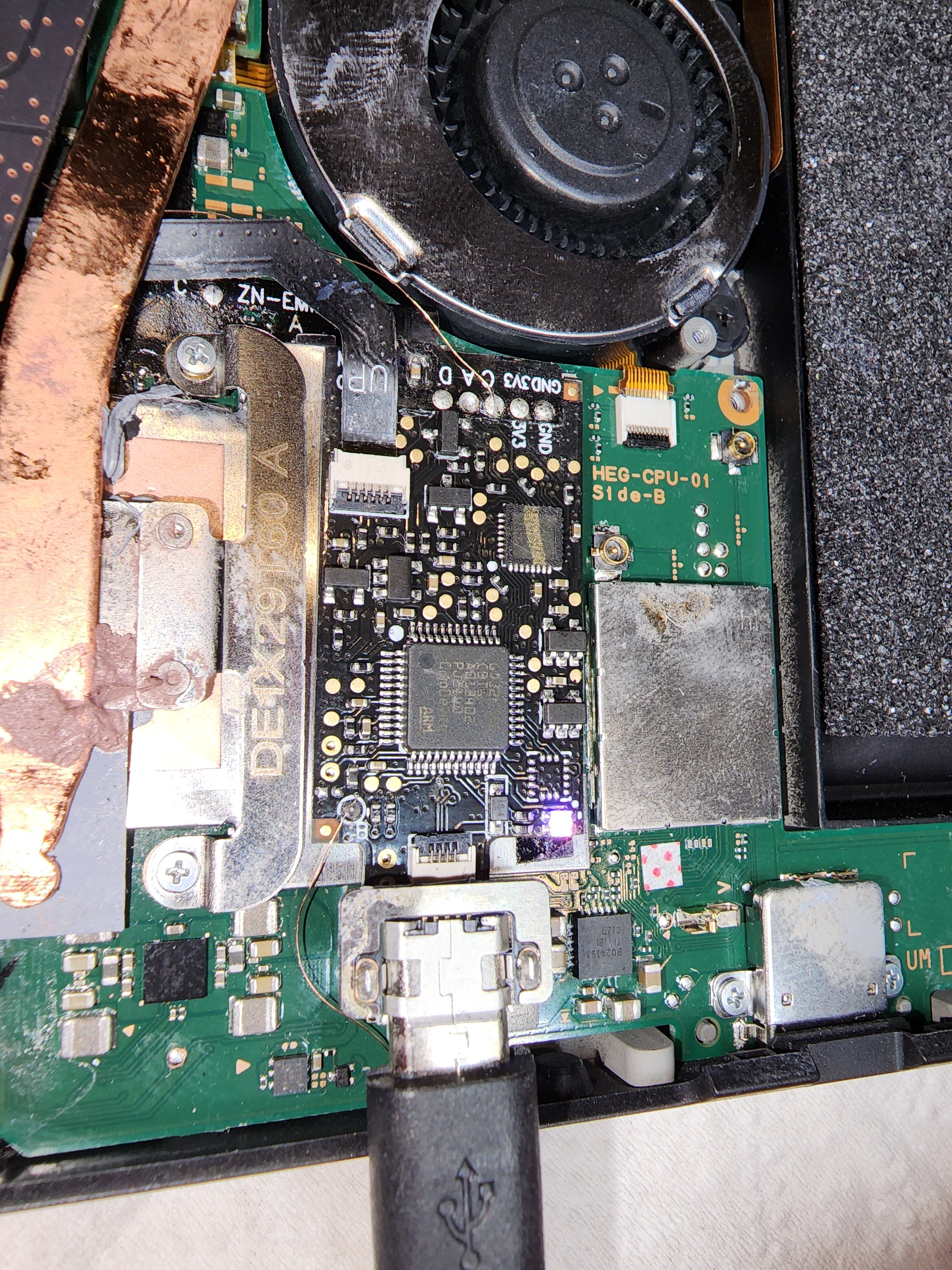

How do I fix this still purple light? I think it is the glitching timeout glitch but I don't know a way to fix it.



[thesjaakspoiler]

Most of the time it's a bad connection with the DAT0 dataline or one of the other signals.
One suggestion in some topic was to give the Switch a small nock/tap so that the DAT0 cable goes into the right place again.
But for a real fix I would suggest taking it to a good workshop.



[randy_w]

Pulsing purple LED: Still glitching, just wait. Usually glitching should finish within 10 seconds. Try to re-train the chip or check connection if it takes too long.

Solid purple: Almost always a connection issue, usuall dat0 adapter's issue. Apply some low temperature solder to the adapter and reflow the emmc chip.



[Sheeba-]

Pulsing purple LED: Still glitching, just wait. Usually glitching should finish within 10 seconds. Try to re-train the chip or check connection if it takes too long.

Solid purple: Almost always a connection issue, usuall dat0 adapter's issue. Apply some low temperature solder to the adapter and reflow the emmc chip.

It is solid purple so I might need to bring it back to the shop



[MontanaroAlves]

my nintendo switch oled was working perfect.
but... stopped... now it flashes a purple light and then turns red.



[binkinator]

my nintendo switch oled was working perfect.
but... stopped... now it flashes a purple light and then turns red.

Please don’t double post:
https://gbatemp.net/threads/nintendo-switch-oled-red-light.623755/

Please read why your post from yesterday was removed from this thread by a site mod.



[MontanaroAlves]

Please don’t double post:

Please read why your post from yesterday was removed from this thread by a site mod.

Thanks, I'll check.



[Le340367]

boa noite meu nintendo ole desbloqueado eu quando vou ligar ele so fica drenando na luiz verde e vermenho rapido e nao aparecer imagem nem uma nem reconhecer no pc nada so fica assim



[Hayato213]

boa noite meu nintendo ole desbloqueado eu quando vou ligar ele so fica drenando na luiz verde e vermenho rapido e nao aparecer imagem nem uma nem reconhecer no pc nada so fica assim

English please, this is an English speaking site.



[Le340367]

good night my nintendo ole unlocked when i turn it on it just keeps draining in luiz verde e vermenho fast and no image appears nor does it recognize anything on the pc nothing just stays like this



[PatrizioP]

First my switch started up quickly, after the software update and also ATM and Hekate. A purple light comes on after having to wait about 1 minuts and after a other 1minuts of light villolet while the switch light turns green



[wartur]

I just bought a Nintendo Switch OLED with an HWFly modchip, it worked for 3 hours, but when I restarted it because of the battery, the screen went black!
I didn't know this forum existed or about problems, but I found these explanations about lighting and they blew me away!
Thank you so much for the help!


Thanksgiving Day for you all
