A few months ago, I went to grab my Switch, it had no battery, not a single charge, I turned it on by connecting a USB cable to my computer and injecting hekate, then I plugged it into a wall, but after reaching 3% the console shut off and never turned back on, I bought a pair of screwdrivers, I was able to disassemble my console, I checked the console there was liquid? Although the liquid damage stickers were fine? I cleaned it up and the console still did not turn on.

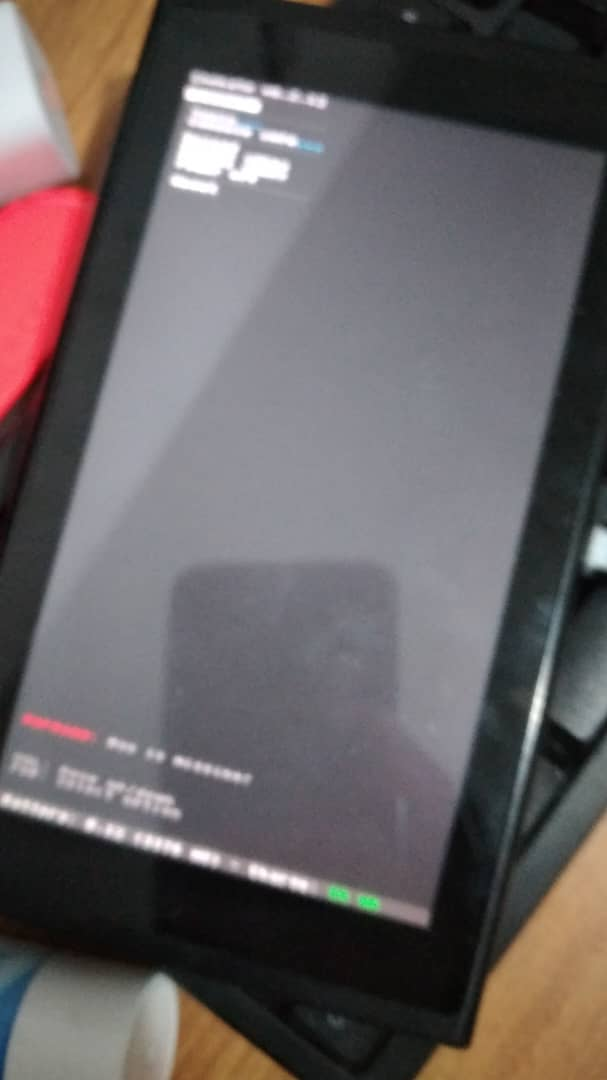

A few days ago, I plugged in the Nintendo Switch for curiosity, injected hekate, and by miracle I got this.

When charging to 3% on hekate, the console shut off and once again did not turn on again. Before that I checked the battery status on hekate and it had a warning sign on capacity? Like, the capacity was the same put then there was "Init?" warning sign. Sadly I took no photo.

What do you think is the issue? For now I'm buying a battery but it will take a while to get to me. (Around 3 months)

I thought it was a board failure but idk the battery was very funny before it got to this point (usually lasting 1 hour) I talked to some repair shops and they tell me it's not a battery problem although most repair shops are BS where I live so I rather fix it myself. I really want this Switch working because it's a V1 model, even though it's a hilariously broken console (joycons disconnect, overheats a fuck ton) it's worth to fix in my opinion, I got so much savedata and there's too much fun to be had.

A battery lasting 1 hour is usually a sign of a battery that needs to be replaced.

Afaik, you can start Hekate without the battery. Atmosphere/OFW won't start.
Check if it doesn't shut down.

If it does shut down, then it might be something like the charging circuit.

A few months ago, I went to grab my Switch, it had no battery, not a single charge, I turned it on by connecting a USB cable to my computer and injecting hekate, then I plugged it into a wall, but after reaching 3% the console shut off and never turned back on, I bought a pair of screwdrivers, I was able to disassemble my console, I checked the console there was liquid? Although the liquid damage stickers were fine? I cleaned it up and the console still did not turn on.

A few days ago, I plugged in the Nintendo Switch for curiosity, injected hekate, and by miracle I got this.
View attachment 527343
When charging to 3% on hekate, the console shut off and once again did not turn on again. Before that I checked the battery status on hekate and it had a warning sign on capacity? Like, the capacity was the same put then there was "Init?" warning sign. Sadly I took no photo.

What do you think is the issue? For now I'm buying a battery but it will take a while to get to me. (Around 3 months)

I thought it was a board failure but idk the battery was very funny before it got to this point (usually lasting 1 hour) I talked to some repair shops and they tell me it's not a battery problem although most repair shops are BS where I live so I rather fix it myself. I really want this Switch working because it's a V1 model, even though it's a hilariously broken console (joycons disconnect, overheats a fuck ton) it's worth to fix in my opinion, I got so much savedata and there's too much fun to be had.

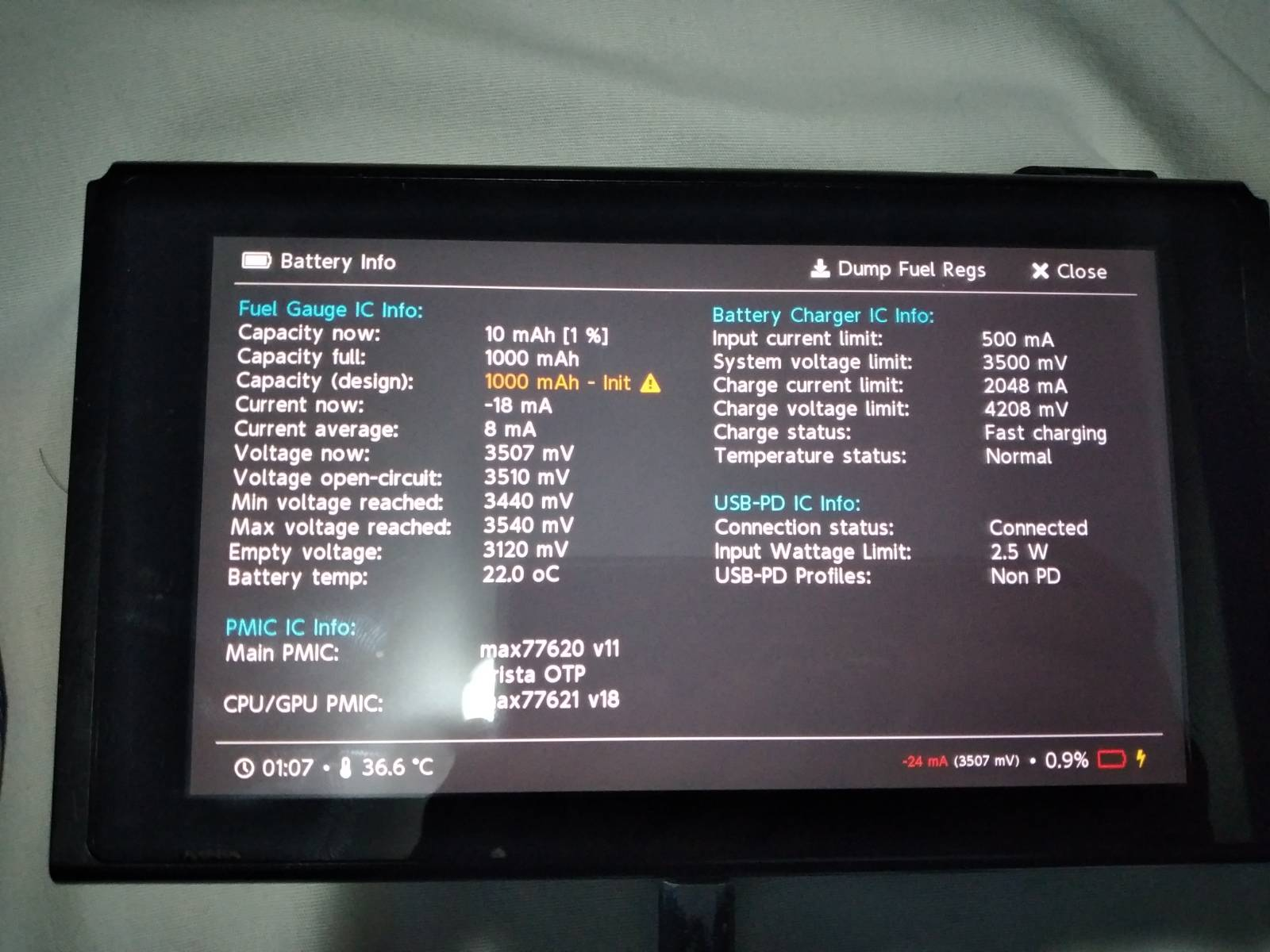

A hekate battery report help

A battery lasting 1 hour is usually a sign of a battery that needs to be replaced.

Afaik, you can start Hekate without the battery. Atmosphere/OFW won't start.
Check if it doesn't shut down.

If it does shut down, then it might be something like the charging circuit.
I mean, when I tried to boot without a battery the console did not boot into RCM mode at all. Could try again but I don't like disassembling my console due to thermal thingy.
Post automatically merged:

Can confirm, no battery plugged in, no RCM, I don't have a RCM jig with me right now though
Post automatically merged:

UPDATE: turns out the software was funny... sorry. booted on Hekate using TegraRCMGui after disconnecting battery and reconnecting.




Last edited by Deleted member 716285,
The Nintendo Switch worked fine after unplugging and replugging the battery multiple times for it to charge a bit... I probably have a fire hazard in my hands but whatever. 100% battery, everything works fine now, seems like the AutoRCM discharge completely messed up battery calibration or smth
