Nintendo Switch APU Cap Identification

[hoyohoo]

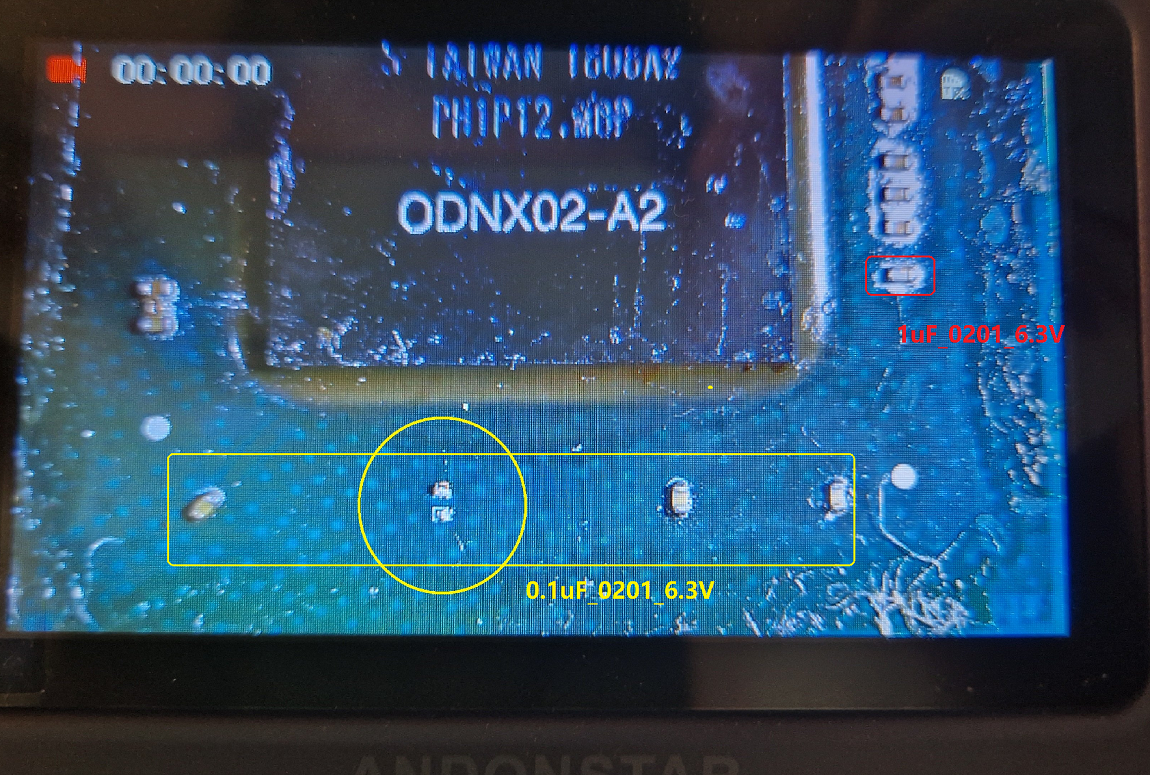

Hi there, as I was reballing a switch apu today, I somehow managed to send a cap to the ninth dimension. It is nowhere to be found.

Anyway, I really need the help of you guys to help me identify the right values for this cap.

Thanks



[thesjaakspoiler]

1uF 20% 6.3V 0201 ceramic capacitors
(https://gbatemp.net/threads/what-is-the-capacitor-value-on-top-of-nintendo-switch-apu.572089/)

They are just for smoothing the voltage so anything close will also be fine and in most cases, the Tegra will work file without them.



[hoyohoo]

So all of those caps are the same value? Because there are some posts online stating that they are 0,1 µF and some others (like you) say it is 1 µF.



[jkyoho]



[hoyohoo]

Ok, thank you. So can I just use one of the PS5 HDMI Caps? I have enough of those here. They are 100 nF @ 10 V and are also 0201 size
