Hacking Hardware New OLED FPC with point for kamikaze mod

E

electricslime

New Member
OP
Newbie
Level 1
Joined
Nov 2, 2024
Messages
4
Trophies
0
Age
25
XP
30
Country
Australia
I haven't seen anyone else post a photo of this flex and I thought it was somewhat interesting


  • Like
Reactions: Nephiel and hippy dave
Nephiel

Nephiel

Artificer
Member
Level 8
Joined
Nov 3, 2002
Messages
479
Trophies
2
XP
1,341
I don't like these kinds of flex ribbons. The fact these are meant to be fitted on the screw post between the board and the heatsink assembly does not help to change that. But it's good to know they're out there.

jkyoho

jkyoho

Well-Known Member
Member
Level 11
Joined
Sep 2, 2020
Messages
1,620
Trophies
3
Website
form.jotform.com
XP
2,683
Country
Canada
Nephiel said:
I don't like these kinds of flex ribbons. The fact these are meant to be fitted on the screw post between the board and the heatsink assembly does not help to change that. But it's good to know they're out there.
Click to expand...

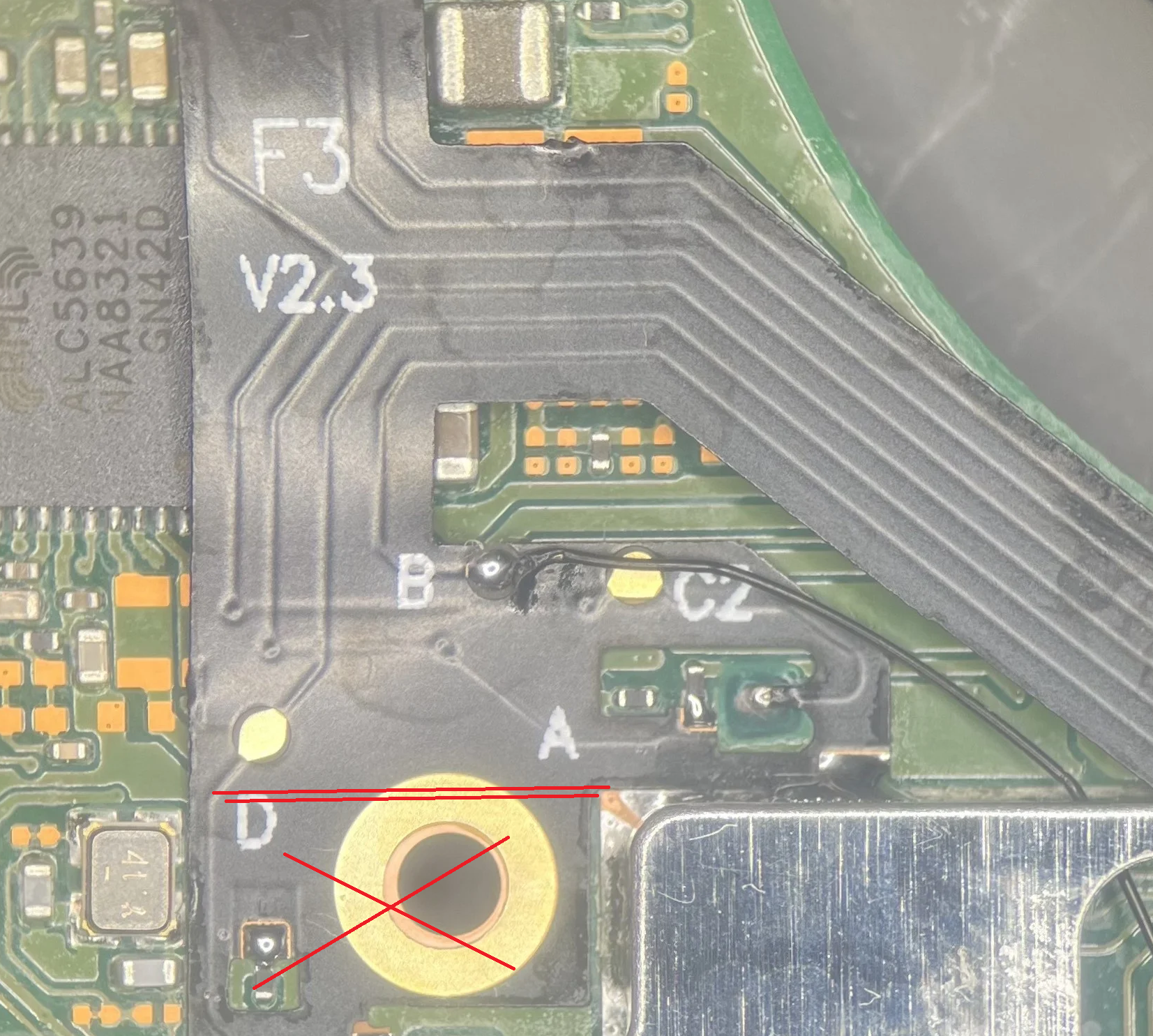

you could just cut that off and use jumper wire connect D point


Attachments

  • 1731598075899.png
    4 MB · Views: 8
E

electricslime

New Member
OP
Newbie
Level 1
Joined
Nov 2, 2024
Messages
4
Trophies
0
Age
25
XP
30
Country
Australia
Nephiel said:
I don't like these kinds of flex ribbons. The fact these are meant to be fitted on the screw post between the board and the heatsink assembly does not help to change that. But it's good to know they're out there.
Click to expand...
Out of curiousity, why do you dislike flex ribbons for this?

R

randy_w

Well-Known Member
Member
Level 9
Joined
Feb 27, 2021
Messages
829
Trophies
0
Age
34
XP
1,576
Country
United States
electricslime said:
Out of curiousity, why do you dislike flex ribbons for this?
Click to expand...
they'll move when you screw in the heatsink, if there's too much stress they can rip D point off motherboard.

The one included with instinct nx is much better designed, although I still prefer to connect everything with wires directly instead of using the ribbon cable



  • Like
Reactions: Nephiel
Nephiel

Nephiel

Artificer
Member
Level 8
Joined
Nov 3, 2002
Messages
479
Trophies
2
XP
1,341
Precisely. There's no horizontal slack, so any movement can stress solder joints or damage traces.

They also raise the heatsink on that screw post (by whatever the ribbon's thickness is) so it will not sit so perfectly flat on the APU die. Not enough to have any effect, even more so with the copper foil and paste... but I don't like that.
Post automatically merged:

jkyoho said:
you could just cut that off and use jumper wire connect D point
Click to expand...
Yes, but I'd rather avoid the flex altogether and use wire all the way.
