New 3ds XL hardmod.

Discussion in '3DS - Console, Accessories and Hardware' started by BasedIndex, Feb 20, 2016.

  1. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    Hi.
    Bricked my nand while trying to get otp. Where's the fun in the coldboot comfort zone, amirite? XD
    I have everything setup for soldering, pin out images too. Thing is I'm not sure whether those I have are the right ones.

    This one is supposedly correct.

    Does yellow work as an alternative GND? I would like to avoid soldering that small resistor from the first image. :rofl2:

    update:
    Hardmod successful. MD5 matches on every dump I do.
    The only problem now is that I can't write to nand. Error 1117 in both image tools I used.

    anotha one
    Solved it by gluing lock in.
    Warning: Spoilers inside!

    Back to getting OTP. No screwing up this time.
    Warning: Spoilers inside!
    anotha one:
    a9lhax coldboot into aureinand.
    Good luck to anyone who is going tosolder their 3ds.

    Last edited by BasedIndex, Feb 22, 2016


  2. Mrrraou

    Mrrraou GBAtemp Advanced Maniac

    Member
    1,869
    2,167
    Oct 17, 2015
    France
    I don't think it would, as this is CLK.

    BasedIndex likes this.
  3. SomeGamer

    SomeGamer GBAtemp Guru

    Member
    5,752
    2,703
    Dec 19, 2014
    Hungary
    How did you get bricked? I feel really sorry for you... :(

    Mrrraou likes this.
  4. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    It's really funny how you read my mind. You scare me.
    Pretty much yeah it's CLK :C

    — Posts automatically merged - Please don't double post! —

    Long story short.
    python script was missing xorpad files but it did output sysnand.bin into unbricked folder.
    I used it again with renamed xorpads and flashed it.

    — Posts automatically merged - Please don't double post! —

    So can you confirm that I'm good to go with this one?
    Even with soldering that poor little resistor.. :X

    Mrrraou likes this.
  5. SomeGamer

    SomeGamer GBAtemp Guru

    Member
    5,752
    2,703
    Dec 19, 2014
    Hungary
    I don't see anywhere in the guide that you need to input xorpads to use the script...

  6. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    They sit in the section 1 backups folder.

    "
    os.system('Resource\\3DSFAT16tool -d -n emuNAND_bricked.bin ctr.bin ../../Section_I/Backup/nand.fat16.xorpad')
    os.system('Resource\\3DSFAT16tool -i -o emuNAND_bricked.bin ctr.bin ../../Section_I/Backup/nand.fat16.0x4.xorpad')
    os.system('del ctr.bin')
    "

  7. SomeGamer

    SomeGamer GBAtemp Guru

    Member
    5,752
    2,703
    Dec 19, 2014
    Hungary
    Wow, never knew it uses that folder! Thanks for letting me know! And good luck with unbricking your 3DS!

    BasedIndex likes this.
  8. BothyBhoy

    BothyBhoy GBAtemp Advanced Fan

    Member
    836
    245
    Nov 27, 2015
    am gonna follow this thread....FASCINATED....and am really interested in modding.....

  9. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    Thanks! Papa bless.

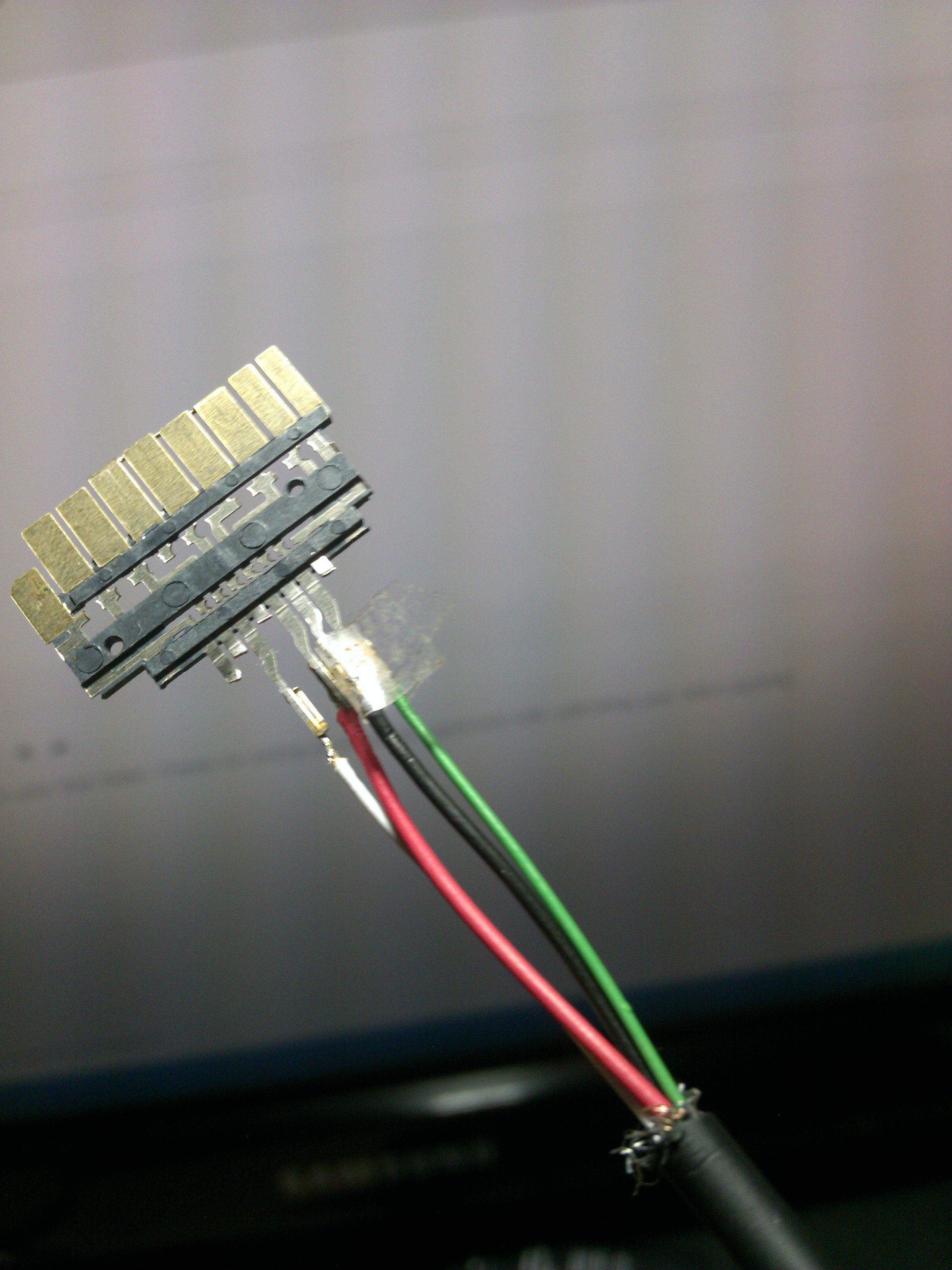

    Just finished with sd adapter.
    after SD.jpg
    Tape is for isolation, just in case :^)

    SomeGamer likes this.
  10. James310

    James310 GBAtemp Advanced Fan

    Member
    879
    319
    Oct 4, 2015
    United States
    Somewhere in California
    I'm going to be doing a hardmod soon since I too bricked my system getting the otp :/, is there any safe way to expose the pins since its in the other side?

  11. SomeGamer

    SomeGamer GBAtemp Guru

    Member
    5,752
    2,703
    Dec 19, 2014
    Hungary
    How did you brick it?

  12. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    What I did with sd adapter is bend them the other way just enough so that I could solder them.

  13. James310

    James310 GBAtemp Advanced Fan

    Member
    879
    319
    Oct 4, 2015
    United States
    Somewhere in California
    Followed v1 guide and apart entry there was something wrong and 5m later they uploaded a fixed version after I got bricked...what are the odds ...

    — Posts automatically merged - Please don't double post! —

    I'm talking about the motherboard...

  14. BothyBhoy

    BothyBhoy GBAtemp Advanced Fan

    Member
    836
    245
    Nov 27, 2015
    whoa really impressive soldering skills.....well done you...

    BasedIndex likes this.
  15. SomeGamer

    SomeGamer GBAtemp Guru

    Member
    5,752
    2,703
    Dec 19, 2014
    Hungary
    Though luck. :( I hope you will be able to unbrick it!

  16. James310

    James310 GBAtemp Advanced Fan

    Member
    879
    319
    Oct 4, 2015
    United States
    Somewhere in California
    Whoops meant apparently* not apart entry, it autocorrected

    SomeGamer likes this.
  17. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    I'm looking into it right now in the other thread. Thankfully people around are pretty knowledgeable and helpful. :^)

  18. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    Thought I'd throw an update. It supposedly works with a bootrom screen if I put sdcard into laptop card-reader.
    But I guess I'll have to get one of those from the "working" list. Or try other laptops that I have around. Just not that easy after all.
    Cheers.

    the bottom blue screen reads:

    Last edited by BasedIndex, Feb 21, 2016
  19. BasedIndex
    OP

    BasedIndex Hey, that's pretty good!

    Member
    304
    98
    Dec 18, 2015
    Russia
    sysnand
    I had to unscrew the main board to get access to "red-cpu-10 side b".
    It doesn't take much to put it back too.

  20. James310

    James310 GBAtemp Advanced Fan

    Member
    879
    319
    Oct 4, 2015
    United States
    Somewhere in California
    Without removing any ribbon cables?
