ROM Hack need help with ".ana" files from initial d street stage

[rensawakening]

So, i was looking into some files and i found this weird format ".ana" that seems to be "MIG.00.1PSP.", a GIM variation? no idea
does anyone have ever seen ana/MIG.00.1PSP in other games? Is there a tool for extracting it?



[master801]

https://github.com/derplayer/Initial-D-PSP-Tools

Not enough reverse engineering work has been done on it.

You'll have to make your own tool.



[rensawakening]

Actually i kinda discovered what it is. Its a bunch of .gim files.
I used AI to make a tool for extracting each .gim from it, but recompiling it back might be tricky doesn't seem to work in the game

Post automatically merged: Aug 17, 2024

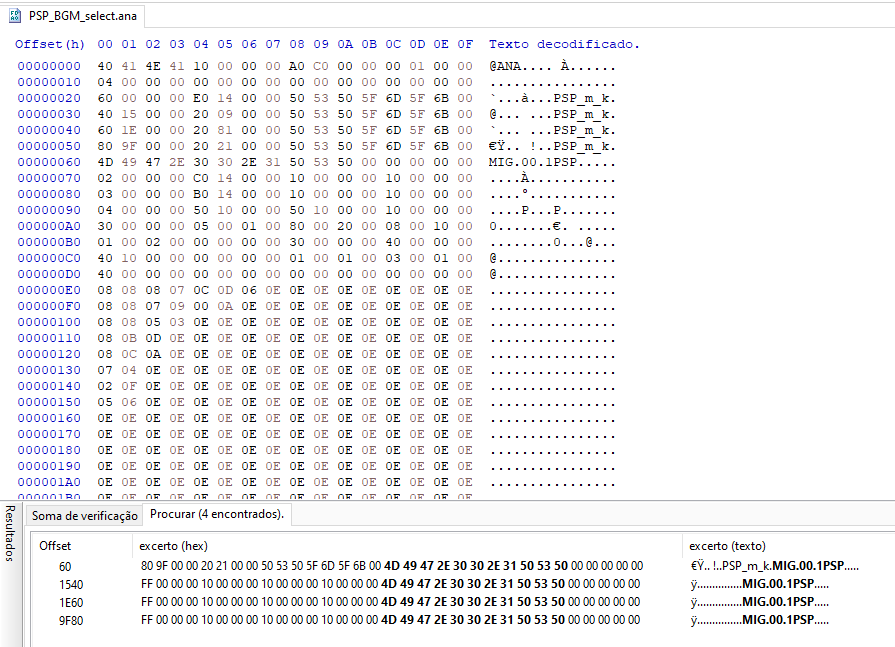

Here i ctrl+f and searched for MIG.00.1PSP (.gim signature), it repeats 4 times, which means there are 4 textures files within this .ana

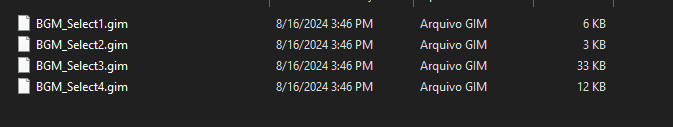

Then i extracted using a python script, and there it is, 4 .gim files.
And they actually work on noesis:

Well, now i have to figure out how to recompile it back



[master801]

Well, now i have to figure out how to recompile it back

How do you expect to do that since you had AI extract all of the GIM files for you

Yes you can extract files from a file without actually understanding the whole file, but the problem, what you just encountered, is when you have zero idea how the format actually works, and being unable to pack the files back INTO the file.



[rensawakening]

i mean i was just messing around you know, since i found like 0 documentation about it i had to try something



[rensawakening]

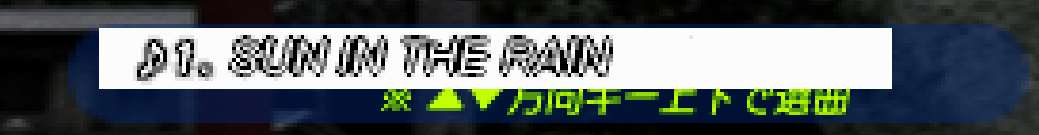

So, i found a way to make the .ANAs work, i just had to edit the .GIMs using photoshop 6.0 and a .gim plug-in, then reassemble them in hxd, the only problem is that i still don't understand how to add transparency and it look like this ingame

I searched the internet and i read that i need to add an alpha channel, but still no luck



[YamatoNag]

iirc, you need to convert the 32 bit png transparent image to 8 bit png transparent image, then using GimConv to convert the transparent png to gim



[rensawakening]

yeah i kinda managed to find out about that, but im having problems with it and also file size
initial d psp tools warn you if you try to replace a file bigger or smaller than the original one, it has a option to "fix" that but i just get a blackscreen when i enter the menu where i modified a texture
basically it have to be exact same size.
if i use Photoshop, open the original gim and paste my edited png it will be the same file size but with no transparent background, works ingame, tried the same method i was using for a transparent png with indexed color
if i use gimconv my final .gim gets smaller or bigger but with transparent background, doesnt work ingame

so idk what should i do now, i found 0 documentation about this .gim plugin, and for gimconv there are some notes from the guy who made Initial D PSP Tools, but as i explained, doesnt work ingame...



[YamatoNag]

hmm. mostly on my texture and other modding experience is on GOD EATER BURST, which tackles, gim, at3, and much more. but yeah. you might do some work around

Post automatically merged: Sep 1, 2024

also is there any compiled tools for initial D?, i only see some that aren't fully compiled and ready to use



[rensawakening]

yeah my friend sent me a compiled version of initial d psp tools, dm me on discord if you want, same user as here
