Hardware Missing resistor, and I cannot find the same in the market

  • Thread starter Thread starter studioai
  • Start date Start date
  • Views Views 3,524
  • Replies Replies 3

studioai

Member
Newcomer
Joined
Sep 12, 2021
Messages
10
Reaction score
1
Trophies
0
Age
45
XP
93
Country
Japan

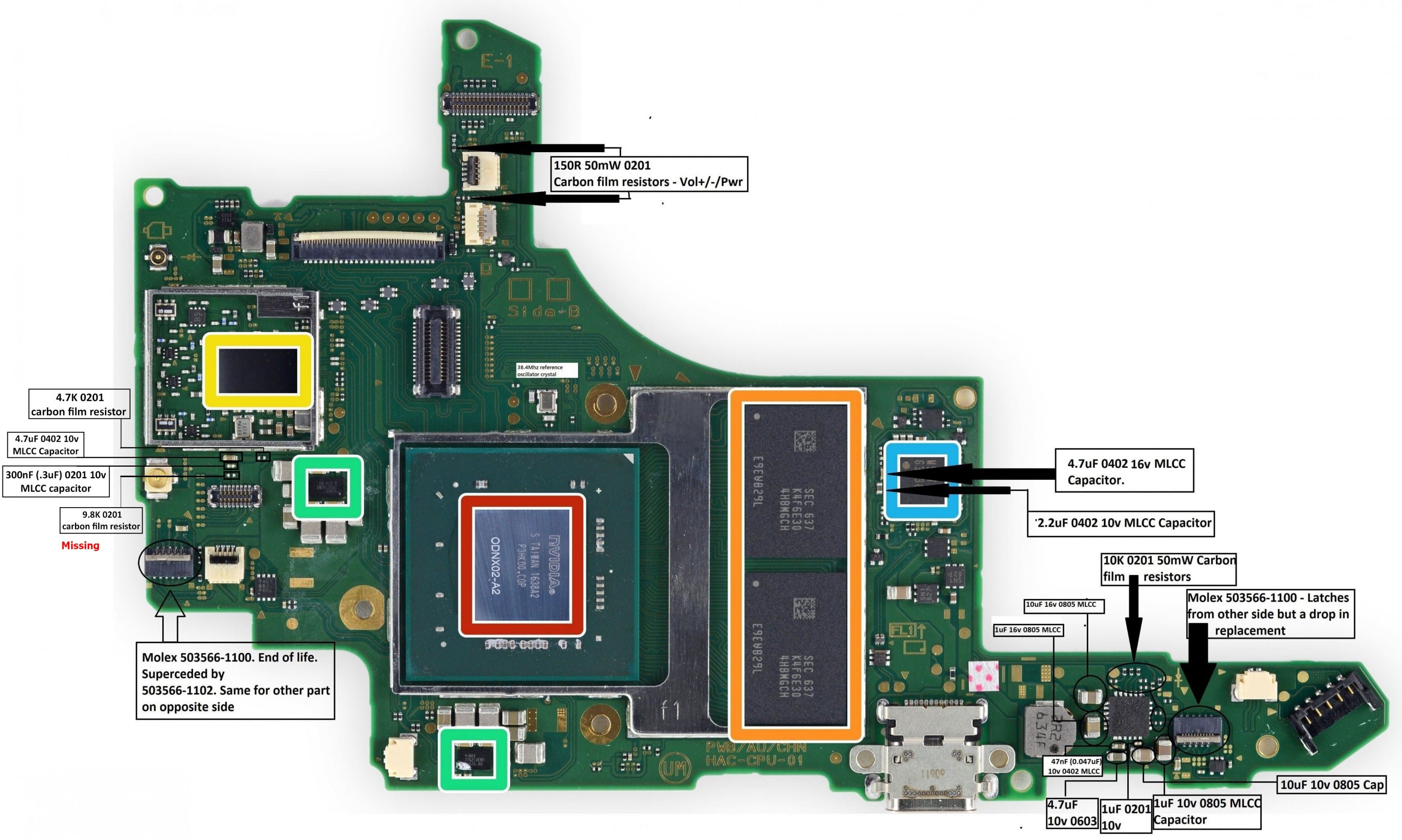

I realized that a resistor is missing while I repair my switch. My problem is the resistor cannot be found in the market (Mouser, TE, etc)
The only ones I can find are 10K resistors or different-sized 9.8K resistors.
Can I use a 10K resistor instead of 9.8K? or can I use the same valued resistor in 2010 size?

10k should be good to go, but 2010size really? It's like 70x bigger than 0201 size. But yes if you find a way to make a space for this YABAI size

I'm not really sure the resistor is a 0201, if you compare it with the capacitor from up-right which is a 0402, they look almost the same size. A 0201 should be very small compared with what we can see on the pic you provided.

Check this image just for reference:

Taken from:
Code:
https://www.electronicproducts.com/accounting-for-component-overage-in-smt-assembly/#

Last edited by CMDreamer,
