Missing capacitor switch v1

[Roy73]

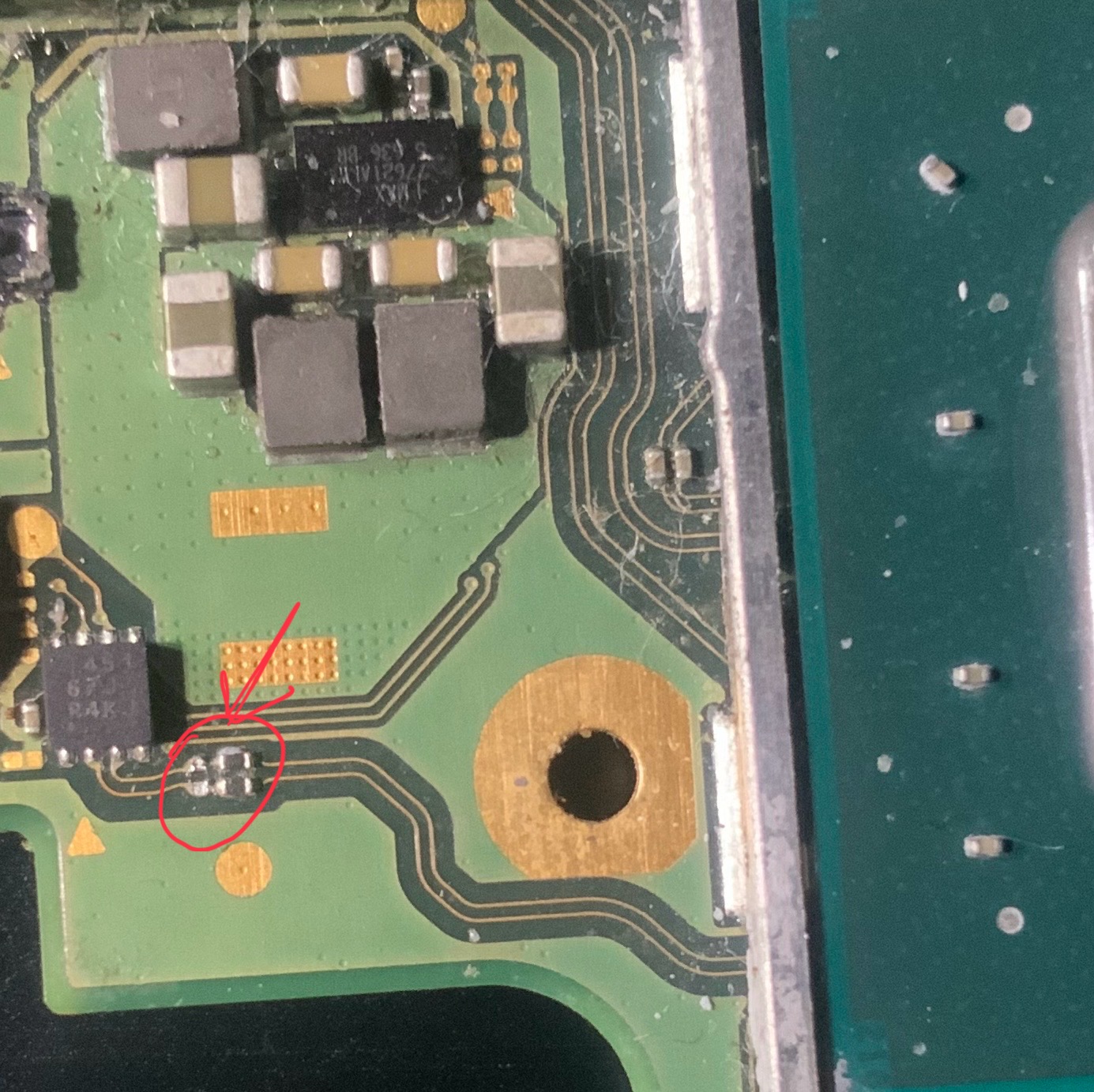

I’m trying to figure out what the value is of this missing capacitor on a v1 switch next to the backlight connector.

Not sure if it’s actually needed or not. Any help would be gratefu.

cheers



[iiTzSamurai]

I’m trying to figure out what the value is of this missing capacitor on a v1 switch next to the backlight connector.

Not sure if it’s actually needed or not. Any help would be gratefu.

cheers

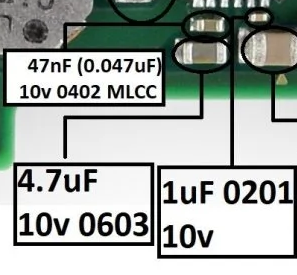

Seems to be a 1uF 0201 10v



[jkyoho]

1nF(1000pF) and 2x 100 ohm resistors

TMP451



[iiTzSamurai]

1nF(1000pF) and 2x 100 ohm resistors

TMP451

It's def a SMD 0.1uF 10V 0201. I dont see where you get 1nF(1000pF) from



[jkyoho]

It's def a SMD 0.1uF 10V 0201. I dont see where you get 1nF(1000pF) from

Read OP post again you triple check what missing capacitor OP is pointing to. Your states is correct but those 2 caps are not OP looking for.
And also open the TMP451 datasheet I linked to and on Pg10 Section "7.3.4 Filtering" you would find what I quote and measured 1000pF



[iiTzSamurai]

Read OP post again you triple check what missing capacitor OP is pointing to. Your states is correct but those 2 caps are not OP looking for.
And also open the TMP451 datasheet I linked to and on Pg10 Section "7.3.4 Filtering" you would find what I quote and measured 1000pF

I'm pretty sure OP just wants to know what the cap is so he can replace it



[jkyoho]

I'm pretty sure OP just wants to know what the cap is so he can replace it

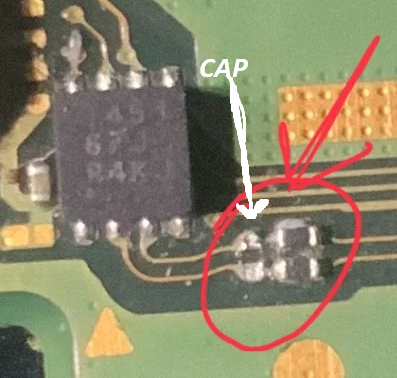

Thats right, he is missing the cap you label in white next to TMP451 thermal sensor. NOT next to MAX77621 or BQ21493.

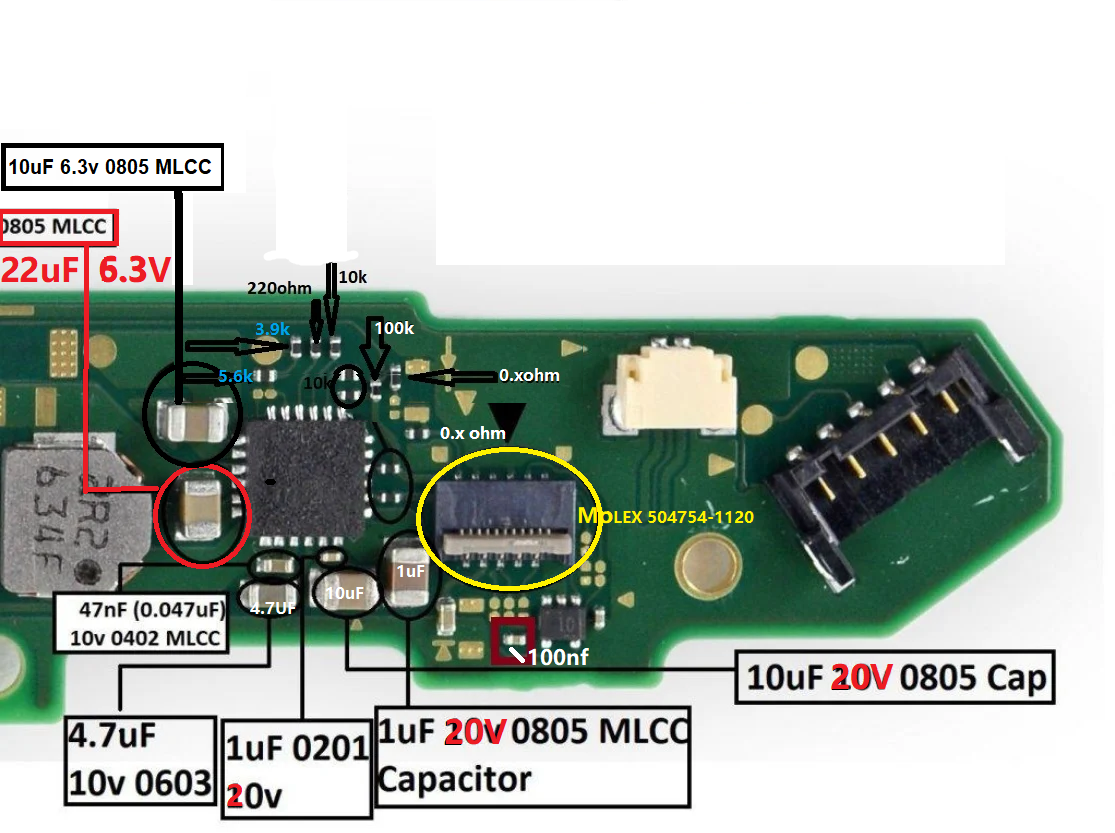

FYI those Caps value near BQ21493 has minor issue on the voltage rates. Here is my revised one. Feel free to replace them accordingly.
