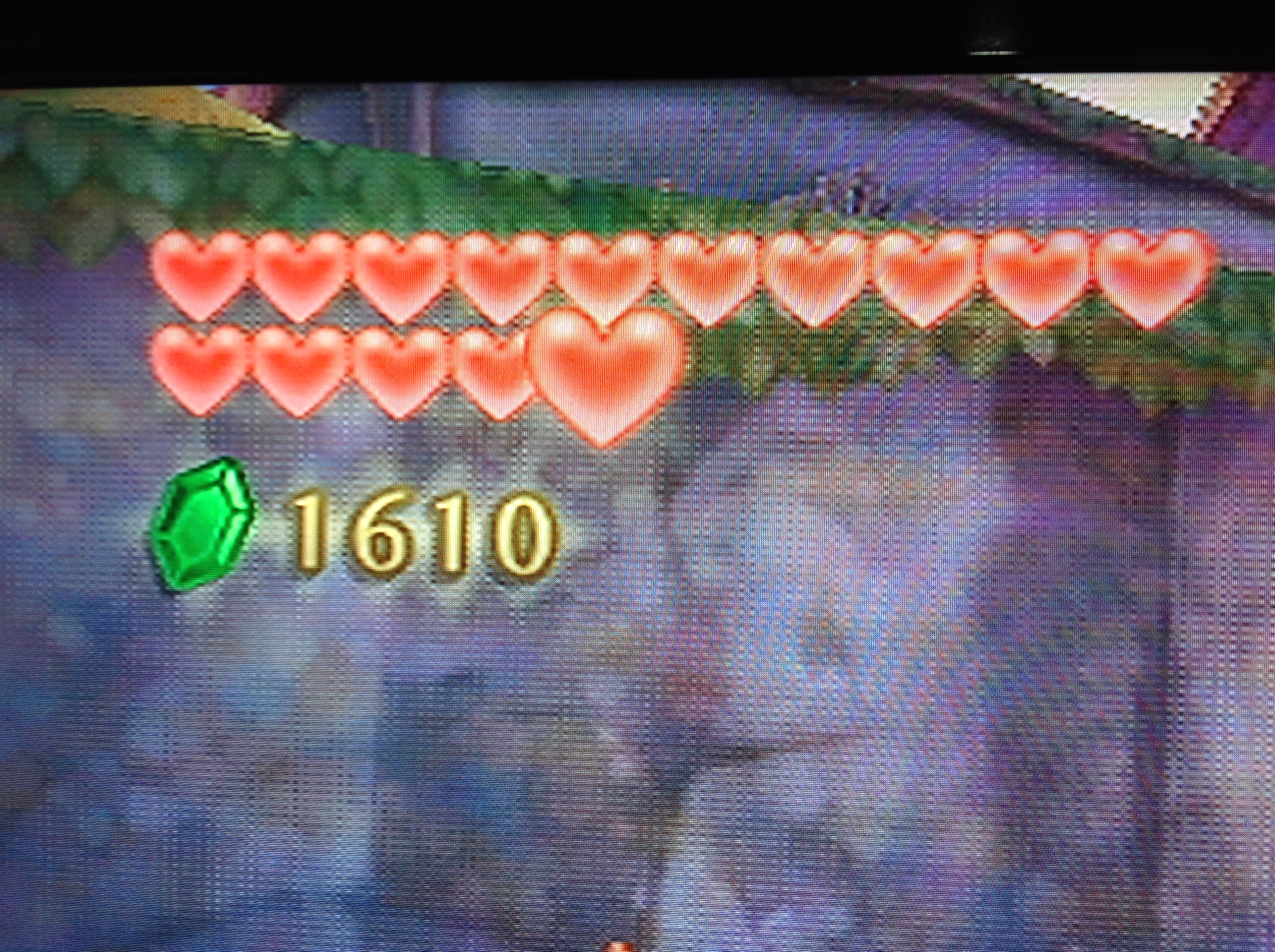

    There are dot pixel thing (Dotted Grid) on some place of the games(around the Heart and the Rupee), In this case, a Legend of Zelda Skyward Sword on my 40 inch Sony 40KDL-EX400 HDTV. Is this normal or does my Wii U have a problem? (Look at the picture below.)

    Last edited: Jan 28, 2020
  2. godreborn

    godreborn GBAtemp Guru
    Member

    Joined:
    Oct 10, 2009
    Messages:
    8,671
    Country:
    United States
    I'm not sure what you mean. the poor quality of the graphics will probably be noticeable, certainly with a tv that size. my tv is only 28". gpu issues might involve a checkerboard pattern on the screen. that's what it does on the 360 anyway.

    — Posts automatically merged - Please don't double post! —

    btw, it's my understanding that the vwii is upscaled by the wii u to 720p, so you'll notice imperfections.

  3. Wiizo

    Wiizo Newbie
    Newcomer

    Joined:
    Nov 15, 2013
    Messages:
    7
    Country:
    Italy
    Does this 'fixed grid' only appear when some transparency effect is going on (like smoke, fog...)? Because then i think its normal, happens on my WiiU + 4K TV too!

    Should be the so called 'Dithering'. Apparently most Wii games are only 16bit color depth and the digital signal + barebone upscaling of the WiiU makes those imperfections (that you wouldn't notice on a CRT + analog composite signal back in the days on an original Wii) more pronounced then ever.

  4. Extrems

    Extrems GBAtemp Regular
    Member

    Joined:
    Jan 17, 2013
    Messages:
    184
    Country:
    Canada
    I wouldn't say most, but this game is obviously using the R6G6B6A6 EFB pixel format.

    The ordered dithering pattern is amplified by repeated blending operations.

  5. Alpzepta

    OP Alpzepta Newbie
    Newcomer

    Joined:
    Jan 21, 2020
    Messages:
    3
    Country:
    United States
    I guess that what it was... I don't remember see those dotted grid thing on my old Sony Trinitron before it's die on me.

    Last edited: Jan 28, 2020
