HWFLY OLED V4.1

[warrios96]

Good morning,

A few days ago I bought a V4.1 chip for the OLED.
This is the chip:

My problem is that when looking for manuals or videos I can't find one that has a complete installation guide. Does anyone know of a video that correctly explains the installation of the chip or a Manual with detailed steps?

I have another question and I don't know what this Flex is for:

In the videos I don't see it being used but I think it is necessary.

Greetings and thank you very much in advance.



[Phantomas77]

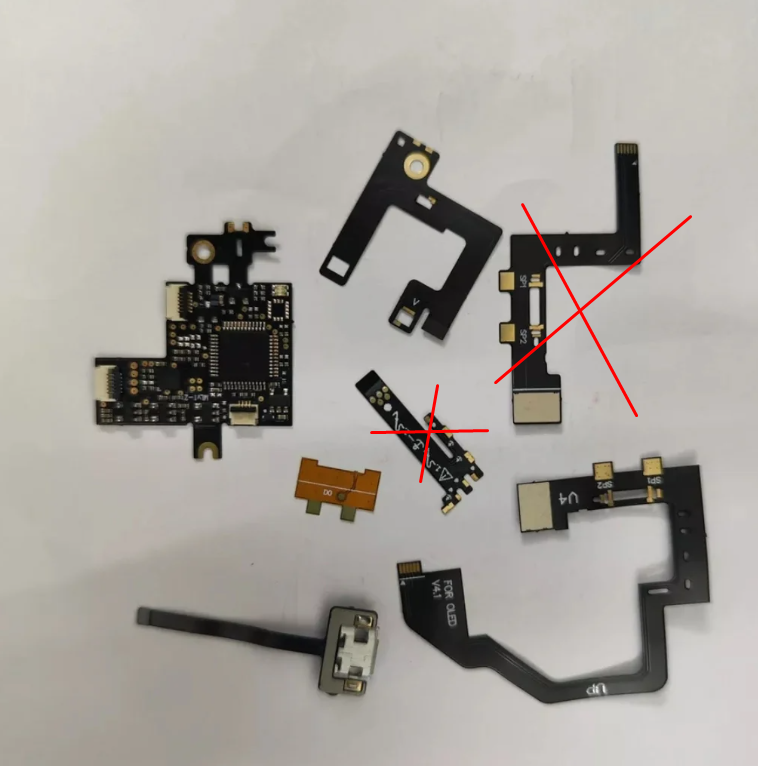

I have the exact chip as yours, for OLED you need to use the other cables (see attachment). I suggest you not to flash it with any FW and try with the one it came with. I flashed it with hwfly-nx before install and it boots directly to OFW with green light, so keep it stock and maybe flash it if everything works well.

For the install points refer to STHETIX diagrams (first one), check his github.

You can use the CLK, etc flex cable, though people recommend doing the jump wire for better install.

Cheers!



[warrios96]

Thank you very much !



[whisky9]

Your hwfly modchip is called Hwfly Lite and it is used for Nintendo Switch lite. You can use this chip for your Oled but it is not the best for oled design.



[warrios96]

I have not made a good purchase... But since I've spent the money and it can be done I'm going to try this way.
If anyone knows of a manual or youtube video explaining it with this chip for the OLED I would appreciate it.

Post automatically merged: Dec 20, 2022

Tengo el chip exacto que el tuyo, para OLED necesitas usar los otros cables (ver adjunto). Te sugiero que no lo flashees con ningún FW y pruebes con el que viene. Lo actualicé con hwfly-nx antes de la instalación y arranca directamente en OFW con luz verde, así que manténgalo en stock y tal vez lo actualice si todo funciona bien.

Para los puntos de instalación, consulte los diagramas de STHETIX (el primero), consulte su github.

Puede usar el cable flexible CLK, etc., aunque la gente recomienda hacer el cable de salto para una mejor instalación.

¡Salud!

¿Dónde se debe conectar este Flex?
1,2 o 3?



[whisky9]

I have not made a good purchase... But since I've spent the money and it can be done I'm going to try this way.
If anyone knows of a manual or youtube video explaining it with this chip for the OLED I would appreciate it.

Look here the first diagram:
https://github.com/sthetix/DIAGRAM



[marhalloweenvt]

Maybe this topic will help you a bit: https://gbatemp.net/threads/oled-switch-hwfly-4-1-lite-chip-install.618755/



[juanvlc]

If you are asking this, try to find someone to do it for you.
Best regards



[warrios96]

I have assembled the adapter for the DAT0 and the measurements that I get are these:
+ At GND: 473
- At GND: 814
Do you see them well or are they tall?
