1. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    Hello. Tell me how to check the following chips: M92T36/BQ24193/P13USB. The console does not want to charge. With a new battery, I start the firmware, and error 2101-0001 appears

  2. bootaholic

    bootaholic Advanced Member
    Newcomer

    Joined:
    Jul 1, 2019
    Messages:
    97
    Country:
    United States
    Two things. 1. No. 2. Search the forums.

    Sent from my Pixel 2 using Tapatalk

    SolidSnakeUk89 likes this.
  3. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    in search gives out only guesses. "May be M92T36. May be BQ24193.replace everything" . I did not find the exact answer

  4. Canna

    Canna Bad Ass Poisonous Mushroom
    Member

    Joined:
    Jul 14, 2018
    Messages:
    1,376
    Country:
    United States
  5. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    Additional information: all smd calls on one side only. Battery voltage 3.72V. 5 and 6 legs of the IC give out 2.76V
    In hekate, the battery charge does not jump (which, as I understand it, says that the BQ24193 is working

    Last edited by ExzoTikFruiT, Aug 11, 2019
  6. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,708
    Country:
    United Kingdom
    3.72 = flat.

    First check something is getting into bq24193.

    Check testpoint on top of bq24193. V+ should be 0v without usb plugged.

    Rising to 3-4v usb plugged in.

    Next, check fuel gauge registers (max17050).

    The chip for this is on the other side of the board but you can check registers in Hekate (or fix/reprogram using my Hekate mod called switchboot) which has the disabled Hekate code enabled. Check registers aren't FF FF...

    If all is good and console is booting, then m92t36 is probably ok. Or at least the core voltage is. Pin 5 volts should = pin 6 +/- say 200mV. Though pin 5 can go higher up to 6v according to some Chinese users.

    Try this:

    On the ninty error screen, plug into dock. If you get picture, assume pi3usb is ok for now.

    That leaves bq24193 or fuel gauge(though this is just for battery percentages really).

    I'm not near my notes as I'm at the coast but will be home at end of week.

    Agilato likes this.
  7. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    switch poweroff:
    On green testpoint:
    without usb - 3.72
    w/ usb - 3.72
    yellow testpoint - always 0
    Switch in hekate:
    On green testpoint:
    without usb - 3.72
    w/ usb - 3.72
    yellow testpoint - always 0

    Docked - only green led on dock. No picture

    m92t36:
    5pin - 2.4v
    6pin - 3.2v


    Attached Files:

    Last edited by ExzoTikFruiT, Aug 11, 2019
  8. mattytrog

    mattytrog You don`t want to listen to anything I say.
    Member

    Joined:
    Apr 27, 2018
    Messages:
    3,708
    Country:
    United Kingdom
    Do you get a picture with a charged battery?

    No volts with usb on yellow TP?

    Looking like bq24193 to me. Fuel gauge appears good.

    Got green light on dock...

    I'm saying bq24193 at the moment.

  9. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    The charge console shows the correct one. Threw to another - the same data. Ok then order bq24193. and it certainly can be connected with an error 2101-0001?

    Last edited by ExzoTikFruiT, Aug 12, 2019
  10. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    Replace M92T36/BQ24193/P13USB.no effect. Consumption has become zero. It was 0.02A
    After replacing BQ24193, the voltage at the point where it used to be 0 became 0.05.
    After the replacement M92T36 сonsumption has become zero. Stopped turning on
    @mattytrog

    Last edited by ExzoTikFruiT, Aug 28, 2019
  11. JuanIssa

    JuanIssa Member
    Newcomer

    Joined:
    Aug 28, 2019
    Messages:
    14
    Country:
    Spain
    Useful post, shame no way to get a schematic

  12. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    @mattytrog Please,help.
    Changed all 3 controllers. Consumption is also 0.03A. Now shows the wrong charge with any combination of controllers. Shows temperature normally.Comes in RCM. It does not load into the atmosphere, hangs on the logo. apparently due to battery readings. Could this be in case of a malfunction of the battery itself? Can it be checked somehow without another console?

  13. ExzoTikFruiT

    OP ExzoTikFruiT Member
    Newcomer

    Joined:
    Aug 11, 2019
    Messages:
    13
    Country:
    Russia
    As it turned out, you can get into the RCM without M92T36

  14. SolidSnakeUk89

    SolidSnakeUk89 Advanced Member
    Newcomer

    Joined:
    Jul 20, 2019
    Messages:
    94
    Country:
    United Kingdom
    I get to RCM mode by unpluging the NAND EMMC module, then press the power and plug it back in LOL

    also I leave you a little gift attached :)


    Attached Files:

  15. Agilato

    Agilato GBAtemp Fan
    Member

    Joined:
    Jun 21, 2019
    Messages:
    331
    Country:
    United States
    Kind of YOLO style ;-)

    FXDX and SolidSnakeUk89 like this.
  16. masterprosync

    masterprosync Newbie
    Newcomer

    Joined:
    Sep 29, 2019
    Messages:
    9
    Country:
    Malaysia

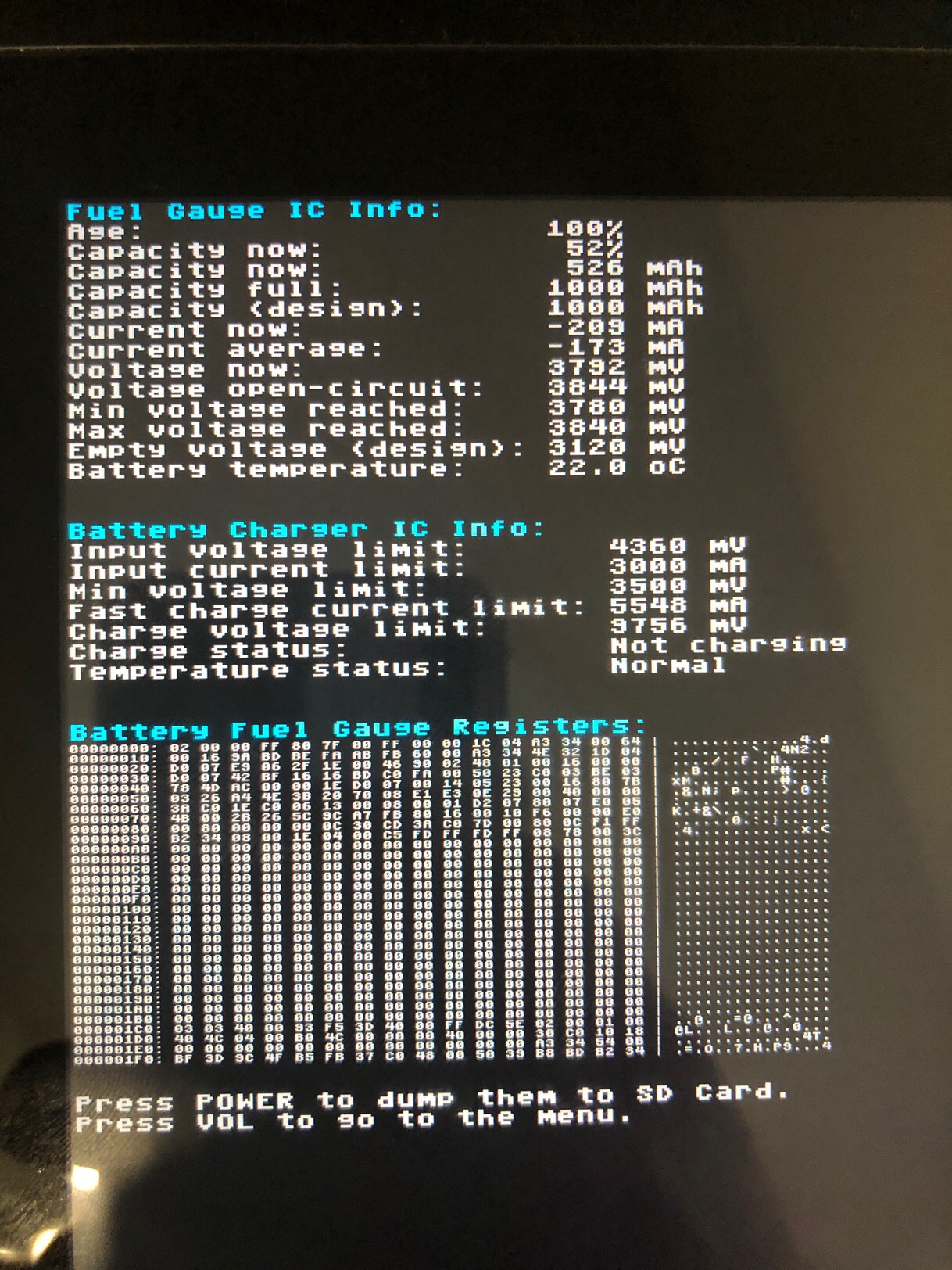

    Why my switch show battery info without "battery age"?

  17. FXDX

    FXDX GBAtemp Regular
    Member

    Joined:
    Sep 15, 2019
    Messages:
    231
    Country:
    Dominican Republic
    M92T36

  18. Theorem

    Theorem Member
    Newcomer

    Joined:
    Dec 19, 2018
    Messages:
    43
    Country:
    Slovenia
    Guys if charging works (slow - 0,47, no trickle), i can start Hekate (RCM works) but without RCM nothing - no OFW start and from CFW i can start OFW but i get error 2101-0001 is it still M92T36 as a main suspect ?
