Help needed to indentify missing capacitor!

Discussion in 'Switch - Console, Accessories & Hardware' started by Ararage, Jan 18, 2019.

  1. Ararage
    OP

    Ararage Member

    Newcomer
    2
    Jan 13, 2019
    Finland
    Hi!

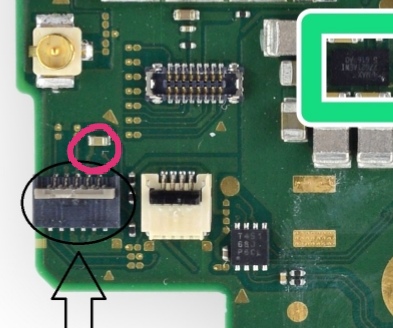

    I bought broken switch from ebay some time ago and it was missing one capacitor near the microSD card socket connector. Would somebody be so kind to measure the capacitor (pink circle) from their own switch if possible.

    Thank you really much!

    IMG_20190118_205729.

  2. mattytrog

    mattytrog You don`t want to listen to anything I say.

    Member
    13
    Apr 27, 2018
    United Kingdom
    0.68uF 0402 6.3 MLCC cap.

    Smoothing capacitor. Value not too critical. Don`t go any lower than 0.68uF :)

    jul2003, Ararage and HtheB like this.
  3. Ararage
    OP

    Ararage Member

    Newcomer
    2
    Jan 13, 2019
    Finland
    Thank you very much ! You are a real hero! :)

    mattytrog likes this.
  4. DaveLister

    DaveLister GBAtemp Advanced Fan

    Member
    6
    Apr 27, 2018
    Afghanistan
    lv426
    Mega Hero ! Honorary owner of the Interwebs.

    Ararage likes this.
  5. Deant

    Deant Member

    Newcomer
    1
    Oct 15, 2019
    Australia
    I brought a faulty switch and the right joycon connector has been melted when they have replaced the battery ic. Is there anywhere you can buy them or any alternatives to connect it ? Thanks in advance
