Help 3DS XL dump (something went wrong)

Discussion in '3DS - Console, Accessories and Hardware' started by RayFirefist, Sep 8, 2015.

  1. RayFirefist
    OP

    RayFirefist Maki is love, Maki is life <3

    Member
    134
    45
    Sep 8, 2015
    Italy
    *Error 403 Forbidden*

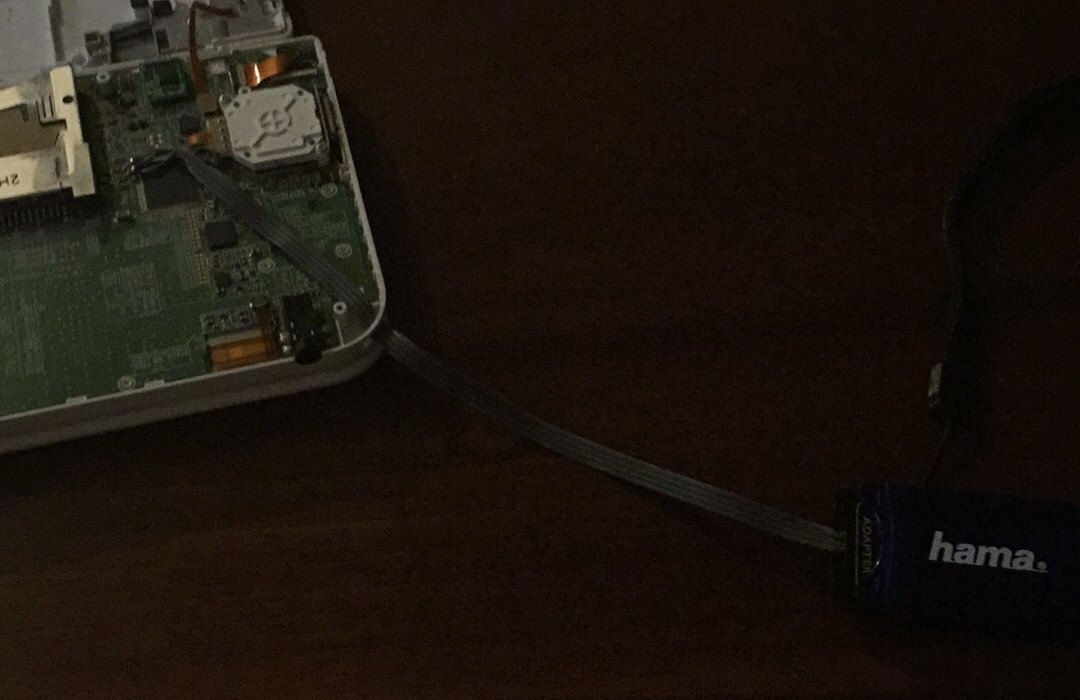

    I tried to downgrade my 3DS XL into 9.2 version, and it downgraded successfully, but after reboot, it returns into error image.jpg


    I read somewhere, the wires must be under 15cm, and that is >15cm but PC have found them...
    I checked all wires and all are right.

    Can someone help me??

    (1st, I'm a newbie on this forum
    2nd, sorry but my English isn't perfect, but good I think...)

  2. tivanh

    tivanh GBAtemp Regular

    Member
    110
    40
    Sep 14, 2009
    Looks like a hardware error to me.

    You flashed your own previous 9.2 nand backup/dump right? If you used a doner nand or nusd download it will fail?

    It should boot unless connected.

    The only time i see blue screen like this, is when people fudge their hardware based nand mods.

    Remove it and clean up any of your excess solder and see if it boots?

  3. LameNobody

    LameNobody Weighted Companion Cube Enthusiast

    Member
    457
    234
    Jan 23, 2015
    Canada
    127.0.0.1
  4. RayFirefist
    OP

    RayFirefist Maki is love, Maki is life <3

    Member
    134
    45
    Sep 8, 2015
    Italy
    *Error 403 Forbidden*
    The error is:
    Code:
    00F800EF
    FFFFFFFF FFFFFFFF
    00000024 00000000
    And, no... I didn't posted into Hardware section...

    — Posts automatically merged - Please don't double post! —

    H
    I checked the solders and all are right...
    Yesterday I downgraded into 9.2 version successfully, but, after reboot, that error...
    Maybe must I remove solders?

  5. MrMandraque

    MrMandraque GBAtemp Regular

    Member
    116
    21
    Jun 22, 2015
    France
    I have seen this... you had touch anything other solder points, or your NAND should be partially unsoldered... bad contact, short circuit.

    DAT line(s) are connected to GND

    Code:
    00F800EF
    FFFFFFFF FFFFFFFF
    00000024 00000000
    i "semi" resolved this probleme with a big magnifying glass, a soldering iron, soldering flux and 3 hours of work....
    the problem was, i had touch the chip, (less 1 seconde) with the soldering iron, beside the soldering point...
    i hope you understand i write... sorry for my english.
