Hardware GBA speaker noise fixed!

malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
hello.

i have 2 GBA and one of them have weirdly loud speaker noise.

it is low frequency noise, and weirdly its loud regardless volume! even i turn volume completely off, it's still there and static. loudness of the noise doesn't louder when i turn volume higher.

same when using earphones.

this time i don't know why causes the problem, but here's my fix :

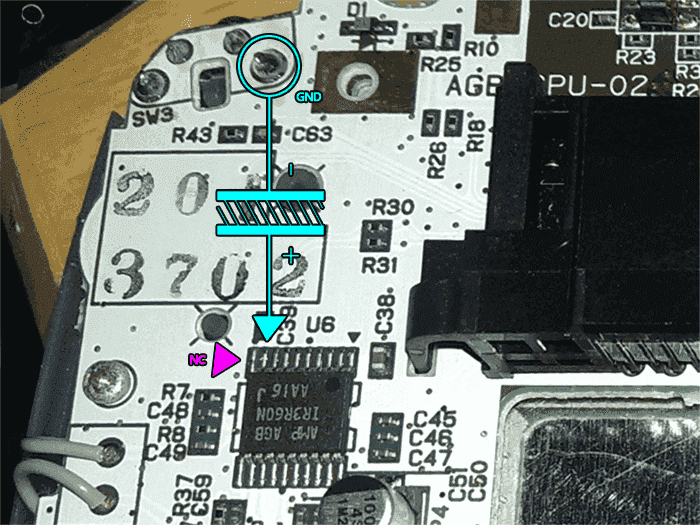

(picture from Ozito)

see right side above the volume.



there is AMP AGB IR3R60N sound amplifier chip which very little known.

using some wire, put a medium size capacitor (i used spare 16V 100uF) to second left leg(description below) and gnd.

about the leg, AMP AGB has 18 legs(9 of each side), but mother board has 20 leg holders(10 of each). since chip aligned right side, first holding point doesn't soldered anything(NC) and second point soldered first leg of sound chip. that's the one. i recommend solder the leg(2nd) with NC(1st) together. it will be easier and hold the wire firmly.

now it doesn't have any noise even i put my ear to speaker. even quieter than normal one.

if you bother noise, try this.

FYI : AMP AGB also used on GBA SP too, so if you have same problem with SP, it will be works either.

Last edited by malheur,

slaphappygamer

Well-Known Member
Member
Joined
Nov 30, 2008
Messages
3,653
Trophies
1
Age
45
Location
California
XP
4,913
Country
United States
Cool find. I had a similar problem where I had background humming through the headphones only and at about mid-level volume. I ended up turning the volume almost all the way up (on the console) and using headphones with an inline volume control to level it out. You seem to have the better fix, I'm just not good at soldering.


rs1n

Well-Known Member
Member
Joined
Jul 26, 2013
Messages
298
Trophies
0
XP
1,108
Country
United States
I notice some low-sounding buzzes when I use headphones. This looks pretty much like a low-pass filter for the sound chip. I will have try this on my GBA to see if it helps.


Le_Gogh

Member
Newcomer
Joined
Oct 19, 2016
Messages
21
Trophies
0
Age
35
XP
45
Country
Just thought I'd report in that I attempted this on my 32 pin GBA and it worked like a charm. I don't believe the issue was there before I did the backlight mod, so assume this is a side effect of the mod?

Anyway, thanks a lot for working this out! It works great and took me all of 5 minutes to do.


malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
Does this also work with a 220uF capacitor?

usually they say large capacitancy capacitor absorb low frequency noise, and small capacitancy capacitor absorb high frequency noise. so, if you use large capacitor for high freq noise, it will be not working well i guess.

though, i believe in this case, it will works.

Last edited by malheur,

The Real Jdbye

*is birb*
Member
Joined
Mar 17, 2010
Messages
21,980
Trophies
3
Location
Space
XP
11,188
Country
Norway
hello.

i have 2 GBA and one of them have weirdly loud speaker noise.

it is low frequency noise, and weirdly its loud regardless volume! even i turn volume completely off, it's still there and static. loudness of the noise doesn't louder when i turn volume higher.

same when using earphones.

this time i don't know why causes the problem, but here's my fix :

View attachment 69803
(picture from Ozito)

see right side above the volume.

View attachment 69802

there is AMP AGB IR3R60N sound amplifier chip which very little known.

using some wire, put a medium size capacitor (i used spare 16V 100uF) to second left leg(description below) and gnd.

about the leg, AMP AGB has 18 legs(9 of each side), but mother board has 20 leg holders(10 of each). since chip aligned right side, first holding point doesn't soldered anything(NC) and second point soldered first leg of sound chip. that's the one. i recommend solder the leg(2nd) with NC(1st) together. it will be easier and hold the wire firmly.

now it doesn't have any noise even i put my ear to speaker. even quieter than normal one.

if you bother noise, try this.

FYI : AMP AGB also used on GBA SP too, so if you have same problem with SP, it will be works either.
I have a similar problem with my GBA SP, maybe it's the same? I don't think I'll be arsed to try this fix though, plus I don't trust my soldering skills. I never use my GBAs anyway.


ltsheppard

Active Member
Newcomer
Joined
Aug 27, 2015
Messages
31
Trophies
0
Age
31
XP
64
Country
Gambia, The
I guess I'll just get a 100uF one.

On another note, do any of you guys know if the GBA SP speakers are any better than the original ones? I've got a spare one lying around, but I can't really test them side by side.

Last edited by ltsheppard,

malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
do any of you guys know if the GBA SP speakers are any better than the original ones?

actually the original one is the best one. there are few other compatible speakers, but none of them have loud enough volume and total audio quality. i said "total" audio quality because GBA is using poor audio processor, so if you use very nice speaker with that poor processor, it makes worse(you can try with high-end earphone). original speaker emits only needed frequency and absorb others, so in whole package-wise, it's best.

but if you really want to try, there is extra amplifier doughter board and speaker. like GBAmp3. but it's not getting a lot better with speaker quality(though volume will be louder). usually they say it's good for source-wise for using gameboy as musical instrument.

  • Like
Reactions: LarryD

Peeteris

Well-Known Member
Newcomer
Joined
Mar 7, 2017
Messages
48
Trophies
0
Age
42
XP
134
Country

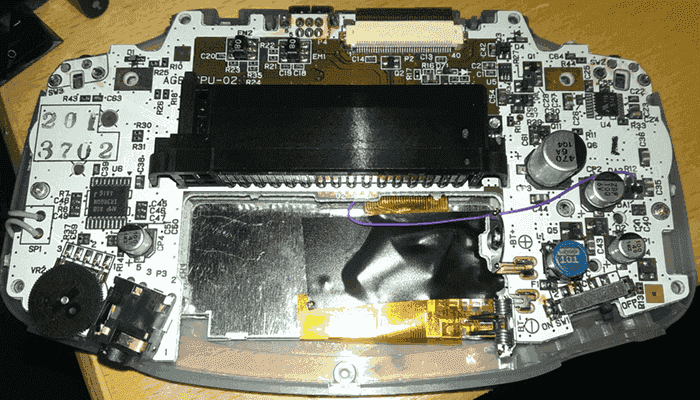

So, I soldered 16V 100uF capacitor as showed in image.
Noise is greatly reduced, but still there.
There's a thing, though - when I power on my GBA, startup jingle is distorted, if I turn console off and on instantly, jingle is clear. could this be because of bad capacitor? As if it needs to collect energy to work properly. I can ignore this, as distortion is apparent only when system boots up and fades out gradually.

There's the other thing - I think max volume is decreased after this mod. Could this be true?
Is there a way to increase the volume of my GBA?


Peeteris

Well-Known Member
Newcomer
Joined
Mar 7, 2017
Messages
48
Trophies
0
Age
42
XP
134
Country
So, I uploaded a video to show off how loud is my GBA and that strange distortion on first boot-up jingle, but not on the second.
Maybe that's normal, I don't know so I am asking here for help. For me it doesn't look and sound like to be normal as volume is always turned to the max when I play my GBA.


malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
There's a thing, though & There's the other thing

so far i can't tell volume difference with mod or not by my bear ears, but may theres difference by measuring equipments.

as far i check and assume, cause of the odd audio noise is dry up capacitors. so i think the mod effects could be a little different by how bad original capacitors are.

about the volume, actually you can mod louder. since some time passed so i barely remember, but C39(or 38?) resistor affects the volume. higher ohm does louder volume and lower ohm does quieter. or the other way...? it has some flaw though.


Stremon

Well-Known Member
Member
Joined
Sep 30, 2014
Messages
206
Trophies
0
Age
39
Location
Nerima, Tokyo
Website
jbbongrand.blogspot.fr
XP
776
Country
France
That's seems a very good fix!
I have the same humming problem since I backlight modded my GBA, but I don't have any old capacitor around.
From your tests and experience, which capacitancy should I pick when buying one?
Seems like some people are using 100uF and other 220uF?


malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
From your tests and experience, which capacitancy should I pick when buying one?
usually they say large capacitancy capacitor absorb low frequency noise, and small capacitancy capacitor absorb high frequency noise.

i tried 100 and works good, but i think either 100 and 220 works similarly. since condition of each GBA may different, i suggest buy several ones between 50~1000 and try them. its very cheap. also if you put multipul capacitors in parallel, both capacitors absorb different noise depend different capacitency.

  • Like
Reactions: Stremon

Stremon

Well-Known Member
Member
Joined
Sep 30, 2014
Messages
206
Trophies
0
Age
39
Location
Nerima, Tokyo
Website
jbbongrand.blogspot.fr
XP
776
Country
France
i tried 100 and works good, but i think either 100 and 220 works similarly. since condition of each GBA may different, i suggest buy several ones between 50~1000 and try them. its very cheap. also if you put multipul capacitors in parallel, both capacitors absorb different noise depend different capacitency.
Thank you for your help, I will buy a pack of different capacitors and test that :D
Also I guess every capacitor should be for 16V right?


malheur

Well-Known Member
OP
Newcomer
Joined
Oct 11, 2016
Messages
58
Trophies
0
Age
42
XP
184
Country
every capacitor should be for 16V right?

actually i forgot to check working volt age of that chip... i think its not necessary that high voltage. high volt with high capacitor makes capacitor size big. i think 16v 220uF is the biggest size for closing the housing properly. for sure, using 16v ~220uF, and 6.3v 470uF~ will works.


RemixDeluxe

Well-Known Member
Member
Joined
Nov 23, 2010
Messages
4,583
Trophies
0
XP
2,504
Country
United States
A better mod would be finding a better quality speaker than the built in one. I'd be interested to know if better quality speakers exist, if it doesnt cost much to replace I'd try it out.


Peeteris

Well-Known Member
Newcomer
Joined
Mar 7, 2017
Messages
48
Trophies
0
Age
42
XP
134
Country
A better mod would be finding a better quality speaker than the built in one. I'd be interested to know if better quality speakers exist, if it doesnt cost much to replace I'd try it out.
Original speaker is the best one you can get, believe me.
