    What was the part called? I'm having a similar issue and I am going to replace it but I don't know the part's name or how I am supposed to put the part onto the console :(

  2. mk0155

    mk0155 Member
    Newcomer

    Joined:
    Jun 19, 2020
    Messages:
    13
    Country:
    Bahamas, The
    Great job

  3. atkins103

    atkins103 Newbie
    Newcomer

    Joined:
    Aug 15, 2018
    Messages:
    2
    Country:
    United Kingdom

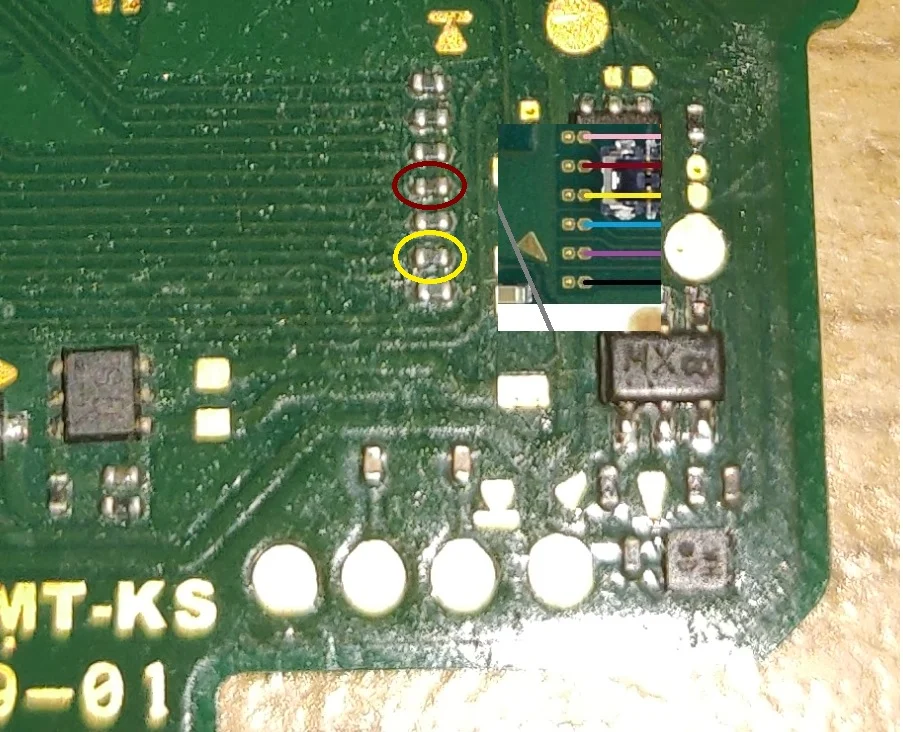

    Sorry to jump in. Which point on the back of the motherboard would the black dot be as I have ripped off the front points. Many thanks.


    Attached Files:

  4. XxShalevElimelechxX

    OP XxShalevElimelechxX GBAtemp Fan
    Member

    Joined:
    Mar 30, 2016
    Messages:
    446
    Country:
    Israel
    The connector I thought was the one wasn't it, so I can't help you, sorry.. :/

  5. thegremlinlives

    Newcomer

    Joined:
    Jul 24, 2020
    Messages:
    1
    Country:
    United Kingdom
    I want to know the same thing.
    I've got the black wire missing and the ground next to it. So unsure what needs to be done about the gnd.

  6. Tommy084

    Tommy084 GBAtemp Regular
    Member

    Joined:
    Feb 24, 2013
    Messages:
    124
    Country:
    Norway

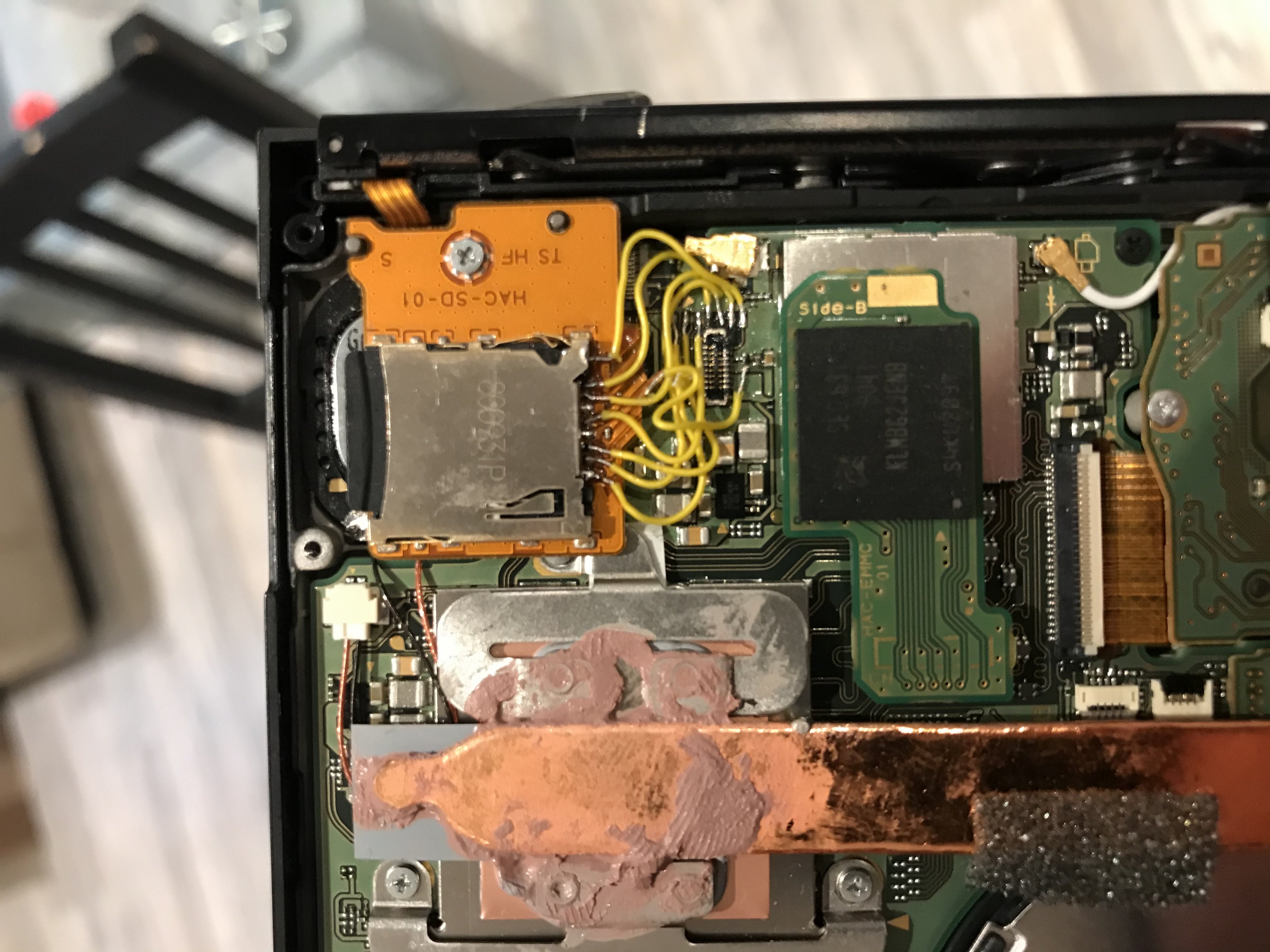

    Thanks for all the info about this fix, helped me a lot!! :)


    Attached Files:

    pedrosuarez and manchesterraver like this.
  7. newgen2005

    newgen2005 Advanced Member
    Newcomer

    Joined:
    Dec 6, 2015
    Messages:
    82
    Country:
    Nice job.

    I let someone attempt to solder mine, he wasn't successful. He said he solder wouldn't take to the via and the via broke.

  8. pedrosuarez

    pedrosuarez Member
    Newcomer

    Joined:
    Jul 28, 2020
    Messages:
    19
    Country:
    Uruguay
    Hello I am having the same problems and I am looking for which connection is gnd (green and / or gray line) and I would be very grateful if you could answer my questions, did you solder the green line to the sd reader as seen in the diagram? because in the photo you published it seems that it is not connected / soldered to the sd reader and apart from this, the gnd line (gray color) that you see in the diagram did you make that connection or not?
    Sorry my bad English I use the Google translator.


    Attached Files:

    Last edited by pedrosuarez, Sep 9, 2020
  9. Hayato213

    Hayato213 GBAtemp Guru
    Member

    Joined:
    Dec 26, 2015
    Messages:
    8,547
    Country:
    United States
    You have to post in English my friend, forum policy.

  10. pedrosuarez

    pedrosuarez Member
    Newcomer

    Joined:
    Jul 28, 2020
    Messages:
    19
    Country:
    Uruguay
    I put it in English but my autotranslator changed it to my language and published it like that but I have already corrected it.

  11. Tommy084

    Tommy084 GBAtemp Regular
    Member

    Joined:
    Feb 24, 2013
    Messages:
    124
    Country:
    Norway
    Hello there
    You are right, i didt solder the green line to the sd reader pin, but what i did was scratched of the flexi cable to make a solder point anywhere before the cap, in that way i didt have to come so nere the capicator,
    gnd is connected only with screw, didt have to solder anyting for that :)
    Hopes that helps, sorry late reply

    — Posts automatically merged - Please don't double post! —

    Thats a bomer, but it sould be via's on the other side to, have you treid that?

  12. pedrosuarez

    pedrosuarez Member
    Newcomer

    Joined:
    Jul 28, 2020
    Messages:
    19
    Country:
    Uruguay
    Thank you very much for all your help.

    So you did the solder for the green line but at another connection point.
    And the gray line I just tighten it to the sd reader screw.
    Did I understand well or am I wrong?
    The google translator sometimes doesn't translate the words well and I just want to make sure I have understood everything correctly.

    And can I know how you did to break the sd reader that way? Maybe if something goes wrong I will do the same but I don't want to break it incorrectly.
    And I only need a scissors, screwdrivers, soldering iron, a magnifying glass, alcohol and an awg copper wire?
    I am missing something or that would be all.


    Attached Files:

    Last edited by pedrosuarez, Sep 9, 2020
  13. Tommy084

    Tommy084 GBAtemp Regular
    Member

    Joined:
    Feb 24, 2013
    Messages:
    124
    Country:
    Norway
    No, there is no other. I just found the leed after i cuted the flex cable with a scissor. Scrathed it with a knife, cleaned and fluxed. There is your solder Point, you can see it in the pic if you zoom in.
    The gnd i totally ignored, it gets gnd when it’s in the right place with the screw connected to the console gnd.
    Was that clearer?
    And a new sd reader is around 5$;)
    The only think i want to stress is to be careful when soldering too the test pads, pre bend the wire, I used a lot off superglue after I took the pic.
    Good luck

    pedrosuarez likes this.
  14. D4CEOS

    D4CEOS Newbie
    Newcomer

    Joined:
    Nov 12, 2020
    Messages:
    1
    Country:
    Mexico
    Hello, i was trying to solder pin from the microSD connector to the board, but i damage the piste in the board, on the image the color of the damage piste is purple , please help me,¿ in what
    capacitor solder the jumper and in what side right or left ?,
    and if I damage the capacitors, ¿what value have?, or where buy a replacement from the capacitors.

    thanks for the help ruined SD points_3.jpg

  15. Quyet96

    Quyet96 Newbie
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    4
    Country:
    Germany
    Hello
    Can you tell me what you did with the red line? It looks like it is not connected anywhere

  16. Tommy084

    Tommy084 GBAtemp Regular
    Member

    Joined:
    Feb 24, 2013
    Messages:
    124
    Country:
    Norway
    I didt touch the red one, as it goes to the resistor, but what i did was, make a other solder point after the resistor on the flex cable, and solder it the green line

  17. Quyet96

    Quyet96 Newbie
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    4
    Country:
    Germany
    There is a resistor on the red line? Do you mean the capacitor?

  18. Tommy084

    Tommy084 GBAtemp Regular
    Member

    Joined:
    Feb 24, 2013
    Messages:
    124
    Country:
    Norway
    Yeye, sorry. Capacitaror

  19. Quyet96

    Quyet96 Newbie
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    4
    Country:
    Germany
    Alright thank youI didn’t think about that
    I will try that now, Let’s see if it works

  20. Quyet96

    Quyet96 Newbie
    Newcomer

    Joined:
    Nov 26, 2020
    Messages:
    4
    Country:
    Germany
    Ok it worked for me
    I had to short the gnd of the reader to gnd of the switch though

    Tommy084 likes this.
