3DS unbricking progress

Discussion in '3DS - Flashcards & Custom Firmwares' started by krisztian1997, Jan 25, 2014.

  1. bkifft

    bkifft avowed Cuthwaldian

    Member
    598
    266
    Jun 10, 2010
    Gambia, The
    just a small addendum to the thread i've forgotten before: SD and (e)MMC are specced to work between 2.7V and 3.6V always. some devices support dropping to lower voltage in order to save energy (especially on mobile devices running on batteries/accumulator) but that's not mandatory.

    the init procedure up till the point where voltage is negotiated is to be done at 3.3V per specification (and that is signal as well as "energy transfer" voltage).



  2. samljer

    samljer GBAtemp Regular

    Member
    144
    29
    Oct 4, 2012
    Canada

    Wouldnt that also block any future updates from nintendo being possible?

  3. gamesquest1

    gamesquest1 Nabnut

    Member
    14,135
    9,478
    Sep 23, 2013
    well it would stop writing to the nand just changing any of the flags afaik....plus if you want flash cards or homebrew you wouldnt actually want any updates from nintendo XD

  4. profi200

    profi200 Banned

    Banned
    330
    216
    Sep 3, 2011
    Gambia, The
    If this bit is set, the 3DS is f***ed. A NAND replace doesn't work (not only because of the epoxy under the chip).

  5. samljer

    samljer GBAtemp Regular

    Member
    144
    29
    Oct 4, 2012
    Canada
    yeah, epoxy is no joke lol.

  6. Nightwish

    Nightwish GBAtemp Fan

    Member
    372
    203
    Oct 16, 2013
    Portugal
    Theoretically, setting it to RO would both stop updates and GW bricks, so you be free to use whatever EmuNAND flashcard and homebrew that you wanted forever.
    I'd never be the guinea pig, but it might work.

  7. gamesquest1

    gamesquest1 Nabnut

    Member
    14,135
    9,478
    Sep 23, 2013
    wonder if anyone would want to be XD

    actually we should tell the clone makers to test it....they have the most to gain from it if it works :P

    just to see what happened i set my emunand SD to write protected with the lil switch, still worked fine but i suppose its a whole different story switching the nand to read only.....also for some reason the emunand still wrote the steps counter, so it seems the 3ds with emunand will ignore the write protect setting on the SD but still gave me the "sd card is write protected" message

  8. kyogre123

    kyogre123 Mexican Pride

    Member
    2,919
    1,261
    Sep 23, 2013
    Mexico
    Guys, I have a question.
    What exactly does the bricker code does to the NAND? Does it only blocks the ability to be written? Is there a way (even if complicated) to read the data of the NAND even if it's secured in order to dump the NAND?

  9. AngryRussianKid

    AngryRussianKid GBAtemp Regular

    Member
    158
    23
    Jan 2, 2014
    Serbia, Republic of
    Hope for you, masters of unbrick

  10. R4iFanboi

    R4iFanboi Advanced Member

    Newcomer
    52
    35
    Dec 18, 2013
    United States
    Also, this might be last chance for GW to have some of its lost reputation back; If they release a solution for everyone to unbrick their 3DS.

    Sooner or later, a fix will be found and then you will have a choice.

    Pay $35 for a flashcard and have unbricking methods in hand.

    or,

    Pay $70 for a flashcard and have unbricking methods in hand.

    The ball is in your court GW team, play it wisely!


    In all honesty, GW team is all set to pull a runner. The GW maximum sales have been reached. If in future new exploits are found, they will make a new card, new name, new website, new emails, new proxies, new underpants, new everything.

  11. gamesquest1

    gamesquest1 Nabnut

    Member
    14,135
    9,478
    Sep 23, 2013
    it actually locks the nand, no reading, no writing, there's a theory that the password might be 0 lol but also might be per console specific key that would be impossible to brute force to unlock

  12. mlc

    mlc Member

    Newcomer
    14
    2
    Jan 20, 2014
    United States
    Thanks so much for making some progress on this! Even if it ends up being difficult for someone without soldering experience and the right hardware, at least we'll have a hope of salvaging some of these hackable models. Presumably there will be a full hack at some point in the future, but it would be nice to keep as many 4.1-4.5's operational as possible.

    I haven't even bothered to get a 3DS flash cart yet (mostly due to multirom, and Gateway's recent actions), but I quickly bought a compatible DS flashcart after getting my 3DSXL and I spend far more time playing with that. Although that's partially due to having a big backlog of DS games that I still wish to finish. (and I tired of carrying around 20 DS games a looong time ago... also I can't risk losing gems like TWEWY)

    Although we're lucky that the 3DS doesn't "need" hacks as much as the Vita, as it seems pretty clear that the 3DS will become Nintendo's flagship for this generation. (the Vita is hardly competition at all, and obviously "real" gamers will see the benefits of a handheld over a phone or tablet)

  13. jochem77

    jochem77 Member

    Newcomer
    20
    3
    Jan 18, 2014
    Netherlands

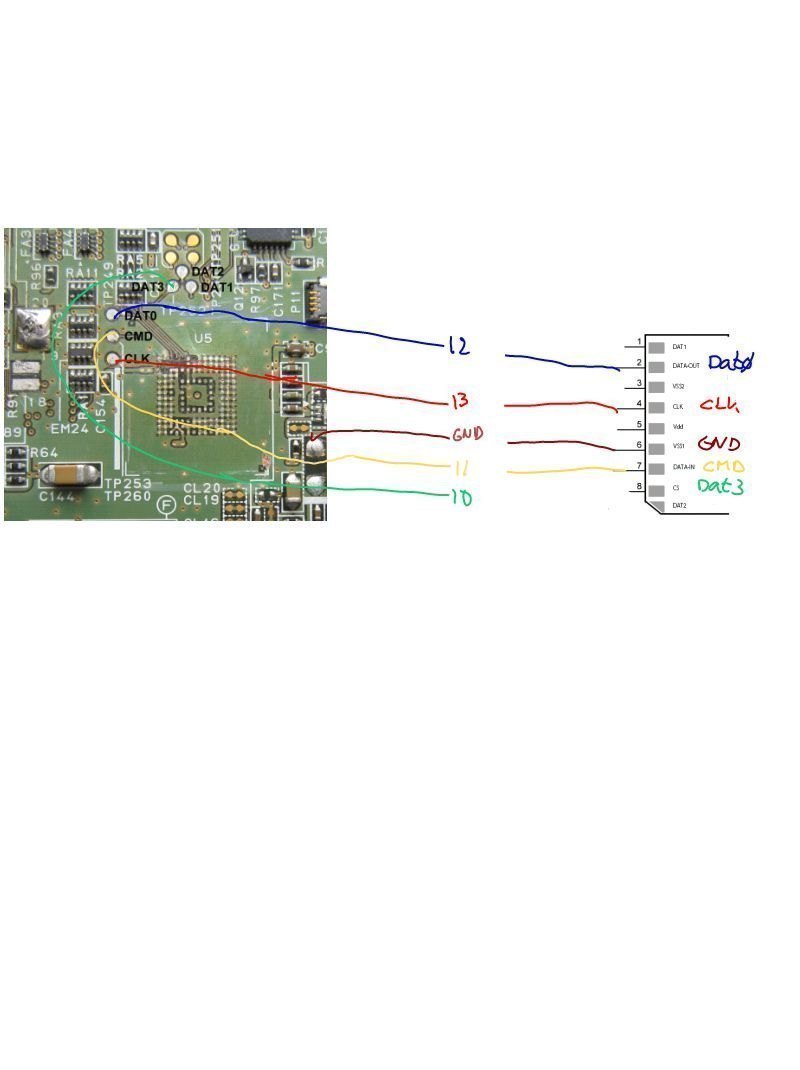

    Today i will try to force erase the nand using arduino and the code from kriztian1997. First i will solder 5 wires to my 3ds. The other end i put in a breadboard, so i don' t have to resolder wires to the 3ds. This way i can connect the arduino to erase the nand and after that i can connect the microsd adapter to flash the nand.
    Question: is it true that i don't need the 3.3v? Or do i have to turn the 3ds on to give the nand power?
    Vrije opmerking_20140126_123816_01.jpg

  14. krisztian1997
    OP

    krisztian1997 GBAtemp Fan

    Member
    369
    146
    Dec 14, 2013
    Romania
    WAIT, dont forget to lower the voltage to 3v3 from the arduino or you will fry your eMMC

  15. jochem77

    jochem77 Member

    Newcomer
    20
    3
    Jan 18, 2014
    Netherlands

    I know. I build a voltage divider on my breadboard like i did when testing on a sd card.

  16. krisztian1997
    OP

    krisztian1997 GBAtemp Fan

    Member
    369
    146
    Dec 14, 2013
    Romania
    Connect the GND from arduino to the GND from 3ds and then you can power up your console and use that as power for the NAND

  17. DarkKnigh_t

    DarkKnigh_t GBAtemp Fan

    Member
    409
    55
    Oct 30, 2013
    Croatia
    Zagreb, Croatia
    good luck with the attempt fingers crossed :)

  18. AngryRussianKid

    AngryRussianKid GBAtemp Regular

    Member
    158
    23
    Jan 2, 2014
    Serbia, Republic of
    Is it possible to unbrick 3DS without taking the motherboard outside? I mean the future. Can GW team release tutorial how to fix console.

  19. gamesquest1

    gamesquest1 Nabnut

    Member
    14,135
    9,478
    Sep 23, 2013
    Goodluck :)

    I'm sure if this all works as planned people will start offering a unbricking service, for people who aren't confident soldering, it will also require an arduino to Unbricking aswell, so probs would be best for most people to ship to someone local who has everything required

  20. krisztian1997
    OP

    krisztian1997 GBAtemp Fan

    Member
    369
    146
    Dec 14, 2013
    Romania
    Not really, as I mentioned before it would be possible to create a bottom case what you can put on after unscrewing the original battery case and bottom case and unbrick and flash the nand backup back, but not sure if anyone will create that, I searched last night for 3ds bottom cases but I cant find anything sold in bigger quantities, the pogo pins and the arduino chip would be easy to get in bigger quantities, but not the bottom cases.
