2DS not recognized by win32diskimager

Discussion in '3DS - Flashcards & Custom Firmwares' started by Pacmcmax, Aug 2, 2016.

  1. Pacmcmax
    OP

    Pacmcmax Newbie

    Newcomer
    8
    3
    Aug 2, 2016
    Gambia, The
    Hello there

    I bought a used 2DS from ebay hoping it might have a older firmware installed
    sadly it was 11.0.03E

    so I tried using this tutorial here to do a Dump and then later downgrade it
    https://gbatemp.net/threads/tutoria...ping-2ds-3ds-3ds-xl-n3ds-n3ds-xl.414498/#o3ds

    here some infos
    -2ds boots normally when franken DS is not inside of card reader

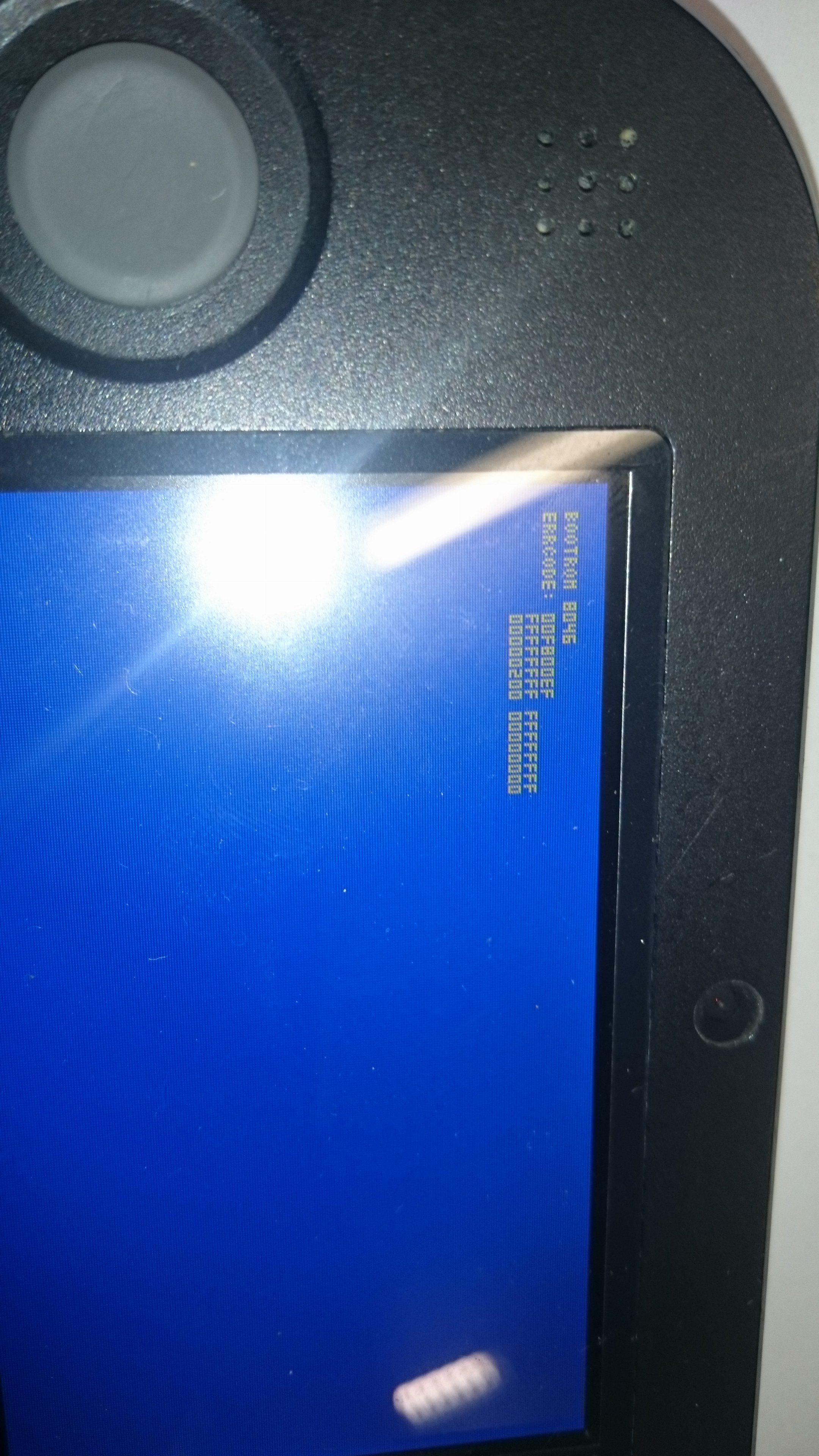

    -2ds shows 00F800FE 00000000 00000000 00000200 00000000 when plugged in sd card reader (reader not connected to pc)

    but im not able to choose a device in win32diskimager

    here are some pictures

    hope you guys can help me out here :)
    DSC_0066.JPG DSC_0067.JPG

  2. Skyshadow101

    Skyshadow101 The Sky Is The Limit!

    Member
    926
    319
    May 22, 2016
    United States
    The Underground
    You need to use an external sd card reader. Then plug the sd in, and turn on the 2ds. After the 2ds shows the blue screen, plug the reader into your computer. It should read it. Make sure to do your research to see which readers work with your NAND.

    Sent from my Browser on a New 3DS XL with A9LH

  3. Pacmcmax
    OP

    Pacmcmax Newbie

    Newcomer
    8
    3
    Aug 2, 2016
    Gambia, The
    I tried 4 differnt sd card readers with your described method all were external but none of them made my computer accept the 2ds as device with a letter.

    The internal sd card reader of my laptop at least made me choose the device in win32diskimager but reading is not possible win32diskimager just crashes.

    Could it really be the sd card adapter ? I already ordered one of the rwcommended adapters on amazon but i just want to exclude all other possibilities which may cause the nand dump not working.

    Peace Max

  4. vb_encryption_vb

    vb_encryption_vb That hardmod guy....

    Member
    1,873
    896
    Nov 21, 2015
    United States
    Acworth, GA

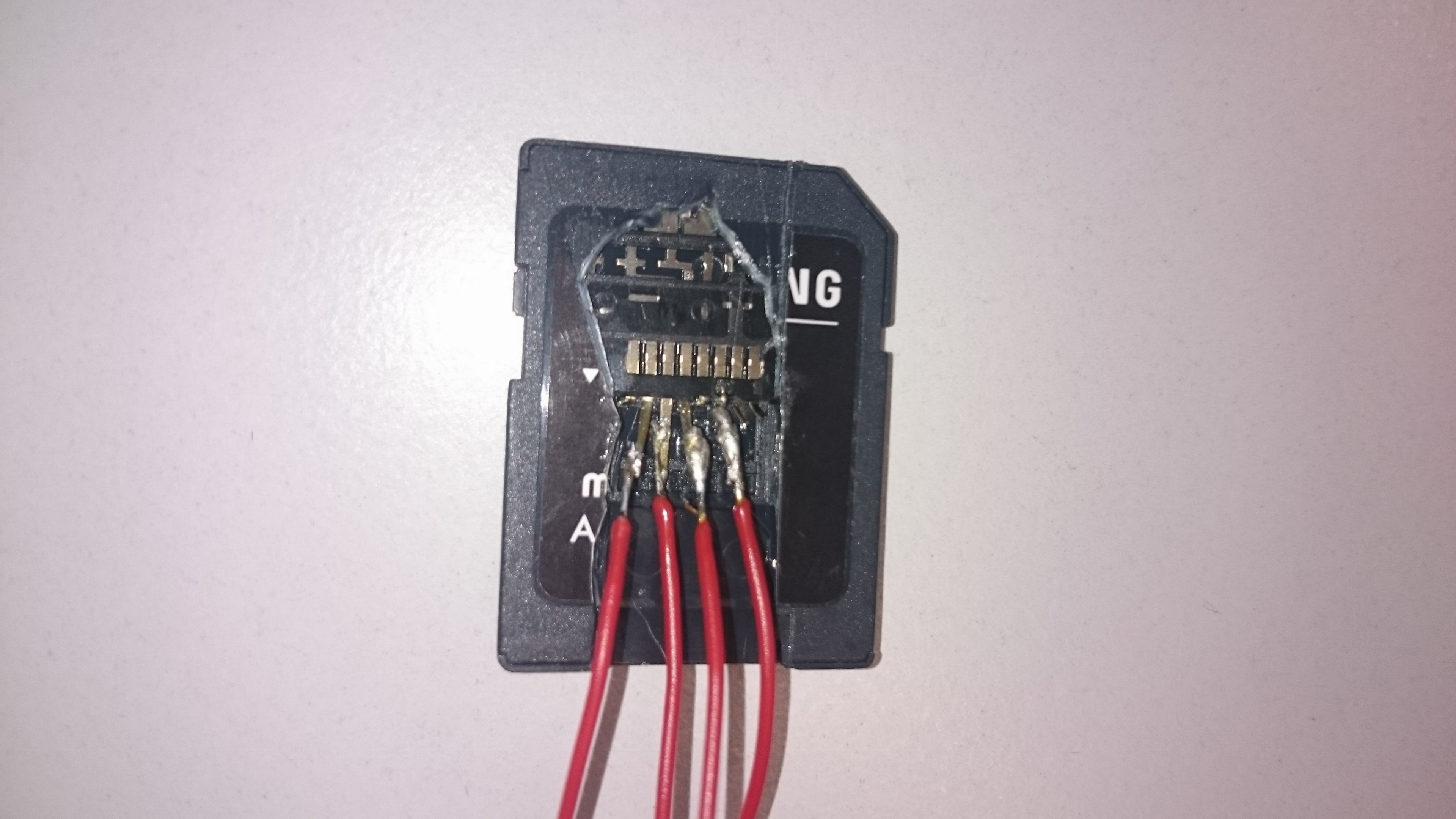

    Soldering looks pretty bad, far left side is possibly bridged or at least making a friction contact.

  5. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    I also have made hardmod to my 2DS. I get a stable 400 error every time I plug the SD adapter into my recomended by the guide transcend card reader. There is no way to get a device letter into windows or linux. System boots perfectly, when the SD adapter is connected system always gets a 400 error screen in the bootrom. Still no chance. I have been advised to do it with 7 wires, but that is overkill for me.

  6. vb_encryption_vb

    vb_encryption_vb That hardmod guy....

    Member
    1,873
    896
    Nov 21, 2015
    United States
    Acworth, GA

    Check your ground.

  7. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    It's soldered into the SD slot. Should I check an alt gnd?

  8. vb_encryption_vb

    vb_encryption_vb That hardmod guy....

    Member
    1,873
    896
    Nov 21, 2015
    United States
    Acworth, GA

    Possibly, or its the reader.

  9. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    I have three readers, but the good one is the transcend TS-RDP8K recommended by the hardmod guide.

  10. zoogie

    zoogie simple pimp tool

    Member
    6,345
    8,044
    Nov 30, 2014
    United States
  11. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    As I may like to have that one, I had trouble to find one to shipping it to spain.

    EDIT: Wellp, it's already ordered. Let's pray for the best.

    Last edited by Urbanshadow, Aug 3, 2016
  12. Pacmcmax
    OP

    Pacmcmax Newbie

    Newcomer
    8
    3
    Aug 2, 2016
    Gambia, The
    Recieved my anker sd card adapter
    Worked on the first try :)

    Hope you recieve your device soon urbanshadow

    Good luck

  13. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    Nah not soon. About 23rd this month so... yeah. Glad to hear it worked for you!

  14. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    So I got the anker sd card reader and I get:

    Code:
    BOOTROM 8046
    ERRCODE: 00F800FE
    00000000 00000000
    00000400 00000000
    On my 2ds, but nothing shows up on windows or linux. Or when something shows, it does not work in win32diskimager.
    So, idk what might be wrong.

    Last edited by Urbanshadow, Aug 17, 2016
  15. Skyshadow101

    Skyshadow101 The Sky Is The Limit!

    Member
    926
    319
    May 22, 2016
    United States
    The Underground
    Did you do it yourself? See if anything is bridged.

    Sent from my Browser on a New 3DS XL with A9LH

  16. Urbanshadow

    Urbanshadow GBAtemp Maniac

    Member
    1,295
    473
    Oct 16, 2015
    I did it myself. Also checked about 30 times if something is bridged. System boots perfectly with the adapter out, thought.

  17. Skyshadow101

    Skyshadow101 The Sky Is The Limit!

    Member
    926
    319
    May 22, 2016
    United States
    The Underground
    That does seem odd. See if you sautered them in the wrong locations. Maybe one of them is in the wrong location. If not, pm vb_encryption_vb, and see if he can help you.

    Sent from my Browser on a New 3DS XL with A9LH
