Hello community. Can anyone say me what this for a card is? A fake? A clone? Any help is appreciated.

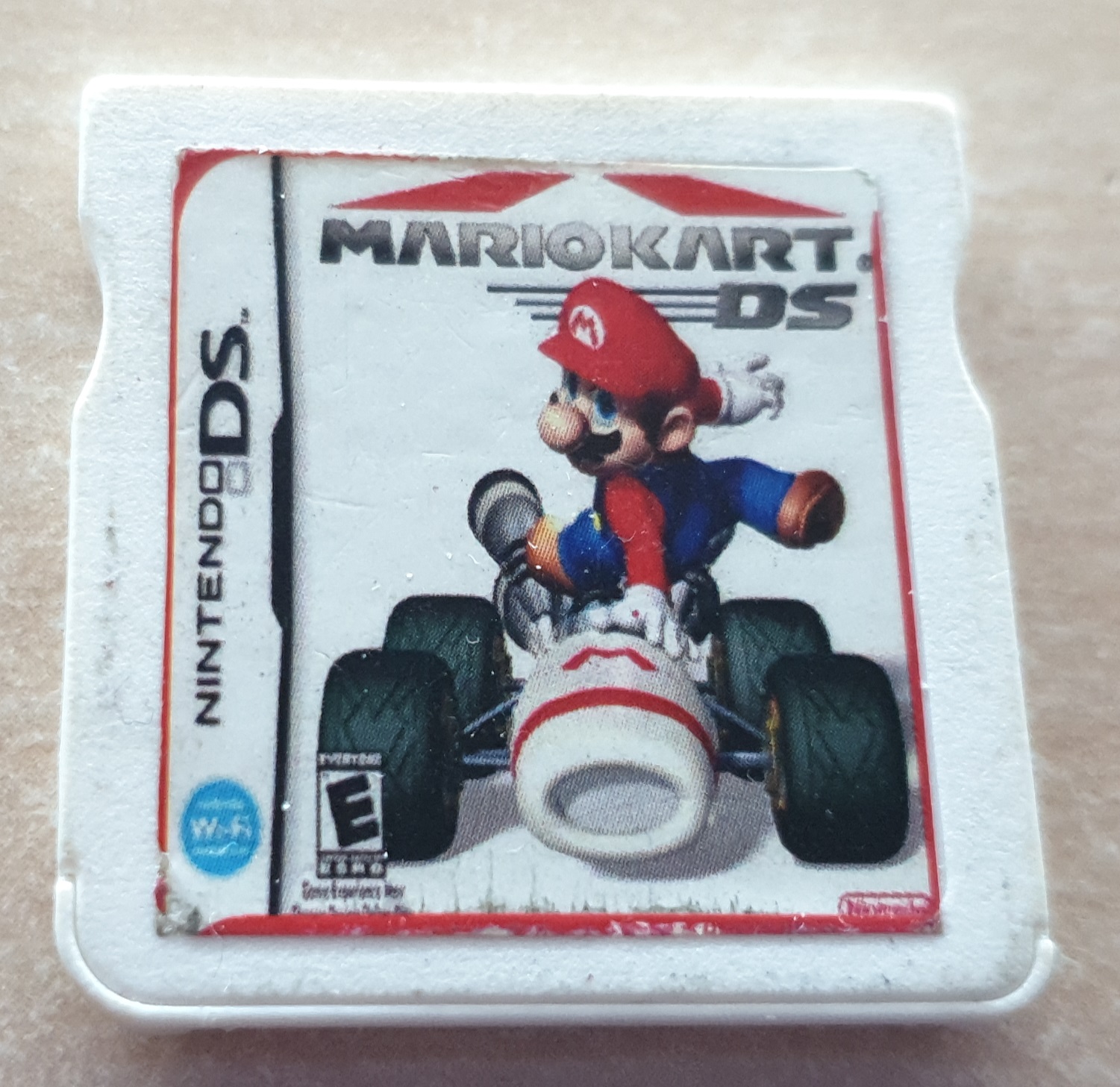

This is the front from the card.

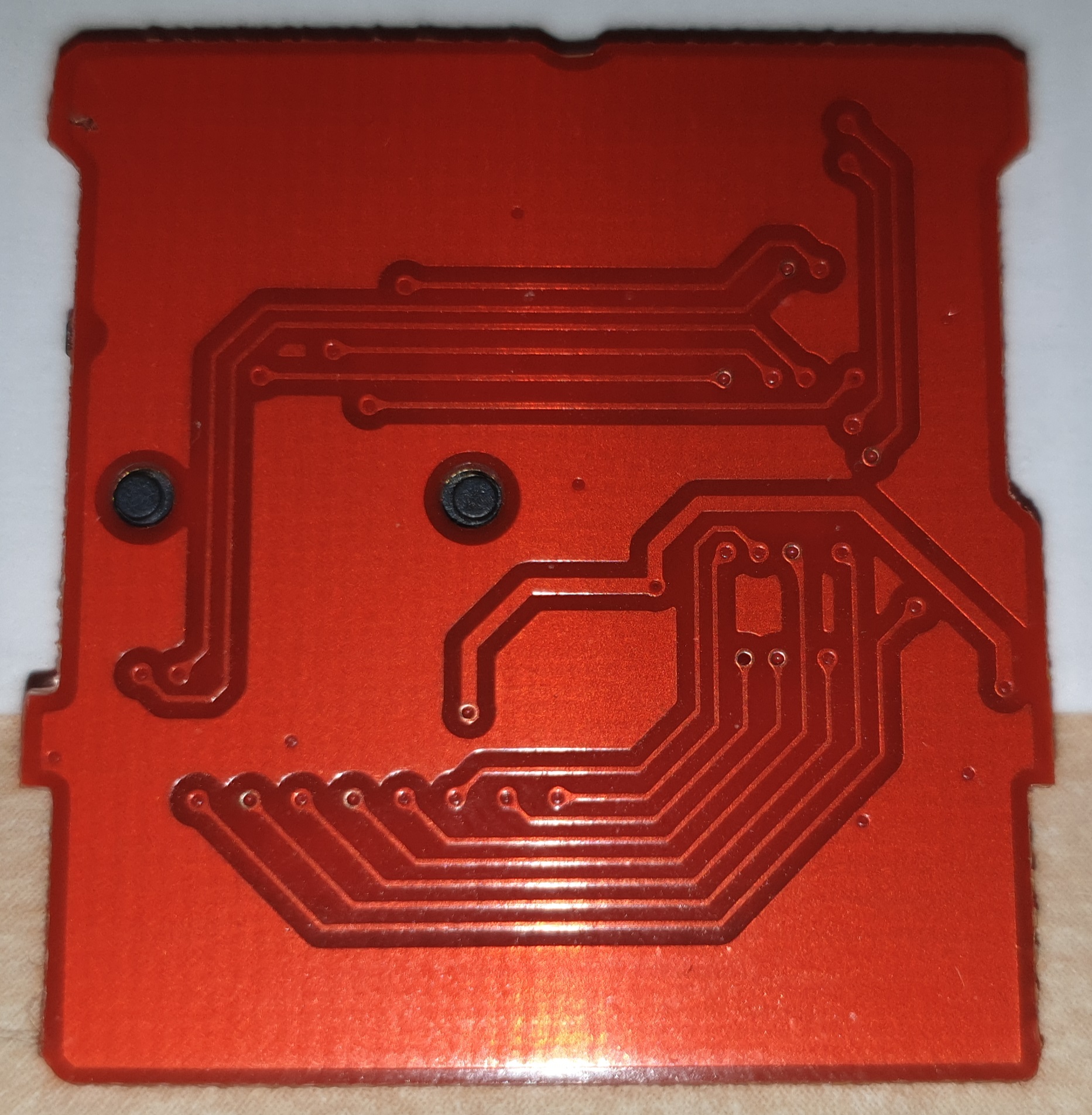

This is the pcb from the back.

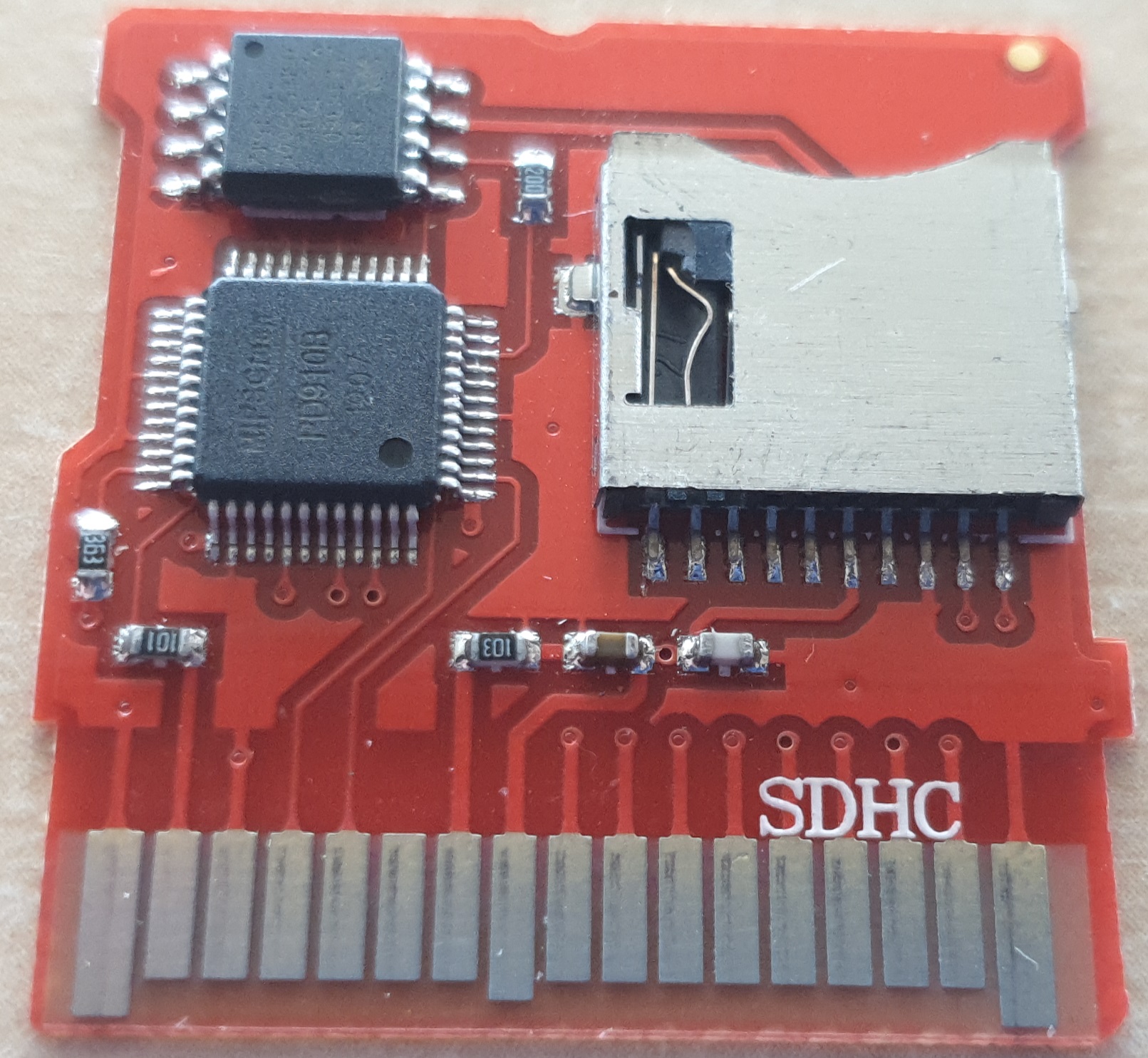

And the front from the pcb.

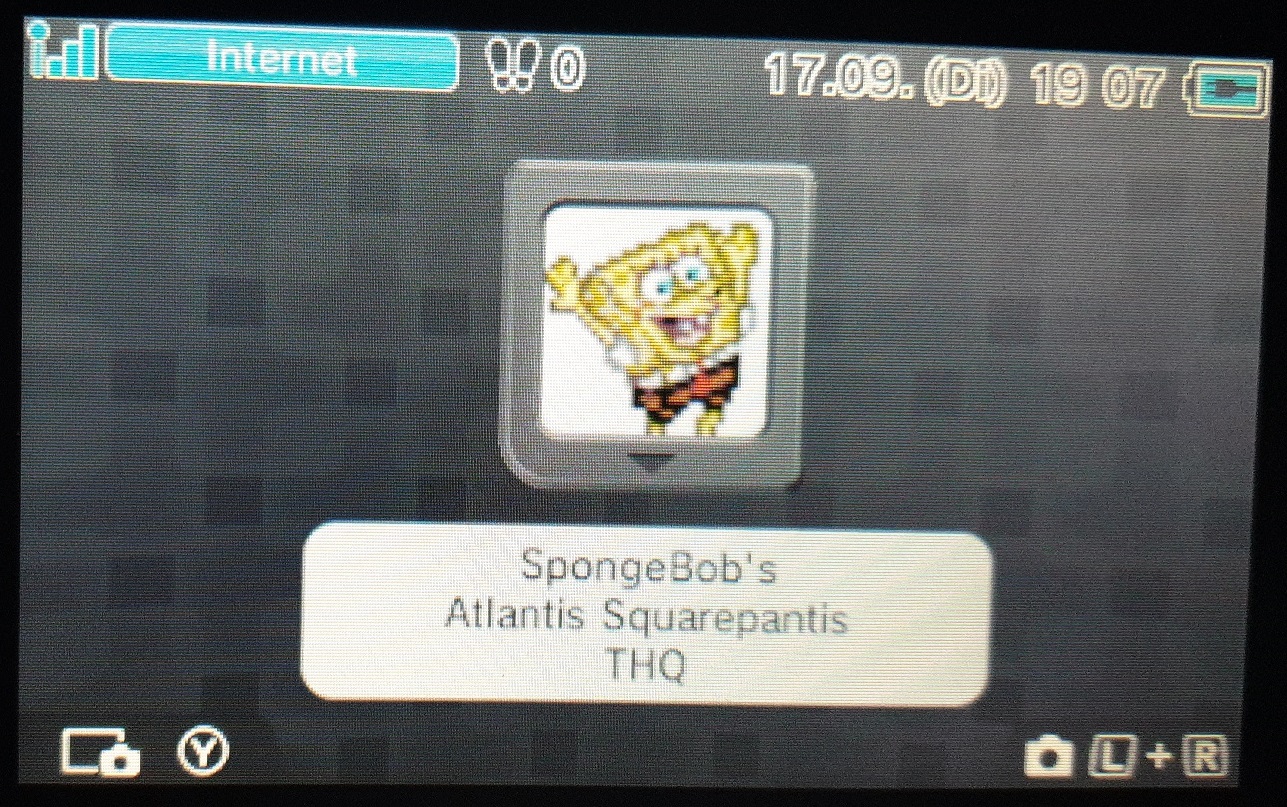

And the card is listed as a spongebob squarepants game in the 3ds home menu.

Its from a german forum called psxtools.de. And we are not really sure which model that is. Thanks in advance for your help.


hanasaku

Member
Newcomer
Joined
May 24, 2019
Messages
9
Trophies
0
Age
26
XP
119
Country
Canada
Yeah that's most likely a flash-cart, the micro SD slot and game being different is obvious sign. I think even the crummy label gives the whole thing away

But yes that is indeed a fake.

Last edited by hanasaku,

Vague Rant

Deceptively cute
Member
Joined
Aug 7, 2008
Messages
2,396
Trophies
0
Location
Melbourne
Website
vaguerant.tumblr.com
XP
2,541
Country
It looks like a DS-mode flash card, since there's a whole microSD slot right there on the board (helpfully labelled as SDHC). There's a lot of DS cards that masquerade as Atlantis Squarepantis, it could be a DSTT clone, some R4i-SDHC variant, etc.


hanasaku

Member
Newcomer
Joined
May 24, 2019
Messages
9
Trophies
0
Age
26
XP
119
Country
Canada
I mean have seen flash-carts that'll have masqueraded as multi-carts, but it being one game? thats pretty odd :/


ClancyDaEnlightened

GBAtemp Official Psychonaut
Banned
Joined
Jan 29, 2008
Messages
1,875
Trophies
1
Location
somewhere within 4 dimensional space-time
XP
2,629
Country
United States
its a fake card, if you go to ebay and many other places (Chinese retail), you'll find fake ds games or a bunch of 256, 512, 482 in 1 nds game cards, they're all just repurposed flash cards (r4 or dstt clone) with micro sd preloaded with games, this just looks like they took a flash card and just probably used it to boot mario kart ds, if thats was actually on it to begin with, r4 and dstt based clones cost cents to make nowadays (i got an r4i for 3 bucks free shipping), so its cheap to make a "fake/clone" ds card and make a simple profit.

  • Like
Reactions: IC_

The Catboy

GBAtemp Official Catboy™: Boys boys boys boys
Member
Joined
Sep 13, 2009
Messages
25,997
Trophies
3
Age
31
Location
In front of my Switch
XP
29,639
Country
Antarctica
It's not an R4i-SDHC/R4-SDHC, I can tell you that because I am very familiar with those boards.

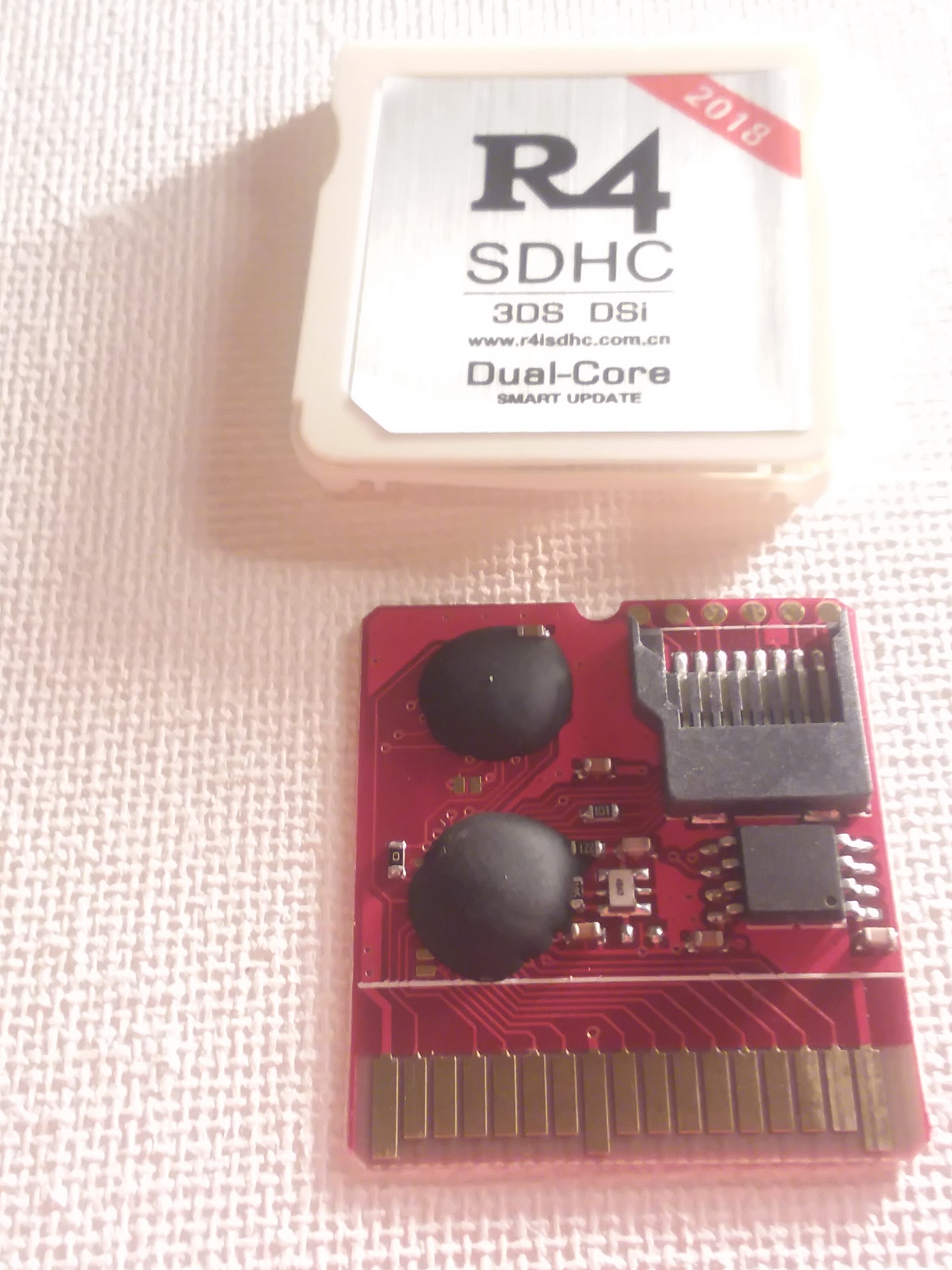

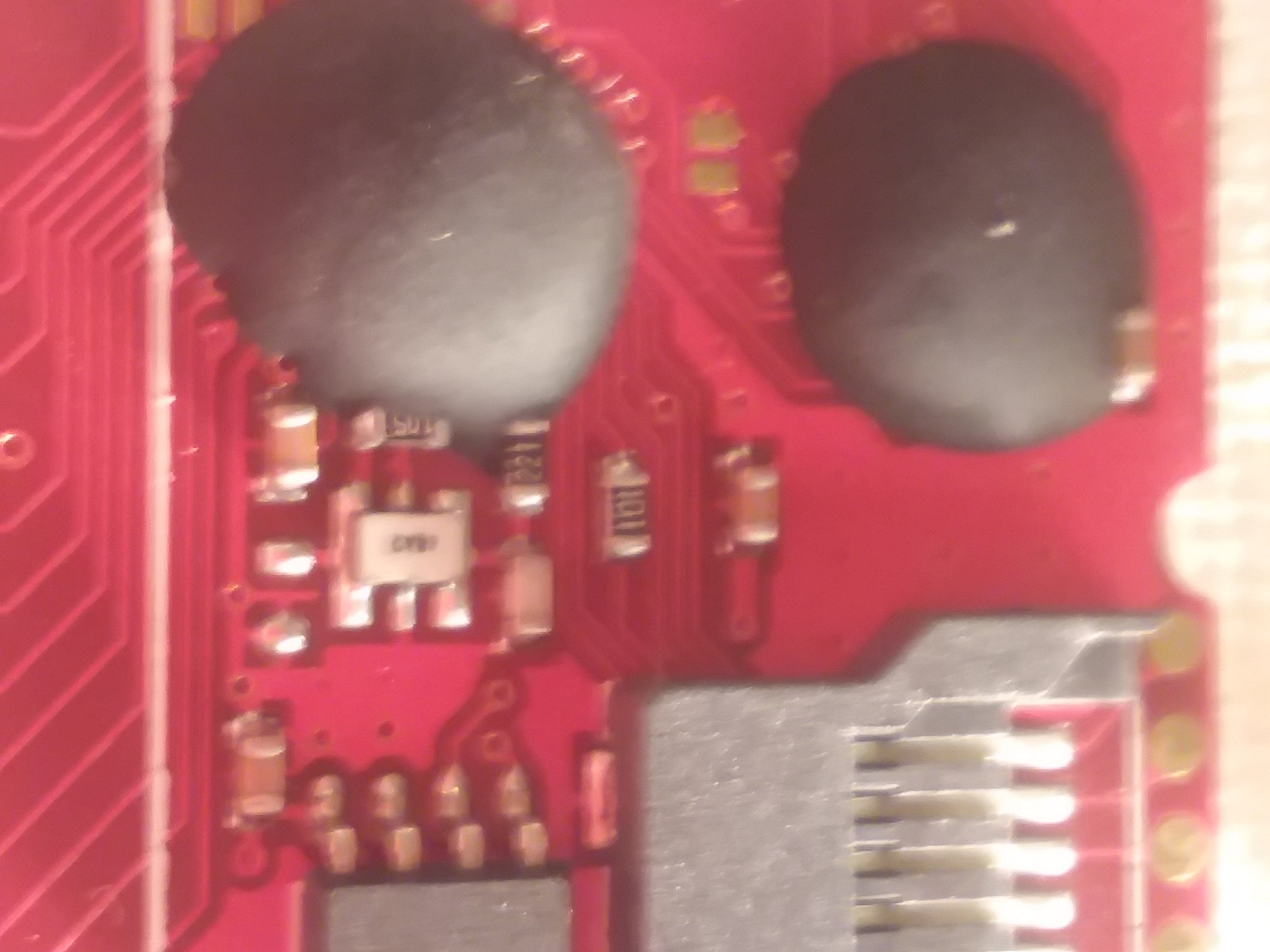

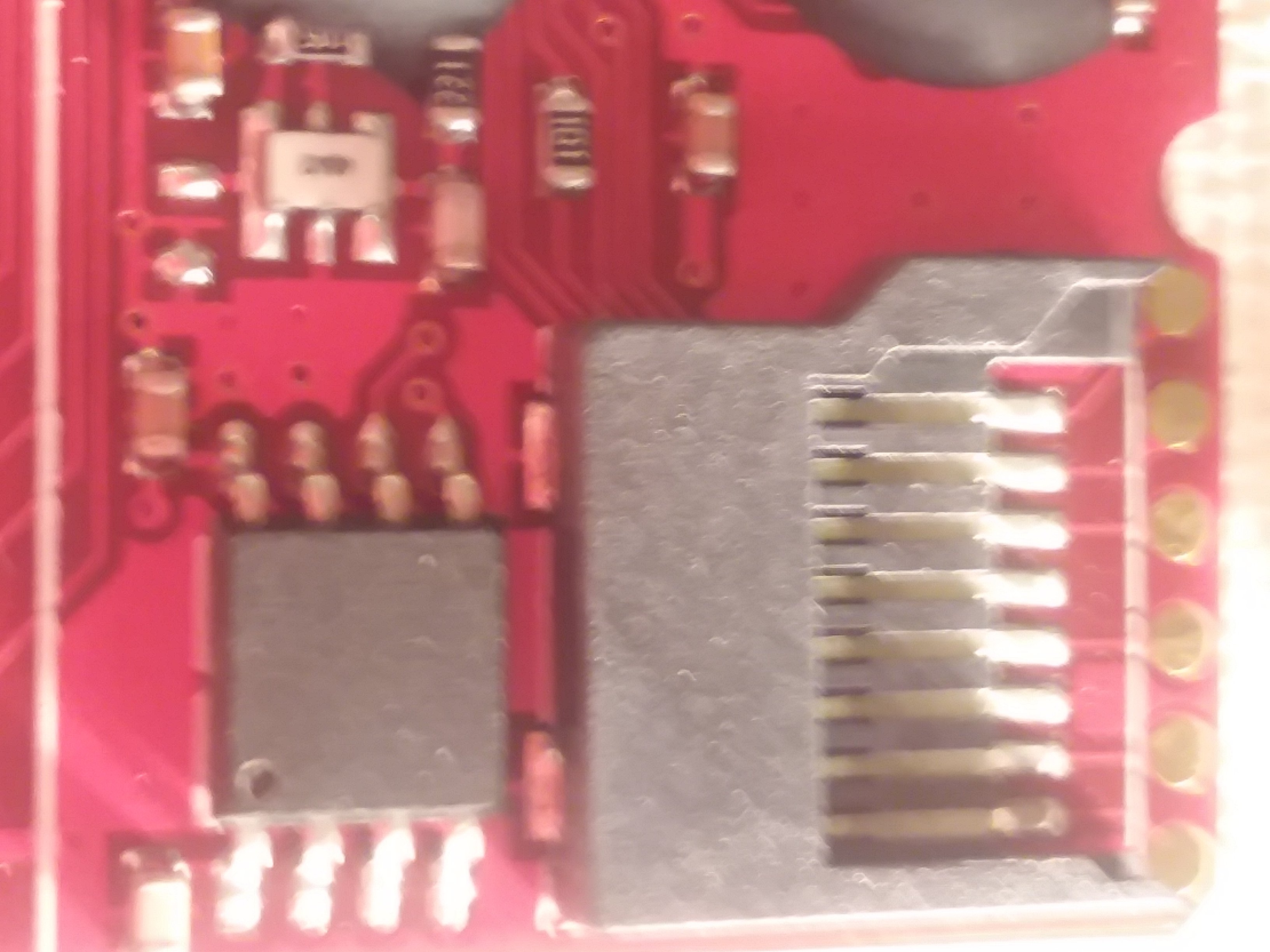

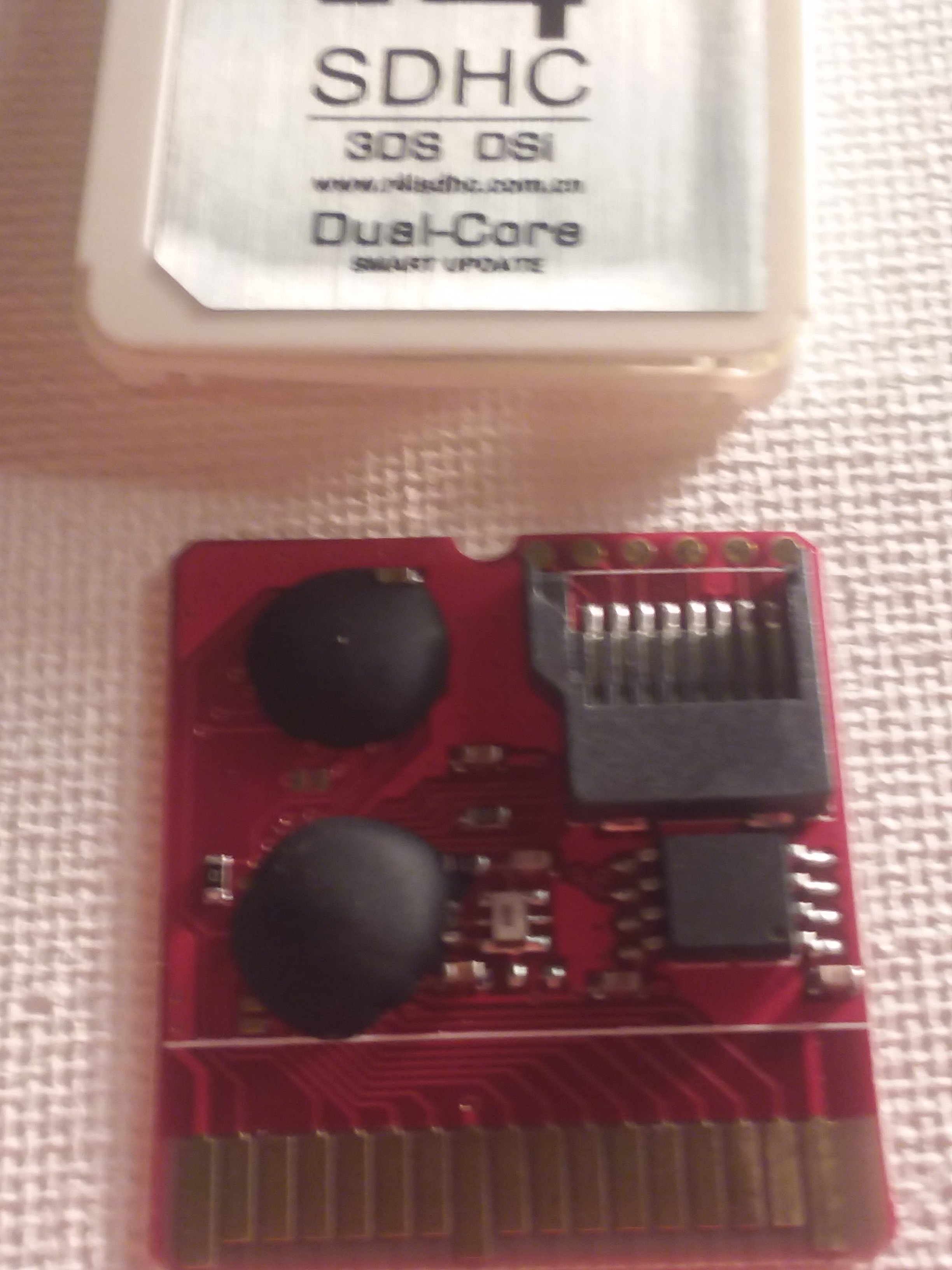

Something tells me that this is most likely an Ace3DS/R4 SDHC Dual-Core (r4isdhc.com.cn,) /R4i Gold-clone cart. The board looks close to the one I was playing with last year
20180810_235606.jpg 20180810_235610.jpg 20180810_235615.jpg 20180810_235629.jpg

Last edited by The Catboy,

ClancyDaEnlightened

GBAtemp Official Psychonaut
Banned
Joined
Jan 29, 2008
Messages
1,875
Trophies
1
Location
somewhere within 4 dimensional space-time
XP
2,629
Country
United States
Not very odd, a lot of flashcarts have the beginning of their memory look like a game in order to fool the 3DS and allow it to show on the menu and be launched.

its not really the actual game ( i.e alex stormrider, spongebob, or bomberman land touch) they just use malformed headers which just literally contain the logo, title, cart ID, and payload but when you launch it the header points to the flashcard's boot-loader payload instead of loading the game data(this bootloader is what actually boots your firmware file), this has been done since DSi, , thus why (99%) original nds cards don't work, either they have a "corrupted" (bad) header and rely on the original nds autoboot feature, some did have proper headers but showed up as a flash card on the ds menu, only due the ninty changing the order of how the console reads from cartridges, they can easily detect a flash card vs legit nds game card, nds and dsi/3ds effectively would see these as two different cartridges, with the latter blacklisting them


that card reminds me of darkfader's passme or or natrium42's dserial (the wild west days of home-brew when people still used GBA flash cards to boot nds software), it's probably a generic r4 or dstt clone, with a cpld used store the header and payload, and what looks like an eeprom, they didn't use glob top chip on board (which is actually cheaper though)

Last edited by ClancyDaEnlightened,

hakd88

Well-Known Member
Newcomer
Joined
Apr 19, 2019
Messages
60
Trophies
0
Age
32
XP
152
Country
Australia

The Catboy

GBAtemp Official Catboy™: Boys boys boys boys
Member
Joined
Sep 13, 2009
Messages
25,997
Trophies
3
Age
31
Location
In front of my Switch
XP
29,639
Country
Antarctica
I think that it is an Ace3DS or Ace3DS+. If you want, I can post the Ace3DS+ firmware here.
Those tend to be the most common clones, right next to the R4i-SDHC clones. I am not sure if all Ace+ all use the same binary launcher, but I do know they all use the same hacked version of Wood R4


Ryccardo

watching Thames TV from London
Member
Joined
Feb 13, 2015
Messages
7,406
Trophies
0
Age
27
Location
Imola
XP
6,387
Country
Italy
I mean have seen flash-carts that'll have masqueraded as multi-carts, but it being one game? thats pretty odd :/
r4isdhc.coms are so cheap and crappy (and so are small microSDs in bulk) they're likely cheaper than making actual custom roms (especially given that since the GBA, the chip holding the game is not just a rom but has "smarts" for sequential access, encryption since the DS, etc)
